Peristaltic Pump P1M/P2A Silicone Tubing | +CAD $43.77 |
Ai P2A 2L/min SST Peristaltic Pump Touchscreen controller ETL
Reference:
Manufacturer: Across International

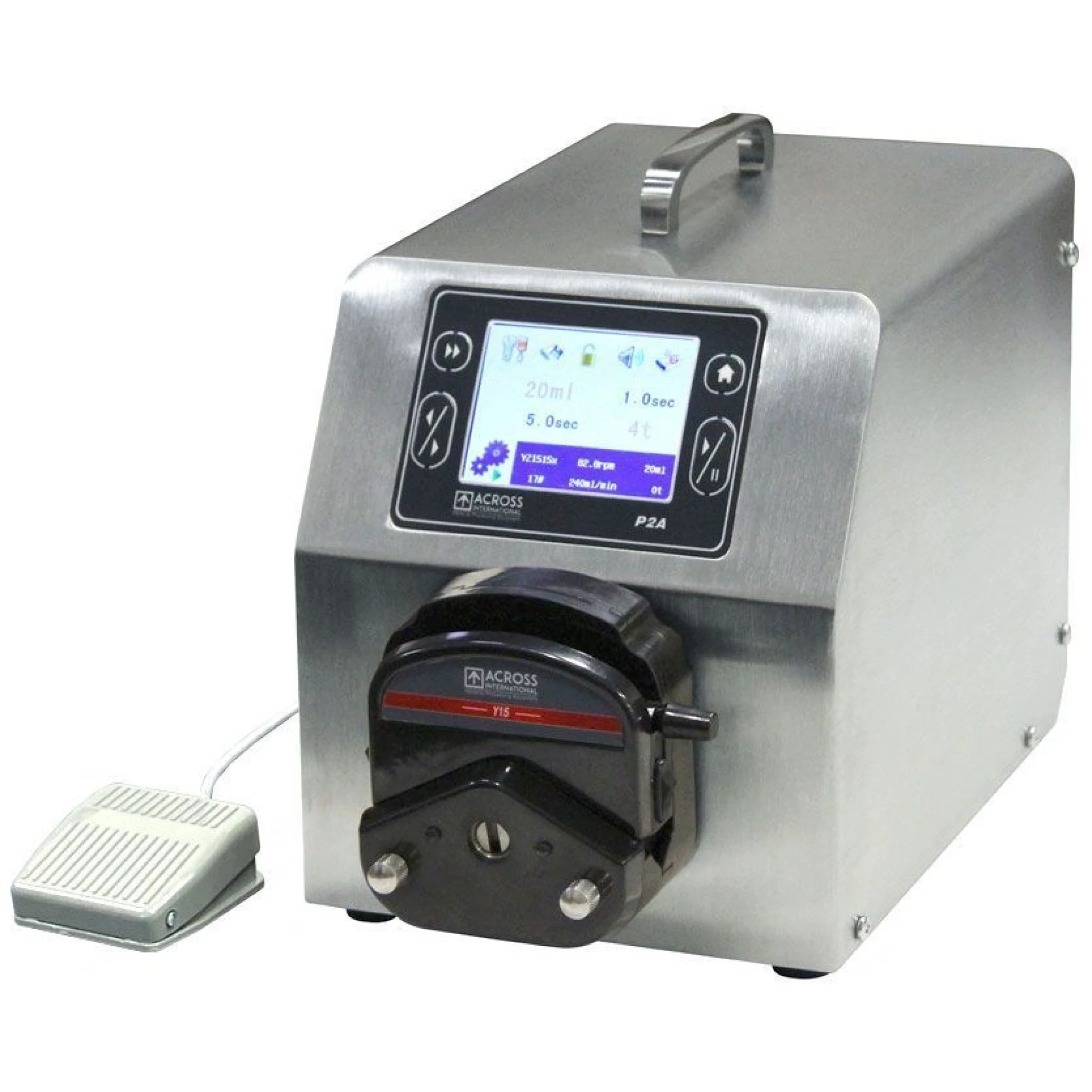

The Ai P2A peristaltic pump moves up to 2 L/min through a Y15 pump head and tubing up to 1/2", with a colour touchscreen controller for timed and repeated dispensing. Only the tubing touches the fluid, so it suits fluid transfer, chemical dosing and bottle filling. Comes with 6.5 ft of silicone tubing and a 110V cord (230V cord on request).
In stock
Optional Must Have Accessories
Customize your product
Payment Providers
The P2A suits small to mid-size transfers, pumping up to 2.3L/min (0.6 gallon/min) through silicone tubing. Because the liquid never leaves the tube, no seals or valves touch it, and switching fluids only means changing tubing.
The colour touchscreen sets speed up to 600 rpm in 0.1 rpm steps for fine flow control, and can run timed doses from 0.1 second to 9999 minutes, repeated up to 9999 times. A roll-back of 10 to 720 degrees after each dose helps stop drips when filling.
It draws 50 watts, runs on 110V-230V with auto voltage recognition, and accepts optional RS485 or 4-20mA input for PLC control. It is ETL tested to UL and CSA standards.
| Model | P2A |
| Electrical requirements | 110V-230V, with auto intelligent voltage recognition 50/60Hz, 1-Phase 50 watts |
| Power cord | 110V US 3-prong (comes with purchase) 230V cord (available upon request) |
| Pumping rate | 2.3L/min (0.6 gallon/min) |
| Max. rotation speed | 600 rpm (at 0.1 rpm step) |
| Pump head | Y15 |
Max. tubing size | 1/2" |
Standard Tubing Model Number | TP1M.XF |
Controller | Type: color LCD, touchscreen Distribution: 0 to 9999 times Distribution timer: 0.1 second to 9999 minutes Distribution interval: 0.1 second to 9999 minutes |
Fluid retainment | Pump roll back: 10 to 720 degrees (at 1 degree step) Speed: 10 to 300 rpm |
| Working temperature | 0 to 40°C, < 80% humidity |
| IP rating | IP31 |
| Communication port | Included: Remote on/off switch Optional: RS485, 0-5V, 0-10V, 4-20mA input. PLC control of pumps start, stop, speed and rotation directions. |
| Unit/shipping dimensions (WxDxH) | 7 x 13 x 9" / 12 x 19 x 13" |
| Unit/shipping weight | 15 Lbs |
| Compliance | ETL tested to UL and CSA standards |
| Warranty | One year |
Standard Package
| Ai P2A peristaltic pump | 1 set |

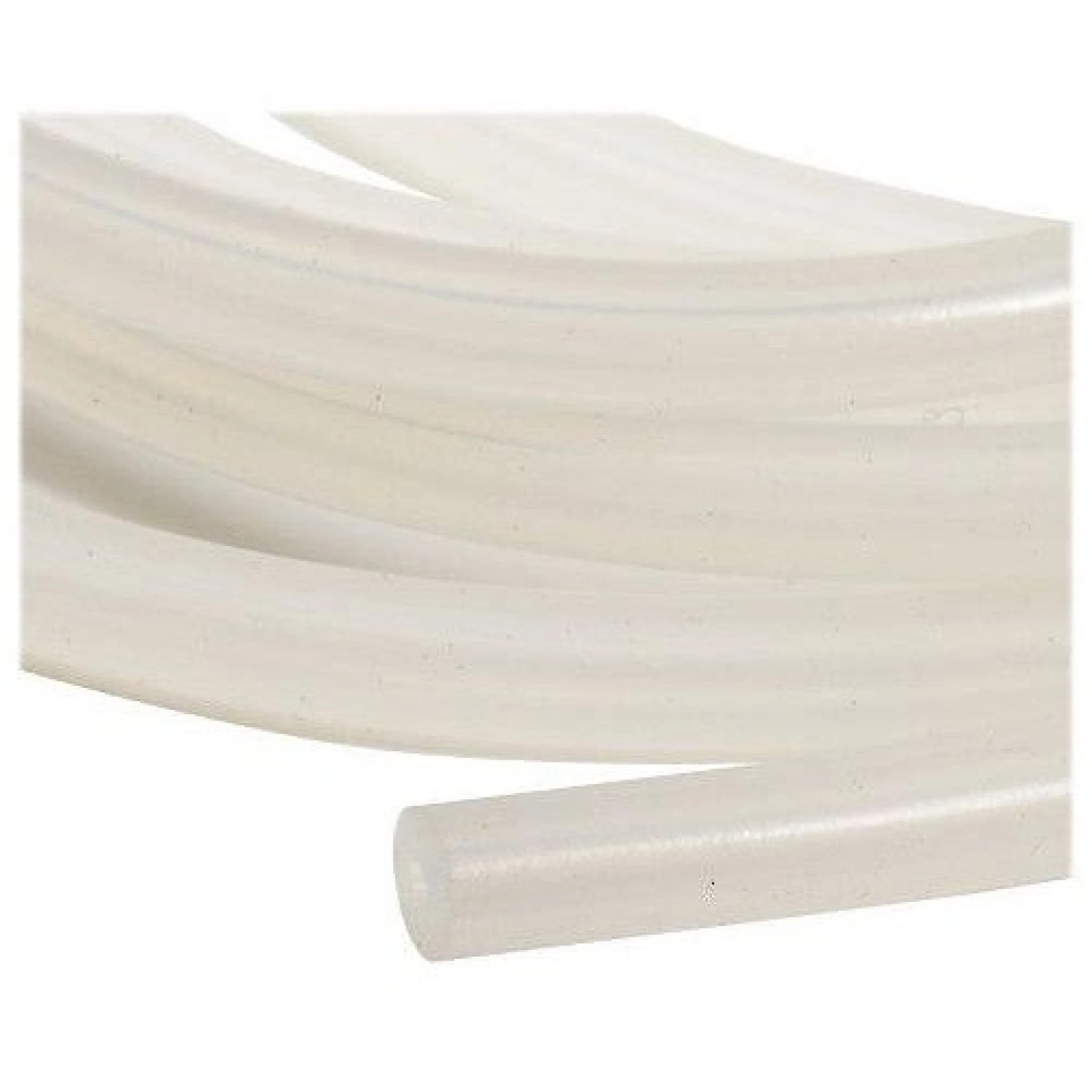

| Silicone tubing (6.4mm ID, 9.6mm OD) | 6.5 ft |

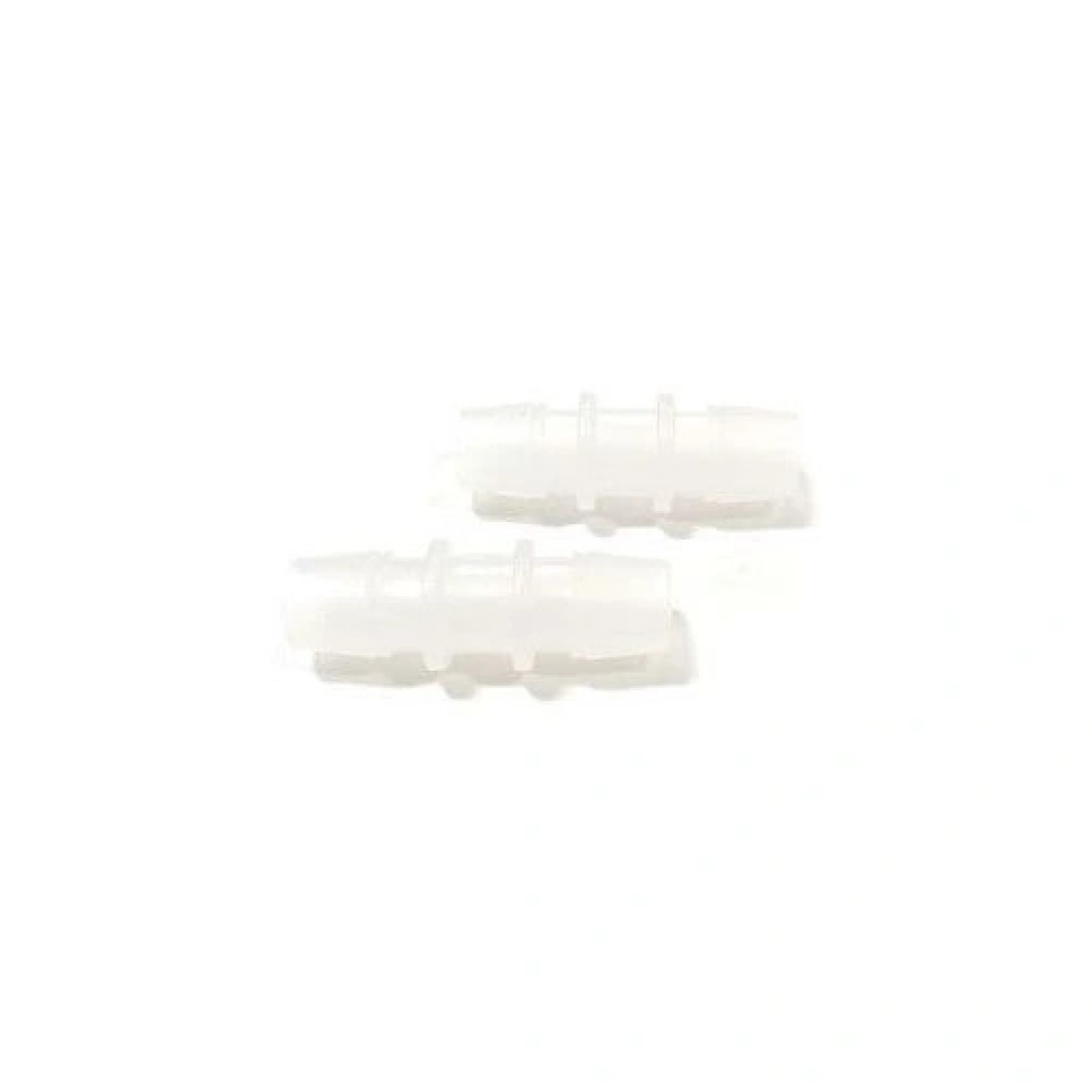

| Hose barb adapter | 2 pcs |

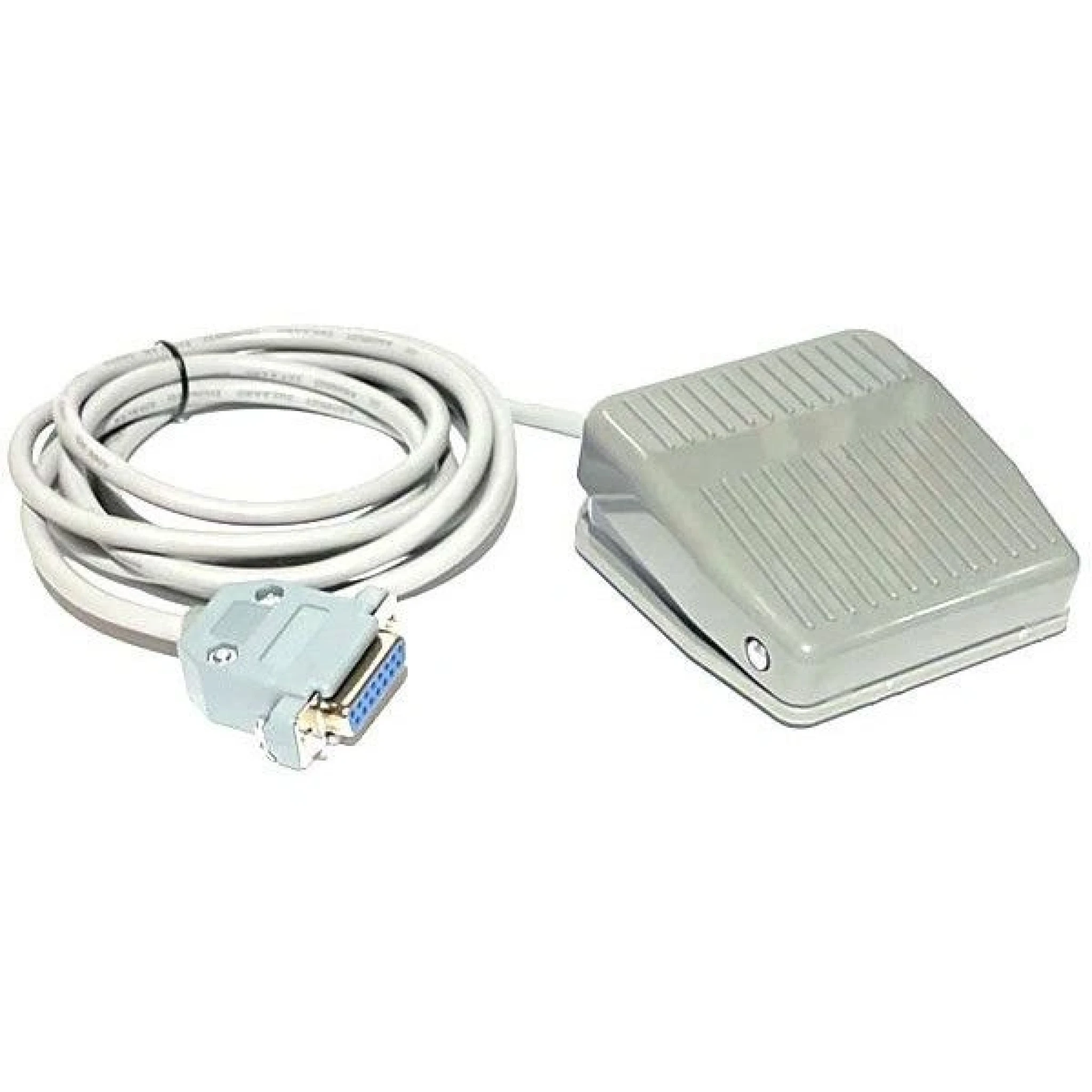

| Remote on/off switch - 75 inches | 1 pc |
| 110V US 3-prong power cord (230V cord upon request) | 1 pc |
| Users manual | 1 pc |
