Peristaltic Pump P12A Silicone Tubing | +CAD $58.36 |
Ai P12A 12L/min SST Peristaltic Pump Touchscreen controller ETL
Reference:
Manufacturer: Across International
The Ai P12A peristaltic pump moves up to 12 L/min through a Y35 pump head and tubing up to 3/4", with a colour touchscreen controller for timed and repeated dispensing. Only the tubing touches the fluid, so it suits fluid transfer, chemical dosing and bottle filling. Comes with 6.5 ft of silicone tubing and a 110V cord (230V cord on request).
In stock
Optional Must Have Accessories
Customize your product
Payment Providers

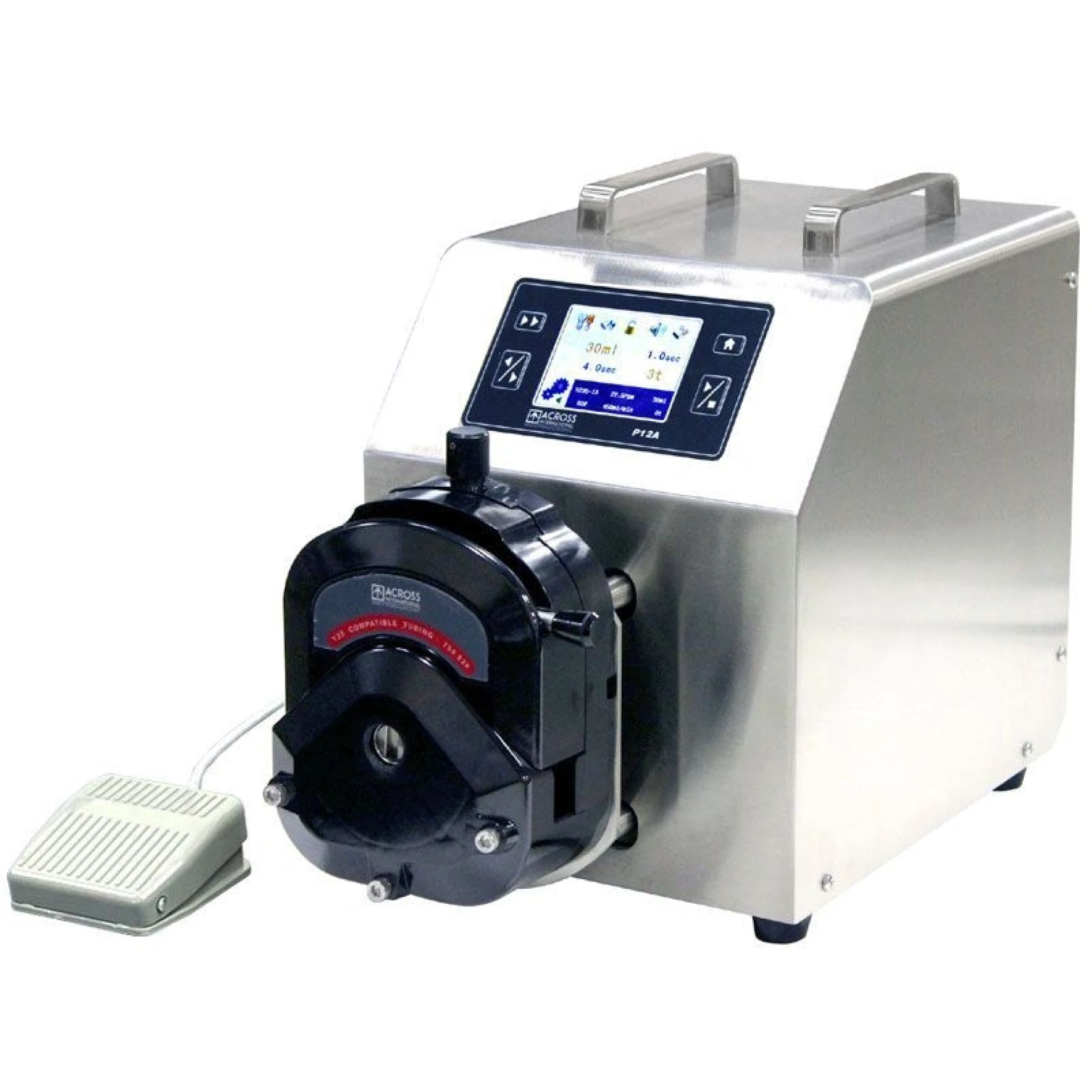

The P12A is a high-flow peristaltic pump that moves up to 12L/min (3.2 gallon/min) with the liquid sealed inside the tubing the whole way. Nothing but the tube touches the fluid, which keeps transfers clean and makes changeover quick.
The colour touchscreen makes repeat dispensing simple: set a dose time from 0.1 second to 9999 minutes, an interval between doses, and up to 9999 repeats. A roll-back of 10 to 720 degrees draws liquid back after each dose to limit drips at the outlet.
- Takes tubing up to 3/4 inch; 6.5 ft of 12.7mm ID silicone tubing supplied
- Speed up to 600 rpm in 0.1 rpm steps
- Remote on/off included; RS485 and analog PLC input optional
- ETL tested to UL and CSA standards
| Model | P12A |
| Electrical requirements | 110V-230V, with auto intelligent voltage recognition 50/60Hz, 1-Phase 500 watts |
| Power cord | 110V US 3-prong (comes with purchase) 230V cord (available upon request) |
| Pumping rate | 12L/min (3.2 gallon/min) |
| Max. rotation speed | 600 rpm (at 0.1 rpm step) |
| Pump head | Y35 |
Max. tubing size | 3/4" |
Standard Tubing Model Number | TP12A.XF |
Controller | Type: color LCD, touchscreen Distribution: 0 to 9999 times Distribution timer: 0.1 second to 9999 minutes Distribution interval: 0.1 second to 9999 minutes |
Fluid retainment | Pump roll back: 10 to 720 degrees (at 1 degree step) Speed: 10 to 300 rpm |
| Working temperature | 0 to 40°C, < 80% humidity |
| IP rating | IP31 |
| Communication port | Included: Remote on/off switch Optional: RS485, 0-5V, 0-10V, 4-20mA input. PLC control of pumps start, stop, speed and rotation directions. |
| Unit/shipping dimensions (WxDxH) | 9.25 x 15.5 x 12.5" / 15 x 22 x 18" |
| Unit/shipping weight | 25 Lbs |
| Compliance | ETL tested to UL and CSA standards |
| Warranty | One year |
Standard Package
| Ai P12A peristaltic pump | 1 set |

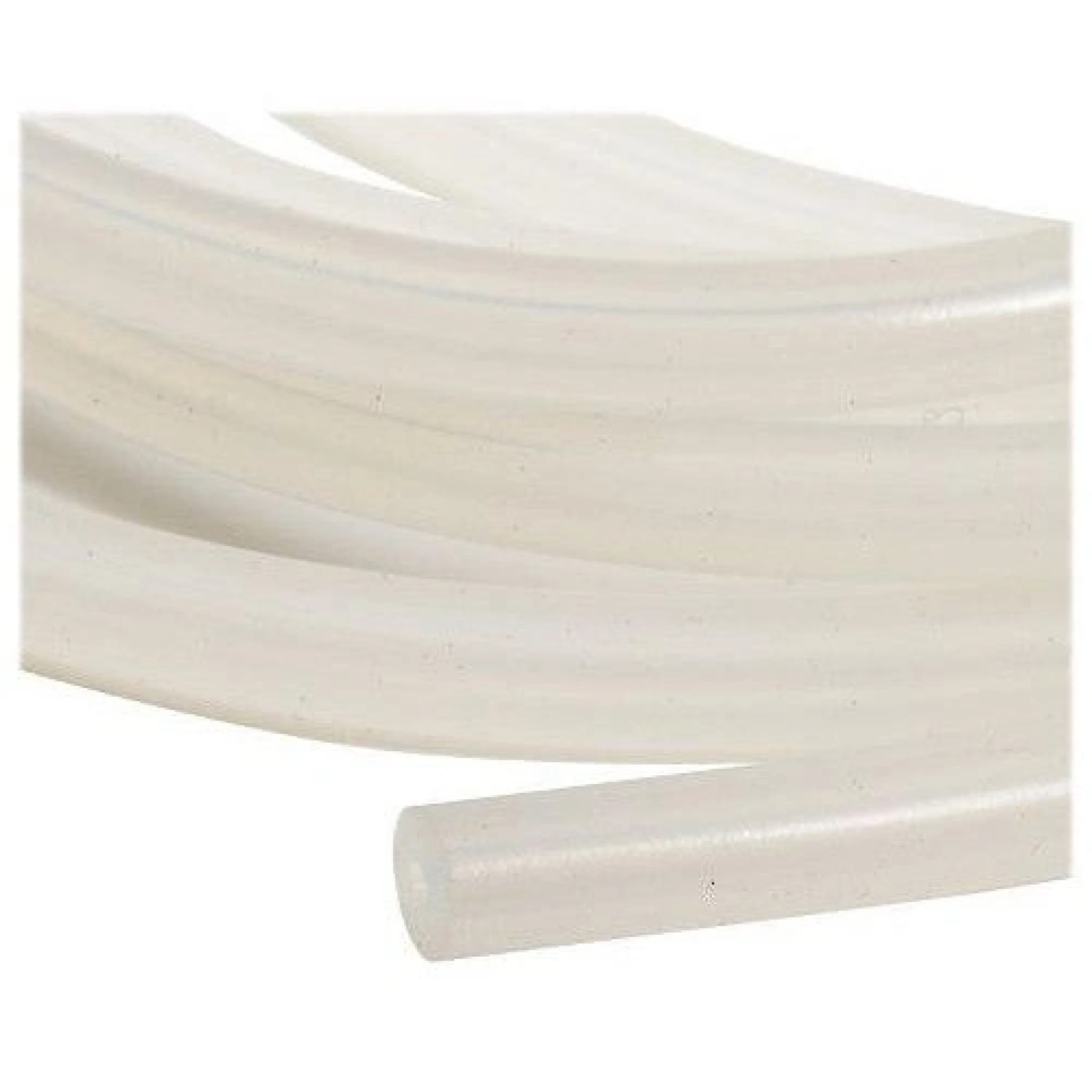

| Silicone tubing (12.7mm ID, 19.6mm OD) | 6.5 ft |

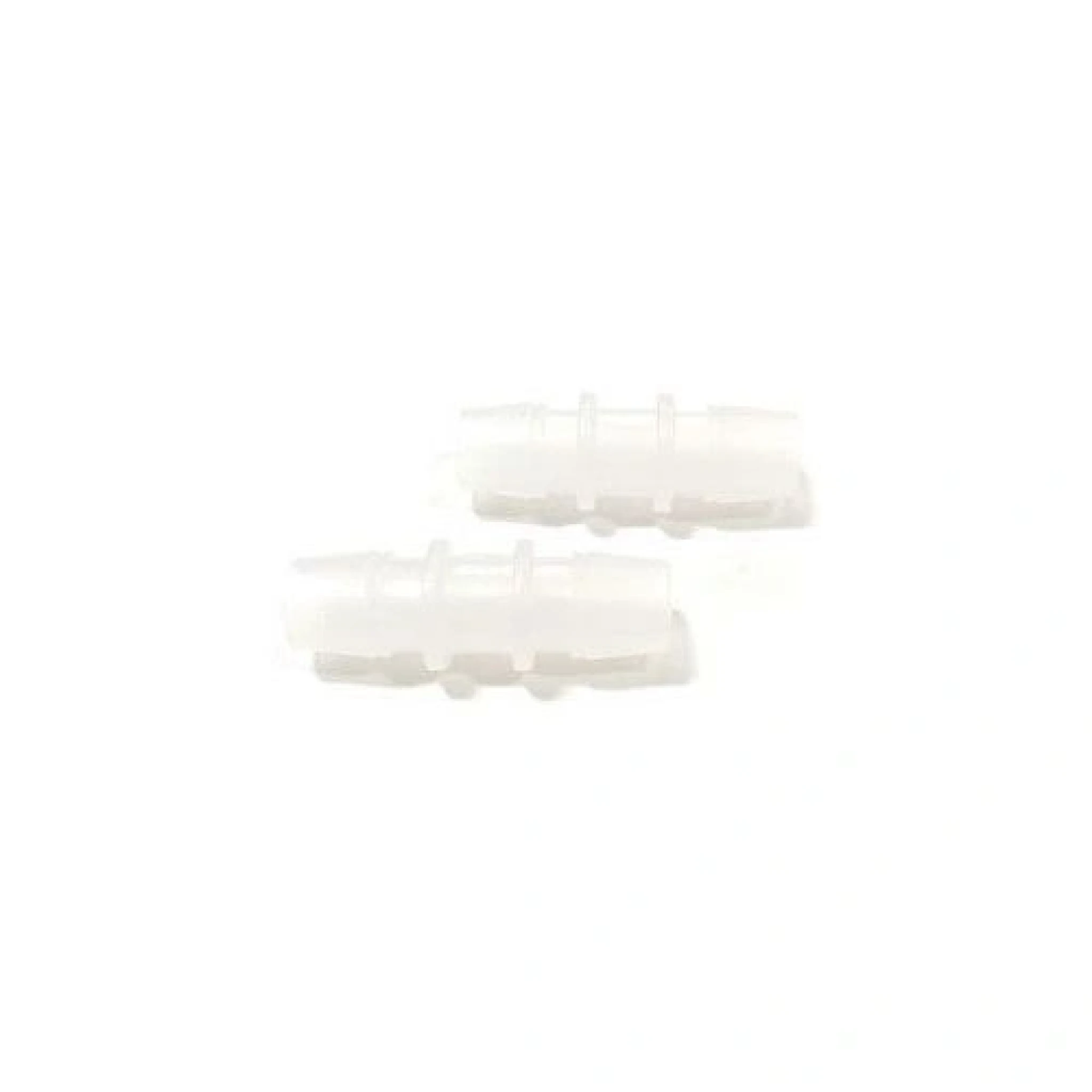

| Hose barb adapter | 2 pcs |

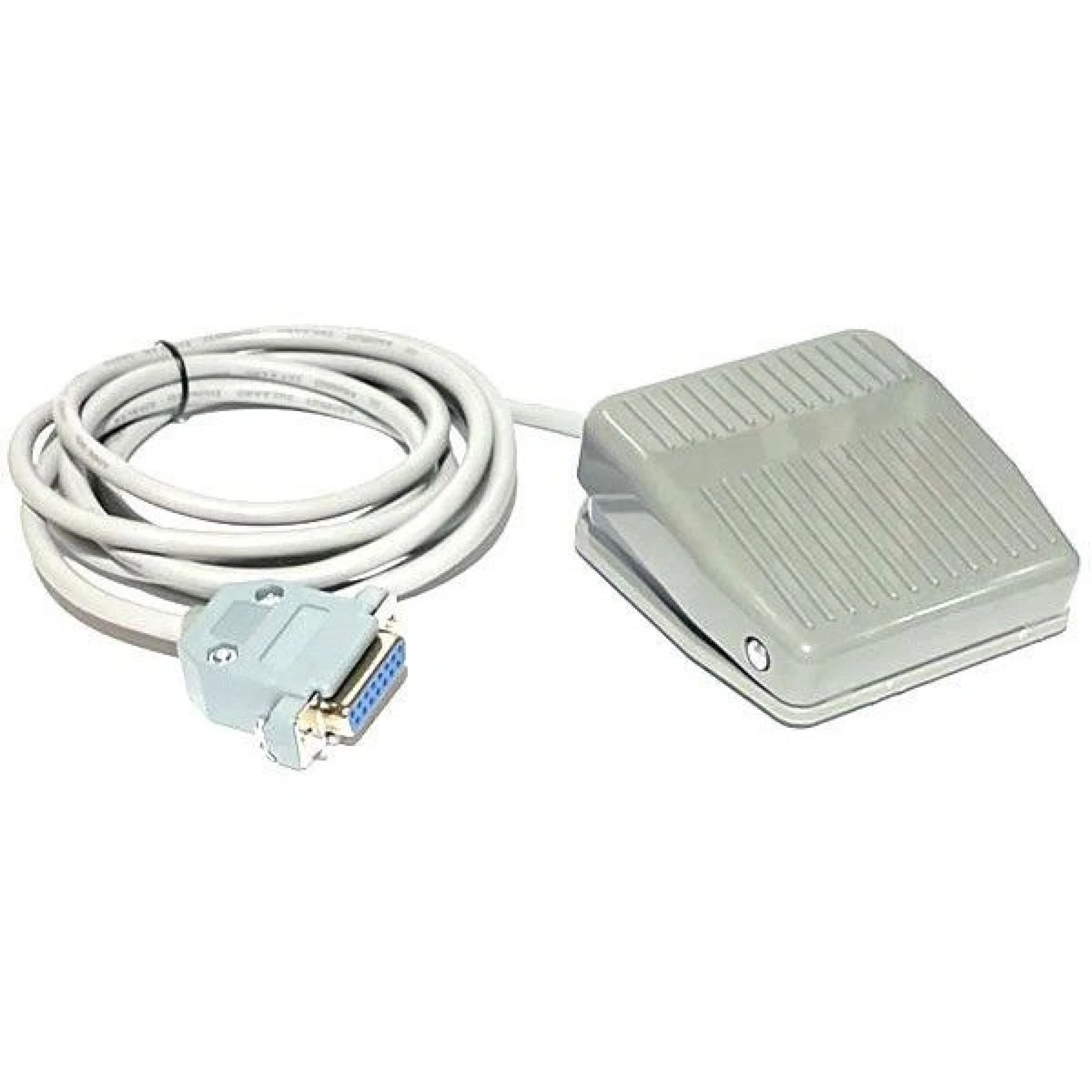

| Remote on/off switch - 75 inches | 1 pc |
| 110V US 3-prong power cord (230V cord upon request) | 1 pc |
| Users manual | 1 pc |
