Peristaltic Pump P6A Silicone Tubing | +CAD $48.63 |

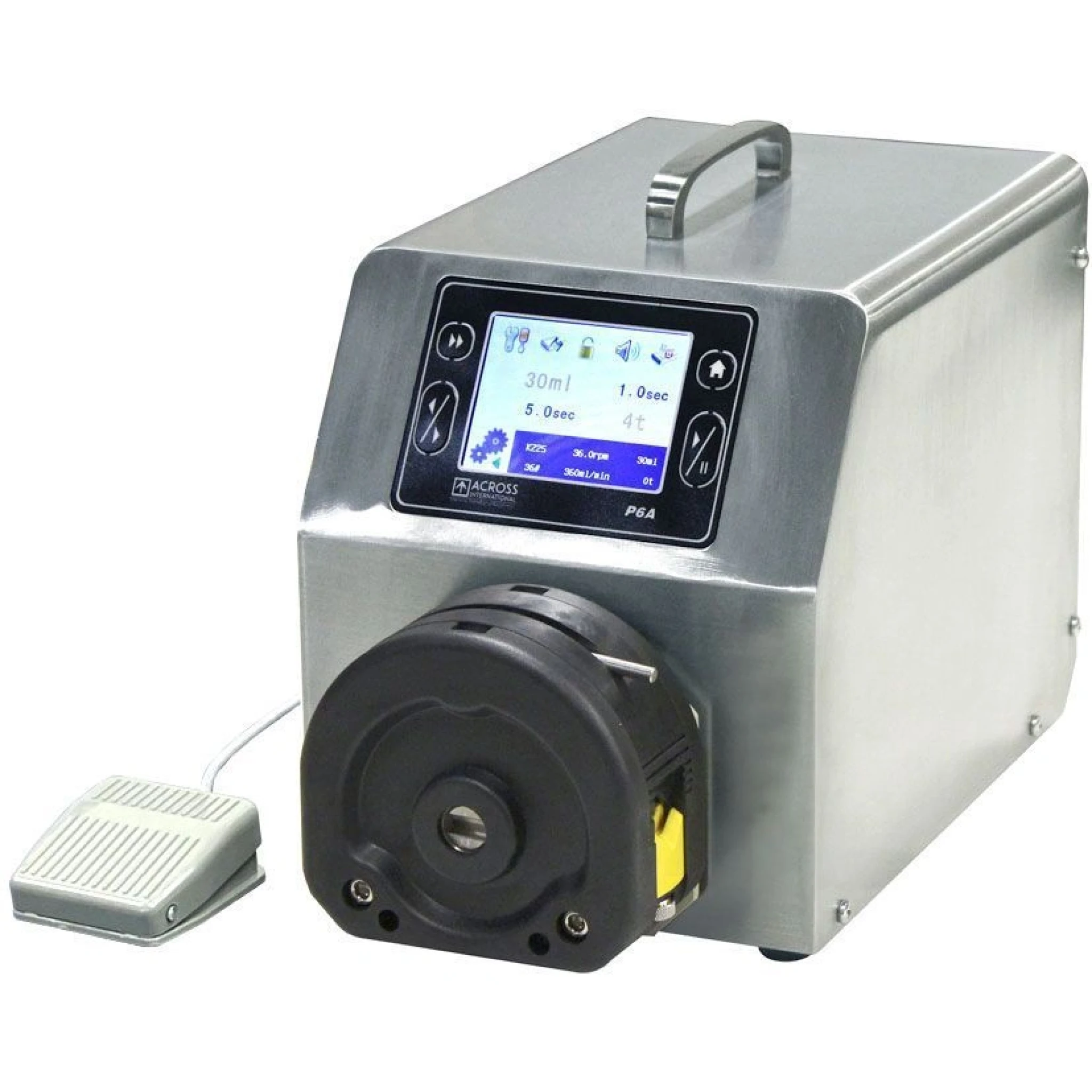

Ai P6A 6L/min SST Peristaltic Pump Touchscreen controller ETL
Reference:
Manufacturer: Across International
The Ai P6A peristaltic pump moves up to 6 L/min through a K25 pump head and tubing up to 1/2", with a colour touchscreen controller for timed and repeated dispensing. Only the tubing touches the fluid, so it suits fluid transfer, chemical dosing and bottle filling. Comes with 6.5 ft of silicone tubing and a 110V cord (230V cord on request).
In stock
Optional Must Have Accessories
Customize your product
Payment Providers
The P6A covers mid-range flows up to 6L/min (1.6 gallon/min), enough for steady transfers between vessels while still controllable for dosing and filling. The liquid stays inside the silicone tubing, so the pump stays clean and a new fluid only needs a new tube.
From the colour touchscreen you can set speed up to 600 rpm in 0.1 rpm steps, program timed doses with an interval between them, and repeat up to 9999 times. A roll-back of 10 to 720 degrees after each dose limits drips at the outlet.
- K25 pump head, tubing up to 1/2 inch
- 300 watts, 110V-230V with auto voltage recognition
- Remote on/off included; RS485 and analog PLC input optional
- ETL tested to UL and CSA standards
| Model | P6A |
| Electrical requirements | 110V-230V, with auto intelligent voltage recognition 50/60Hz, 1-Phase 300 watts |
| Power cord | 110V US 3-prong (comes with purchase) 230V cord (available upon request) |
| Pumping rate | 6L/min (1.6 gallon/min) |
| Max. rotation speed | 600 rpm (at 0.1 rpm step) |
| Pump head | K25 |
Max. tubing size | 1/2" |
Standard Tubing Model Number | TP6A.XF |
Controller | Type: color LCD, touchscreen Distribution: 0 to 9999 times Distribution timer: 0.1 second to 9999 minutes Distribution interval: 0.1 second to 9999 minutes |
Fluid retainment | Pump roll back: 10 to 720 degrees (at 1 degree step) Speed: 10 to 300 rpm |
| Working temperature | 0 to 40°C, < 80% humidity |
| IP rating | IP31 |
| Communication port | Included: Remote on/off switch Optional: RS485, 0-5V, 0-10V, 4-20mA input. PLC control of pumps start, stop, speed and rotation directions. |
| Unit/shipping dimensions (WxDxH) | 7 x 13.5 x 9" / 12 x 20 x 14" |
| Unit/shipping weight | 12 Lbs |
| Compliance | ETL tested to UL and CSA standards |
| Warranty | One year |
Standard Package
| Ai P6A peristaltic pump | 1 set |

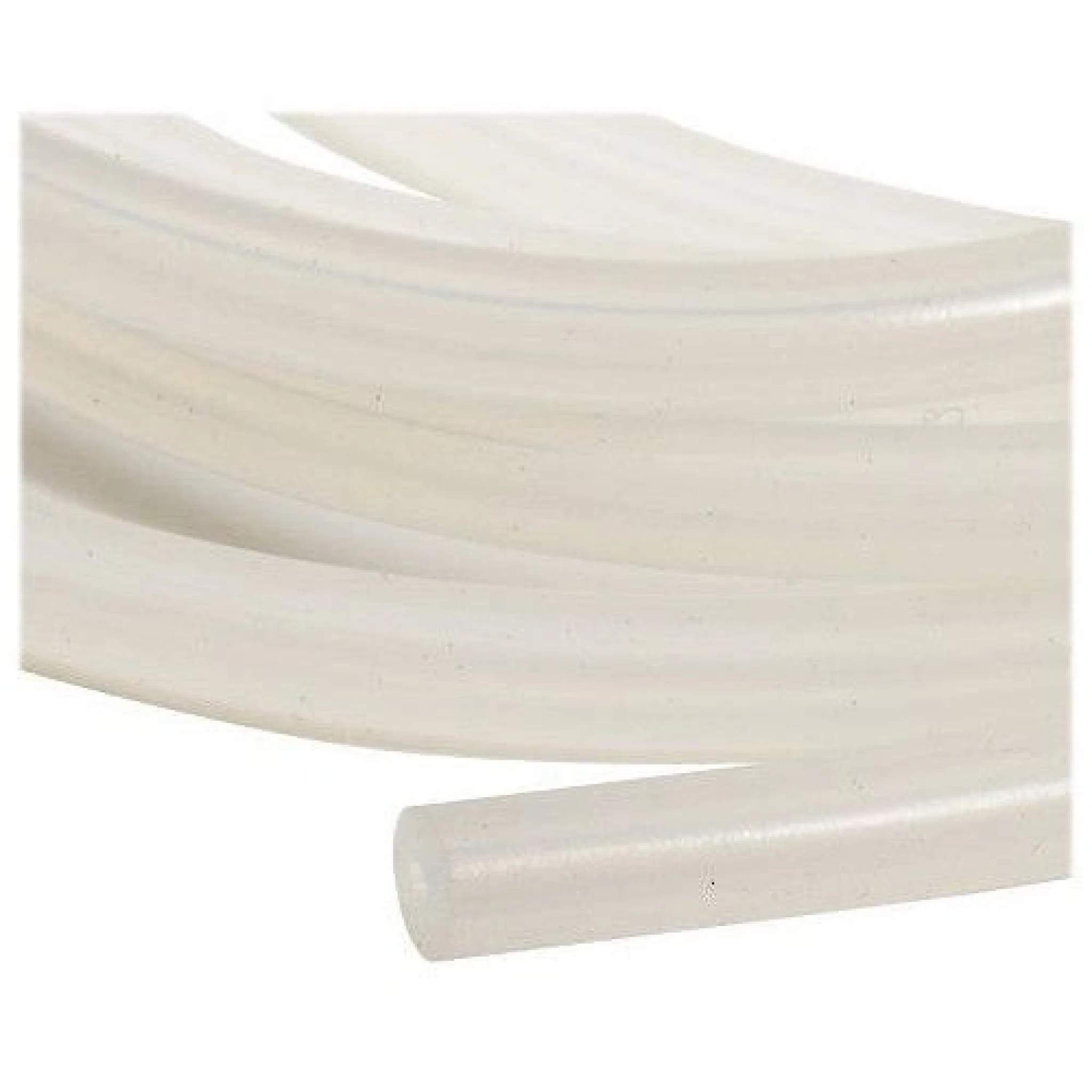

| Silicone tubing (9.6mm ID, 14.4mm OD) | 6.5 ft |

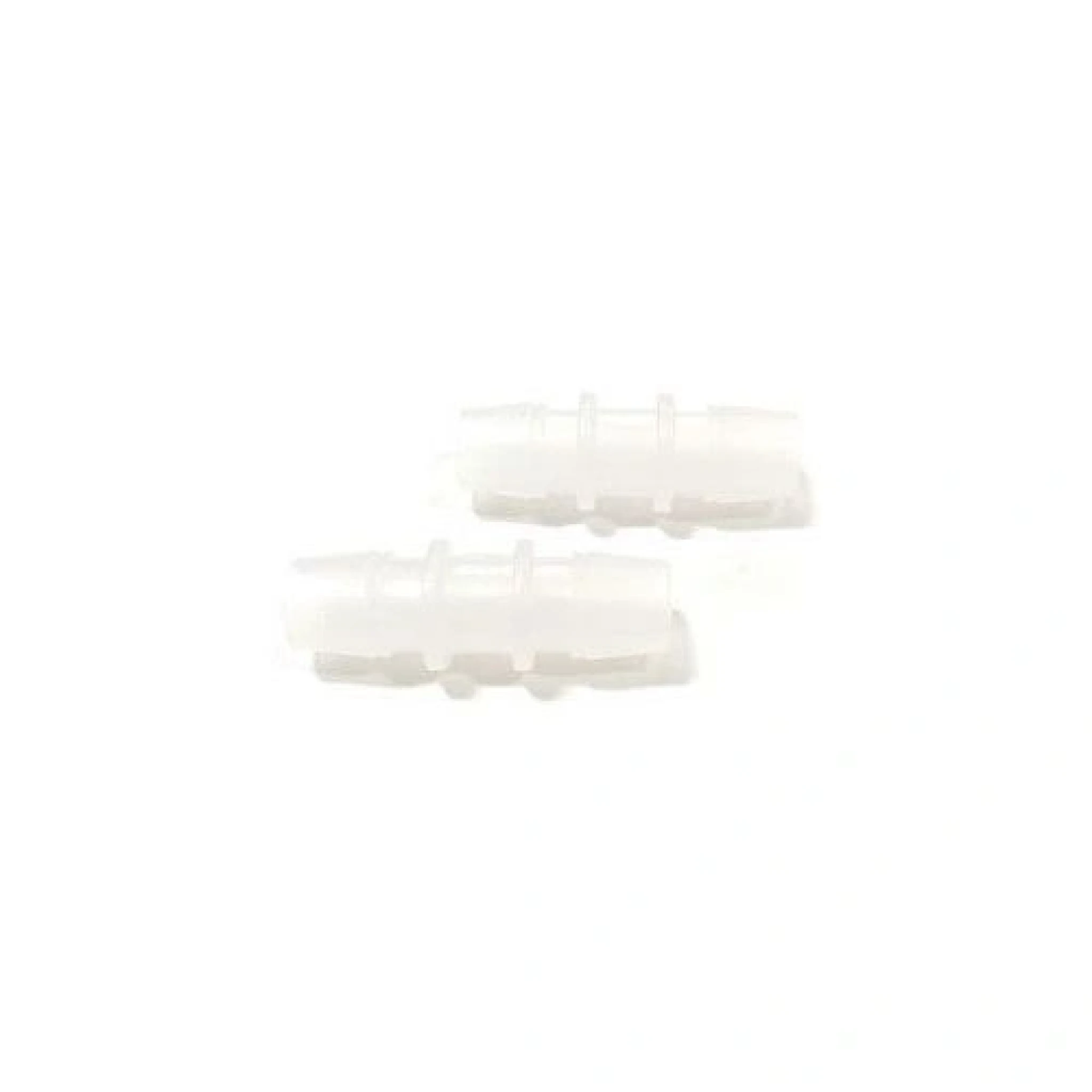

| Hose barb adapter | 2 pcs |

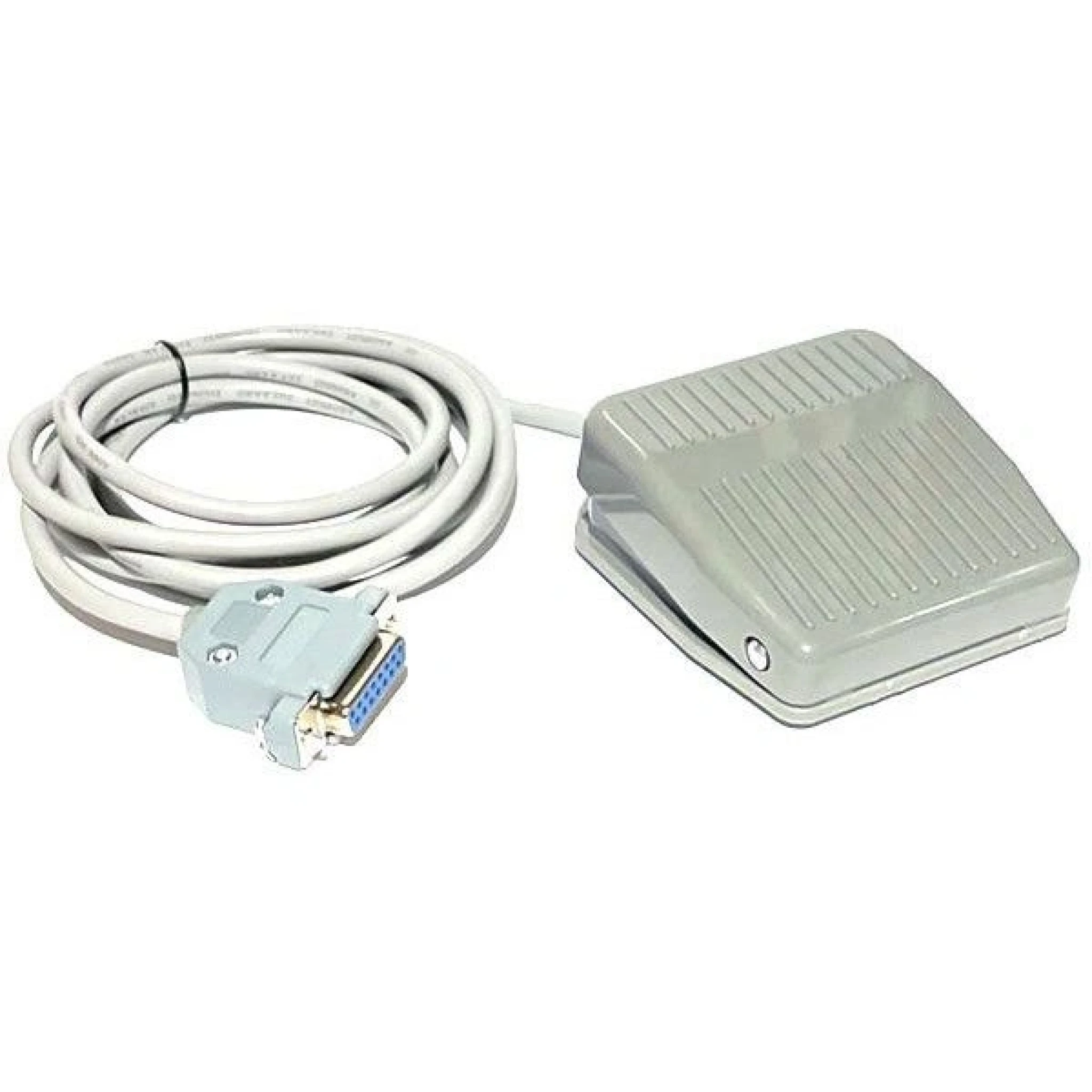

| Remote on/off switch - 75 inches | 1 pc |
| 110V US 3-prong power cord (230V cord upon request) | 1 pc |
| Users manual | 1 pc |
