Peristaltic Pump P12M Silicone Tubing | +CAD $53.50 |

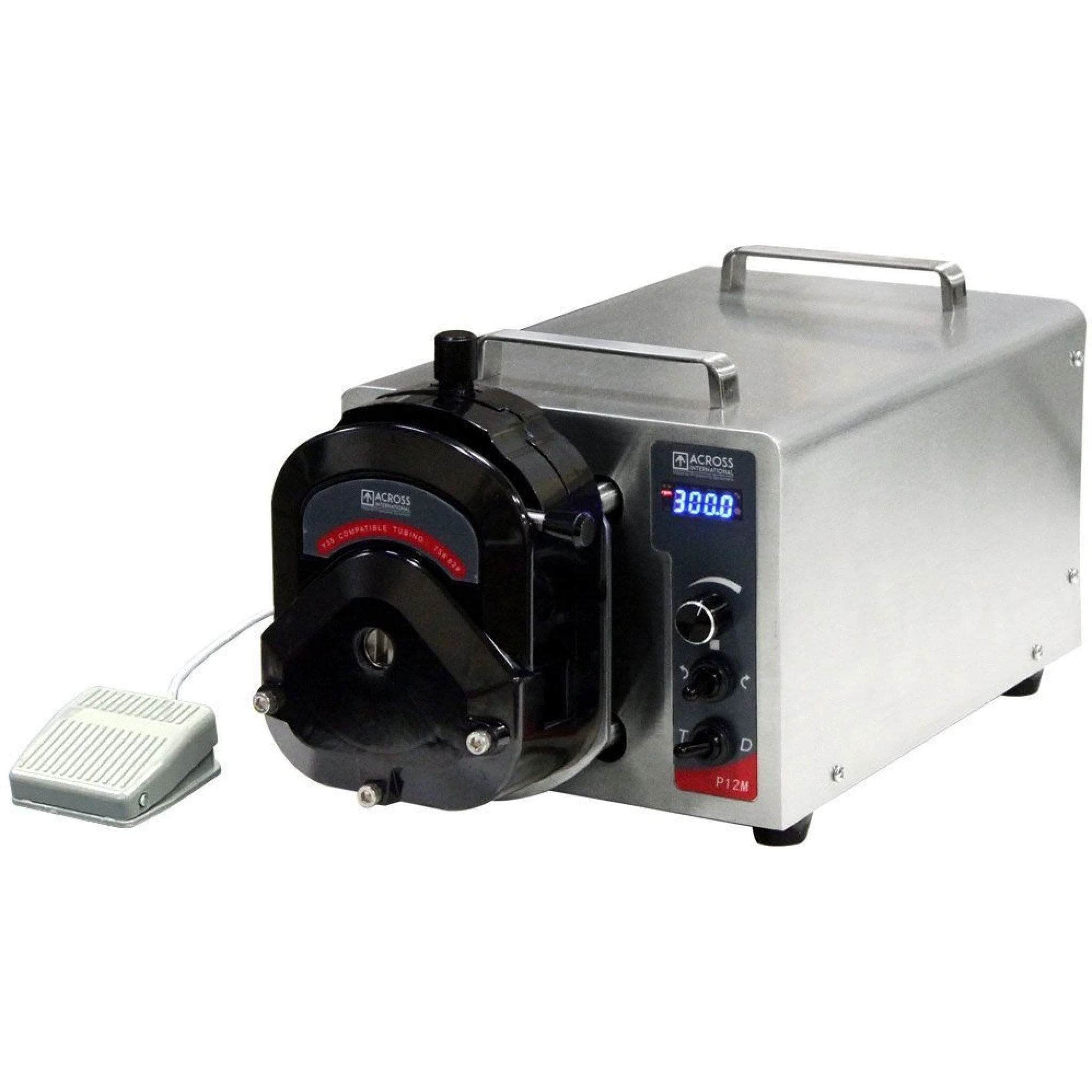

Across International Peristaltic Pump -P12M 12L/min SST ETL
Reference:
Manufacturer: Across International
The Ai P12M peristaltic pump moves up to 12 L/min through a Y35 pump head and tubing up to 5/8", with a controller that handles timed and repeated dispensing. Only the tubing touches the fluid, so it suits fluid transfer, chemical dosing and bottle filling. Comes with 6.5 ft of silicone tubing and a 110V cord (230V cord on request).
In stock
Optional Must Have Accessories
Customize your product
Payment Providers
The P12M moves liquids at up to 12L/min (3.2 gallon/min) through silicone tubing, so the fluid only ever touches the tube. That makes it a clean choice for fluid transfer, chemical dosing and bottle filling, and changing to a new liquid means changing tubing rather than cleaning a pump.
Speed is set up to 600 rpm in 0.1 rpm steps. For repeat dispensing, each dose can be timed from 0.1 second to 9999 minutes and repeated up to 9999 times, and a roll-back of 10 to 720 degrees pulls liquid back after each dose to limit drips.
- Takes tubing up to 5/8 inch
- Auto voltage recognition, 110V-230V
- Remote on/off included; RS485, 0-10V or 4-20mA input optional for PLC control
- ETL tested to UL and CSA standards
| Model | P12M |
| Electrical requirements | 110V-230V, with auto intelligent voltage recognition 50/60Hz, 1-Phase 500 watts |
| Power cord | 110V US 3-prong (comes with purchase) 230V cord (available upon request) |
| Pumping rate | 12L/min (3.2 gallon/min) |
| Max. rotation speed | 600 rpm (at 0.1 rpm step) |
| Pump head | Y35 |
Max. tubing size | 5/8" |
Standard Tubing Model Number | TP12M.XF |
Controller | Type: analog Distribution: 0 to 9999 times Distribution timer: 0.1 second to 9999 minutes Distribution interval: 0.1 second to 9999 minutes |
Fluid retainment | Pump roll back: 10 to 720 degrees (at 1 degree step) Speed: 10 to 300 rpm |
| Working temperature | 0 to 40°C, < 80% humidity |
| IP rating | IP31 |
| Communication port | Included: Remote on/off switch Optional: RS485, 0-5V, 0-10V, 4-20mA input. PLC control of pumps start, stop, speed and rotation directions. |
| Unit/shipping dimensions (WxDxH) | 9 x 18 x 9" / 15 x 24 x 17" |
| Unit/shipping weight | 20 Lbs |
| Compliance | ETL tested to UL and CSA standards |
| Warranty | One year |
Standard Package
| Ai P12M peristaltic pump | 1 set |

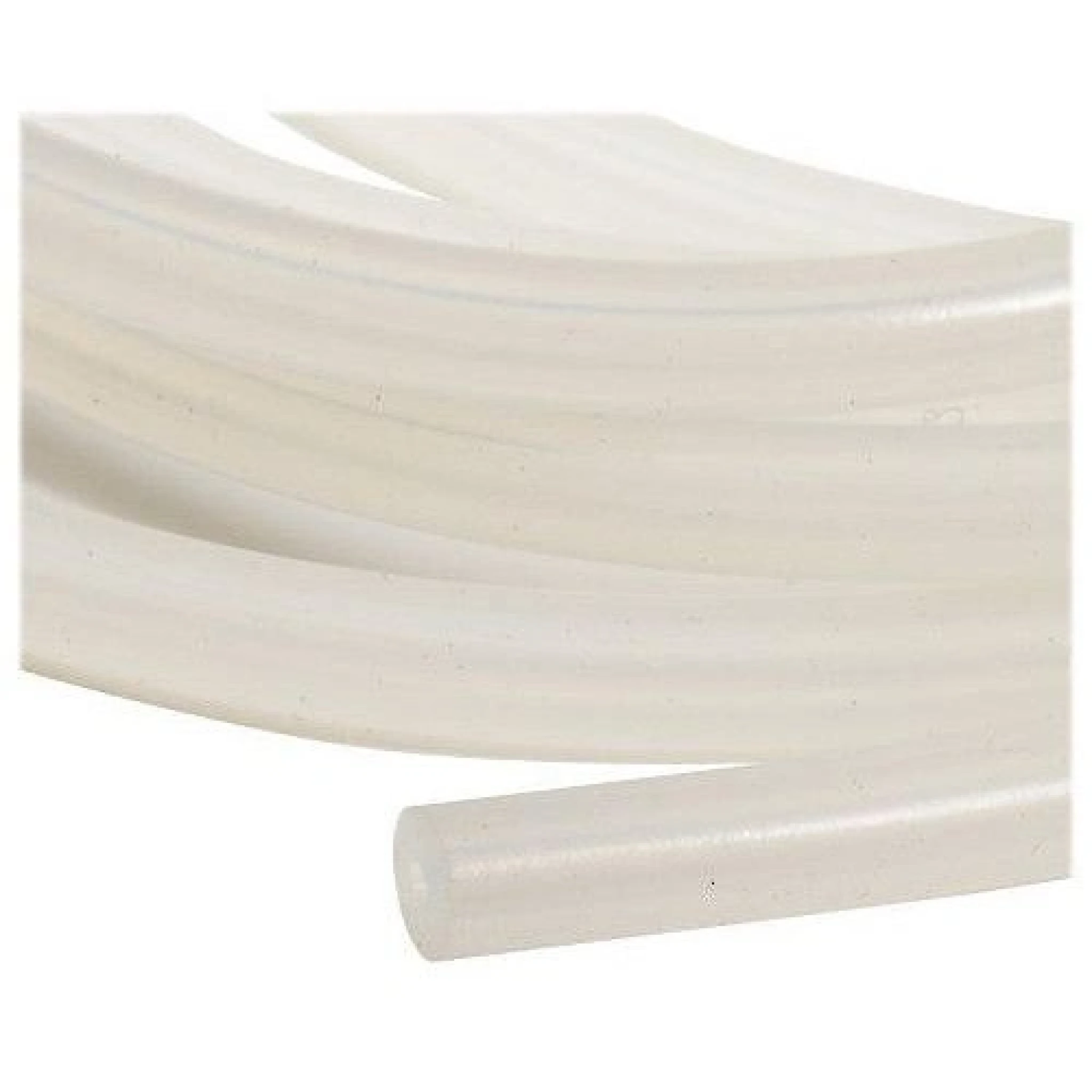

| Silicone tubing (9.6mm ID, 16.2mm OD) | 6.5 ft |

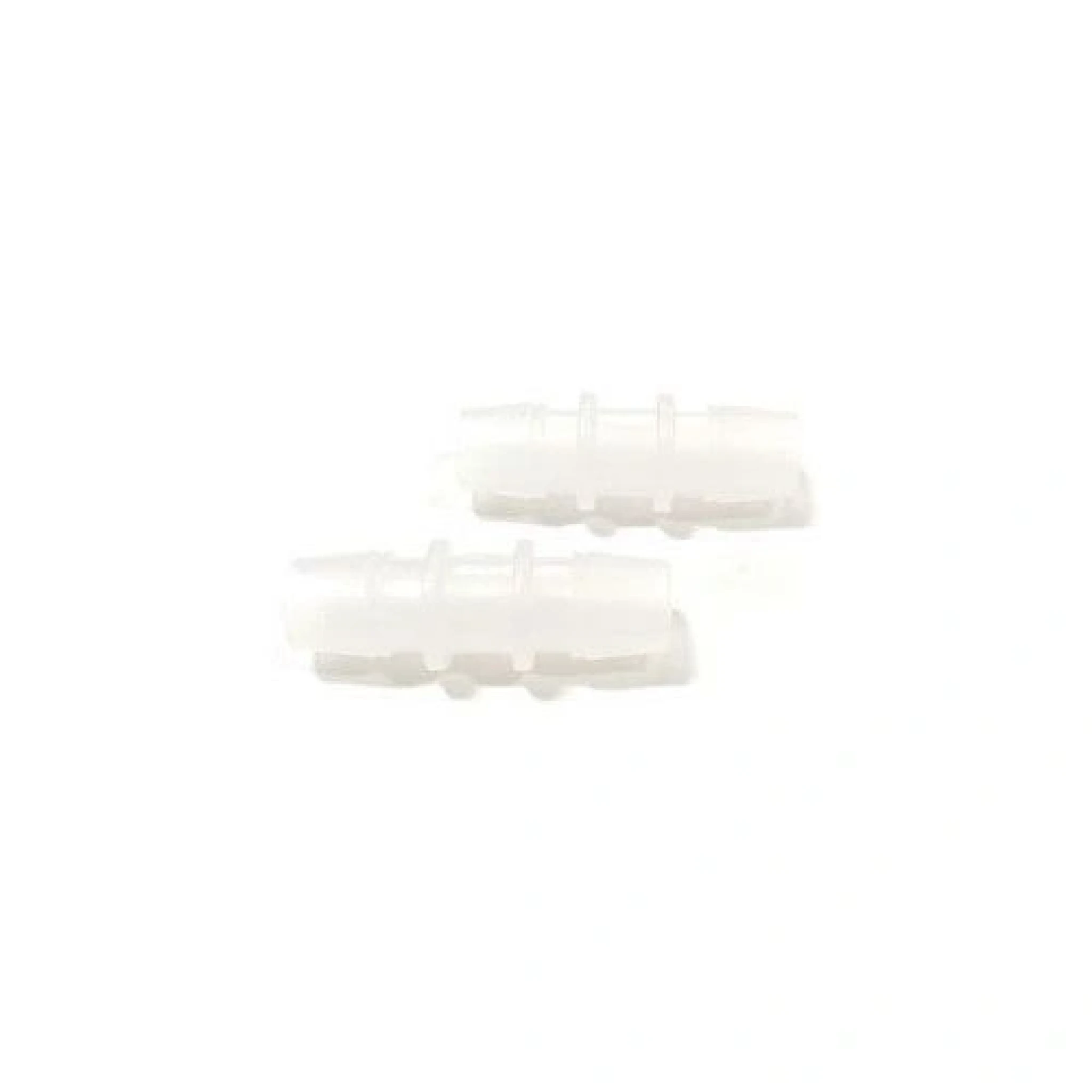

| Hose barb adapter | 2 pcs |

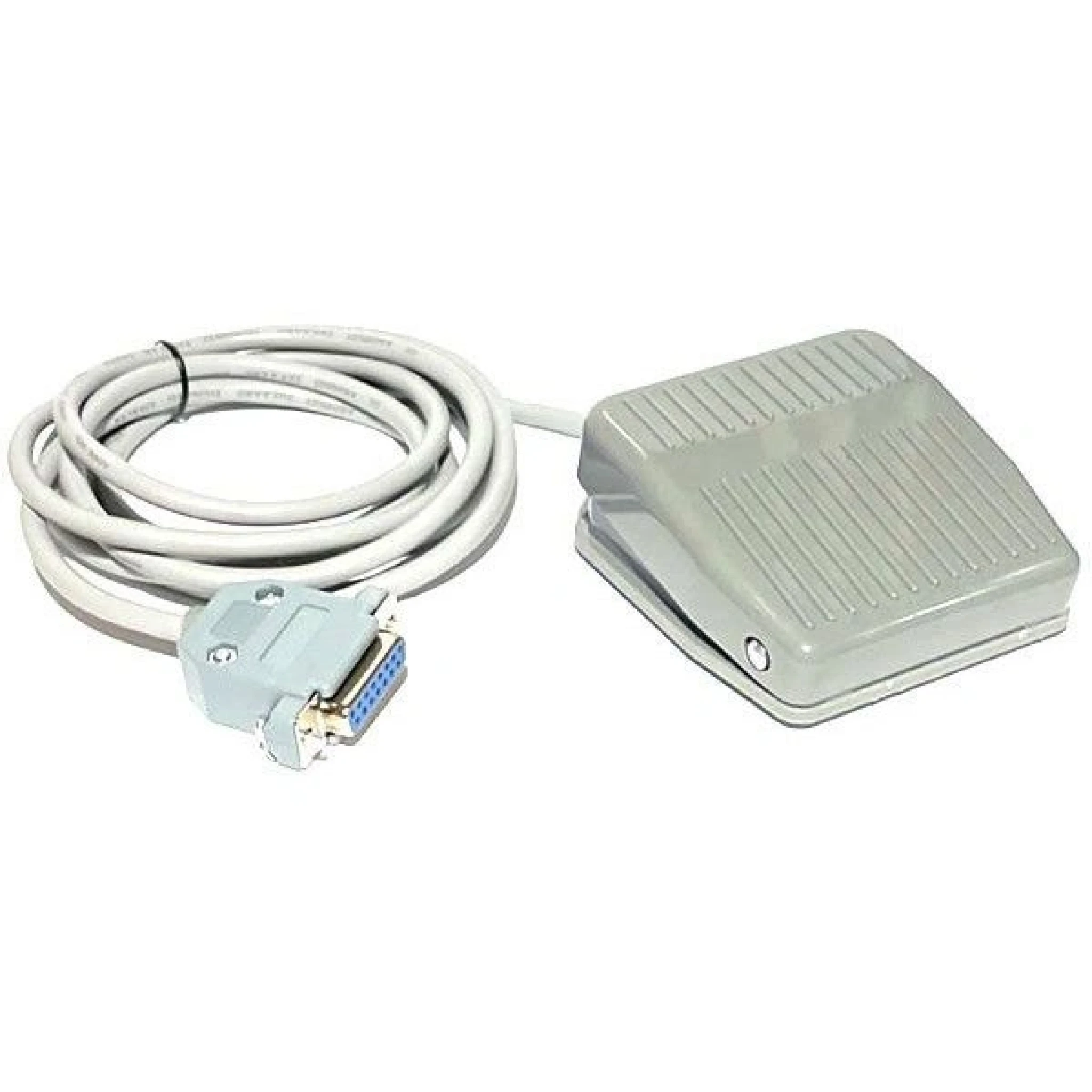

| Remote on/off switch - 75 inches | 1 pc |
| 110V US 3-prong power cord (230V cord upon request) | 1 pc |
| Users manual | 1 pc |
