Peristaltic Pump P04M Silicone Tubing | +CAD $34.04 |

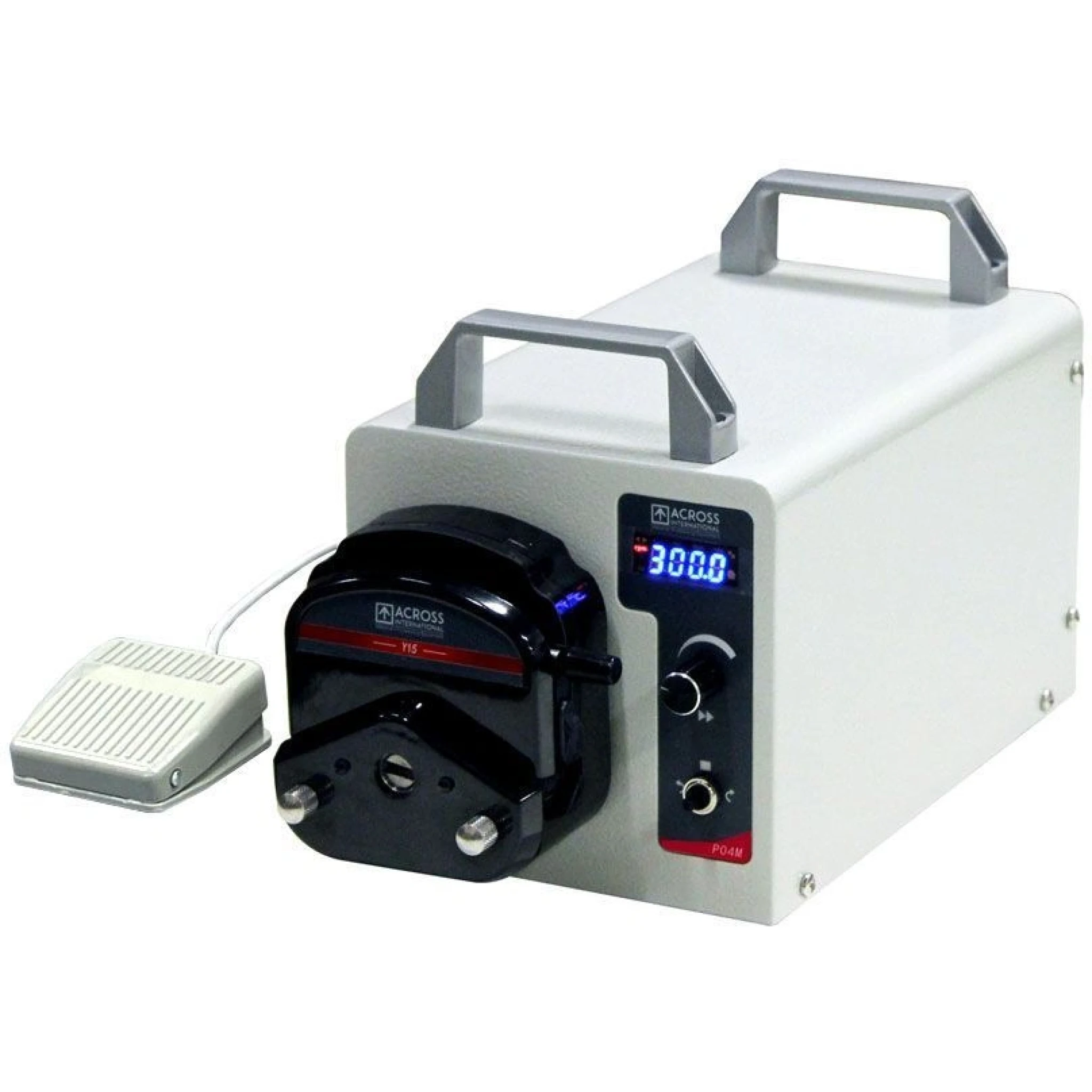

Ai P04M 0.4L/min Compact Peristaltic Pump ETL
Reference:
Manufacturer: Across International
The Ai P04M is a compact peristaltic pump for flows up to 0.4 L/min, with a Y15 pump head, tubing up to 1/2" and a simple analog speed control up to 100 rpm. Only the tubing touches the fluid, so it suits fluid transfer, chemical dosing and bottle filling. Comes with 6.5 ft of silicone tubing and a 110V cord (230V cord on request).
In stock
Optional Must Have Accessories
Customize your product
Payment Providers
The P04M is the compact model for low flow work, moving up to 0.4L/min. Liquid stays inside the silicone tubing, so nothing in the pump touches it and switching fluids is a matter of changing the tube. Typical jobs are chemical dosing, small transfers and bottle filling.
A simple analog control sets the speed up to 100 rpm, and the pump draws only 22 watts. Its 6 x 12 inch footprint fits easily beside other equipment on a bench.
A remote on/off switch is included, with optional RS485, 0-10V or 4-20mA input for PLC control of start, stop, speed and direction. It runs on 110V-230V with auto voltage recognition and is ETL tested to UL and CSA standards.
| Model | P04M |
| Electrical requirements | 110V-230V, with auto intelligent voltage recognition 50/60Hz, 1-Phase 22 watts |
| Power cord | 110V US 3-prong (comes with purchase) 230V cord (available upon request) |
| Pumping rate | 0.4L/min |
| Max. rotation speed | 100 rpm (at 0.1 rpm step) |
| Pump head | Y15 |
Max. tubing size | 1/2" |
Standard Tubing Model Number | TP04M.XF |
Controller | Type: analog |
| Working temperature | 0 to 40°C, < 80% humidity |
| IP rating | IP31 |
| Communication port | Included: Remote on/off switch Optional: RS485, 0-5V, 0-10V, 4-20mA input. PLC control of pumps start, stop, speed and rotation directions. |
| Unit/shipping dimensions (WxDxH) | 6 x 12 x 7.5" / 10 x 15 x 10" |
| Unit/shipping weight | 10 Lbs |
| Compliance | ETL tested to UL and CSA standards |
| Warranty | One year |
Standard Package
| Ai P04M peristaltic pump | 1 set |

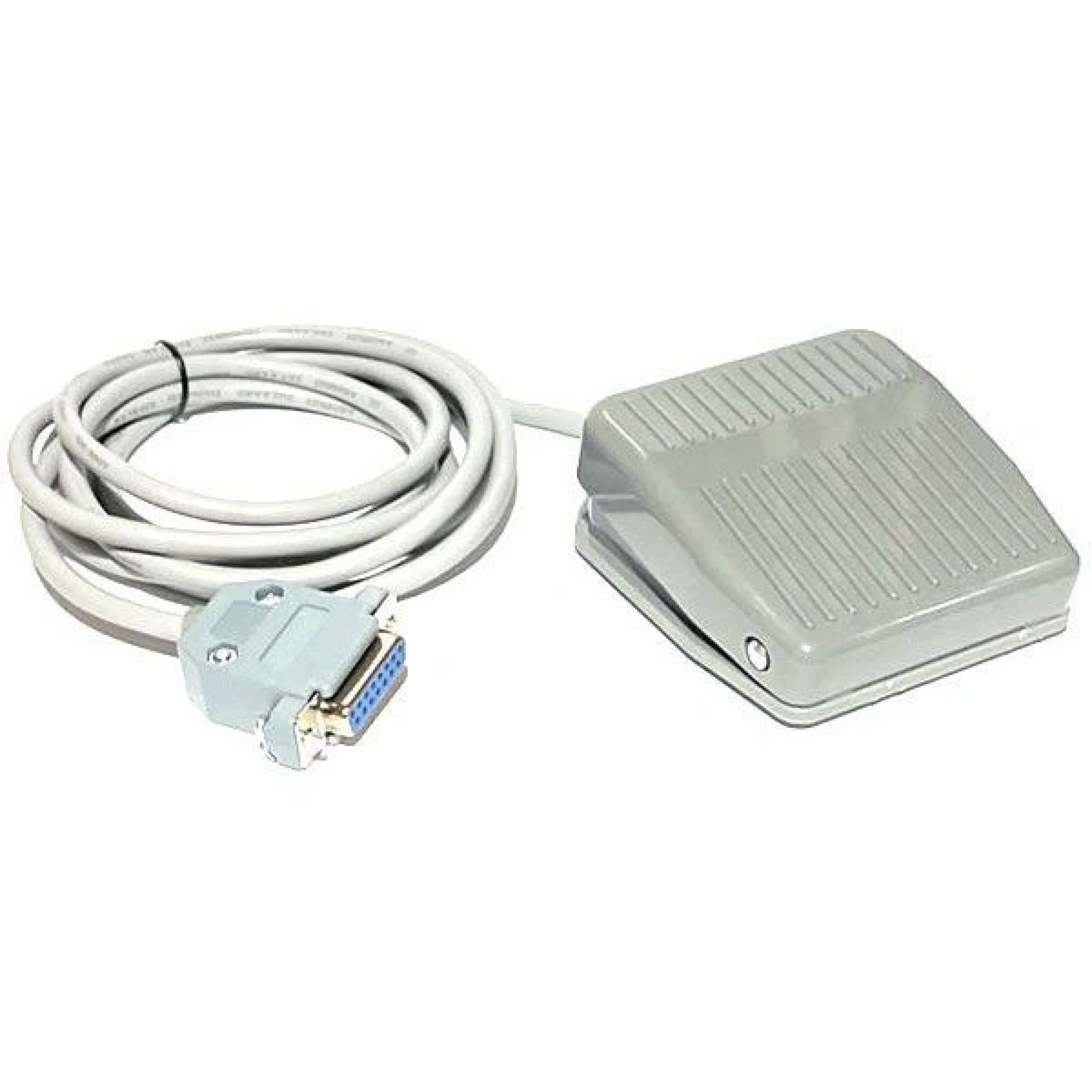

| Remote on/off switch - 75 inches | 1 pc |

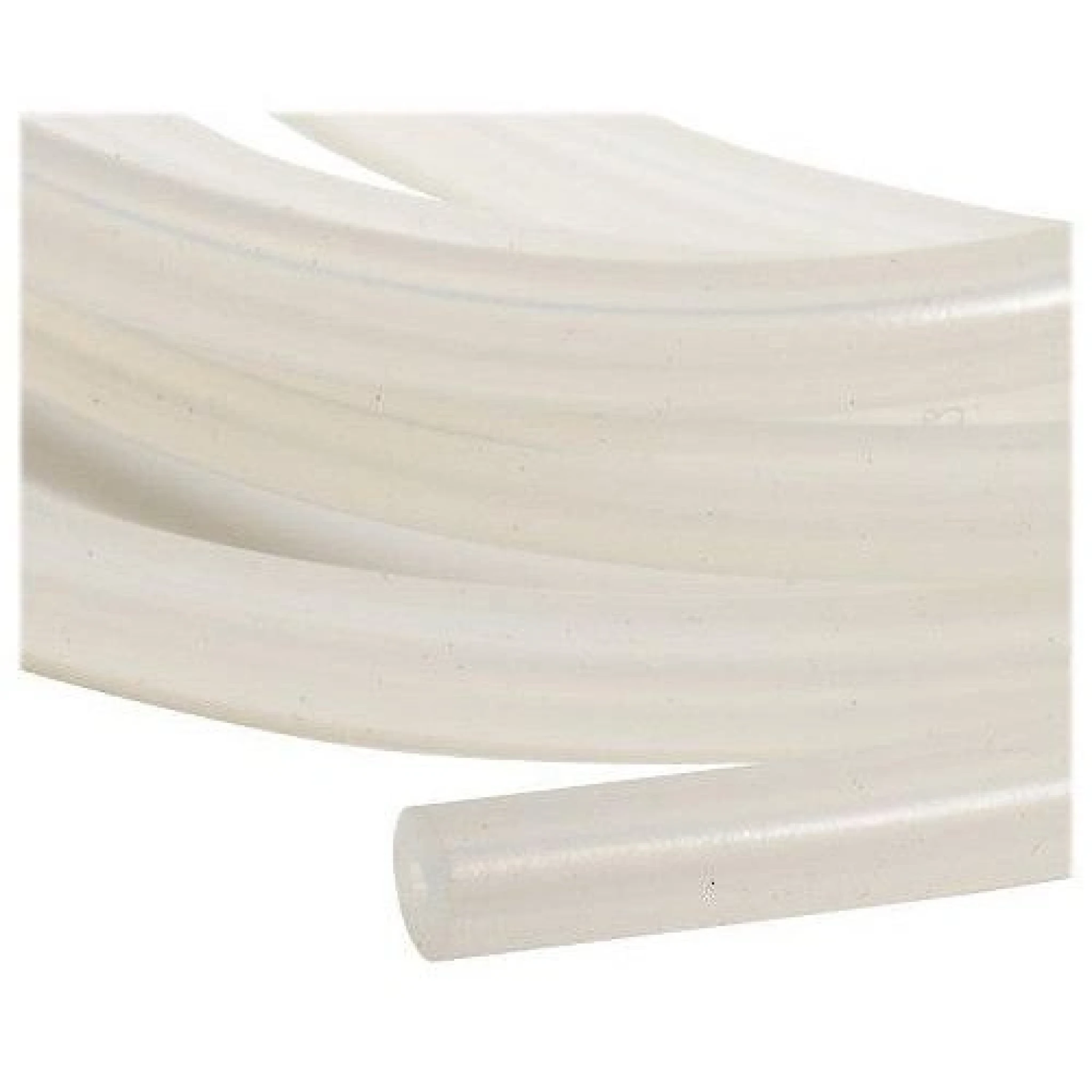

| Silicone tubing (4.8mm ID, 8mm OD) | 6.5 ft |

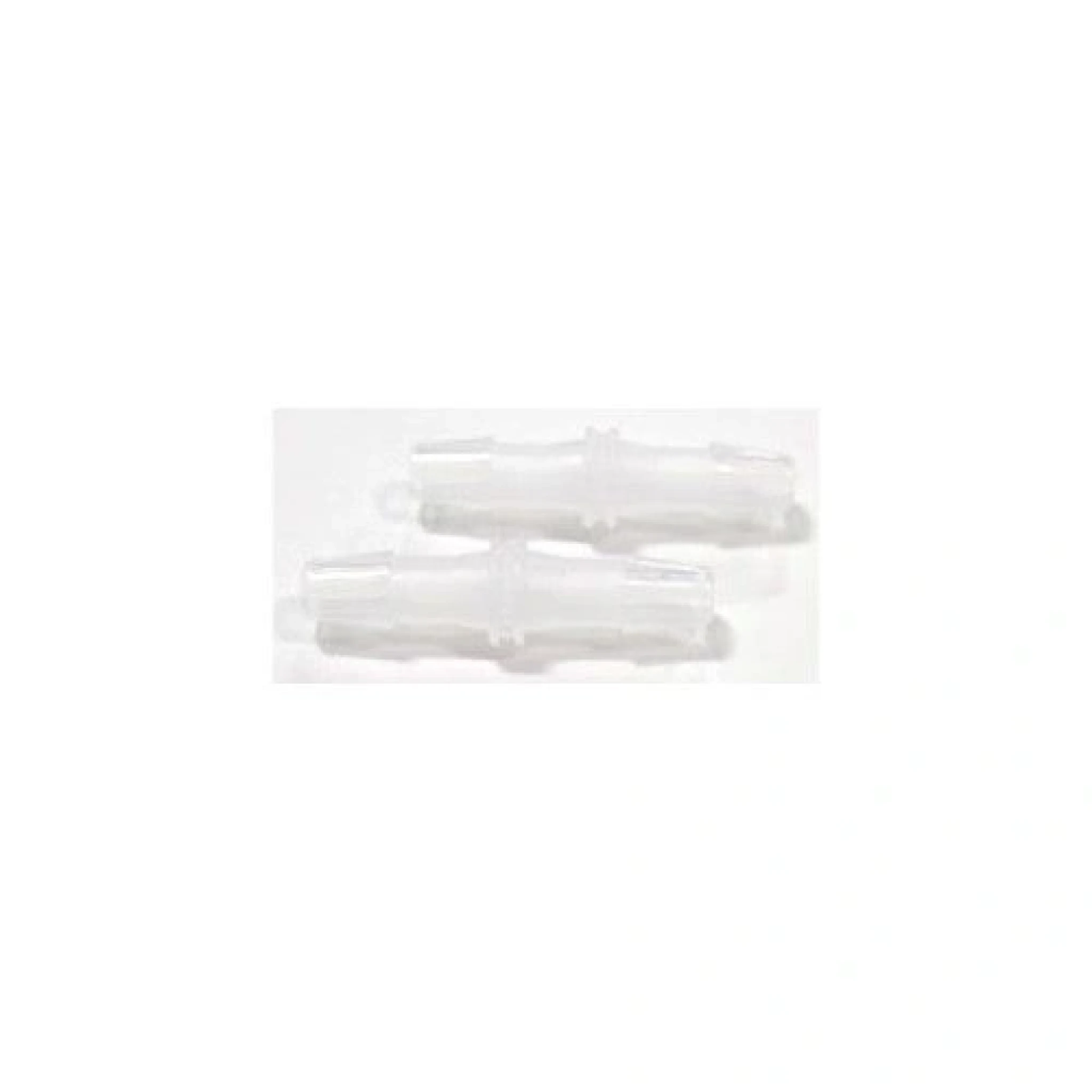

| Hose barb adapter | 2 pcs |
| 110V US 3-prong power cord (230V cord upon request) | 1 pc |
| Users manual | 1 pc |
