AIVAF Vacuum ARC Furnace
Reference: AF
Manufacturer: Across International
AIVAF Vacuum ARC Furnace
In stock
Payment Providers

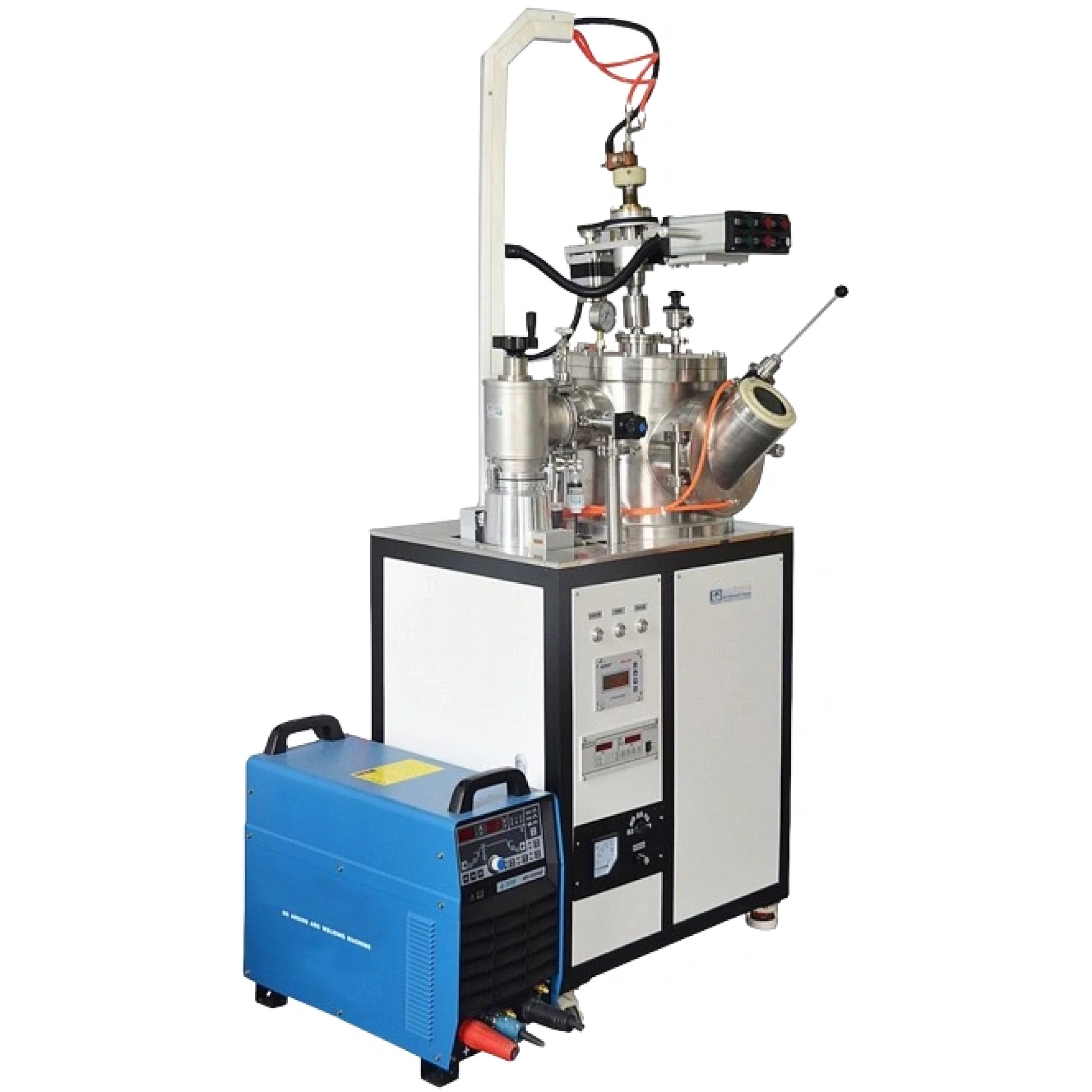

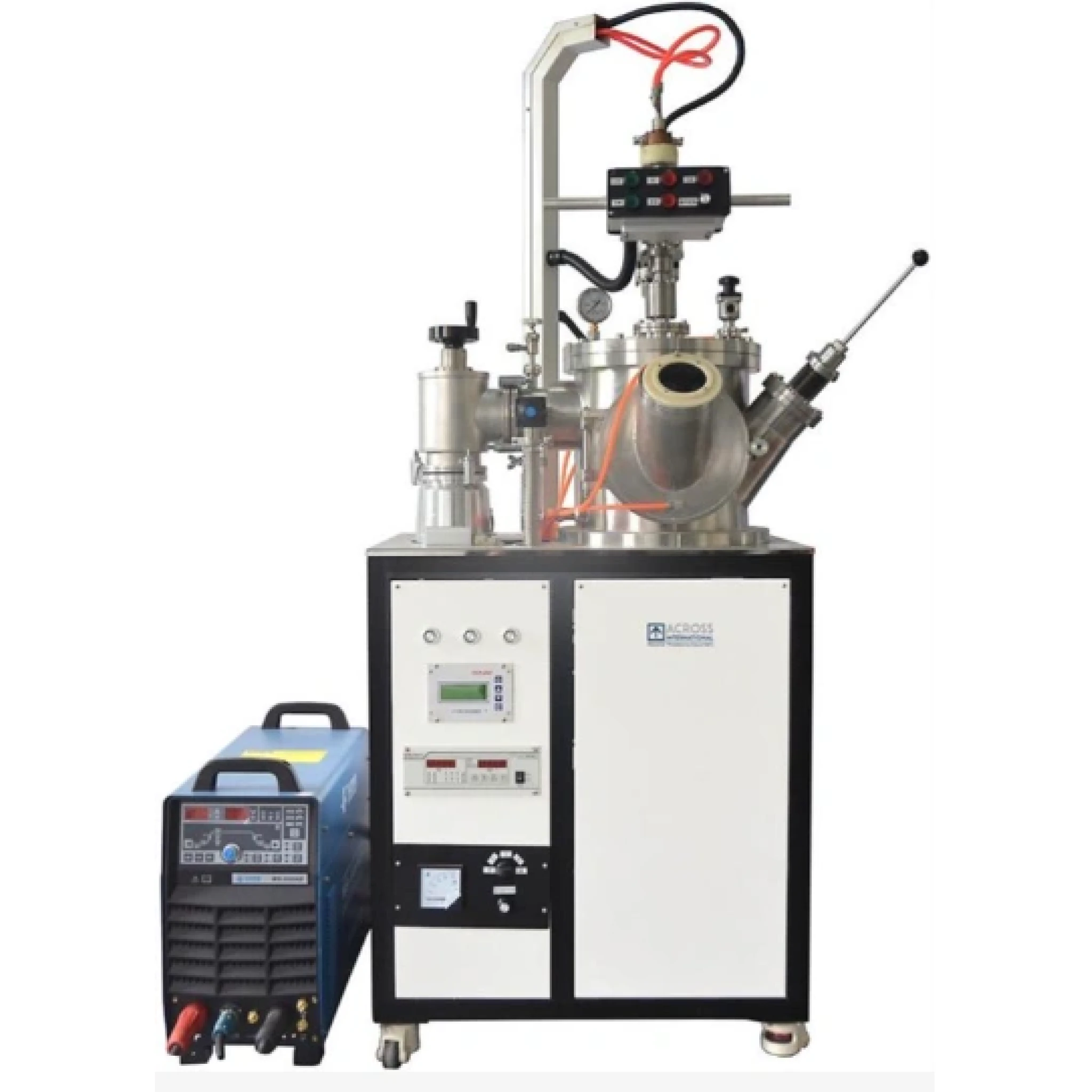

The AIVAF metal melting furnace stands as a compact arc melting furnace, adept at transforming alloy ingots through multiple smelting cycles while preserving the controlled atmosphere intact. It facilitates the preparation of numerous samples concurrently, making it an optimal apparatus for universities and research institutes engaged in the creation of refractory metal and metal carbide samples.
An arc melting furnace melts metal with an electric arc from a tungsten electrode while the sample sits on a water-cooled copper hearth, so the melt never touches a ceramic crucible that could contaminate it. Melting under high vacuum or a clean argon atmosphere keeps reactive and refractory metals from oxidizing.
- Five hearth positions: three alloy melting positions with magnetic stirring, one ingot casting and one degassing position
- Up to 157g per position (calibrated with iron)
- Manipulator flips ingots under vacuum, so they can be remelted several times for an even alloy
- Suction casting chamber with a 6mm mold interface
- Molecular pump system reaches an ultimate vacuum of 6.67 x 10^-4 Pa
It needs a 480V three-phase supply, cooling water and high-purity argon or 5% H2 in argon during melting.
Model | AF-50 | ||||||||||
Operating Current | 500A | ||||||||||
Arc Ignition Method | High Frequency Ignition | ||||||||||
Arc Gun Electrode (Cathode) | Tungsten Needle | ||||||||||
Maximum Melting Temperature | 3500°C (Capable of melting various refractory metals) | ||||||||||
Chamber Vacuum Level (Molecular Pump System) | Ultimate Vacuum: 6.67 × 10⁻⁴ Pa System Leak Rate: Less than 5.0 × 10⁻⁷ Pa·L/s Pumping Performance: Reaches 5 × 10⁻³ Pa within 30 minutes of atmospheric pressure. | ||||||||||
Purging Gases | Helium (He), Argon (Ar), 5% H₂ + 95% Ar | ||||||||||
Gas Purging Required During Operation | High-Purity Argon (5N) or 5% H₂ + 95% Ar Required During Metal Melting Process | ||||||||||
| Arc Melting Vacuum Chamber | Horizontal Cylindrical Vacuum Chamber Specifications
Flange and Interface Configurations:
| ||||||||||
Arc Melting Anode | Water-Cooled Electrically Lifted Arc Gun: 1 Set (Non-Contact Arc Ignition) | ||||||||||
Suction Casting Chamber | Suction Casting Chamber: 1 Unit Mold Interface: 1 (Diameter 6mm) | ||||||||||
Water-Cooled Copper Crucible (Arc Melting Anode) | Number of Positions: 5 positions (hemispherical recess SR25) · 3 Alloy Melting Positions: Equipped with magnetic stirring · 1 Ingot Casting Position · 1 Degassing Position · Melting Sample Weight: ≤157g per position (calibrated with iron) · Magnetic Stirring Coils: 3 pieces | ||||||||||
Manipulator | Used for flipping alloy ingots under vacuum conditions. | ||||||||||
Power Supply | 25 KW 50/60HZ, 480V 3-Phase | ||||||||||
Rated Input Current | 40A | ||||||||||
Rated Output current | 500A | ||||||||||
Rated No-Load Voltage | 84V | ||||||||||
Output Current Adjustment Range | 5-500A | ||||||||||
Model | GD-J100B | ||||||||||
High Vacuum baffle valve | KF25 | ||||||||||
Bellows | KF25x1m | ||||||||||
Bypass Valve | KF40 | ||||||||||
Model | FF-300 | ||||||||||
Voltage | 220V | ||||||||||
Inlet Flange | DN100 | ||||||||||
Pumping Speed (air) L/S | 300 | ||||||||||
Molecular Pump Ultimate Pressure (Pa) | 2.5x10^-6 | ||||||||||
Cooling Method | Water | ||||||||||
Cooling Water Pressure (Mpa) | 0.1-0.2 | ||||||||||
Cooling Water Temperature | <25℃ | ||||||||||
Compression Ratio | 10^9 – N2 | ||||||||||
Ambient Temperature | 5-40℃ | ||||||||||
Recommended Starting Pressure | <100Pa | ||||||||||
Power (KW) | 0.75 | ||||||||||
Pumping Speed (L/S) | 8 L/s | ||||||||||
Voltage | 480V, 3-Phase | ||||||||||
Speed | 1450 RPM | ||||||||||
Inlet Diameter | KF25/KF40 | ||||||||||
Ultimate Vacuum (Pa) | 4 x 10^-2 | ||||||||||
Model | ZDF-III | ||||||||||
Power | 220V 55W | ||||||||||
Control Accuracy | ± 1% | ||||||||||
Vacuum Range | 10^-5 Pa – 10^5 pa |
