Vacuum Tungsten Sintering Furnace
Reference:
Manufacturer: Across International
Vacuum Tungsten Sintering Furnace
Customize your product
Payment Providers

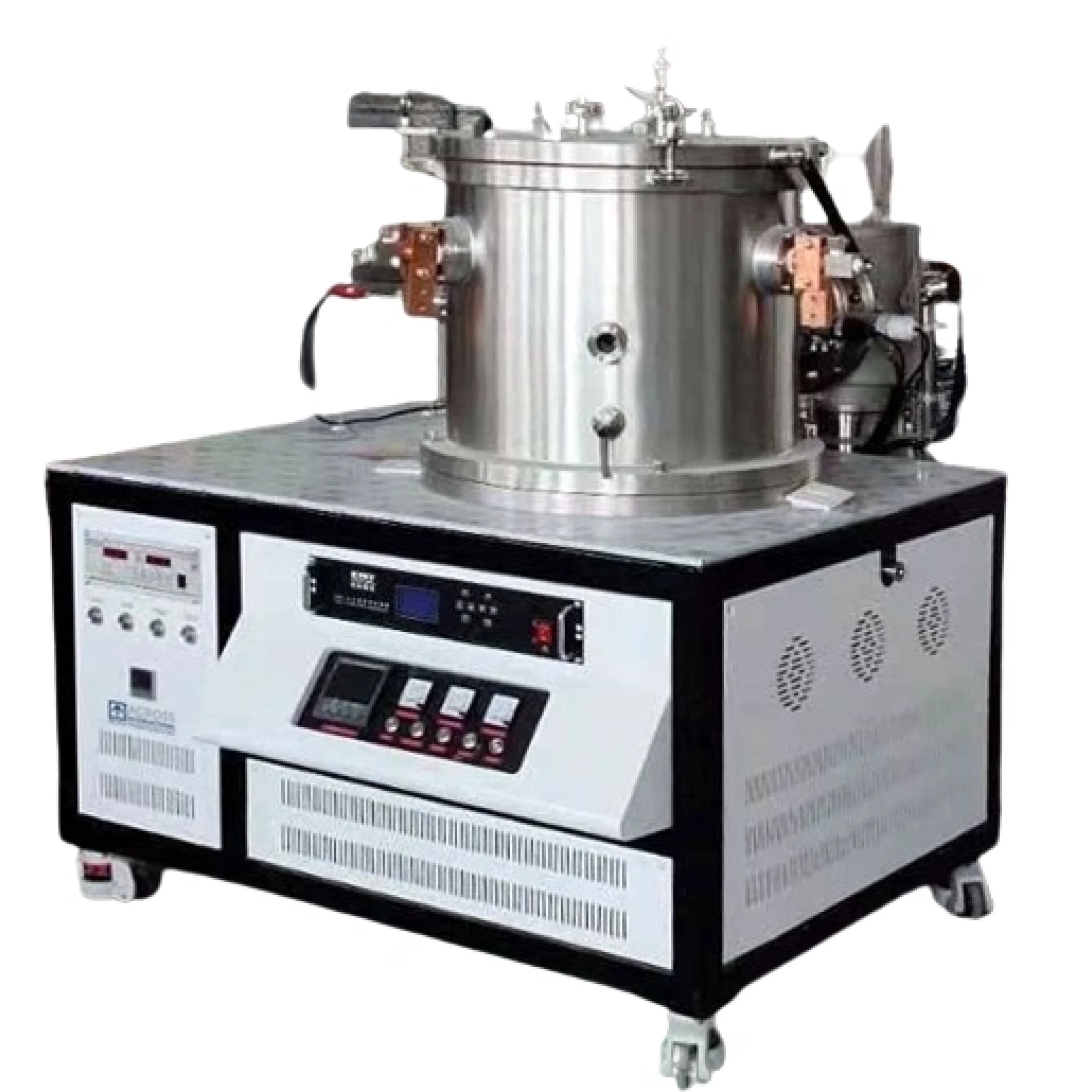

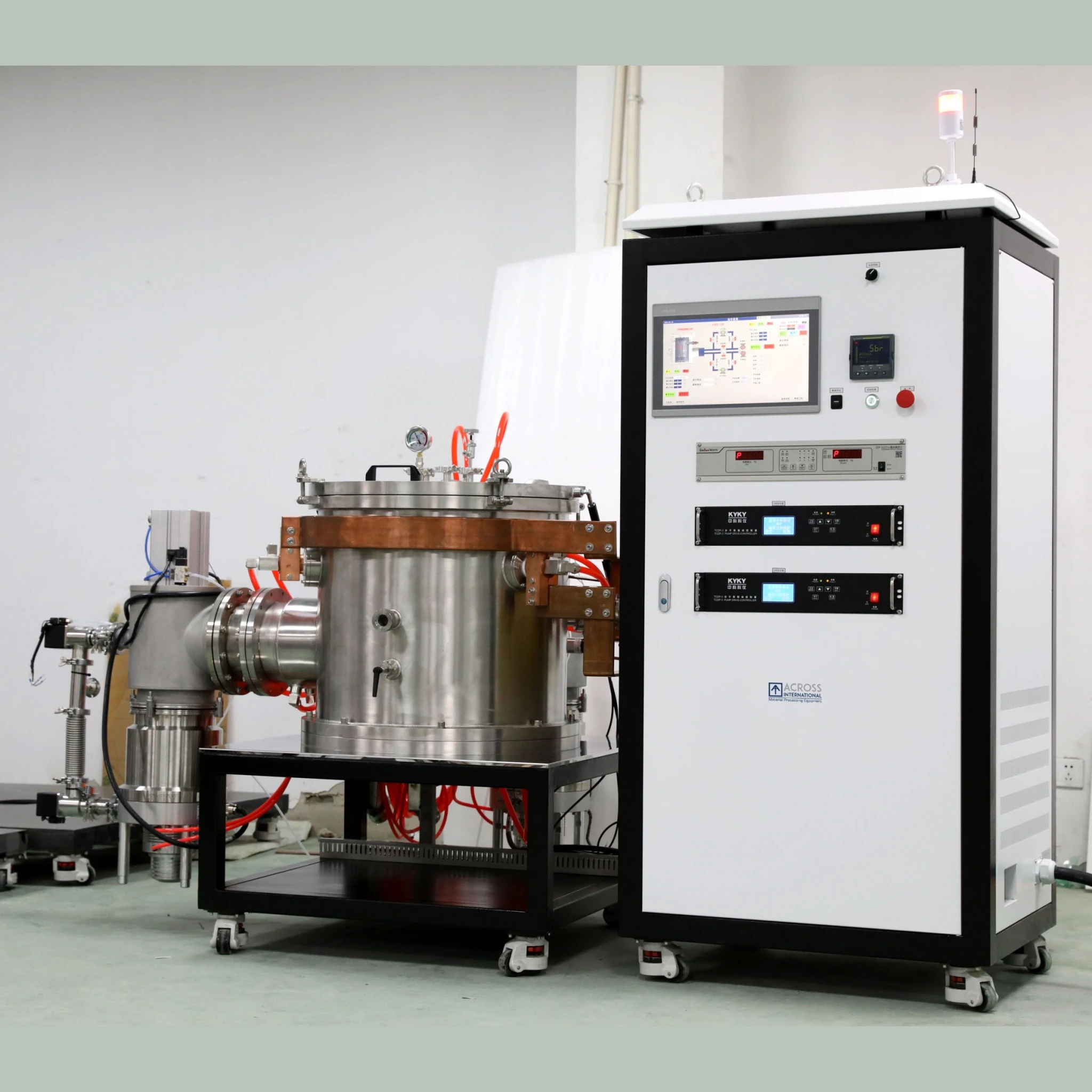

The vacuum tungsten sintering furnace is a vertical structure vacuum resistance furnace that utilizes tungsten mesh as the heating element. It boasts an ultra-high temperature capability of up to 2100°C and operates within high vacuum conditions, making it ideal for laboratory scientific research or industrial production purposes. This furnace finds extensive applications, including the sintering of high-purity ceramics into transparent ceramics, the melting and sintering of high-melting point metals, alloys, ceramics, and other materials, as well as the brightening and degassing of certain metals. Furthermore, it facilitates the measurement of the physical and chemical properties of metals and ceramics under high-temperature vacuum conditions.
Its insulation layer, designed with proprietary technology, ensures excellent furnace temperature uniformity, minimal thermal field deformation, and an extended service life. Additionally, this equipment offers the advantages of compact size and straightforward operation.
Model | VTSF-25-21 |
Max Power | 25KW |
Max Heating Temp | 2100C |

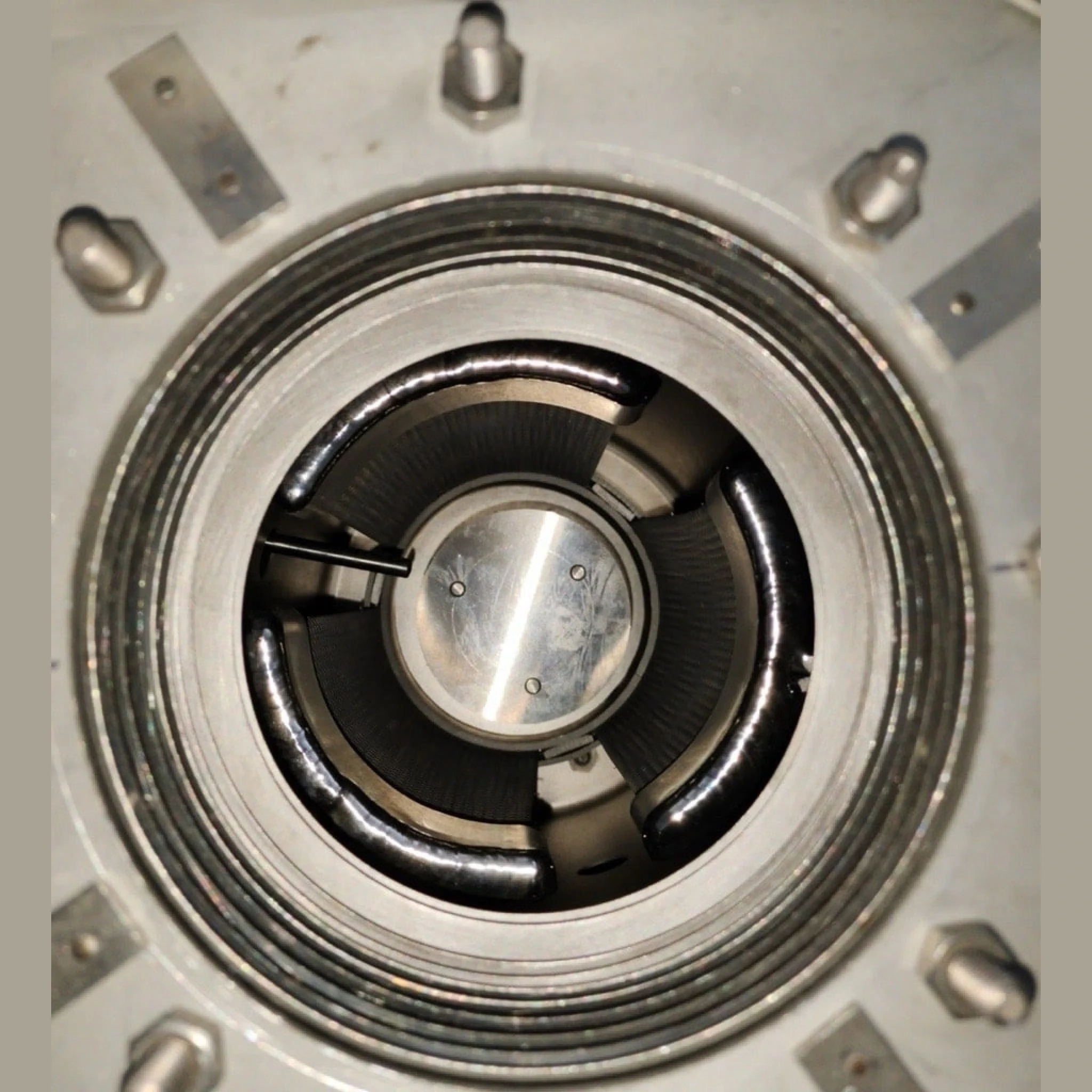

Heating Elements | High Purity Tungsten Mesh |
| Heating Zone (ID x H) | 94x170mm |
Constant Heating Zone (ID x H) | 60×80mm |

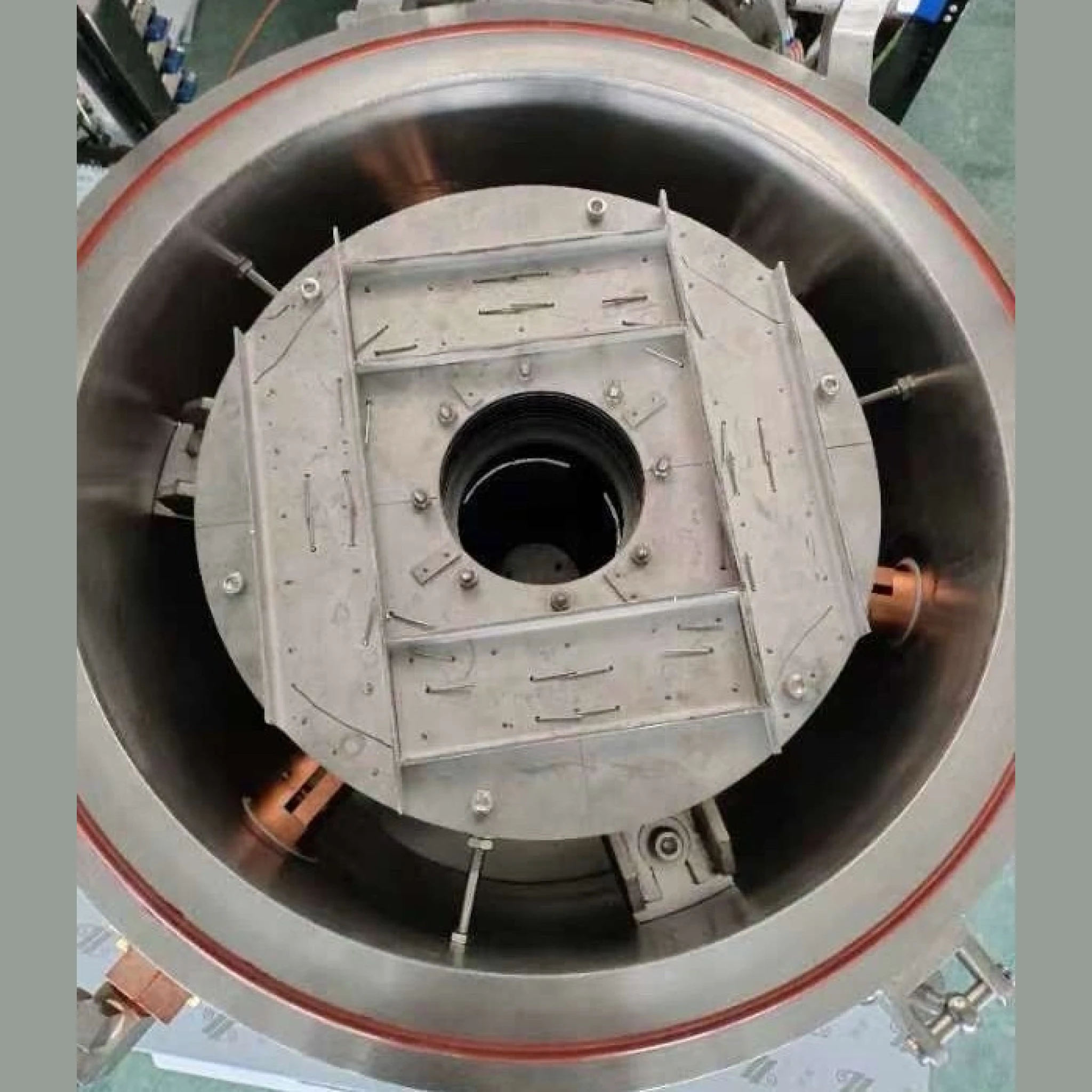

Insulation Method | Tungsten, molybdenum, stainless steel heat shield |
Temp Control Mode | Imported Eurofins 3504 temperature control instrument. Intelligent PID 500-segment temperature control |
Vacuum Level with Molecular Pump Option | < 5×10-4Pa （Empty furnace, cold state） |
Operating Vacuum Level | < 5×10 -3Pa （Empty Furnace） |
Chamber Inflation Pressure | ＜0.05MPa |
Pressure Boost Rate | <4Pa/Hour |
Couple protection and display | Yes |
Over-Temp Protection | Yes |
Over-Current Protection | Yes |
Under voltage protection (water pressure) | Yes |
control precision | +/- 1 ℃（600C and above） |
Temperature detection method | Tungsten sleeve tungsten-rhenium thermocouple |
Maximum heating rate | < 20℃/Min |
Water-Cooled vacuum chamber | Yes |
| Unit input Voltage | 480V/220V |
| Unit Weight/ Shipping Weight (lbs) | 1655/2055 lbs |
| Unit Size/ Shipping Size (inch) | 48x65x60"/ |
| Chiller Model (optional) | 8P |
| Bellows | KF40×1000 |
Vacuum baffle valves | KF40 |
Molecular pump model | FJ620C |
Input voltage | 220V |
Molecular pump inlet flange | DN160 |
Molecular pump pumping rate L/S (to air). | 600 |
Molecular pump ultimate pressure（Pa) | 6×10-7 |
Cooling method | Water-cooled |
Cooling water pressure（MPa） | 0.1-0.2 |
Cooling water temperature | <25℃ |
Ambient temperature | 0~40℃ |
Suggested start pressure | <10pa |

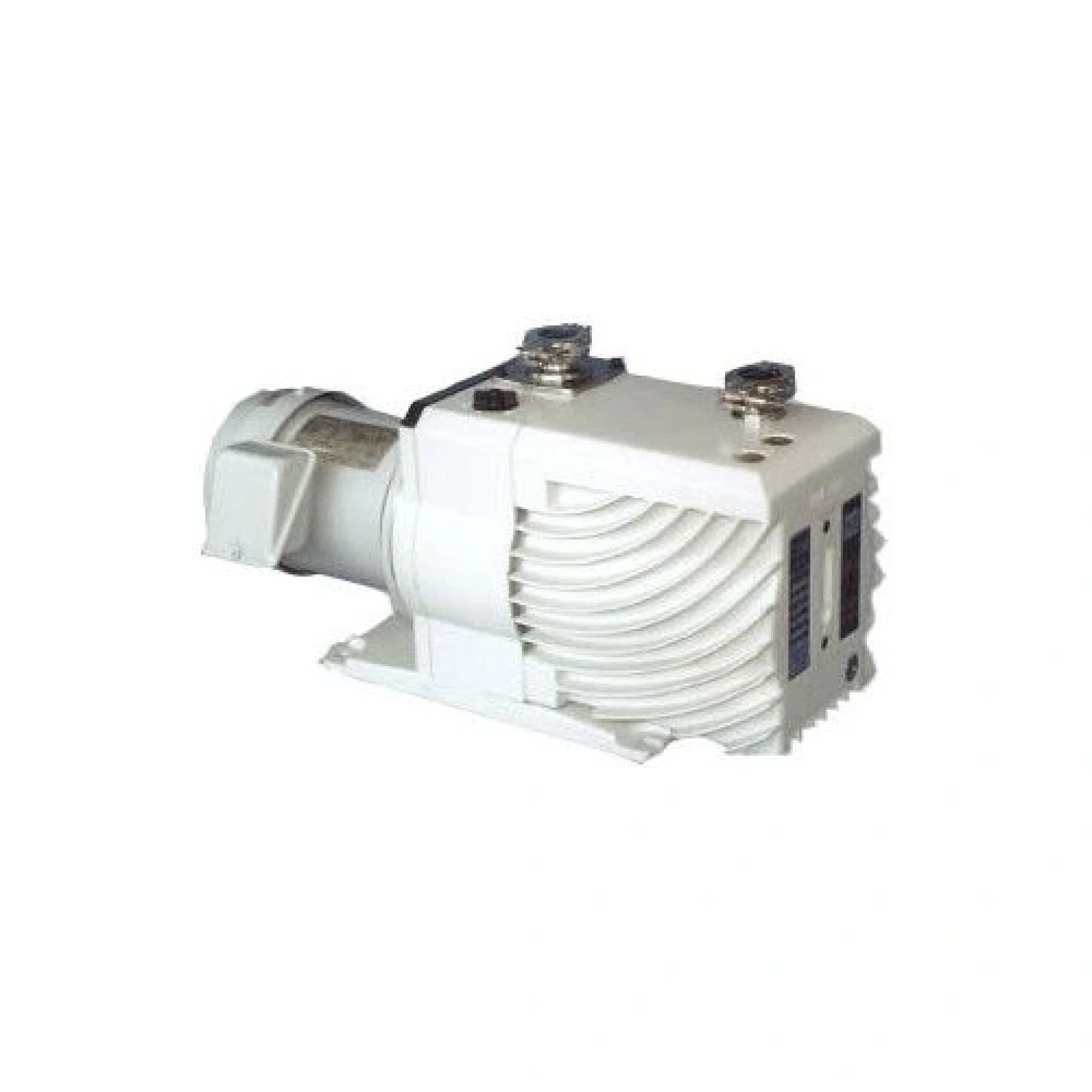

power | 0.75KW |
Voltage | 480V |
Rotating Speed | 1450rpm |
Intake Caliber | KF25/KF40 |
Front Pump pumping rate（L/S） | 8 |
Ultimate Pressure | 4X10 -2Pa |

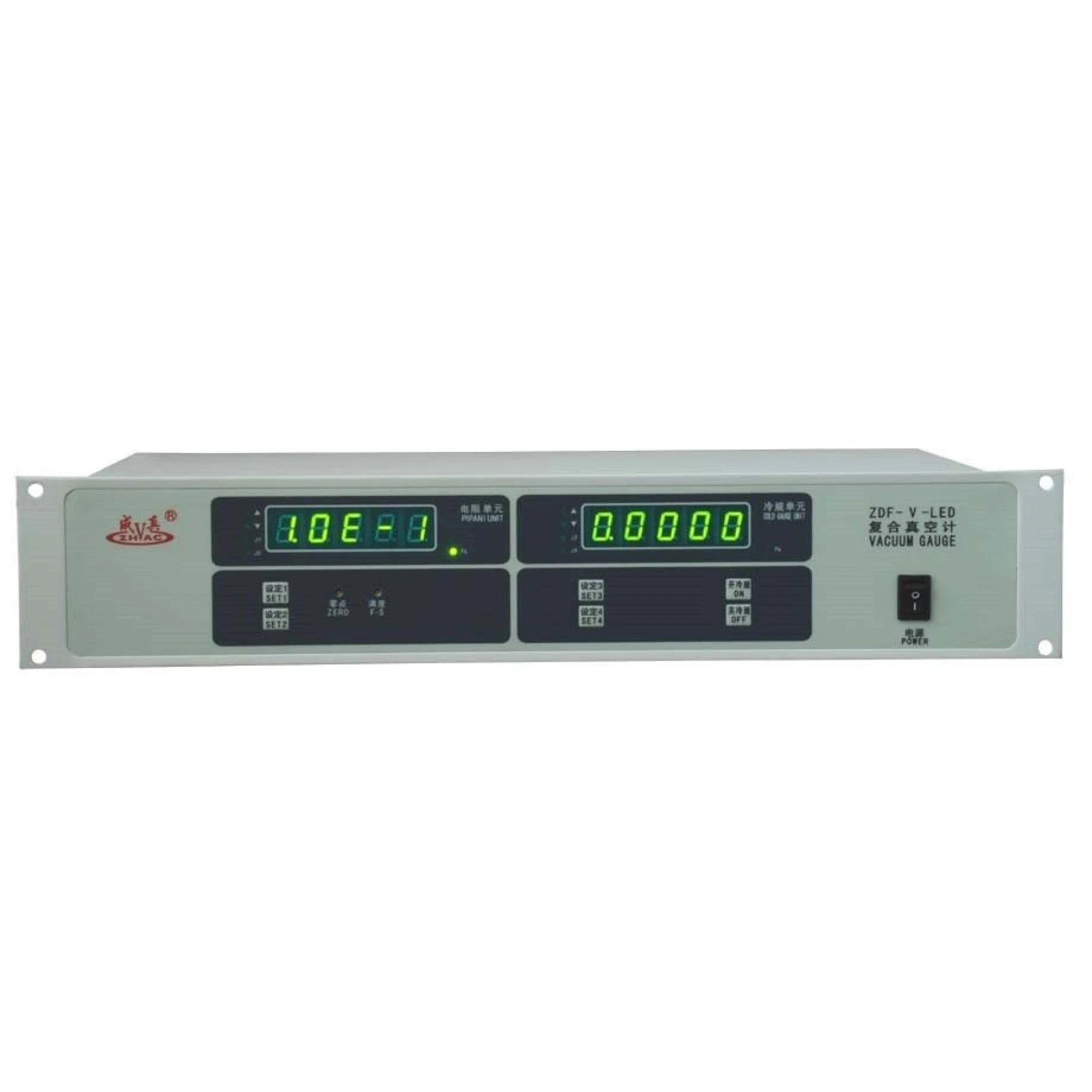

Composite gauge model | ZDF |
power supply | 220V 55W |
Control accuracy | ± 1% |
Vacuum gauge measuring range | 10-5 -10 5 Pa |

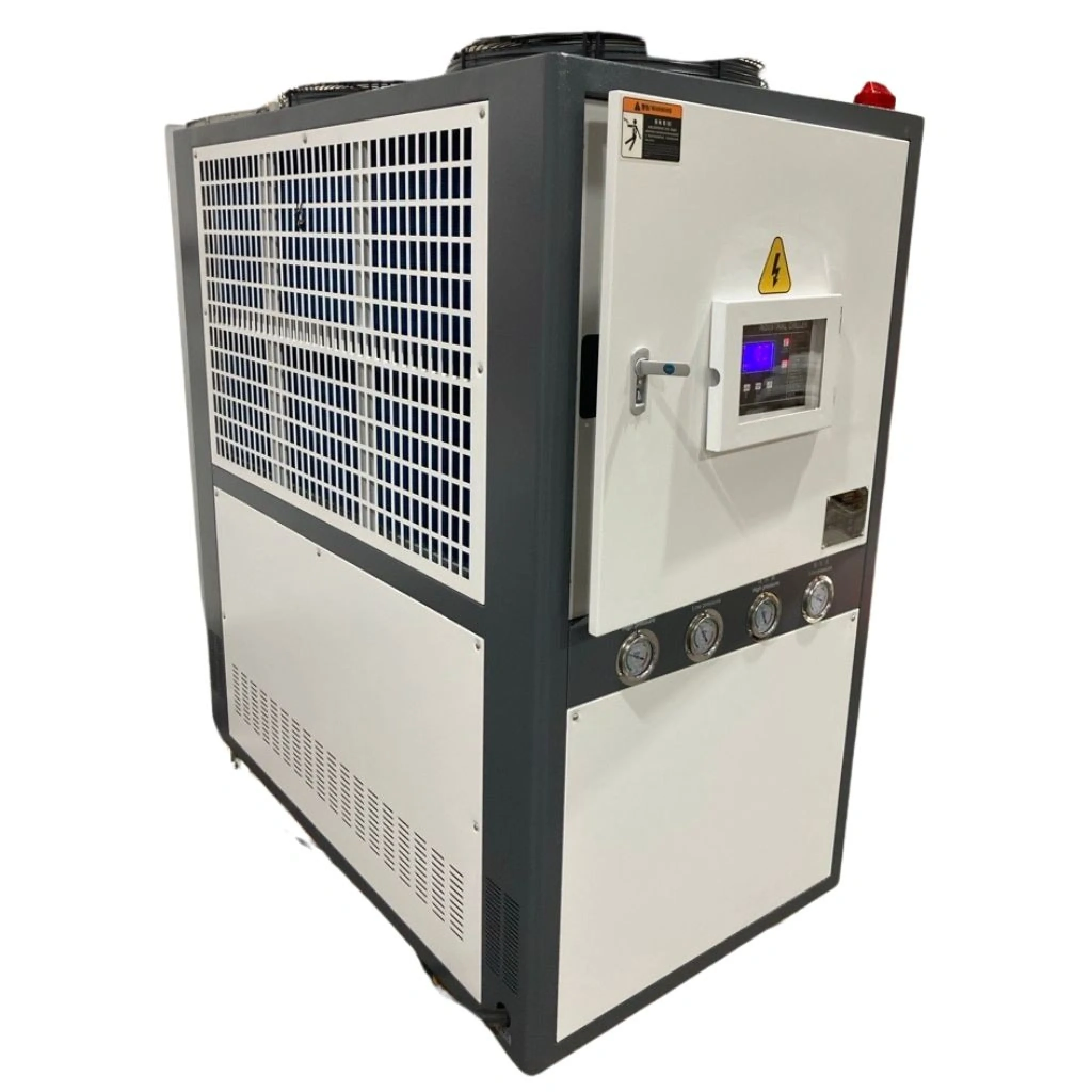

Water Chiller | 8P |
Power Supply | 3PH-480V/60HZ |
Cooling capacity | 18.3*10³kcal/h |
Power | 12KW |
Water pumping distance | 50M |
Pump flow | 12m3/h |
Water tank capacity | 130L |
Dimensions mm | 730×1335×1415 |
net weight | 285KG |
