Vacuum Degreasing Sintering Furnace
Reference: VDSF
Manufacturer: Across International

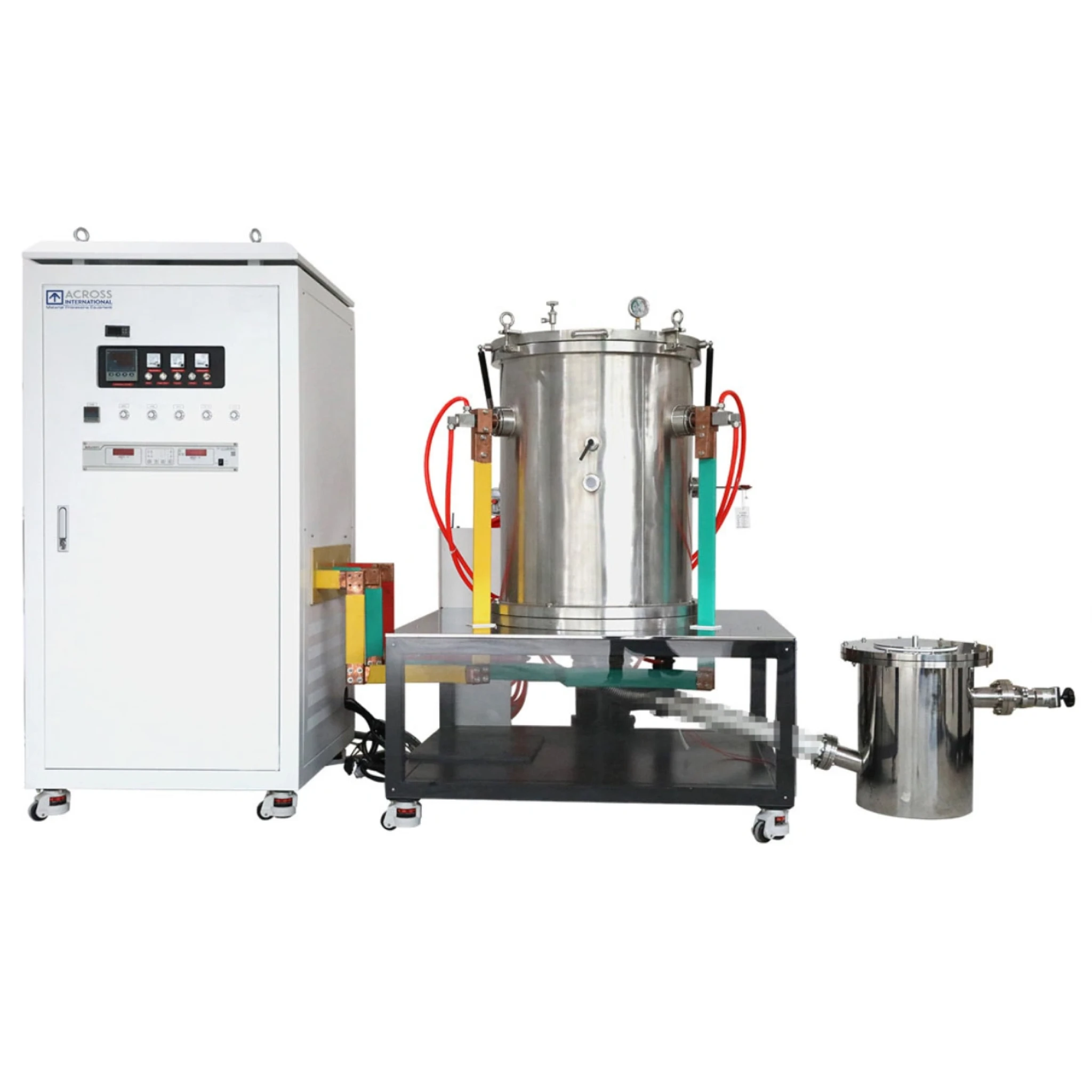

Vacuum Degreasing Sintering Furnace
Payment Providers
The Vacuum Degreasing Sintering Furnace by Across International is a state-of-the-art solution designed for high-temperature processing in controlled environments. This furnace integrates vacuum degreasing and sintering into a single unit, making it ideal for applications in powder metallurgy, ceramics, and advanced materials research. It features precise temperature control, uniform heating, and a robust vacuum system to eliminate contaminants and ensure optimal sintering conditions. With its advanced design, the furnace supports a wide range of materials and processes, offering exceptional performance, reliability, and energy efficiency. Perfect for industries requiring high-purity and high-density components, this furnace exemplifies innovation and quality in thermal processing technology.
Description | Specification |
Main Use | Vacuum drying and degassing of materials. The mechanical pump extracts gas from the cold trap, where the moisture or ice mixture condenses and adheres to the inner wall, achieving degassing. |
Max Power Consumption | 70KW (Furnace: 65KW + Diffusion Pump: 1.8KW + Mechanical Pump: 2.2KW) |
Power Supply | Three-phase 480V 50/60Hz |
Maximum Temperature | 2100°C |
Temperature Control | Yudian 50-segment programmable control |
Heating Zone Dimensions (Internal Diameter) | Dia 250mm × 370mm |
Effective Heating Zone Dimensions | Dia 200mm × 200mm |
Chamber | |
Description | Specification |
Vacuum Pressure | < 5 × 10⁻³ Pa |
Chamber Pressure | < 0.05 MPa |
Pressure Increase Rate | < 4 Pa/hour |
Over Temp Protection | Yes |
Over Current Protection | Yes |
Water Pressure Protection | Yes |
Temperature Precision | +/- 1°C |
Thermocouple Type | Molybdenum sheath tungsten-rhenium thermocouple |
Temp Increase Rate | < 20°C/Min |
Chamber Water Cooling | Yes |
View Window Diameter | Dia 40mm |
Number of Heating Segments | 15P |
Power Supply | 480V / 220V |
Bellow | KF40 × 1000 |
Vacuum Baffle Valves | KF40 |
Description | Specification |
Power Consumption | 2.2KW |
Voltage | 480V |
Rotational Speed | 1450 rpm |
Inlet Diameter | KF25 / KF40 |
Forepump Pumping Speed | 16 L/s |
Ultimate Pressure | 5 × 10⁻¹ Pa |
Voltage | 220V |
Power Consumption | 1800W |
Inlet Port | DN200 |
Outlet Port | DN40 |
Oil Injection Capacity | 0.55L |
Pumping Speed (N₂) | 2000 L/s |
Composite Vacuum Gauge Model | ZDF |
Power Supply | 220V, 55W |
Control Accuracy | ± 1% |
Vacuum Measurement Range | 10⁻⁵ - 10⁵ Pa |
Power Supply (Main) | 3PH-480V/60Hz |
Cooling Capacity | 35.9 × 10³ kcal/h |
Total Input Power | 15.3KW |
Pump Head | 50M |
Water Tank Capacity | 230L |
External Dimensions | 1000 × 1800 × 2100 mm |
Net Weight | 750KG |
