Welch 12.8 CFM CRVpro16 Explosion Proof Rotary Vane Vacuum Pump
Reference:
Manufacturer: Welch Pumps

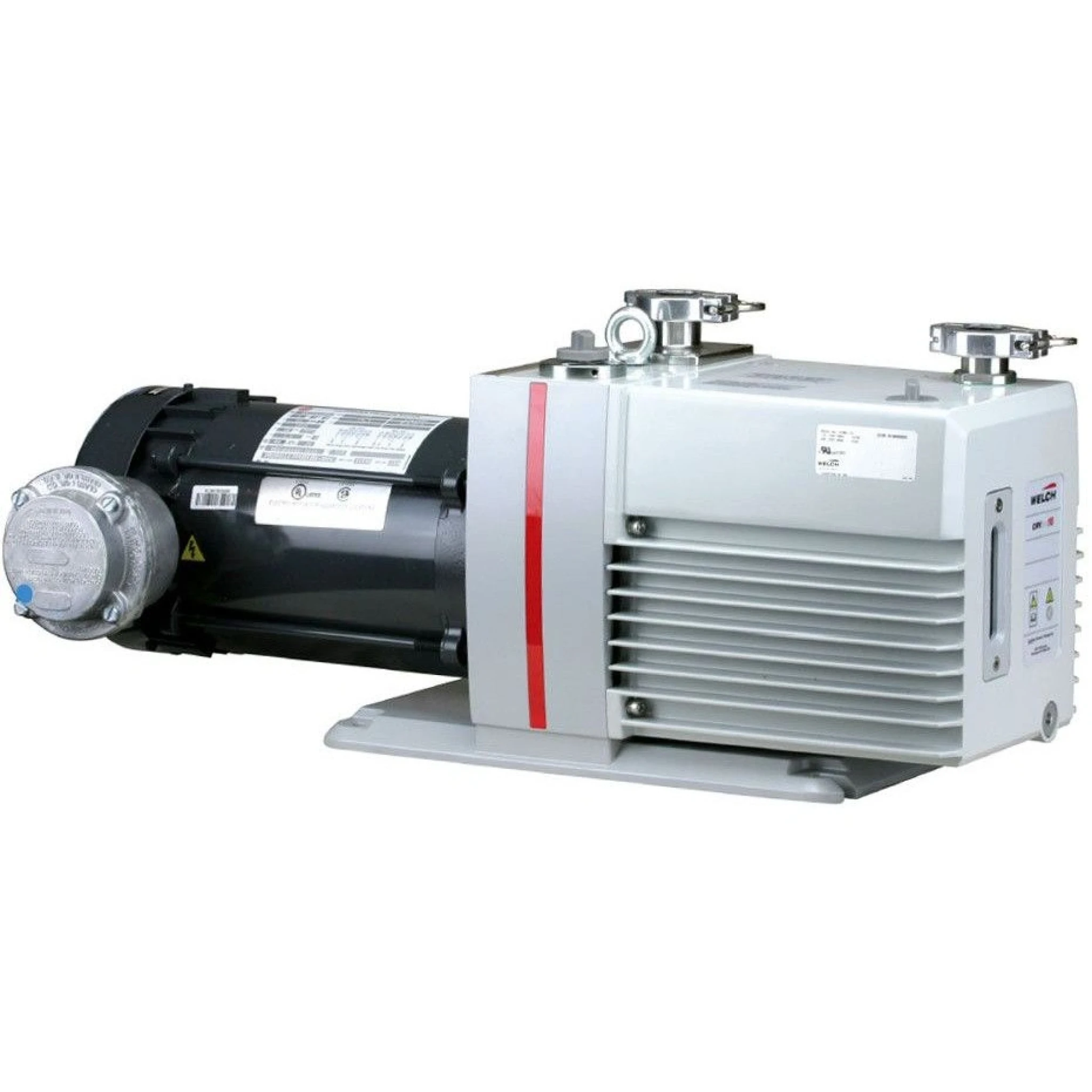

Welch 12.8 CFM CRVpro16 Explosion Proof Rotary Vane Vacuum Pump
Customize your product
Payment Providers

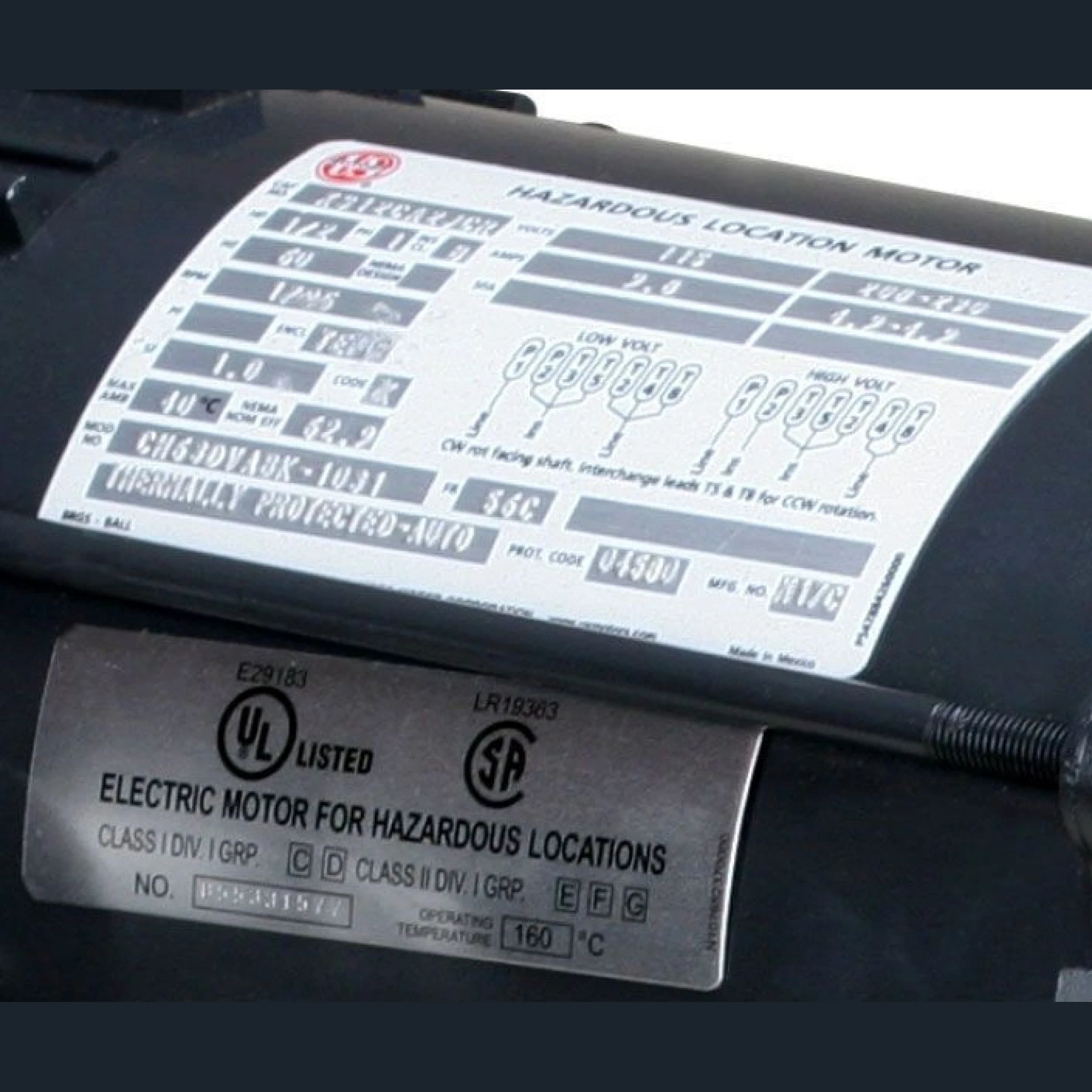

Note: This is the explosion proof version of the 12.8 CFM CRVpro16 that comes with an explosion proof motor, conduit wiring installation required. No cord, plug, or switch provided.
Free Air Displacement @ 60 Hz, cfm (L/min) | 5.6 (158) |
Ultimate Pressure, torr | 1.5x10⁻³ |
Noise Level, dBA | 50 |
Motor Speed, RPM, @60Hz | 1740 |
Motor Power, HP (kW) at 60 Hz | 0.5(0.4) |
Oil Capacity, L | 1 |
Connection Flanges | NW 16 |
Inlet Hose Connection on -01 Models | 5/8" to 3/4" |
Weight, lbs (kg) | 49.6 (22.5) |
Dimensions, LxWxH, in (mm) | 18.2x6.1x9.1 (463x157x230) |
Pump with Explosion Proof Motor, 115V/208-230V, 60 Hz, 1 Phase, cUL Listed. | 306E-01 |
Standard Package
| Welch 12.8 CFM CRVpro16 Explosion Proof Rotary Vane Vacuum Pump | 1 pc |
| KF25 Clamps and O-Rings | 4 pc |
| KF25 to Hose Barb | 1 pc |
| Outlet Box | 1 pc |
| Premium Vacuum Pump Oil | 3 pc |
| User's manual | 1 pc |
