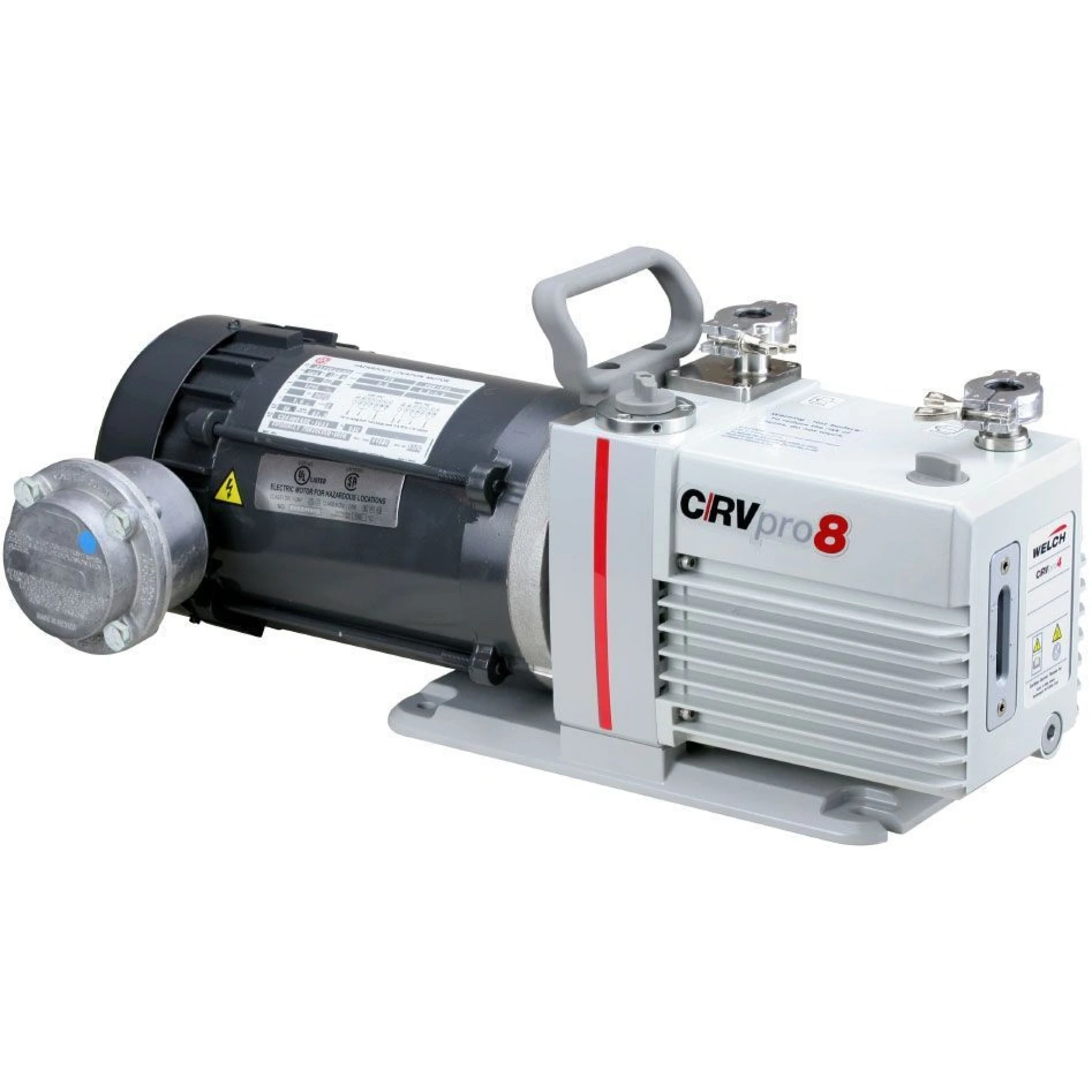

Welch 5.6 CFM CRVpro8 Explosion Proof Rotary Vane Vacuum Pump
Reference:
Manufacturer: Welch Pumps
Welch 5.6 CFM CRVpro8 Explosion Proof Rotary Vane Vacuum Pump
Customize your product
Payment Providers

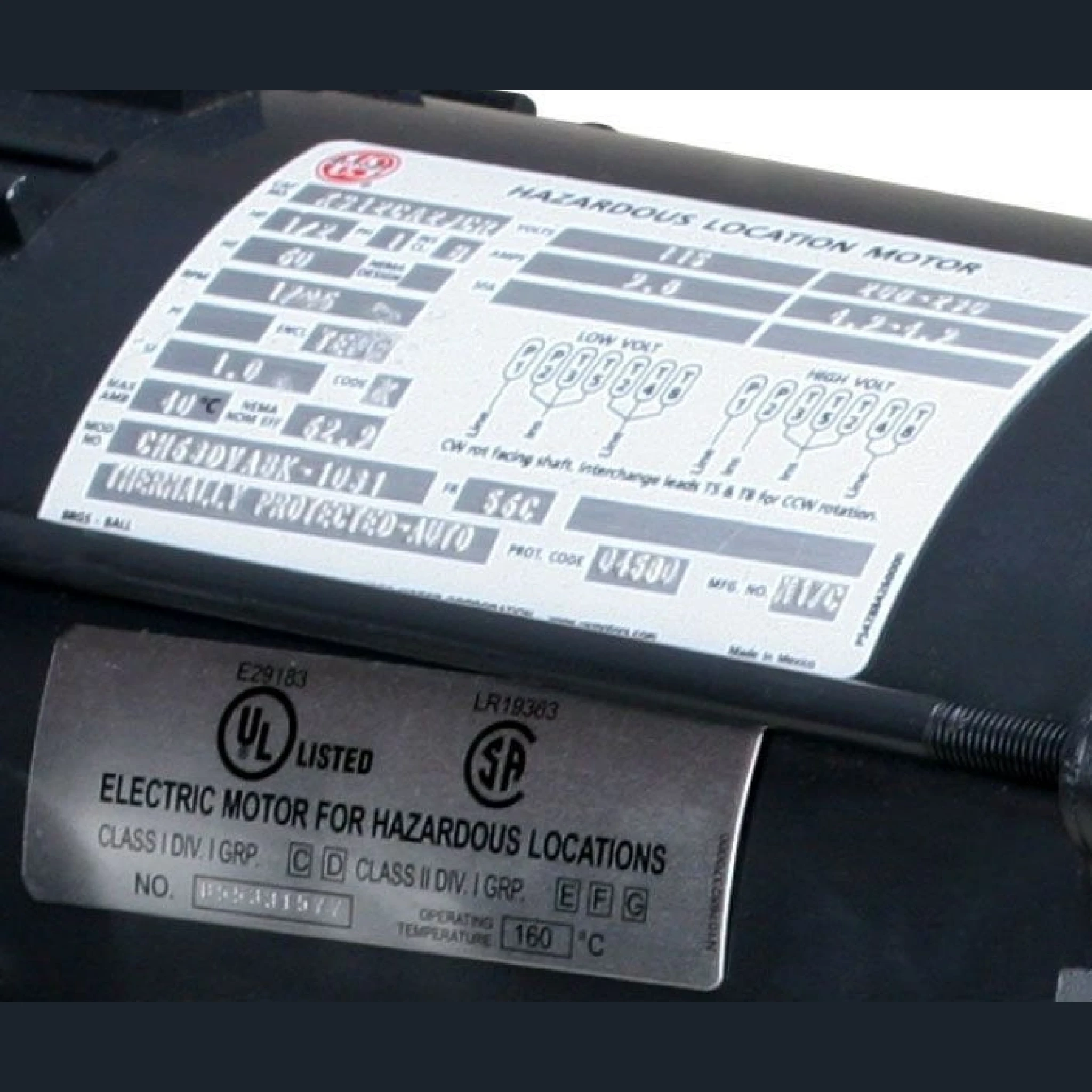

Note: This is the explosion proof version of the 5.6 CFM CRVpro8 that comes with an explosion proof motor, conduit wiring installation required. No cord, plug, or switch provided.
Free Air Displacement @ 60 Hz, cfm (L/min) | 5.6 (158) |
Ultimate Pressure, torr | 1.5x10⁻³ |
Noise Level, dBA | 50 |
Motor Speed, RPM, @60Hz | 1740 |
Motor Power, HP (kW) at 60 Hz | 0.5(0.4) |
Oil Capacity, L | 1 |
Connection Flanges | NW 16 |
Inlet Hose Connection on -01 Models | 5/8" to 3/4" |
Weight, lbs (kg) | 49.6 (22.5) |
Dimensions, LxWxH, in (mm) | 18.2x6.1x9.1 (463x157x230) |
Pump with Explosion Proof Motor, 115V/208-230V, 60 Hz, 1 Phase, cUL Listed. | 306E-01 |
Standard Package
| Welch 5.6 CFM CRVpro8 Explosion Proof Rotary Vane Vacuum Pump | 1 pc |
KF16 Clamps and O-Rings | 4 pc |
KF16 to KF25 Adapter | 1 pc |
| KF16 to Hose Barb | 1 pc |
| Outlet Box | 1 pc |
| Premium Vacuum Pump Oil | 2 pc |
| Motor Wiring Diagram (should be on motor) | 1 pc |
| Fastening Kit (4x Fastening Screws, 1x Ground Screws, 4x Lock Washers) | Located inside Junction Box | 9 PC |
| User's manual | 1 pc |
