USA Lab EZ Path 20L Full Bore Short Path Distillation Kit with 110mm Head
Reference:
Manufacturer: USA Lab
20L Full Bore 110mm Short Path Distillation Head – EZ Path | USA Lab Maximize throughput and simplify your distillation workflow with the USA Lab 20L Full Bore 110mm Short Path Distillation Head featuring EZ Path technology. The wide 110mm full-bore pathway…
In stock
Customize your product
Payment Providers
More info
20L Full Bore 110mm Short Path Distillation Head – EZ Path | USA Lab
Maximize throughput and simplify your distillation workflow with the USA Lab 20L Full Bore 110mm Short Path Distillation Head featuring EZ Path technology. The wide 110mm full-bore pathway minimizes flow resistance and pressure drop for faster vapor transport, efficient separation, and high collection rates in large-scale short path distillation applications.

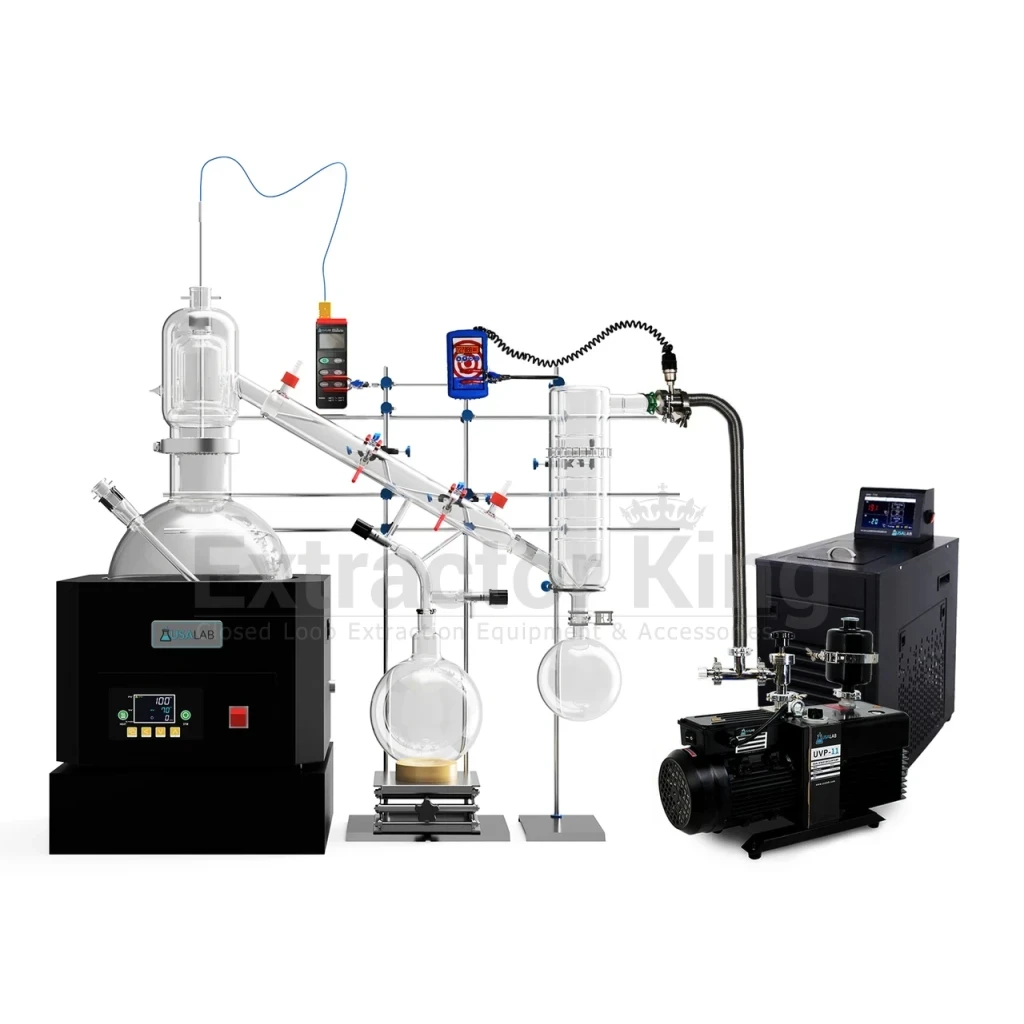

Engineered from high-quality borosilicate glass, the EZ Path design reduces the number of glass components required for setup while providing a streamlined vapor path. Designed for 20L boiling flasks with an optimal batch capacity of 7,000–12,000mL, this system is well suited for extraction labs, research facilities, and industrial users requiring scalable processing.
The complete workflow bundle includes a compatible heating mantle, recirculating heater chiller, UL-recognized high-capacity vacuum pump, gauges, thermowells, flasks, isolation adapter, cold trap, and KF25 vacuum hardware to support high-volume operation. Typical batch times range from 4–10 hours depending on feed characteristics, process conditions, and utilities.
Why this 20L EZ Path Short Path Distillation Head?
- 110mm full-bore pathway — minimizes flow resistance and pressure drop to promote efficient vapor transport and high-throughput distillation.
- EZ Path construction — reduces the number of glass components and connections for easier assembly, maintenance, and system integration.
- High-quality borosilicate glass — provides a durable, heat-resistant material suitable for demanding laboratory and production workflows.
- Optimized for 20L processing — supports 7–12L optimal batch capacity with typical batch times of approximately 4–10 hours depending on process conditions.
- Complete workflow package — includes the major heating, cooling, vacuum, collection, measurement, support, and KF25 hardware required for a complete distillation setup.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 20L Full Bore 110mm Short Path Distillation Head – EZ Path |
| Flask Size | 20L (20,000mL) |
| Flask Joint Sizes | 110mm Flange (main) | 24/40F (side) |
| Distillation Head Joint Sizes | 110mm Flange (bottom) | 45/50F (top) | 34/45M (side) |
| Condenser Joint Sizes | 34/45F inlet | 34/45M outlet |
| Isolation Adapter Joint Sizes | 34/45F inlet | 34/45M outlet | 24/40M bottom discharge |
| Cold Trap Joint Sizes | 34/45F inlet | 34/45F outlet |
| Optimal Capacity | 7,000–12,000mL |
| Batch Time | 4–10 hours (process dependent) |
| Main Body Flow Rate | 2,000–4,000 grams/hour |
| Footprint (including pump/chiller) | 80 × 24 × 40 in |
| USA-XHM-20L Heating Mantle | 300°C | 2,500 RPM | 3,000W |
| UHC-720 Heater Chiller | −20°C to 180°C | 7L | 450W heat |
| UVP-21 Vacuum Pump | 21 CFM | 0.3 Micron | UL Recognized |
| Heating Mantle Power | 220–240V, 50/60Hz, 15A |
| Heater Chiller Requirements | 220V, 50/60Hz, 15A |
| Vacuum Pump Requirements | 110–120V, 50/60Hz, 15A |
| Construction | Borosilicate Glass |
| Warranty | 1 Year |
FAQ
What makes the 20L EZ Path distillation head faster?The 110mm full-bore pathway minimizes flow resistance and pressure drop, promoting faster vapor transport and supporting main-body flow rates of approximately 2,000–4,000 g/hr with suitable process conditions and utilities.
The 20L system is optimized for approximately 7,000–12,000mL batch volumes. Typical batch times range from 4–10 hours depending on feed characteristics, operating conditions, and processing targets.
The heating mantle requires 220–240V, 50/60Hz, 15A; the UHC-720 heater chiller requires 220V, 50/60Hz, 15A; and the UVP-21 vacuum pump requires 110–120V, 50/60Hz, 15A. Confirm available utilities, power, cooling requirements, ventilation, and vacuum connections before installation.

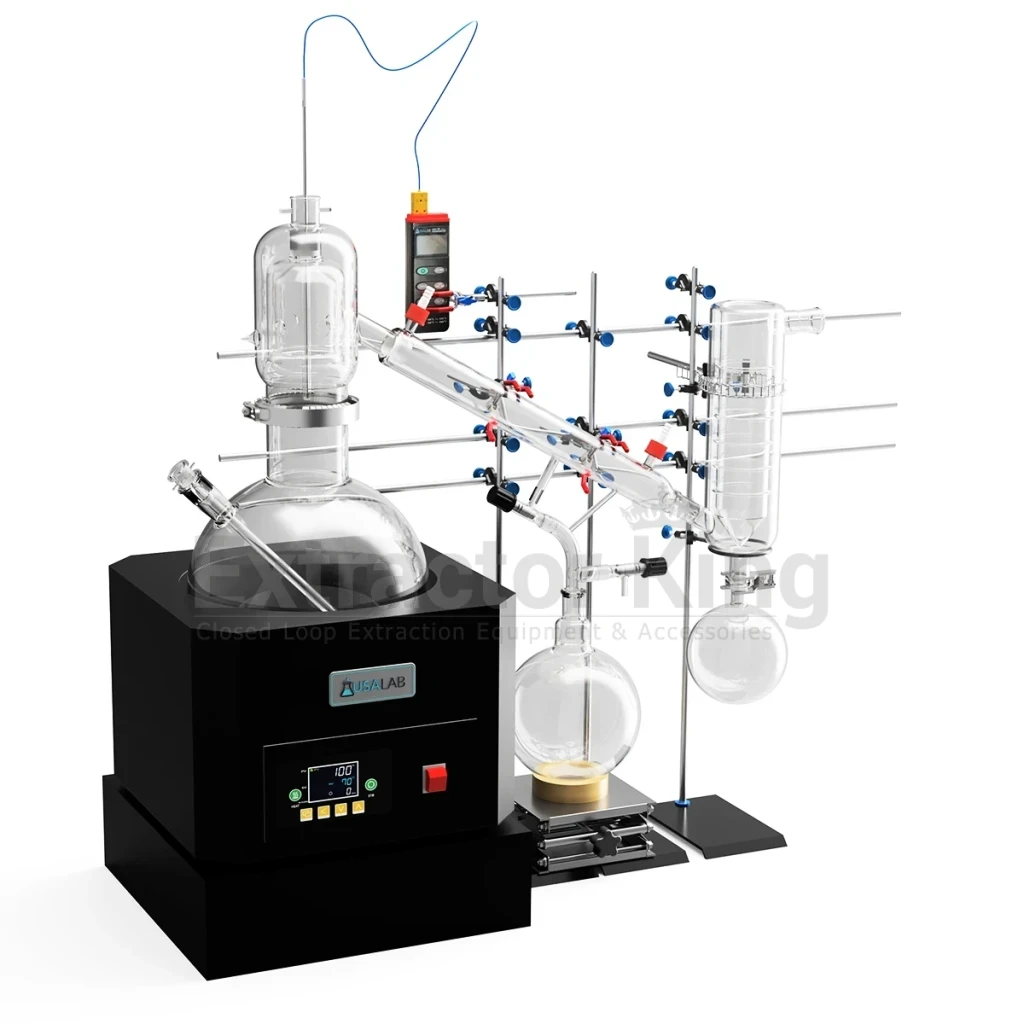

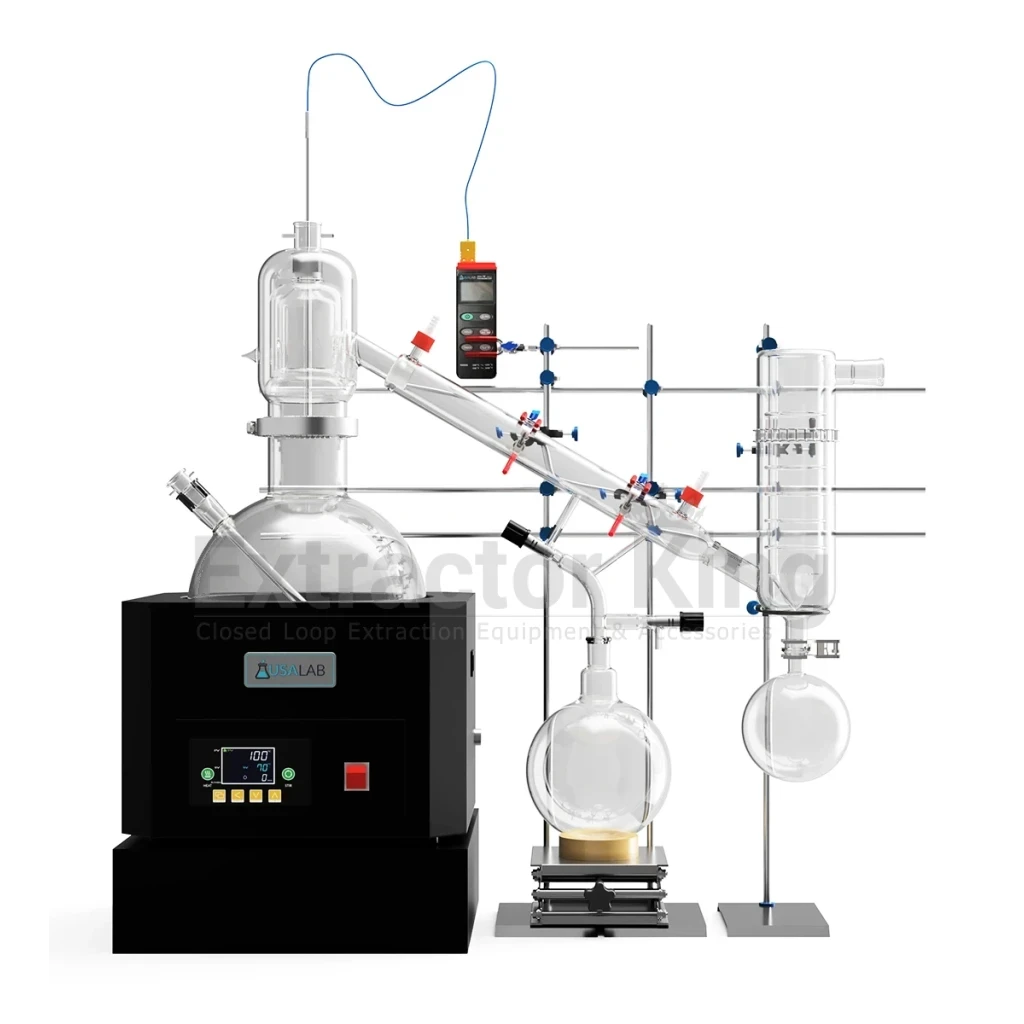

The bundle includes the 20L heating mantle and stand, 20L round-bottom flask, thermowells, 110mm flange components, jacketed distillation head, isolation adapter with valves, angled cold trap and lid, 5L and 1L flasks, DigiVac Bullseye vacuum gauge, USA-TM thermometer, UVP-21 vacuum pump, UHC-720 heater chiller, KF25 adapters and valves, vacuum hardware, stands, clamps, support components, pump oil, and related accessories.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Flask Sizes | 20L | 110MM Main | 24/40F Side |
| Head Joint Size | 110MM Main | 45/50F Top | 34/45M Side |
| Isolation Adapter Joint Sizes | 34/45F Inlet | 34/45M Outlet | 24/40M Bottom |
| Cold Trap Joint Sizes | 34/45F Inlet | 34/45F Outlet |
| Optimal Capacity | 7,000-12,000mL |
| Batch Time | 4-10 Hours |
| Main Body Flow Rate | 2,000-4,000 grams/hour |
| USA-XHM-22L Mantle Power | 220-240V 50/60Hz 15A |
| Heater Chiller Power | 220-240V 50/60Hz 15A |
| Vacuum Pump Power | 110-120V 50/60Hz 15A |
| Warranty Term | 1 Year |
