USA Lab N4 12L Full Bore Short Path Distillation Turnkey Kit with 100mm Head - USA Made Glass
Reference:
Manufacturer: USA Lab
Our 12L Full Bore Turnkey Short Path Distillation Kit is made with high quality USA Made Glass and a wide 100mm head to allow for excellent distillation , high production, and consistent results . This distillation kit comes with a large 100mm distillation…
In stock
Customize your product
Payment Providers
More info

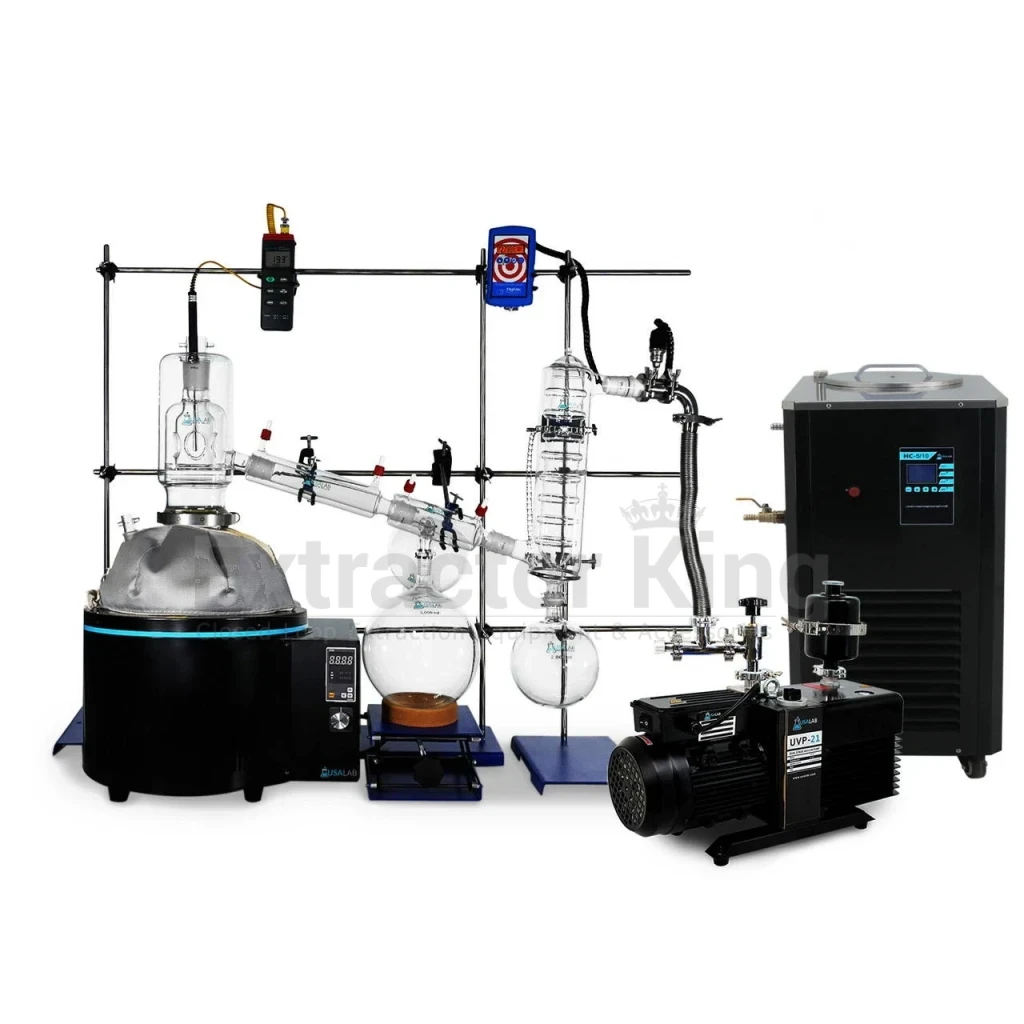

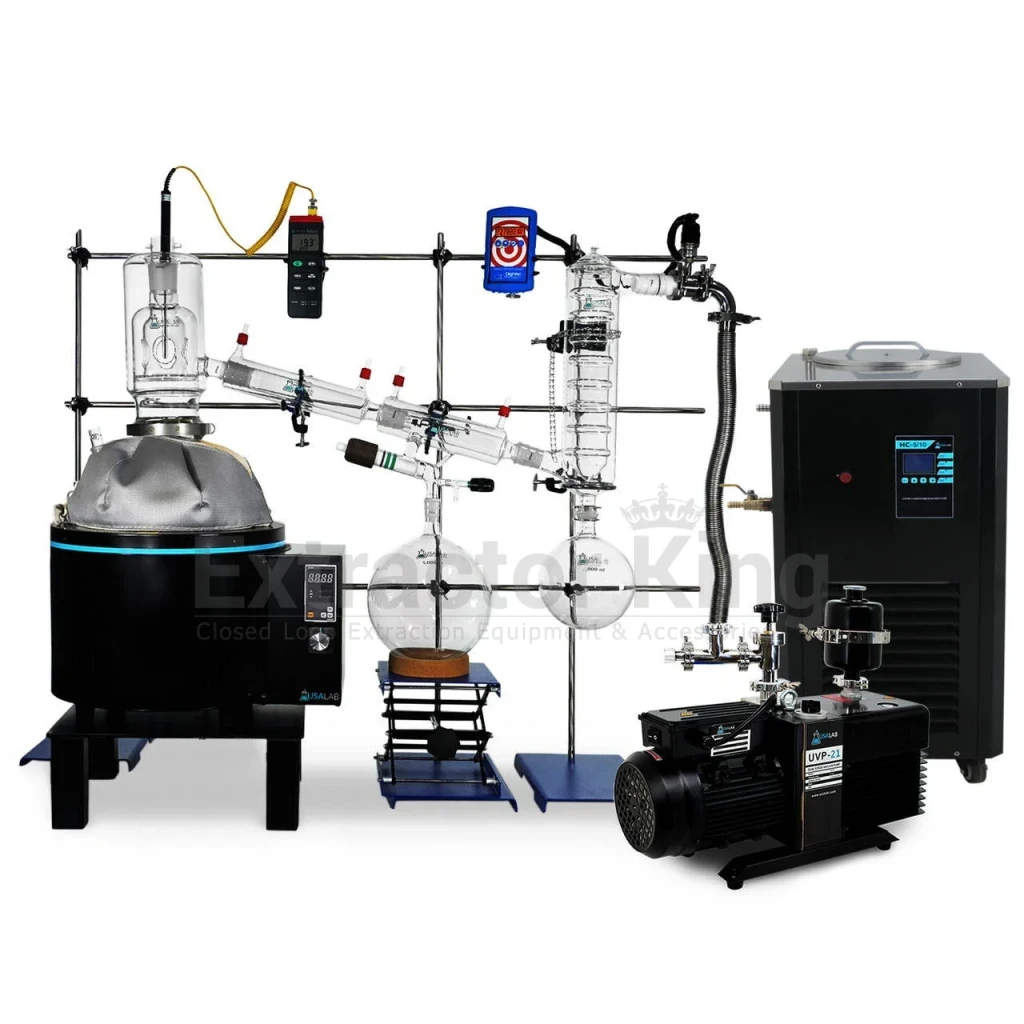

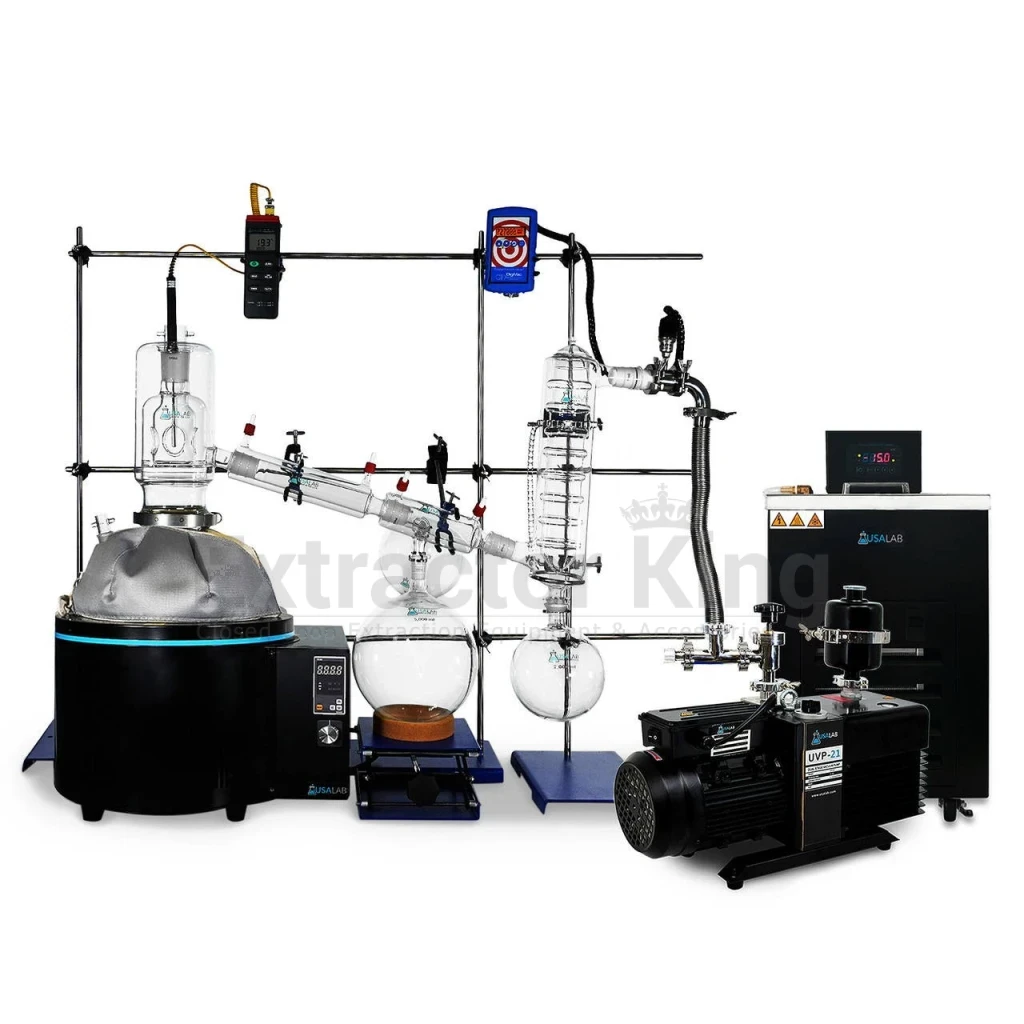

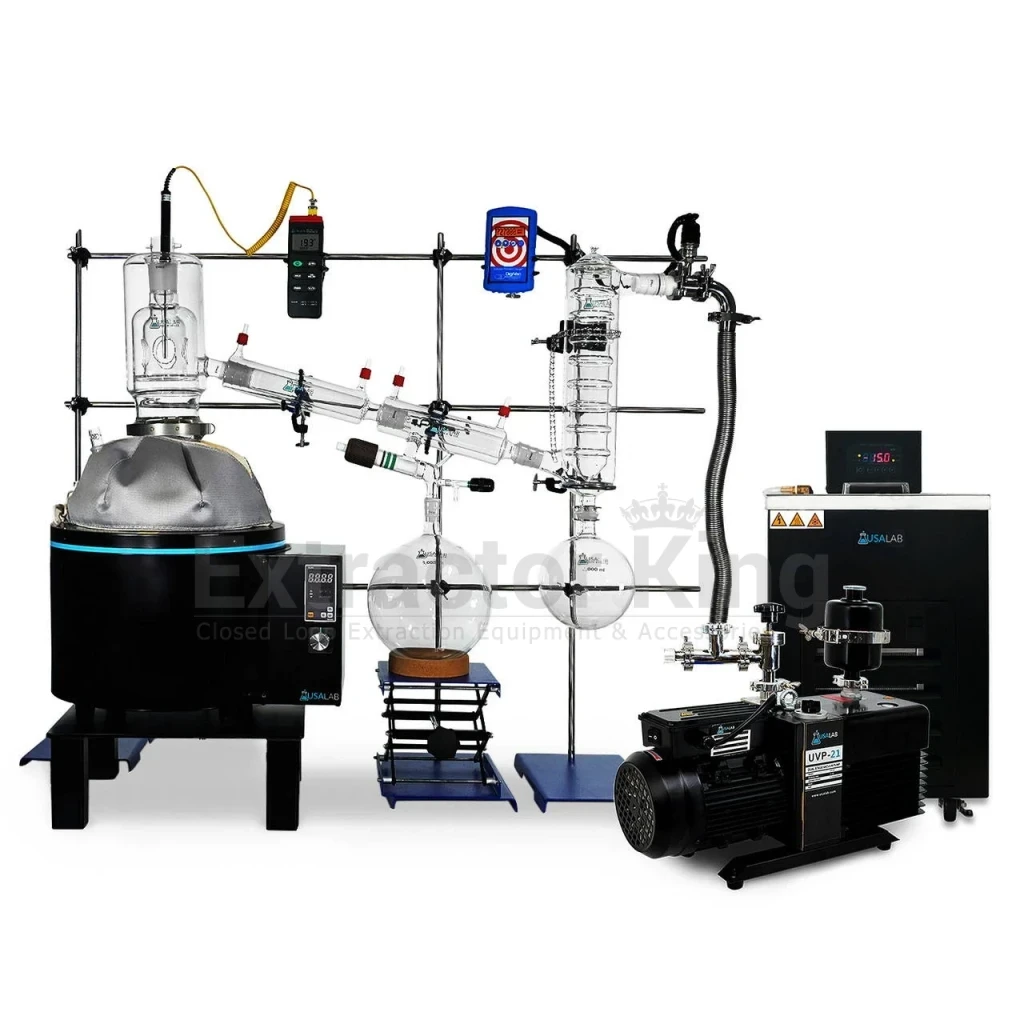

Our 12L Full Bore Turnkey Short Path Distillation Kit is made with high quality USA Made Glass and a wide 100mm head to allow for excellent distillation, high production, and consistent results.

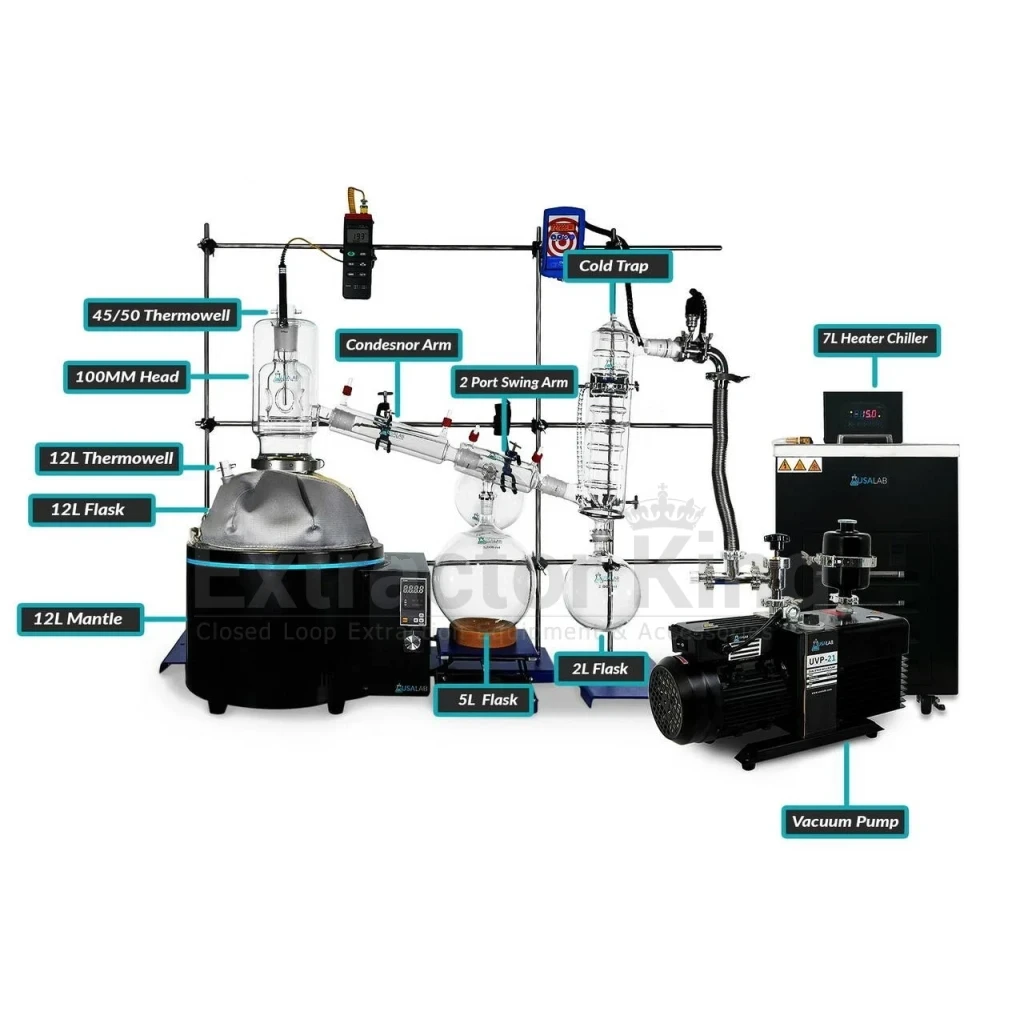

This distillation kit comes with a large 100mm distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, a 34/45 cold trap for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum.
Choose the best quality at the best value with this lattice supported high quality glass distillation kit.
|
A-SD12L-N4TK Specifications |
|
|
Model |
A-SD12L-N4TK |
|
Flask Size |
12L / 12,000ML |
|
Flask Joint Sizes |
100MM Flange Main | 24/40F Side |
|
Distillation Head Joint Sizes |
100MM Flange Bottom | 45/50F Top | 34/45M Side |
|
Condenser Joint Sizes |
34/45F Inlet | 34/45M Outlet |
|
Isolation Adapter Joint Sizes |
34/45F Inlet | 34/45M Outlet | 24/40M Bottom Discharge |
|
Cold Trap Joint Sizes |
34/45F Inlet | 34/45F Outlet |
|
Optimal Capacity |
3,000-8,000mL |
|
Batch Time |
4-10 Hours |
|
Main Body Flow Rate |
1,000-2,000 grams/hour |
|
Footprint |
80" x 24" x 40" Including Pump / Chiller |
|

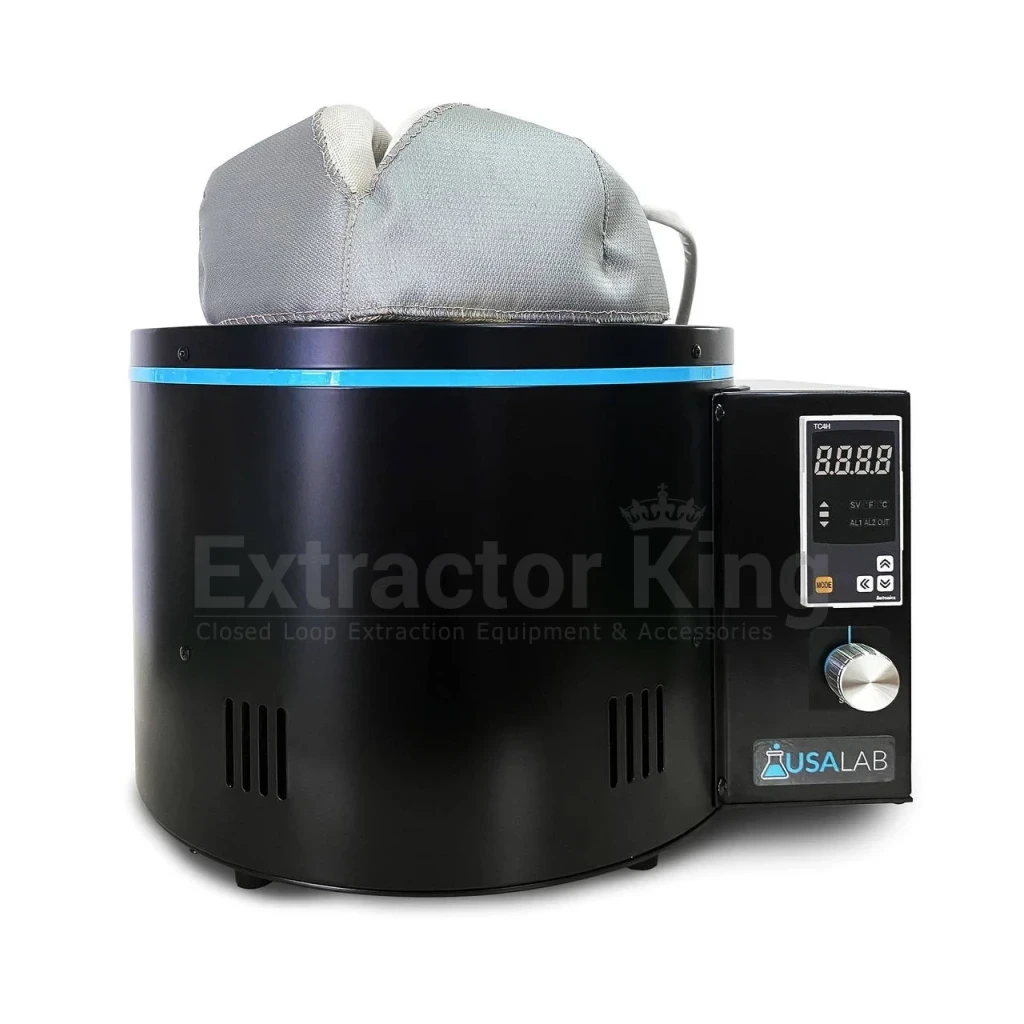

USA-HM-12L Heating Mantle Specs |
300°C | 3000RPM | 1400W |
|

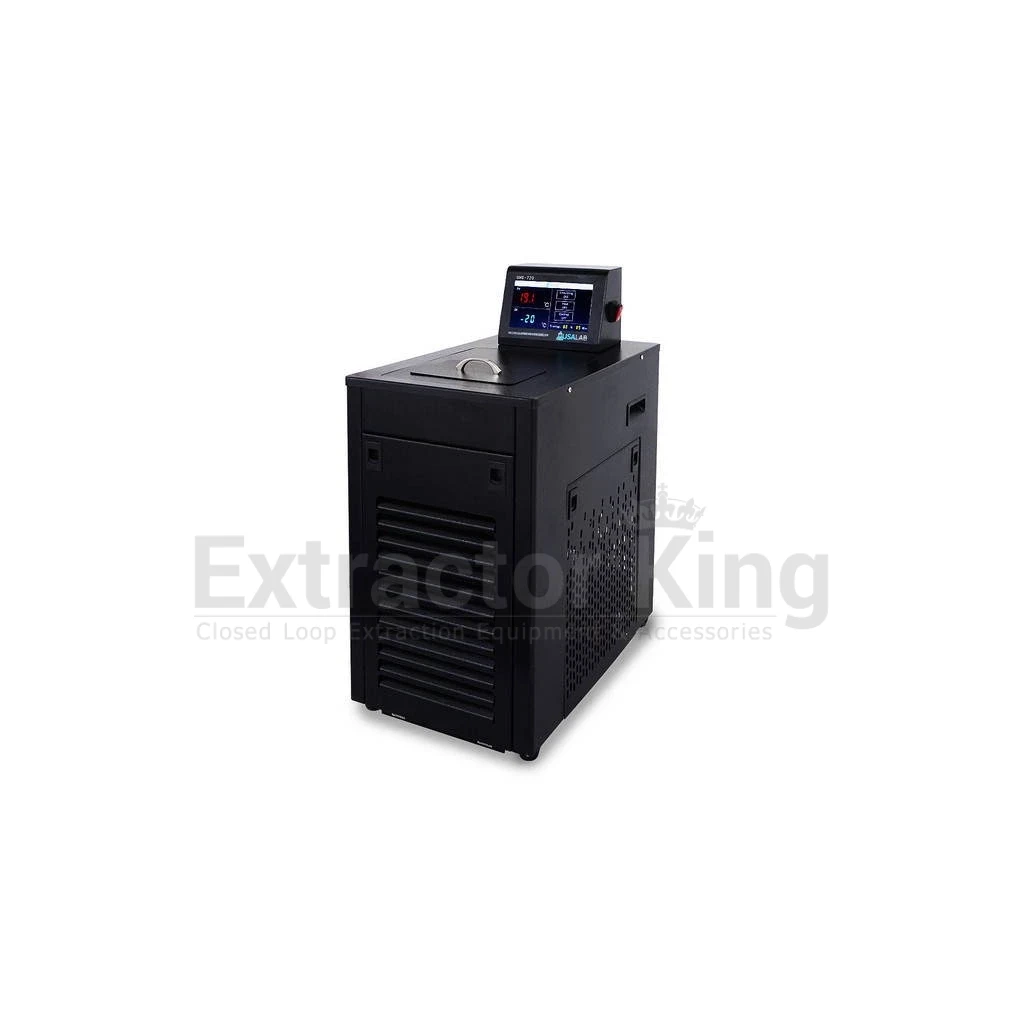

USA-RHC-7L Heater Chiller Specs |
-20°C to 150°C | 6.8L | 1.5Kw Heat |
|

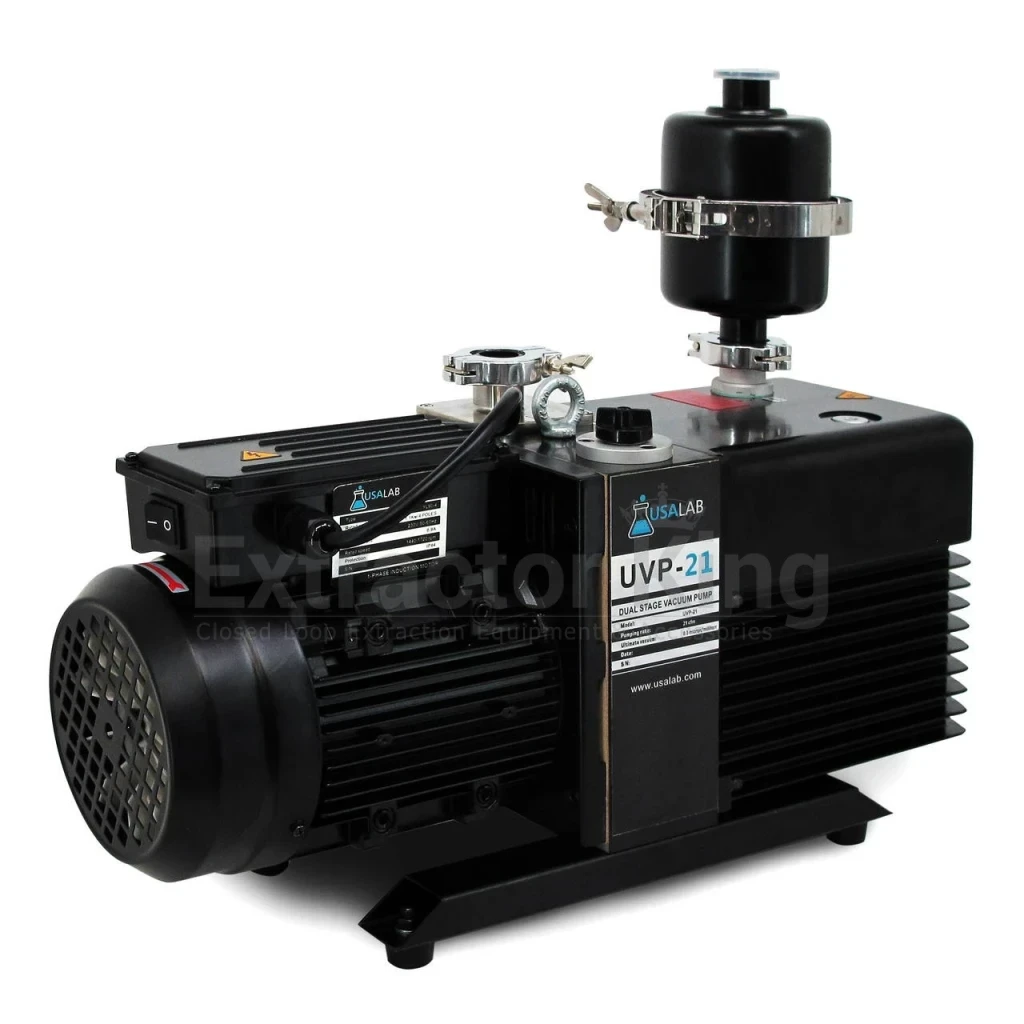

UVP-21 Vacuum Pump Specs |
21CFM | 0.3 Micron | UL Recognized |
|
Heating Mantle Power |
220-240V 50/60Hz 15A |
|
Heater Chiller Requirements |
110-120V 50/60Hz 15A |
|
Vacuum Pump Requirements |
110-120V 50/60Hz 15A |
|
Warranty |
1 Year (Pump carries a 2 Year Warranty) |
|

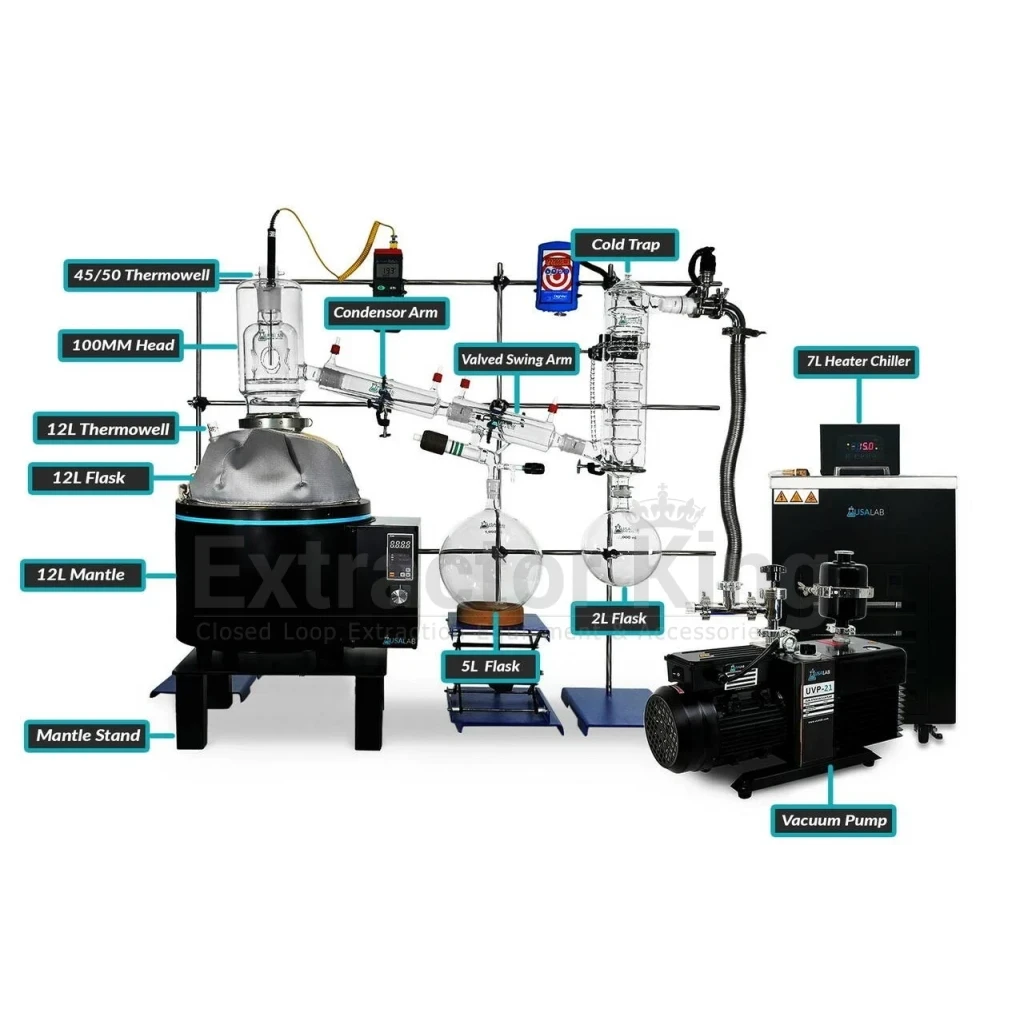

A-SD12L-N4TK Packing List |
||
|
Name |
SKU |
Quantity |
|
USA Lab 12L Digital Heating Mantle With Insulating Top |
USA-HM-12L |
1 |
|
20mm x 64mm Rare Earth Magnet |
REE-20x64 |
1 |
|
USA Lab Black Powder Coated Mantle Stand |
M-STAND-16X14X6 |
1 |
|
USA Made N 12L 2 Neck Round Bottom Flask |
N-12LRBF-100MM-2440-2N |
1 |
|
USA Made 12L 24/40 Thermowell |
N-12-2440-THERMO |
1 |
|
Chemglass 100MM FEP-Silicone O-ring |
CG-147-41 |
1 |
|
Chemglass 100MM Stainless Steel Duran Flange |
CG-141-02 |
1 |
|
USA Made N4 100MM Jacketed Distillation Head |
N4-100MM-HEAD |
1 |
|
USA Made N4 Single Jacketed Swing Arm Isolation Adapter w/ Valves 34/45 Sides - 24/40 Bottom |
N-3445-2P-SWING |
1 |
|
USA Made Two Port Jacketed Swing Arm Adapter Cow |
N4-3445-ISO |
1 |
|
USA Made N4 Angled Cold Trap - 34/45 |
N4-3445-CT |
1 |
|
USA Made N Cold Trap Lid |
N-COLDTRAP-LID |
1 |
|
USA Made N 12L Short Path Condenser 34/45 |
N-12L-3445-CONDENSER |
1 |
|
USA Made Short 45/50 Thermowell for Distillation Heads |
N-12-22L-4550-THERMO |
1 |
|
USA Made 5L 1 Neck Round Bottom Flask - 24/40 |
N-5LRBF-2440-1N |
1 |
|
USA Made 2L 1 Neck Round Bottom Flask - 24/40 |
N-2LRBF-2440-1N |
2 |
|
USA Made 2L 1 Neck Round Bottom Flask - S35/20 |
N-2LRBF-S3520-1N |
1 |
|
DigiVac Bullseye Precision Vacuum Gauge |
BPG |
1 |
|
USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe |
USA-TM |
1 |
|
USA Lab UL Listed 21CFM UVP-21 Corrosion Resistant |
UVP-21 |
1 |
|
USA Lab -20°C to 150°C 7L Compact Recirculating Heater Chiller 110V |
USA-RHC-7L |
1 |
|
KF-25 to KF-25 x 1/8" FNPT Adapter |
KF25X238 |
1 |
|
USA LAB KF25 90 Degrees |
KF2590 |
1 |
|
USA Lab KF25 3-Way Tee |
KF25-3WAY |
1 |
|
KF25 Pressure Release Valve Stainless Steel |
KF25PRV |
1 |
|
USA LAB KF25 Right Angle Valve |
KF25RAV |
1 |
|
Aluminum KF25 Vacuum Pump Flange Centering Ring |
KF25RING |
6 |
|
Vacuum Pump Clamp KF25 |
VPCKF25 |
6 |
|
KF25 Bellow Hose 36" |
KF25BELLOW36 |
1 |
|
Eisco Jack Laboratory 20cm x 20cm |
CH0642B |
1 |
|
Eisco Extra Large Laboratory Stand Kit |
CH0652DKIT |
3 |
|
Stainless Steel Rod for Lattice Supports |
6FT-SSROD |
3 |
|
Premium Boss Head Clamp |
P-BHC |
15 |
|
Eisco Blue Large Clamp Retort 3 Prong |
PRCMP07 |
4 |
|
Eisco 8" Chain Clamp for Lab Stand |
PRCMP21 |
1 |
|
4" Diameter Extension Support Ring |
SUPPORTRING |
1 |
|
Lab Cork Stand Ring |
CORK2L |
3 |
|
Chemglass GL-14 Cap with Aperture |
CG-195-01 |
4 |
|
Chemglass Removable GL-14 Straight Hose Connectors |
CG-198-02 |
4 |
|
Inland 19 Vacuum Pump Oil 1 Gallon |
INLAND191GAL |
1 |
|
USA Lab KF25 to 34/45 PTFE Adapter |
KF25TO3445 |
1 |
|
USA Lab Stainless Steel S35 Pinch Clamp |
S35-CLAMP |
1 |
|
Heating Mantle Manual |
1 |
|
|
Heater Chiller Manual |
1 |
|
|
Vacuum Pump Manual |
1 |
|
| HEATING MANTLE INFO | |
| USA Lab 12L W/ Heating Top - 300°C 3000RPM | 220-240V 60Hz 15A 800W | SKU:USA-HM-12L | |
| HEATER CHILLER INFO | |
| USA Lab -20°C to 180°C 7L Compact Recirculating Heater Chiller 220V UHC-720 | |
| VACUUM PUMP INFO | |
| USA Lab UL Listed 21CFM UVP-21 2-Stage Vacuum Pump | 110-120V 60Hz 15A | SKU:UVP-21 | |
| VACUUM GAUGE INFO | |
|
DigiVac Bullseye Precision Vacuum Gauge |
|
| THERMOMETER INFO | |
|
USA Lab USA-TM Premium Digital K-type Thermometer w/ Probe |
|
|
VACUUM GREASE INFO |
|
|
Apiezon PFPE 501 High Temperature Vacuum Grease 100g |
Specifications
| Flask Sizes | 12L | 100MM Main | 24/40F Side |
| Head Joint Size | 100MM Main | 45/50F Top | 34/45M Side |
| Condenser Joint Size | 34/45F Inlet | 34/45M Outlet |
| Isolation Adapter Joint Sizes | 34/45F Inlet | 34/45M Outlet | 24/40M Bottom |
| Cold Trap Joint Sizes | 34/45F Inlet | 34/45F Outlet |
| Optimal Capacity | 3000-8000mL |
| Batch Time | 4-10 Hours |
| Main Body Flow Rate | 1000-2000 grams/hour |
| USA-HM-12L Mantle Power | 220-240V 50/60Hz 15A |
| Heater Chiller Power | 110-120V 50/60Hz 15A |
| Vacuum Pump Power | 110-120V 50/60Hz 15A |
| Warranty Term | 1 Year |
