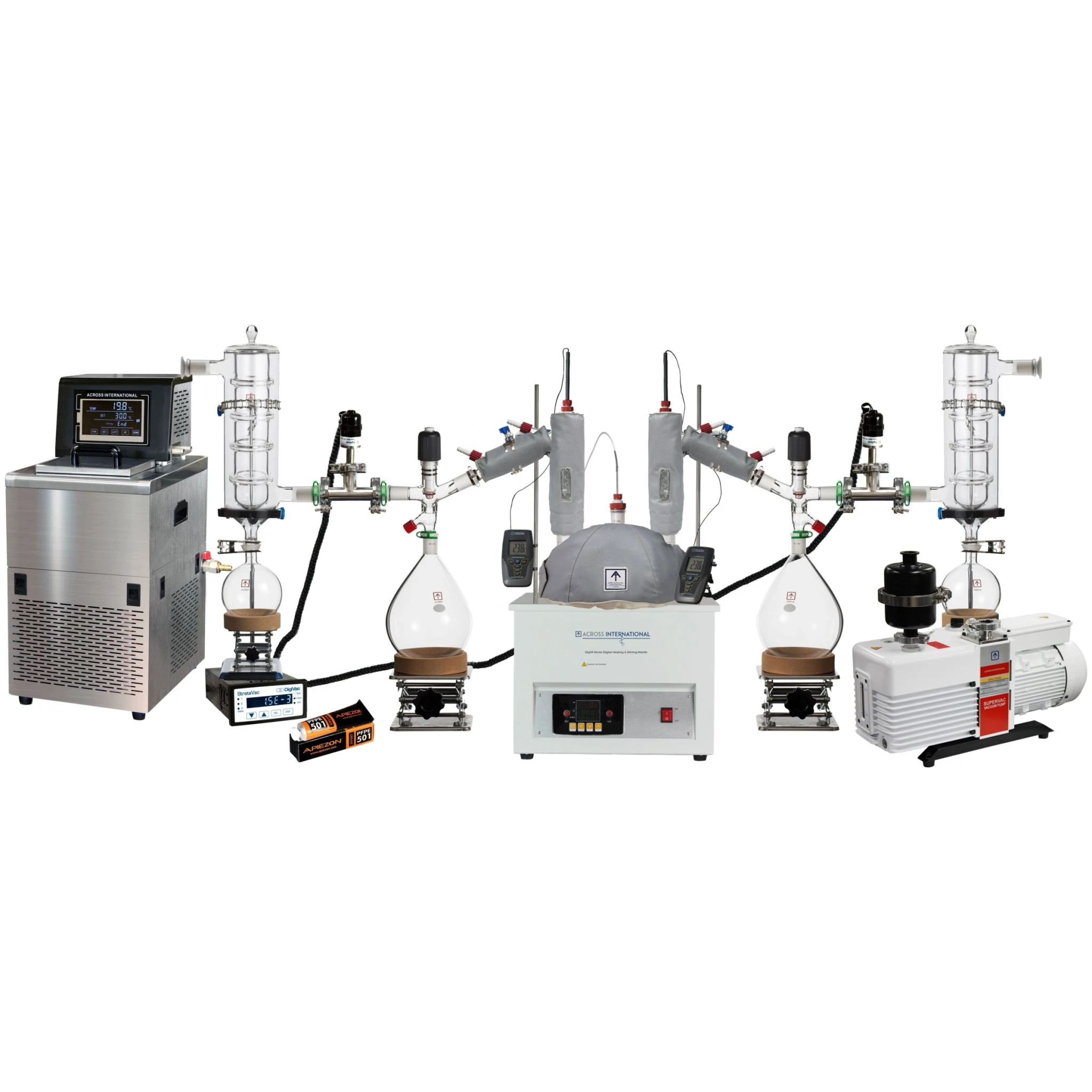

Ai 10L Short Path Complete Turnkey Package
Reference:
Manufacturer: Across International
The Ai 10 liter short path turnkey system offers you the best glassware and equipment in the market.
In stock
Optional Must Have Accessories
|
Ai 1/2" Insulated Chiller Translucent Silicone Tubing - 6 Ft | +CAD $40.53 |
|
Ai PTFE 24/40 Joint Sealing Sleeve for Air Tight Vacuum Work | +CAD $48.63 |
Customize your product
Payment Providers
Ai Clear10 short path distillation kit features
- The DigiVac StrataVac gives you deep vacuum and high throughput, it is one of the most accurate and powerful vacuum controllers on the market.
- Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
- Ai Heavy wall glassware for durability
- Vacuum jacketed vapor channel
- Boiling flask to distillation port: 34/45 joint
- Thermo port on boiling flask: 24/40 joint
- Thermo port on distillation head: 14/20 joints
- Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
- Glass material: high borosilicate glass 3.3

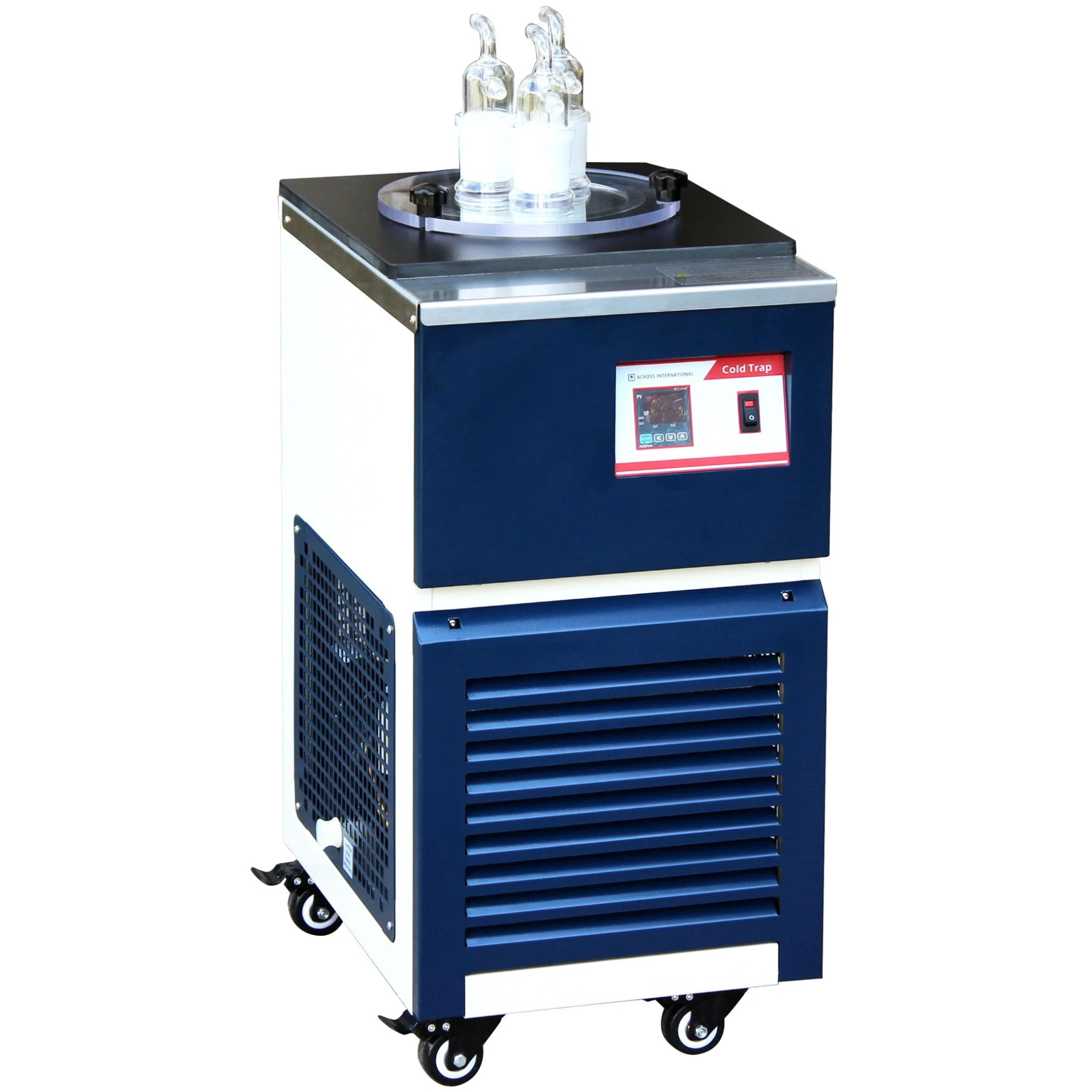

- T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it
Warranty
One year warranty on DigiVac, DigiM mantle, Ai C20 chiller and SuperVac pump.
Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.

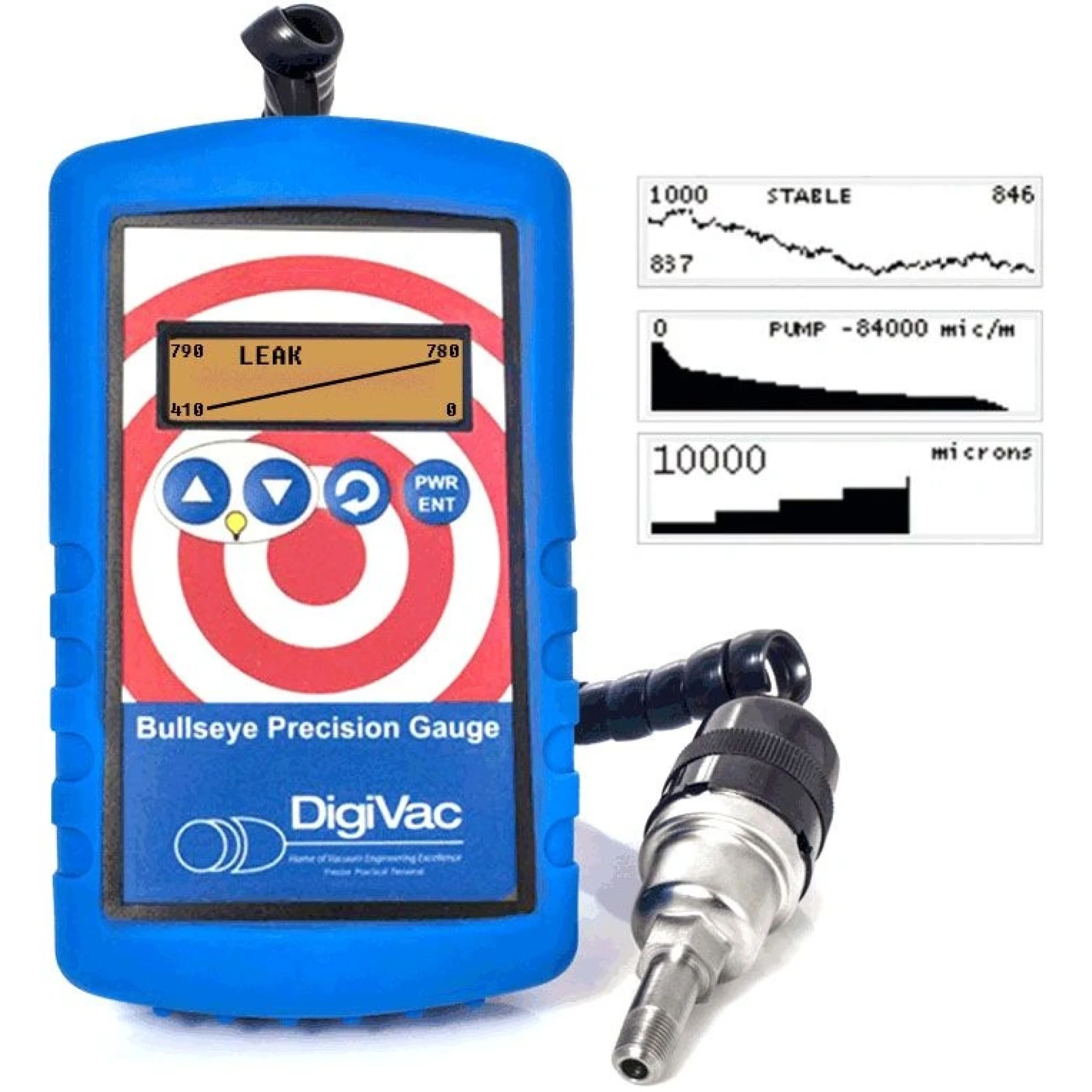

StrataVac, Bullseye and FYRA configurations are assembled with UL / CSA certified components versus SNAP uses UL / CSA certified power supply but is pending UL / CSA certification please confirm if complete UL certification of all components is required for compliance for your system.

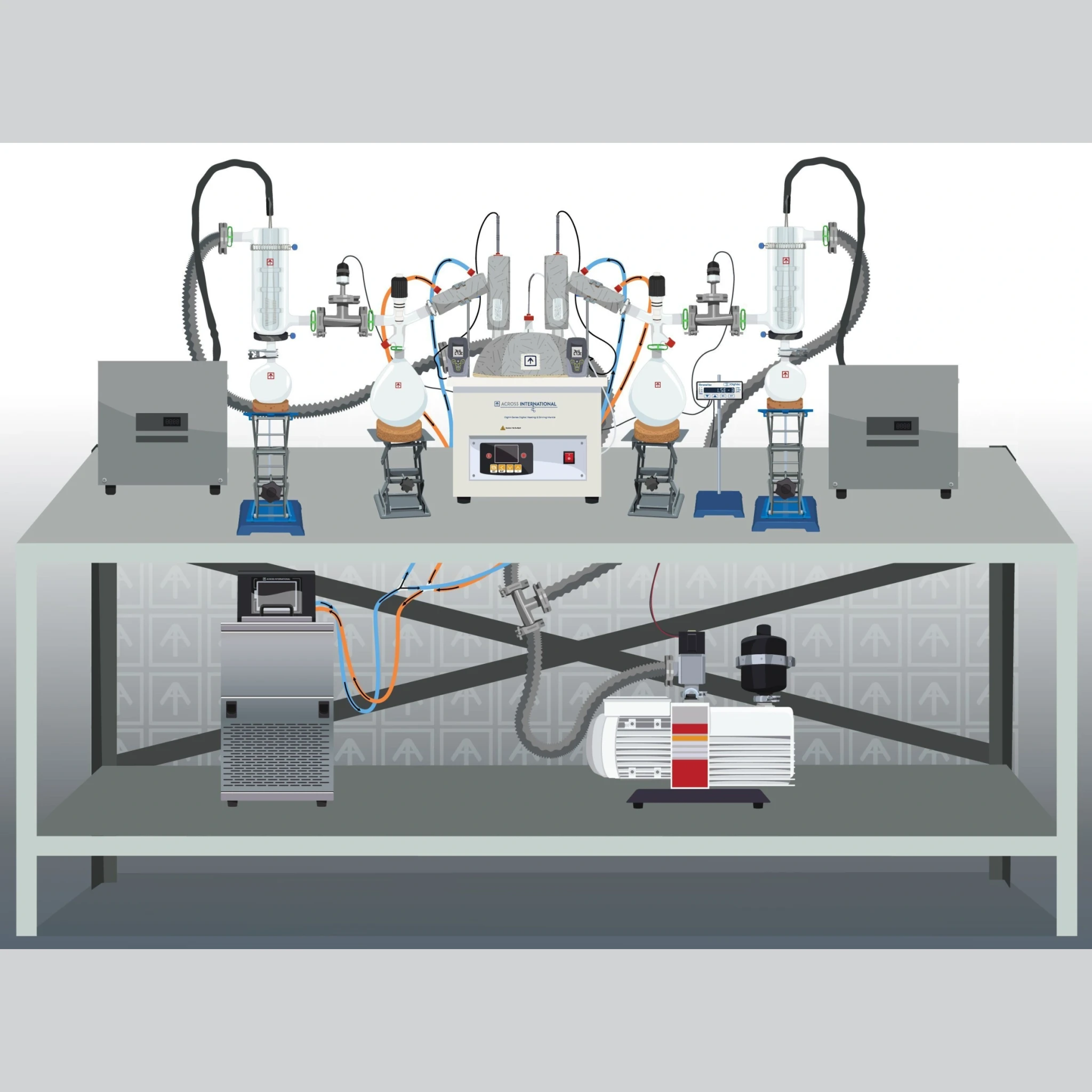

Typical SetupStandard Package
| Ai DigiM 10L digital heating & stirring mantle | 1 pc |
| External temperature probe DigiM05, DigiM2, DigiM5: Cable Length: 40”, Probe Length: 9” DigiM10, DigiM20: Cable Length: 43”, Probe Length: 15” | 1 pc |
| Internal temperature plug | 1 pc |
| Boss head DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs | 1 or 2 pcs |
| Stainless steel support rod DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs | 1 or 2 pcs |
| PTFE coated stir bar | 2 pcs |
| PTFE coated magnetic stir bar remover | 1 pc |
| 4 prong stainless steel clamp opens to 3 1/2" DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs | 1 or 2 pcs |
| User's manual | 1 pc |

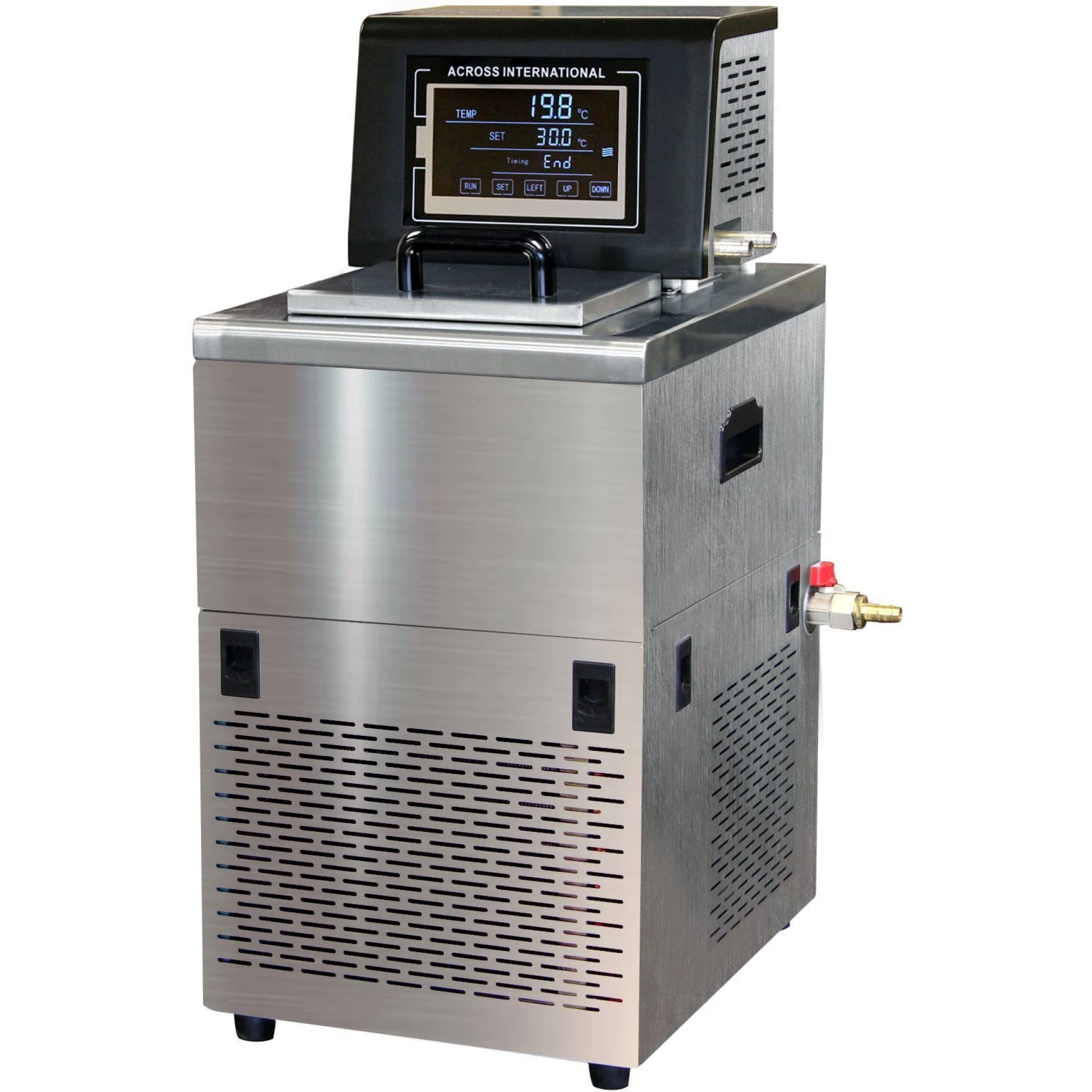

| Ai C20-7 -20°C 7L recirculating chiller | 1 pc |
| 3/8" insulated chilling fluid tubing | 5 ft x 2 |
| 1/2" NPT to 3/8" hose barb drain port adapter | 1 pc |
| User's manual | 1 pc |

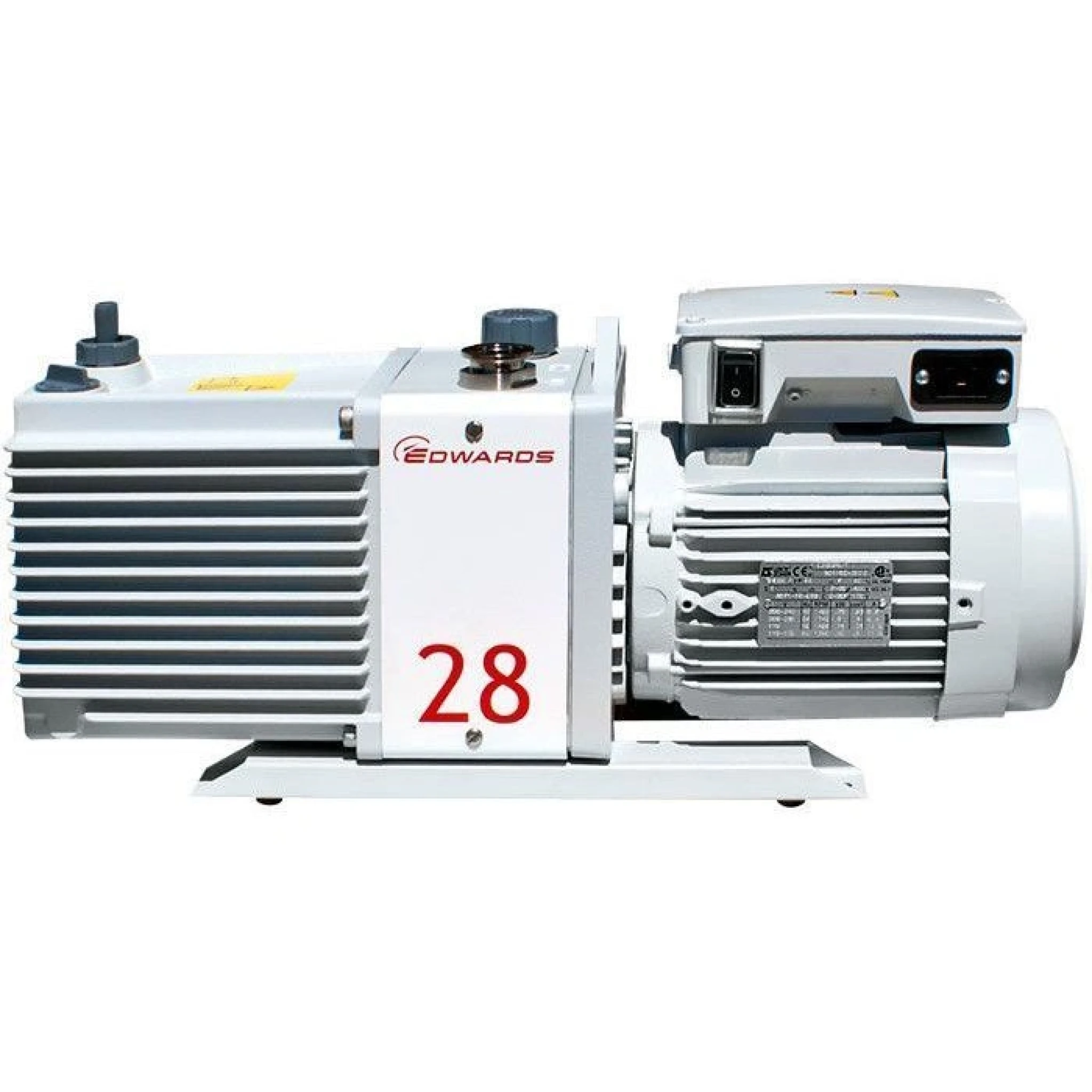

| Ai SuperVac 21 cfm vacuum pump with exhaust oil mist filter | 1 set |
| Ai premium vacuum pump oil - 1 liter | 2 pcs |
| KF25 flexible stainless steel vacuum bellow (3 ft) | 1 pc |
| KF25 wing nut flange quick clamp | 2 pcs |
| KF25 flange centering ring | 2 pcs |
| Rubber feets | 4 pcs |
| User's manual | 1 pc |

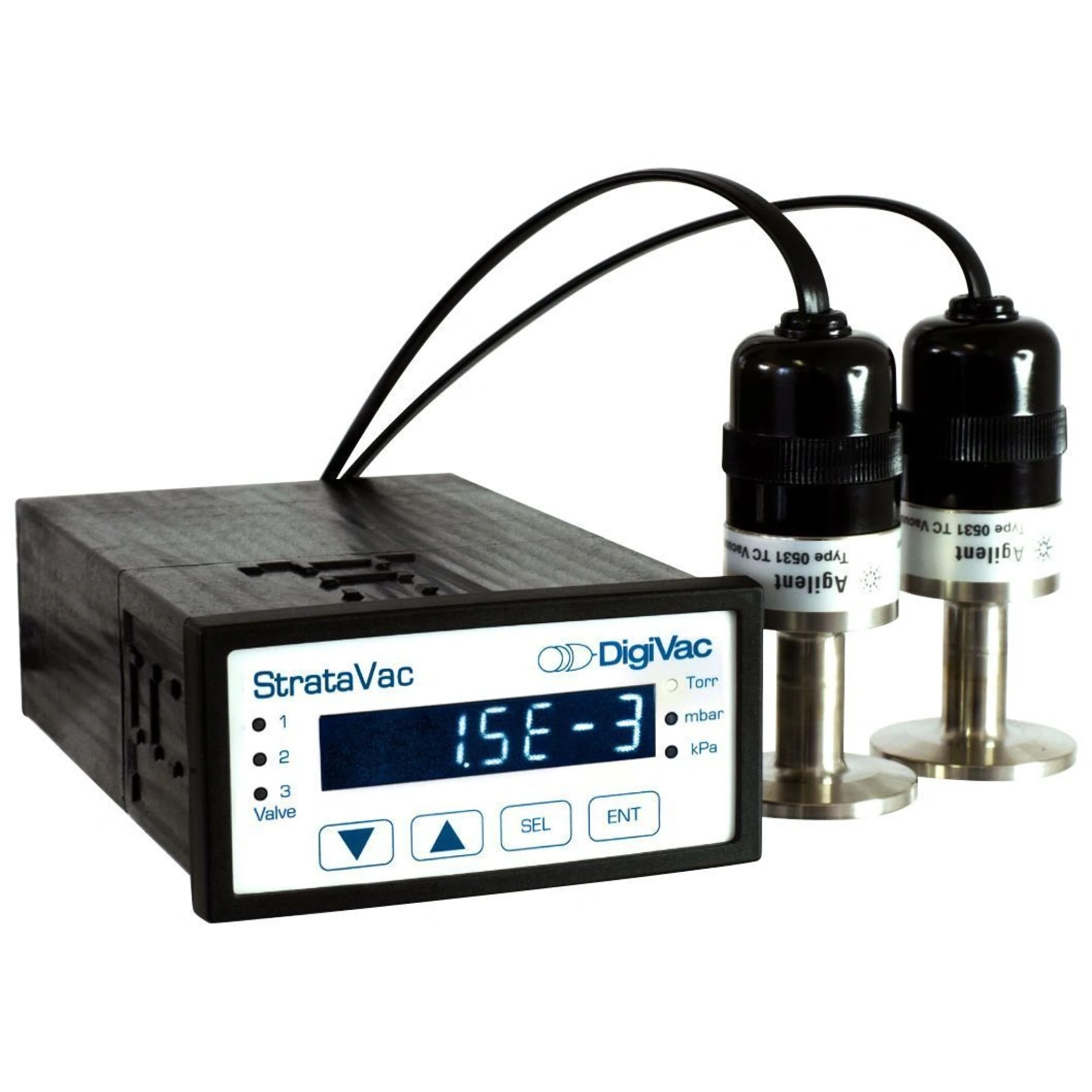

| DigiVac StrataVac With Bracket | 1 pc |
| Desktop AC Adapters 60 W 24 V 2.5A with power cord | 1 pc |
| Agilent 536-KF25 sensor with Cable | 2 pc |
| KF25 bellows electromagnetic Aluminum Valve | 1 pc |
| Quick Start Guide | 1 pc |
| Cold trap with lid, gasket, two 24/40 joint vacuum connectors, and one 35/20 joint drain port | 2 sets |
| 1L collection flask with 35/20 joint | 2 pcs |
| Lab stand | 2 pcs |
| Boss head clamp | 4 pcs |
| Lab scissor jack | 2 pcs |
| Collection flask cork ring stand | 2 pcs |
| Stainless steel ball joint clamp | 2 pcs |
| Cold trap support | 2 pcs |
| Lab chain clamp | 2 pcs |
| Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port | 2 pcs |
| Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks | 1 pc |
| PTFE 24/40 joint thermometer inlet adapters with Viton gaskets | 3 pcs |
| Ai 24/40 joint, pennyhead glass stopper | 2 pcs |
| Ai 24/40 joint, round-top glass feeding funnel | 1 pc |
| Ai valved adapter with two 24/40 ports and one GL16 port | 2 pcs |
| Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask | 2 pcs |
| Ai glass 3/8" hose barb tee adapter | 3 pcs |
| 34/45 joint, stainless steel keck clip | 2 pcs |
| 24/40 joint, stainless steel keck clip | 2 pcs |
| 24/40 joint, plastic keck clip | 2 pcs |
| Cork ring stand for 1L or 2L pear-shaped flasks | 2 pcs |
| 6 x 6" stainless steel lab jack (min. height 3", max height 9.5") | 2 pcs |
| Dow Corning high vacuum grease 100 gram | 1 pc |
| Traceable Kangaroo digital thermometer | 2 pcs |
| Ai glass 24/40 male to male adapter | 1 pc |
| 24/40 joint, plastic keck clip | 6 pcs |
| Ai HeadShield fabric insulation sleeve with window for 5L heads (right x 1, left x 1) | 2 pcs |
| Ai DrainShield cooling channel fabric insulation sleeve for 5L heads | 2 pcs |
| Ai DomeShield 800C rated fabric insulating top for 10L flasks | 1 pc |
| PTFE 24/40 to KF25 flange adapter with viton r-ring | 6 pcs |
| KF25 flexible stainless steel vacuum bellow (6.6 ft) | 2 pcs |
| KF25 quick clamp and centering ring | 12 sets |
| KF25 3-way tee flange adapter | 3 pcs |
| Apiezon PFPE 501 high temp vacuum grease | 1 pc |
