USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit

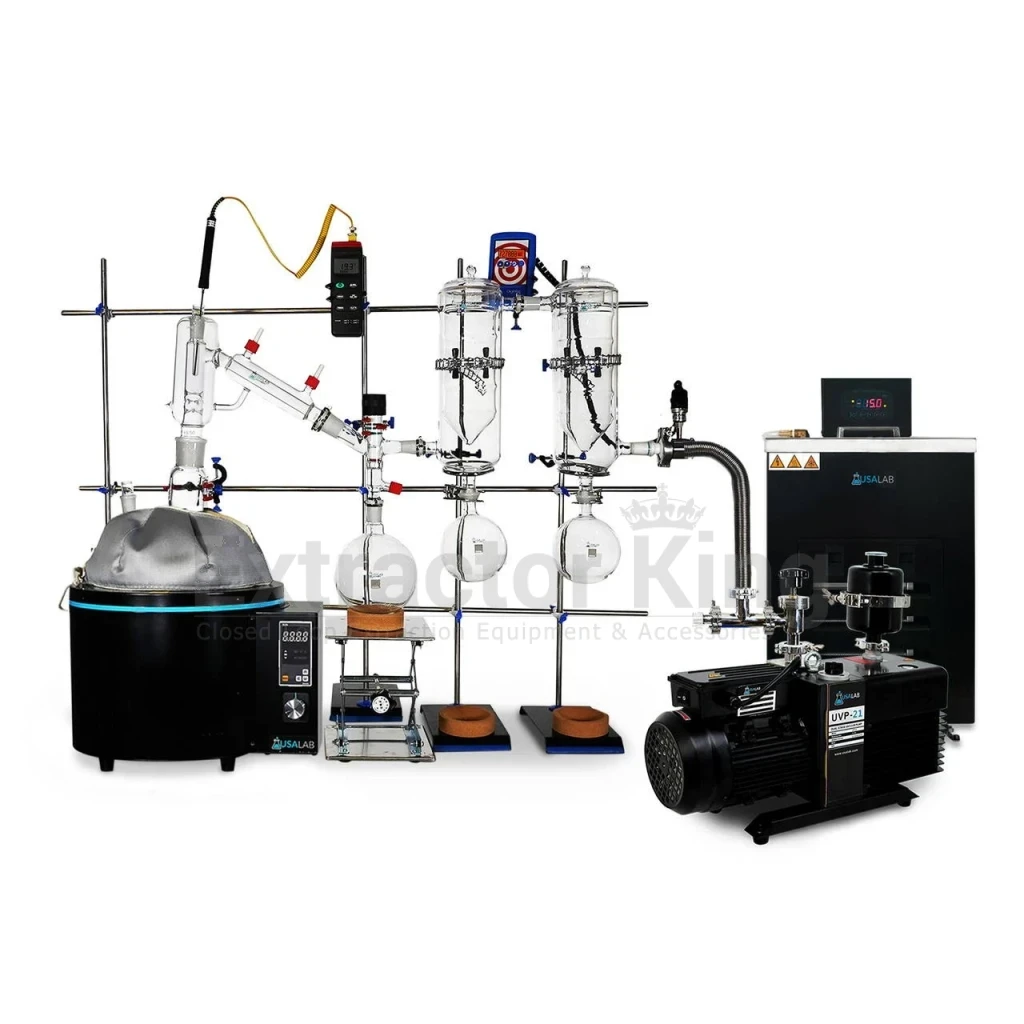

The USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit is a complete laboratory distillation system made with high quality borosilicate glass and designed for excellent distillation, high production, and consistent results. The wide 45/50 head provides a large connection for the distillation assembly and supports demanding short path distillation workflows.
This 10L full bore short path distillation kit includes a large 45/50 distillation head, 34/45 vacuum take-off and isolation adapter components for receiving flask switching, two 24/40 cold traps for condensing, and full-bore attachments designed to support high pulling vacuum.
The turnkey system includes the glass distillation assembly, heating mantle option, vacuum pump, recirculating heater chiller, vacuum gauge, digital K-type thermometer, vacuum grease, support hardware, clamps, hoses, adapters, manuals, and related components needed to configure the complete system.
Why choose the USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit?
- High quality borosilicate glass — provides the glass construction specified for the complete short path distillation assembly.
- Wide 45/50 distillation head — provides a large primary joint for the 10L distillation flask and head assembly.
- Full-bore vacuum configuration — incorporates full-bore attachments designed for high pulling vacuum.
- Dual 24/40 cold traps — provides two cold-trap positions for condensing large amounts during the distillation process.
- Production-oriented capacity — supports an optimal working capacity of 3000–8000mL with a stated batch time of 4–10 hours and main body flow rate of 700–1700 grams/hour.
- Complete turnkey configuration — includes vacuum, chilling, heating, measurement, glassware, clamps, adapters, support equipment, and manuals.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C-SD10L-H1TK |
| Product Name | USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit |
| Flask Size | 10L / 10,000mL |
| Flask Joint Sizes | 45/50 Main | 24/40 Side |
| Distillation Head Joint Sizes | 45/50 Bottom | 24/40 Top | 34/45 Side |
| Isolation Adapter Joint Sizes | 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge |
| Cold Trap Joint Sizes | 24/40 Left and Right |
| Optimal Capacity | 3000–8000mL |
| Batch Time | 4–10 Hours |
| Main Body Flow Rate | 700–1700 grams/hour |
| Footprint | 80 x 24 x 40 inches, including pump/chiller |

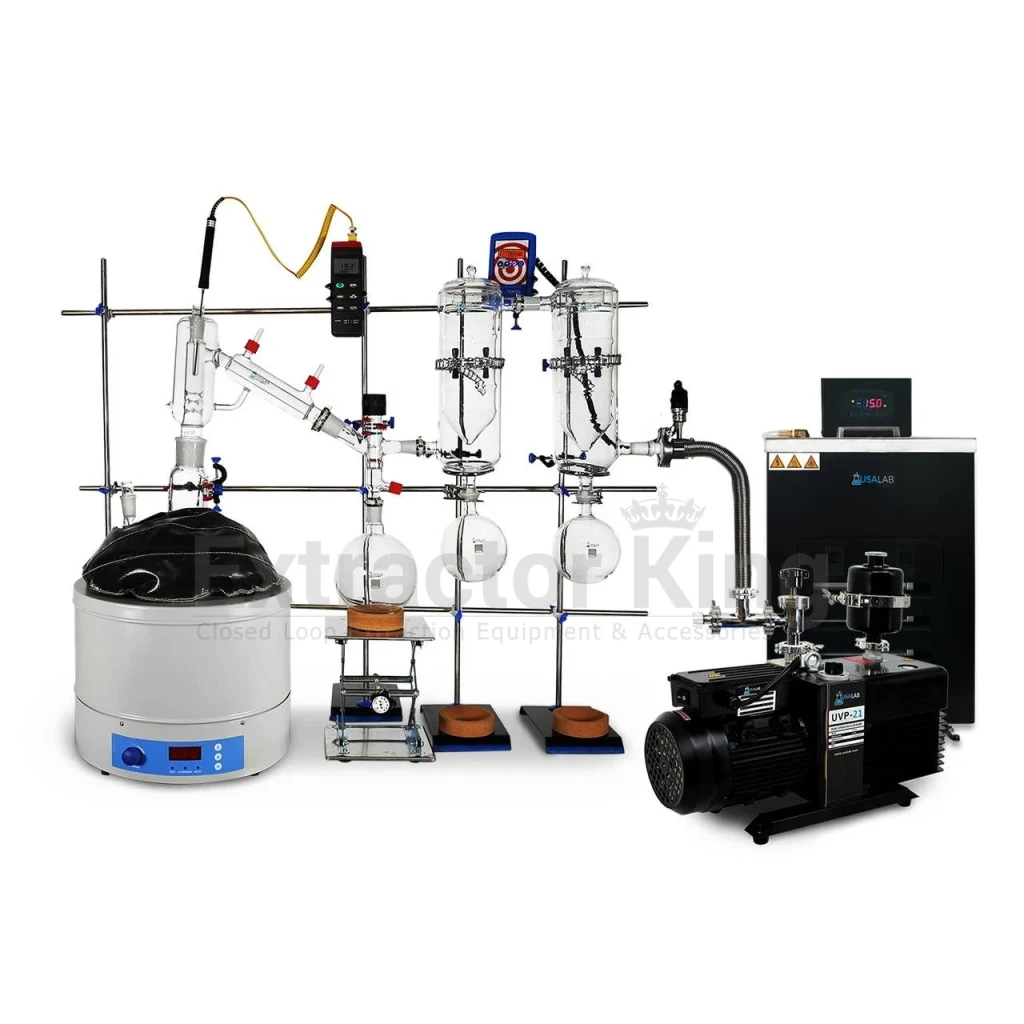

| Heating Mantle Options | 10LMANTLE or USA-HM-12L |
| 10LMANTLE Power | 220–240V, 50/60Hz, 15A |
| USA-HM-12L Power | 220–240V, 50/60Hz, 15A |

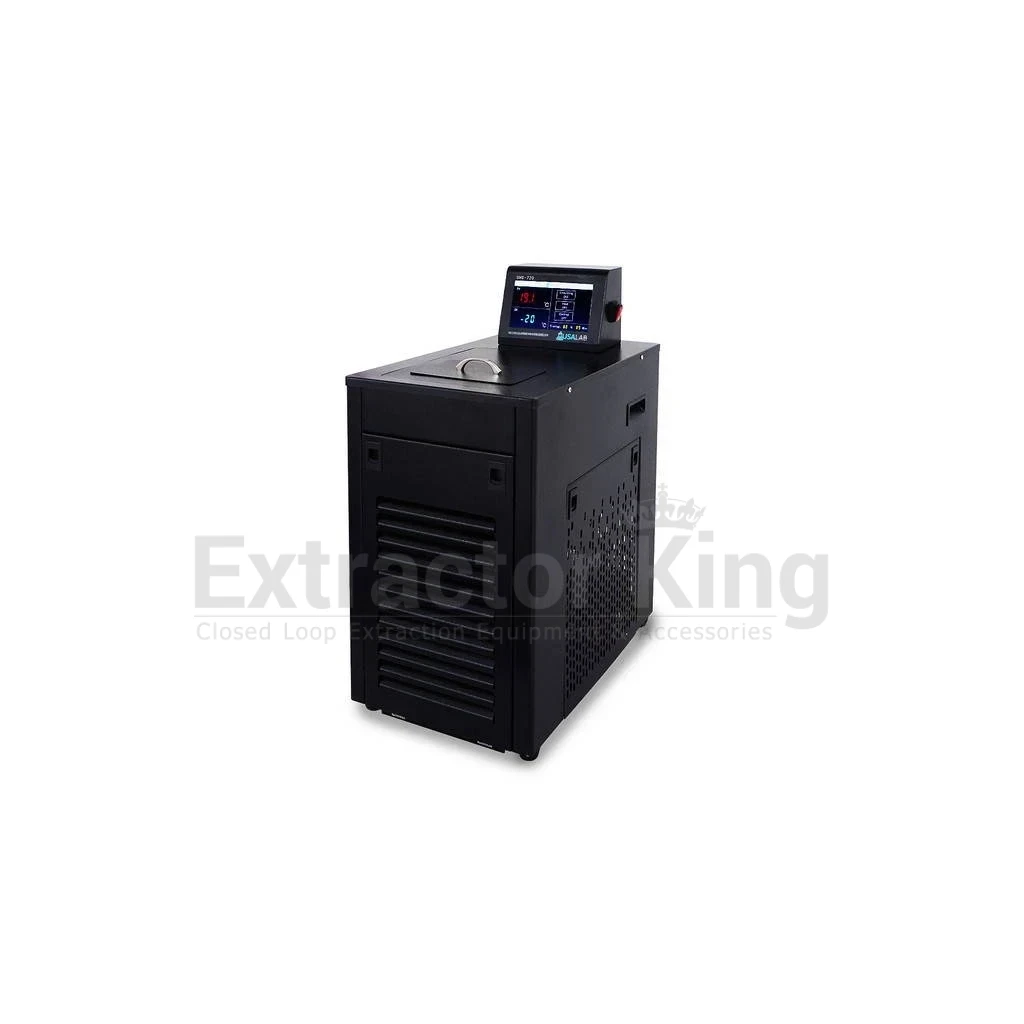

| Heater Chiller Requirements | 110–120V, 50/60Hz, 15A |
| Vacuum Pump Requirements | 110–120V, 50/60Hz, 15A |

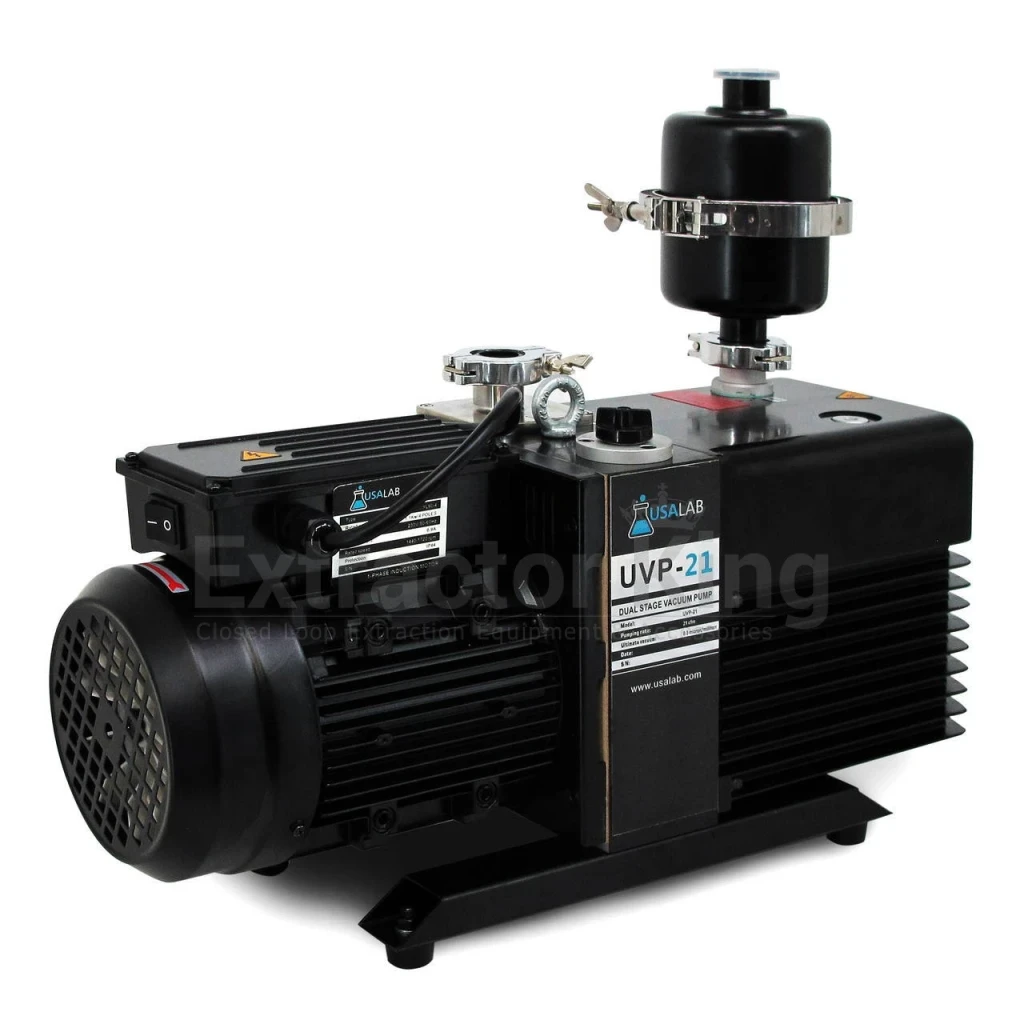

| Vacuum Pump | USA Lab 21CFM UVP-21 |
| Warranty | 1 Year; pump has a 2 year warranty |
FAQ
What is included with the USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit?The USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit includes the 10L glass distillation assembly, heating mantle option, 21CFM vacuum pump, heater chiller, DigiVac Bullseye vacuum gauge, digital K-type thermometer, vacuum grease, cold traps, adapters, clamps, support hardware, hoses, manuals, and other listed components.
The USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit uses a 10L / 10,000mL flask. The stated optimal capacity is 3000–8000mL.
The flask uses a 45/50 main joint and 24/40 side joint. The distillation head uses a 45/50 bottom, 24/40 top, and 34/45 side connection. The isolation adapter uses 34/45 inlet, 24/40 outlet, and 24/40 bottom discharge connections.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Flask Sizes | 10L / 45/50 Main | 24/40 Side |
| Head Joint Size | 45/50 Main | 24/40 Top | 24/40 Side |
| Isolation Adapter Joint Sizes | 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge |
| Left Cold Trap Joint Sizes | Male 24/40 |
| Right Cold Trap Joint Sizes | Female 24/40 |
| Optimal Capacity | 3000-8000mL |
| Batch Time | 4-10 Hours |
| Main Body Flow Rate | 700-1700 grams/hour |
| 10LMANTLE Mantle Power | 220-240V 50/60Hz 15A |
| USA-HM-12L Mantle Power | 220-240V 50/60Hz 15A |
| Heater Chiller Power | 110-120V 50/60Hz 15A |
| Vacuum Pump Power | 110-120V 50/60Hz 15A |
| Warranty Term | 1 Year |
