Ai 10 Liter Short Path Distillation Kit With Valved Adapters
Reference:
Manufacturer: Across International

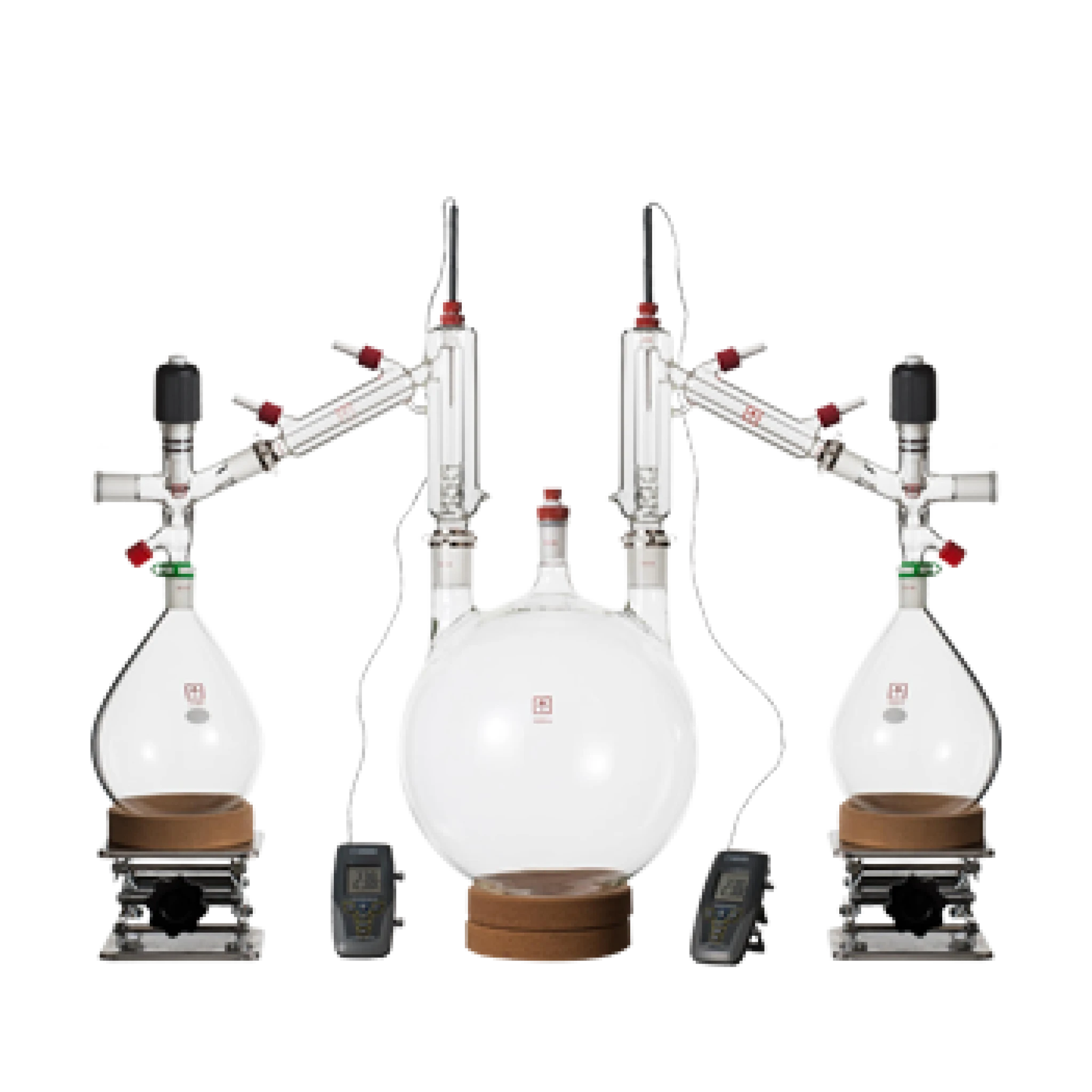

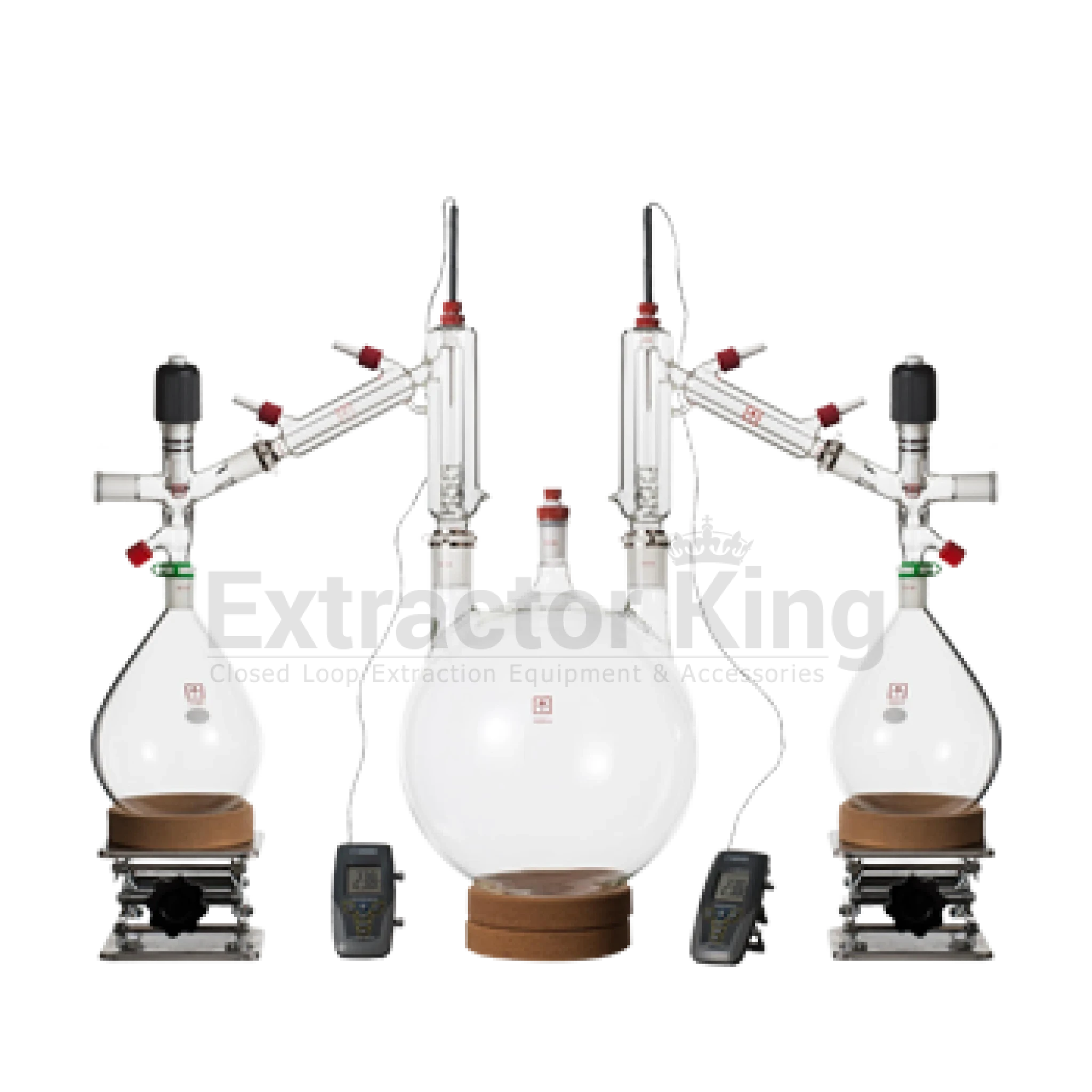

Ai 10 Liter Short Path Distillation Kit With Valved Adapters
Must-have accessories
Payment Providers
Ai Clear10 short path distillation kit features:
- Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
- PTFE 14/20 and 24/40 thermo inlet adapters with Viton gaskets
- Heavy wall glassware for durability
- Vacuum jacketed vapor channel
- Boiling flask to distillation port: 34/45 joint
- Thermo port on boiling flask: 24/40 joint
- Thermo port on distillation head: 14/20 joints
- Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
- Glass material: high borosilicate glass 3.3
- Optional T1 or T40 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it
Standard Package
| Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port | 2 pcs |
| Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks | 1 pc |
| PTFE 24/40 joint thermometer inlet adapters with Viton gaskets | 3 pcs |
| Ai 24/40 joint, pennyhead glass stopper | 2 pcs |
| Ai 24/40 joint, round-top glass feeding funnel | 1 pc |
| Ai valved adapter with two 24/40 ports and one GL16 port | 2 pcs |
| Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask | 2 pcs |
| Ai glass 3/8" hose barb tee adapter | 3 pcs |
| 34/45 joint, stainless steel keck clip | 2 pcs |
| 24/40 joint, stainless steel keck clip | 2 pcs |
| 24/40 joint, plastic keck clip | 2 pcs |
| Cork ring stand for 1L or 2L pear-shaped flasks | 2 pcs |
| 6 x 6" stainless steel lab jack (min. height 3", max height 9.5") | 2 pcs |
| Dow Corning high vacuum grease 100 gram | 1 pc |
| Traceable Kangaroo digital thermometer | 2 pcs |
