USA Lab H1-10 10L Full Bore Short Path Distillation Kit
Reference:
Manufacturer: USA Lab
Our H1-10 10L Full Bore Short Path Distillation Apparatus Kit is made with high quality borosilicate Glass and a wide 45/50 head to allow for excellent distillation , high production, and consistent results . This distillation kit comes with a large 34/45…
In stock
Customize your product
Payment Providers
More info

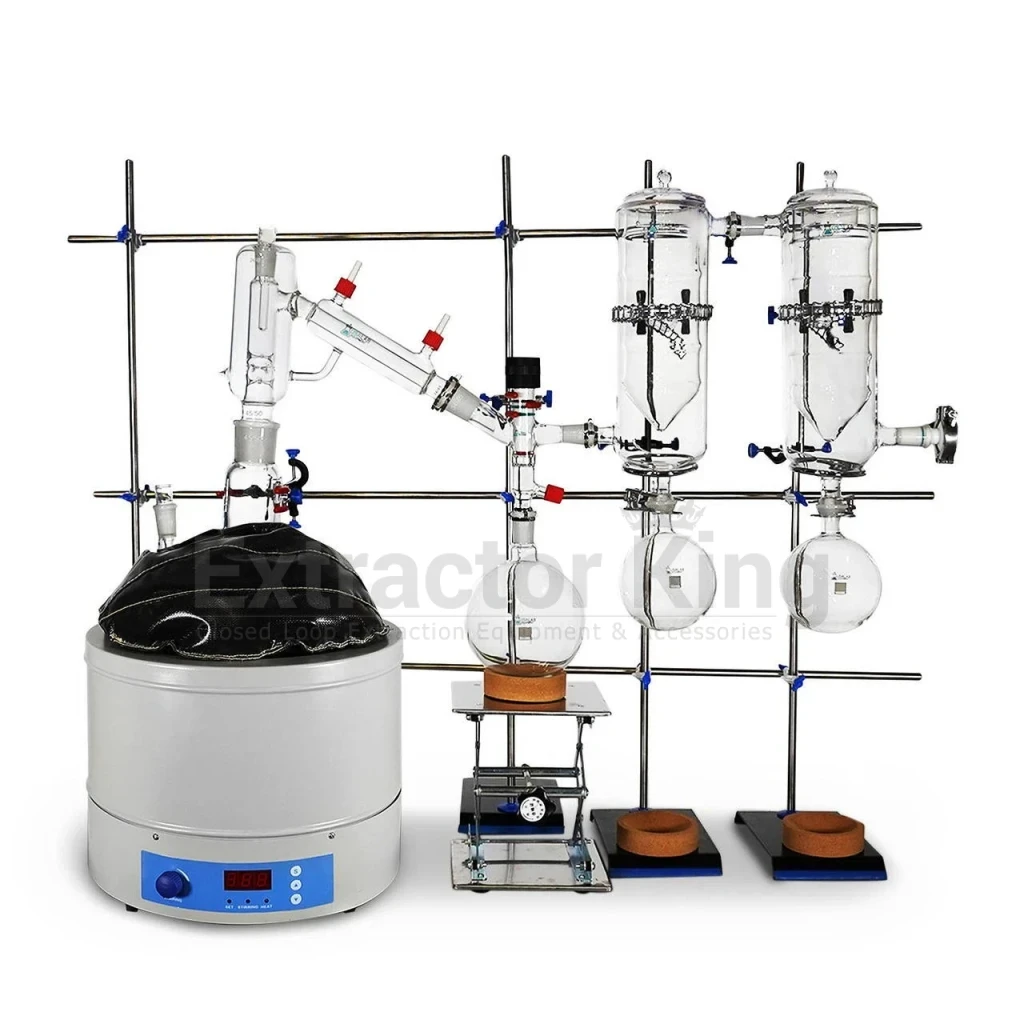

Our H1-10 10L Full Bore Short Path Distillation Apparatus Kit is made with high quality borosilicate Glass and a wide 45/50 head to allow for excellent distillation, high production, and consistent results.

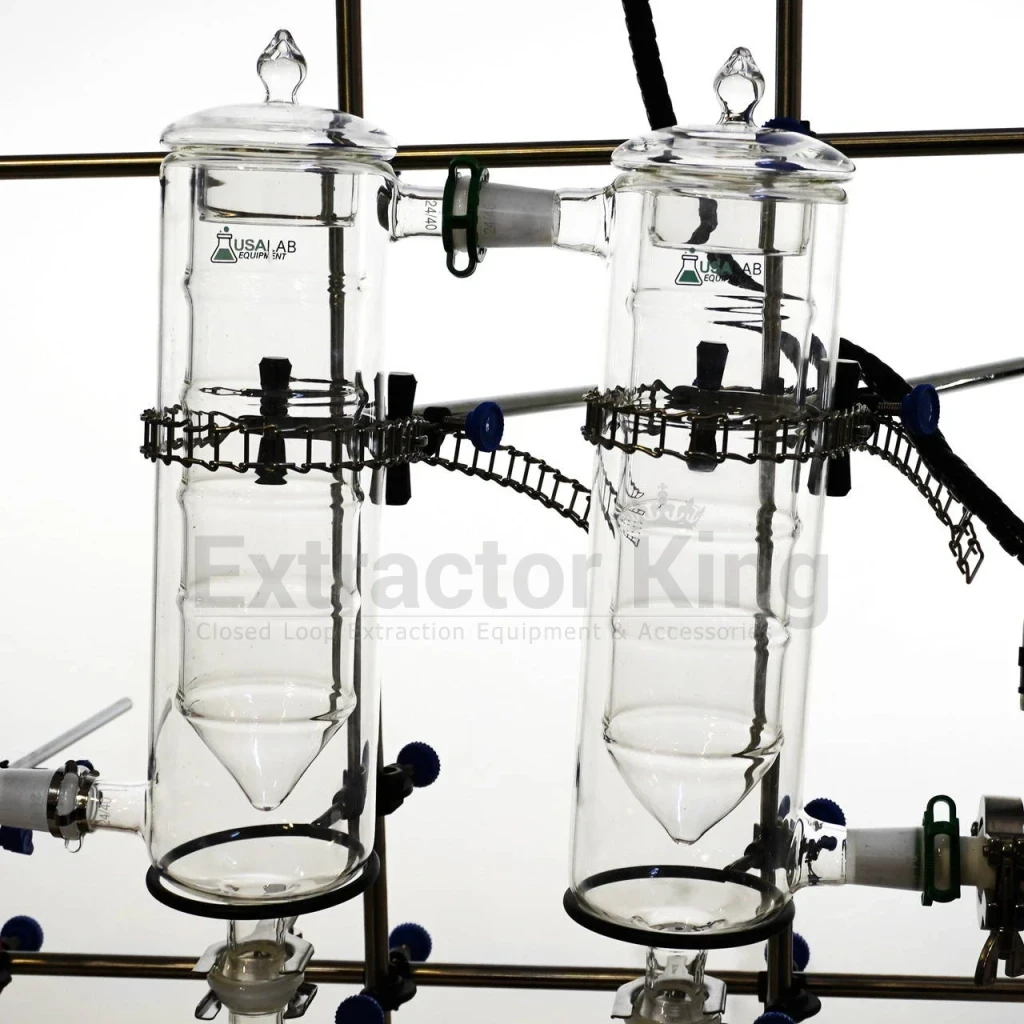

This distillation kit comes with a large 34/45 distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, two 24/40 cold traps for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum.
Choose the best quality at the best value with this lattice supported high quality glass distillation kit.
|
SPECIFICATIONS |
||
|
Model |
C-SD10L-H1 |
|
|
Flask Size |
10L / 10000ML |
|
|
Flask Joint Sizes |
45/50 Main | 24/40 Side |
|
|
Distillation Head Joint Sizes |
45/50 Bottom | 24/40 Top | 34/45 Side |
|
|
Isolation Adapter Joint Sizes |

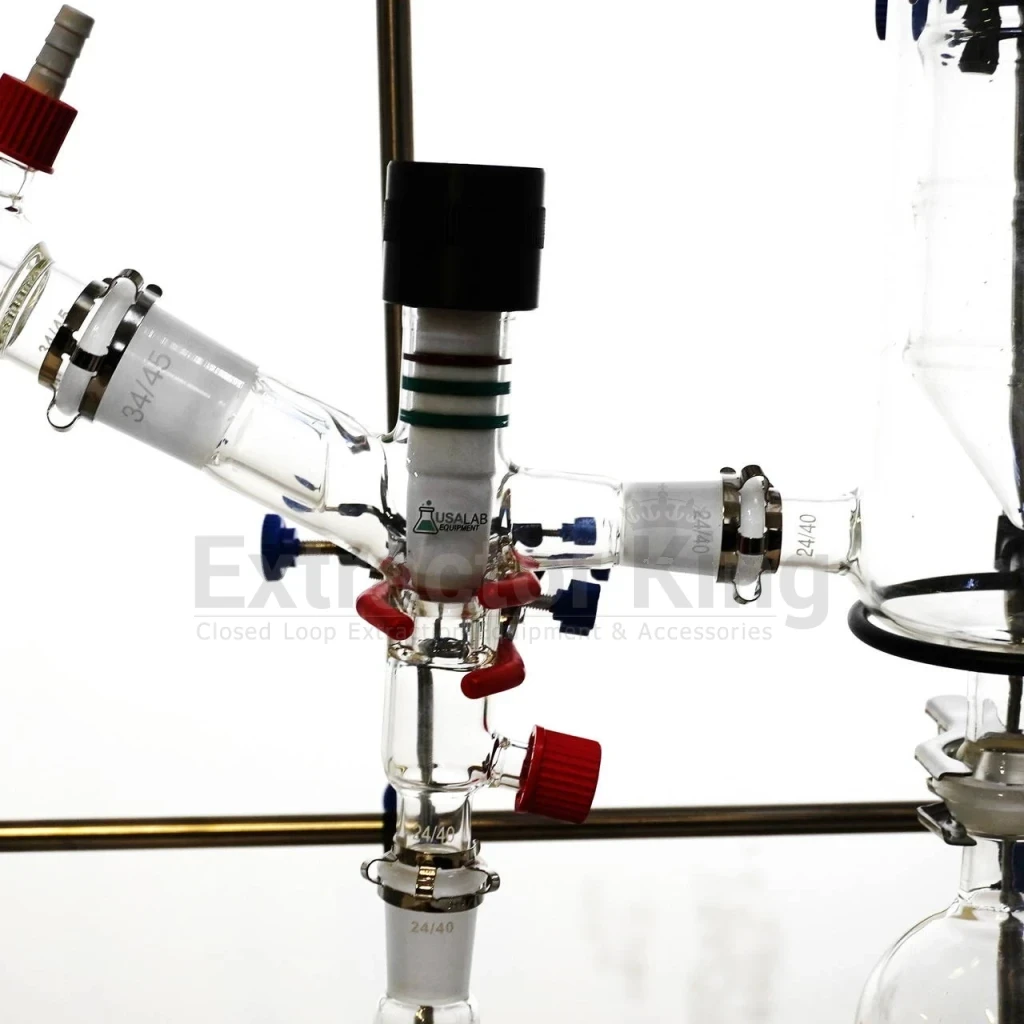

34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge |
|
|
Left Cold Trap Joint Sizes |
24/40 |
|
|
Right Cold Trap Joint Sizes |
24/40 |
|
|
Optimal Capacity |
3000-8000mL |
|
|
Batch Time |
4-10 Hours |
|
|
Main Body Flow Rate |
700-1700 grams/hour |
|
|
Footprint |
80x24x40(inch) Including Pump / Chiller |
|
|
Warranty |
1 Year |
|
|
PACKING LIST |
||
|
Model |
Quantity |
|
|
10L Mantle |
1 |
|
|
10L RBF - 2 neck 24/40 and 45/50 Center |
1 |
|
|
5L 45/50 H1-5 Distillation Head |
1 |
|
|
100ML RBF - 1 Neck 24/40 |
2 |
|
|
2L RBF - 1 Neck 24/40 |
1 |
|
|
34/45 Isolation Adapter |
1 |
|
|
24/40 Male Cold Trap |
1 |
|
|
24/40 female Cold Trap |
1 |
|
|
Cold Trap Lid |
2 |
|
|
S35/20 500ml RBF |
2 |
|
|
10L Flask Thermowell 24/40 |
1 |
|
|
5L Head Thermowell 24/40 |
1 |
|
|
GL-18 Connection |
4 |
|
|
45/50 Keck Clamp |
1 |
|
|
34/45 Keck Clamp |
1 |
|
|
24/40 Keck Clamp |
4 |
|
|
Red Large Clamp Retort 3 Prong |
4 |
|
|
Chain Clamp for Lab Stand |
2 |
|
|
Stainless Steel S35 Pinch Clamp |
2 |
|
|
4" Diameter Extension Support Ring |
2 |
|
|
Boss Head Clamp |
18 |
|
|
Small Cork Stand |
2 |
|
|
Medium Cork Stand |
1 |
|
|
6"x8" Lab Stand |
4 |
|
|
8"x8" Lab Jack |
1 |
|
|
48" SS Rod |
3 |
|
|
KF25 to 24/40 PTFE Adapter |
1 |
|
|
KF25 Wing Nut Clamp |
2 |
|
|
KF25 Vacuum Pump Centering Ring |
2 |
|
|
Mantle Manual |
1 |
|
USA LAB HM-12L
HEATING MANTLE INFORMATION
Our USA Lab HM heating and stirring mantles are a top of the line product compared to others that are currently on the market while maintaining an affordable price. Each mantle comes standard with a digital display for ease of use and accurate control. Rotation speeds are easily done by a knob rather than a digital display for ease of use and superior control. Our magnet motor is one of the most powerful on the market, yielding better agitation and more control.
Our HM mantles come equipped with high quality parts to serve you betterand to make your mantle last longer. Each unit comes with a extremely accurate K-Type probe, as well as an insulating heating top for exceptional heat retention inside your flask.
Upgrade today and see the USA Lab quality difference!
Manual
|
SPECIFICATIONS |
||||
|
Capacity |
2L |
5L |
12L |
22L |
|
Dimension |
Φ270x220mm |
Φ330x220mm |
Φ400x300mm |
Φ450x330mm |
|
Φ10.62x8.66inch |
Φ12.99x8.66inch |
Φ15.74X11.81inch |
Φ17.71x12.99 |
|
|
Jacket Heater |
110-120V, 350W |
110-120V, 600W |
220-240V, 1000W |
220-240V, 1400W |
|
Mantle Heater |
110-120V, 450W |
110-120V, 800W |
220-240V, 1400W |
220-240V, 1600W |
|
Motor |
10W |
10W |
60W |
60W |
|
Net Weight |
10 kg / 22.04 lbs |
13 kg / 28.66 lbs |
22 kg / 48.50 lbs |
30 kg / 66.13 lbs |
|
Max Temp |
300°C |
300°C |
300°C |
300°C |
|
Max RPM |
3000RPM |
3000RPM |
3000RPM |
3000RPM |
|
PACKING LIST |
||||
|
Capacity |
2L |
5L |
12L |
22L |
|
Mantle |
1 |
1 |
1 |
1 |
|
Top |
1 |
1 |
1 |
1 |
|
Probe |
1 |
1 |
1 |
1 |
|
Stir Bar |
1 |
1 |
1 |
1 |
|
Manual |
1 |
1 |
1 |
1 |
USA LAB 10L MANTLE INFORMATION
The USA Lab 10L digital mantle is the most reliable digital magnetic heating mantle on the market. These mantles allows users to have repeatable, consistent results with ease.
|
Voltage |
220V 60Hz Single phase 1200 watts |
|
Temperature range |
RT ~ 572℉ （300℃） |
|
Maximum rotation speed |
1400 rpm |
|
Maximum stirring volume |
|
GLAS-COL 12L MANTLE INFORMATION
|
100D-TEM116 Specifications |
|
|
Material |
Aluminum housed |
|
Max Temperature |
400°C |
|
Height |
9" |
|
Outside Diameter (OD) |
16.5" |
|
Capacity |
12L |
|
Volts |
115 |
|
Watts |
2 @ 650 |
|
Includes |
Separable 4-ft., 2-Wire Cord, |
|
MPN |
100D TEM116 |
|
104A HS112-3 Specifications |
|
|
Output |
PID |
|
Volts |
120 |
|
Watts |
2400 |
|
MPN |
104A HS112-3 |
|
Manufacturer |
Glas-Col |
100A MO1163 TOP:
|
100A-MO1163 Specifications |
|
|
Capacity |
12L |
|
Volts |
115 |
|
Watts |
590 |
|
MPN |
100A MO1163 |
|
Manufacturer |
Glas-Col |
|
108A TJ1/4-18 Specifications |
|
|
D x L |
1/4" x 18" |
|
Lead Length |
72" |
|
Thermocouple |
J |
|
Type |
Mini Plug |
|
MPN |
108A TJ1/4-18 |
|
Manufacturer |
Glas-Col |
|
100D-TEM116-KIT Packing List |
|
|
Item |
Quantity |
|
*All cords are included* |
- |
|
12L 100D-TEM116 Mantle |
1 |
|
104A HS112-3 Controller |
1 |
|
12L 100A MO1163 Top |
1 |
|
108A TJ1/4-18 Thermocouple |
1 |
Specifications
| Flask Sizes | 10L / 45/50 Main | 24/40 Side |
| Head Joint Size | 45/50 Main | 24/40 Top | 24/40 Side |
| Isolation Adapter Joint Sizes | 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge |
| Left Cold Trap Joint Sizes | Male 24/40 |
| Right Cold Trap Joint Sizes | Female 24/40 |
| Optimal Capacity | 3000-8000mL |
| Batch Time | 4-10 Hours |
| Main Body Flow Rate | 700-1700 grams/hour |
| Warranty | 1 Year (Mantle Only) |
| Warranty Term | 1 Year |
