Agilent IDP-3 dry scroll vacuum pump with inlet isolation valve
Reference:
Manufacturer: Agilent

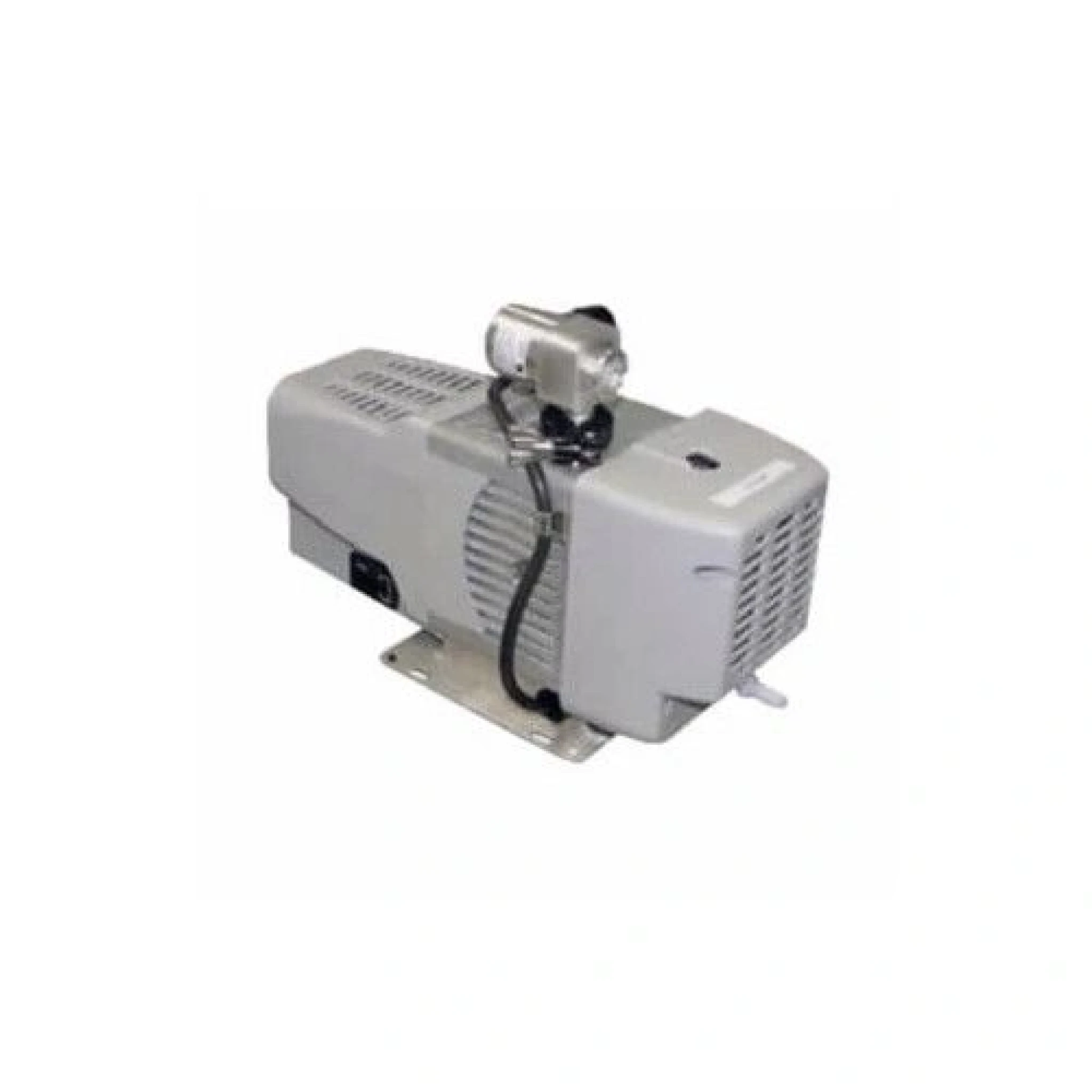

The Agilent IDP-3 dry scroll pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications. It is the smallest scroll pump made for general vacuum applications, which makes it easy to integrate into OEM systems, and it weighs only 21 pounds (9.5 kg). Yet with a pumping speed of 2.1 cfm (60 L/min) and a very low base pressure of 250 milliTorr, it is the highest-performing dry pump in its class.
Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.
IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.
In stock
Customize your product
Payment Providers
The IDP-3 is a small oil-free scroll pump for jobs that need clean, steady rough vacuum rather than a deep one. At 60 Hz it delivers 2.1 CFM (60 L/min) and reaches a base pressure of 2.5 x 10-1 Torr, which suits vacuum filtration, degassing, sample concentration and backing small instruments. With no oil in the pump there is no oil to change, no oil mist at the exhaust and no oil to migrate back toward your samples.
It is only 5.5 in wide and 14.09 in long, so it fits under a fume hood or on a crowded bench, and it runs from a standard 110 V, 60 Hz outlet. The NW16 inlet takes common KF fittings, and the exhaust comes with a 10 mm hose barb so vapours can be routed to a vent. The built-in inlet isolation valve closes the pump off from your system when it is switched off.
| Base pressure (50 Hz) - Torr & mbar | 2.5 x 10-1 Torr 3.3 x 10-1 mbar |
| Base pressure (60 Hz) - Torr & mbar | 2.5 x 10-1 Torr 3.3 x 10-1 mbar |
| Dimensions (WxHxL) | 5.5 in x 7.13 in x 14.09 in |
| Exhaust Connection | ¼ inch female NPT (10 mm hose barb provided) |
| Height | 7.13 in |
| Inlet Connection | NW16 |
| Input Voltage | 1Ø, 110 V. 60 Hz |
| Length | 14.09 in |
| Noise Level | 55 dB(A) |
| Pumping Speed (50 Hz) | 1.8 CFM 3 m3/h 50 L/min |
| Pumping Speed (60 Hz) | 2.1 CFM 3.6 m3/h 60 L/min |
| UNSPSC Code | 40151502 |
| Width | 5.5 in |
Standard Package
| Agilent IDP-3 dry scroll vacuum pump, with inlet isolation valve | 1 pc |
| Agilent North America 15A/125V power cord (656458203) | 1 pc |
| Sintered Filter | 1 pc |
Documentation Kit (Contained In Plastic Bag) | 1 pc |
