Agilent IDP-7 5.4 cfm Oil-Free Compact Dry Scroll Pump
Reference:
Manufacturer: Agilent

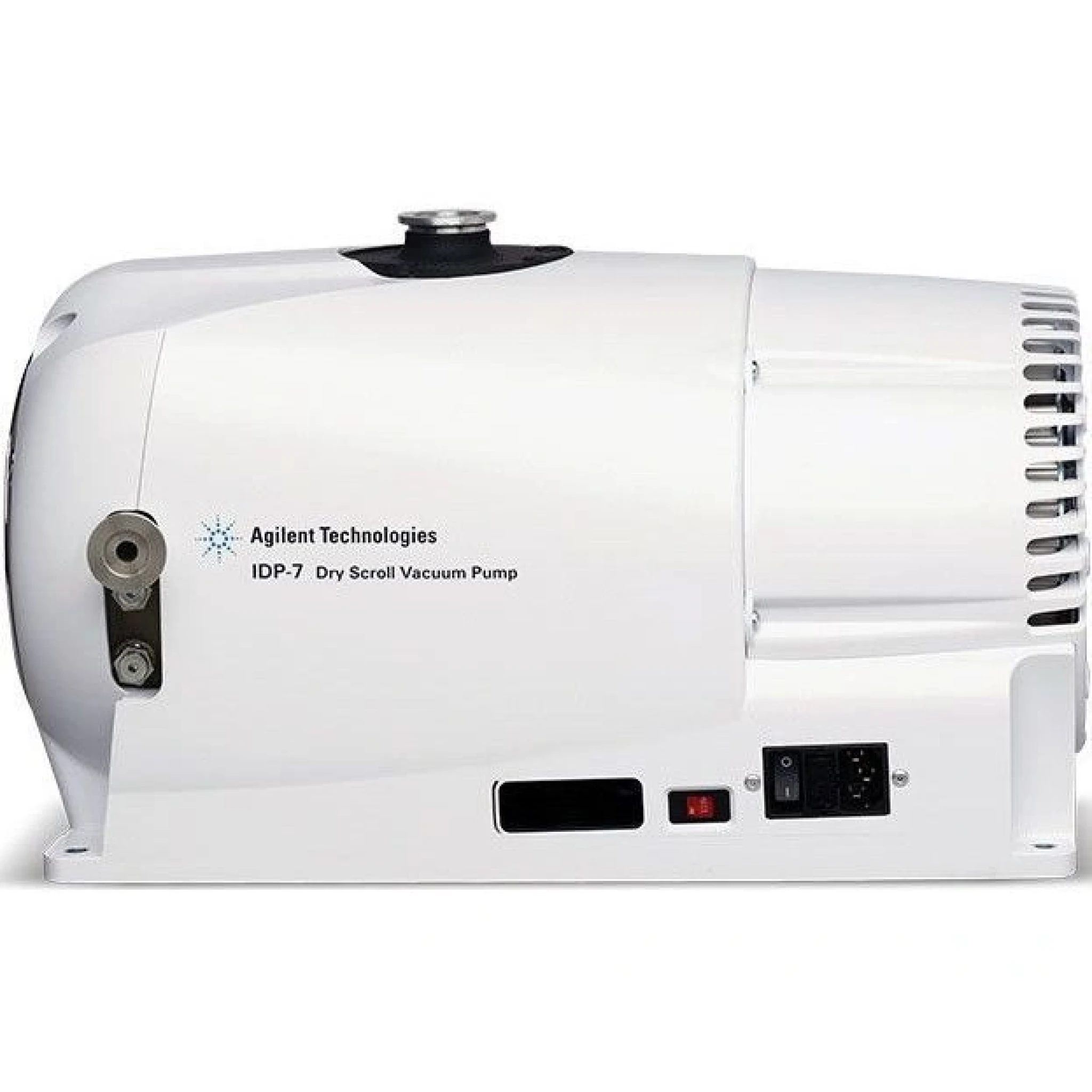

The new Agilent IDP-7 dry scroll pump is a compact, high performance, oil-free vacuum pump, delivering large pumping speed capacity and simple maintenance.
Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.
IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.
Certificate of Compliance
In stock
Optional Must Have Accessories
|
KF/NW25 Flange Centering Clamp Ring | +CAD $14.59 |
Customize your product
Payment Providers
Standard Package
| Agilent IDP7 5.4 cfm scroll pump (X3807-64000) | 1 pc |
| KF25 flexible stainless steel vacuum bellow (3.3 ft) | 1 pc |
| KF25 wing nut flange quick clamp | 2 pcs |
| KF25 flange centering ring | 2 pcs |
| Agilent North America 15A/125V power cord (656458203) | 1 pc |
| Sintered Filter Breather Vent | 1 pc |
| Fuse 10 A | 1 pc |
| IDP-7 Quick Start Card | 1 pc |
| Safety Information Booklet | 1 pc |
Overview
The Agilent IDP-7 is a compact oil-free dry scroll pump for clean, dry vacuum in labs, instruments and small process setups. The motor and every bearing are sealed away from the vacuum path, so nothing you pump comes into contact with lubricant and there is no oil to change or dispose of.
Peak pumping speed is 152 L/min (9.1 mÂł/h) at 60Hz, with an ultimate pressure of 2.0 x 10-2 Torr at 60Hz. Tip seals are replaced from one side in about 15 minutes with simple tools, and the pump comes with a KF25 stainless bellows hose, clamps and centring rings.
Key features
- Oil-free, hermetic design - motor and bearings outside the vacuum path
- Peak speed 152 L/min (9.1 mÂł/h) at 60Hz, 120 L/min at 50Hz
- Ultimate pressure 2.0 x 10-2 Torr at 60Hz (3.0 x 10-2 Torr at 50Hz)
- Noise 52 ±2 dBA
- Available in 110V or 220V, 50/60Hz
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- Liftgate delivery can be added at checkout for $77.53 if you have no loading dock.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
IDP-7 or IDP-15?
The IDP-7 peaks at 152 L/min at 60Hz; the IDP-15 peaks at 256 L/min and reaches a lower ultimate pressure. Choose the IDP-7 when space and speed needs are modest.
Is it oil-free?
Yes. It is a dry scroll pump with no oil in the vacuum path.
What comes in the box?
The pump, a 3.3 ft KF25 stainless bellows, two KF25 clamps and centring rings, a North America power cord, breather vent, spare fuse, quick start card and safety booklet.
| Peak pumping speed | 152 L/min (9.1 mÂł/h) @ 60Hz; 120 L/min (7.2 mÂł/h) @ 50Hz |
| Ultimate pressure | 2.0 x 10-2 Torr @ 60Hz; 3.0 x 10-2 Torr @ 50Hz |
| Noise | 52 ±2 dBA |
| Dimensions (H x W x L) | 254 x 260 x 420 mm |
| Part number | X3807-64000 |
