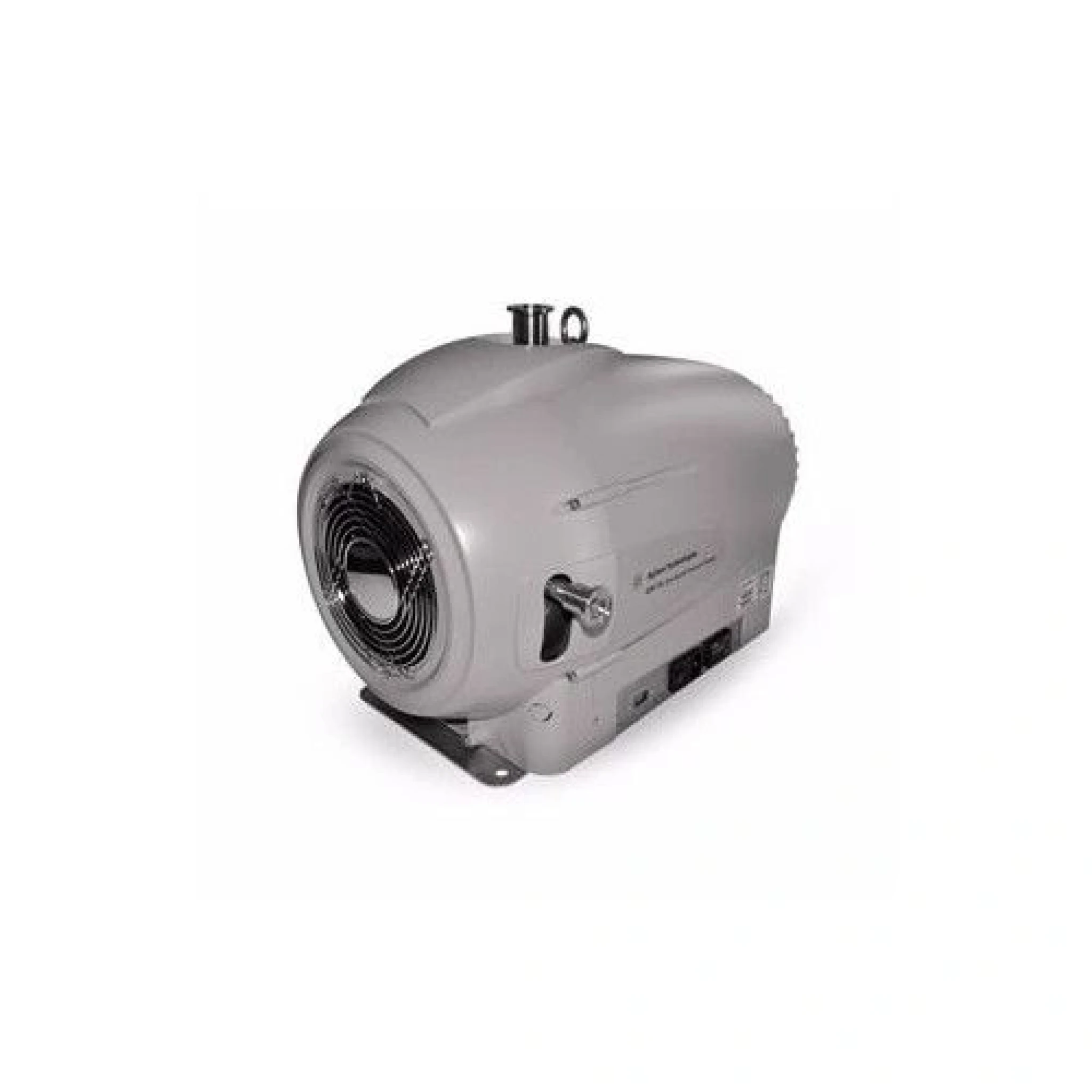

Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve
Reference:
Manufacturer: Agilent
The new Agilent IDP-15 dry scroll pump is designed for extremely quiet (<50dBA) and low vibration operation, delivering a peak pumping speed of 9 cfm at 60Hz. With a single-sided scroll design it offers fast, easy yearly maintenance and low cost of ownership.

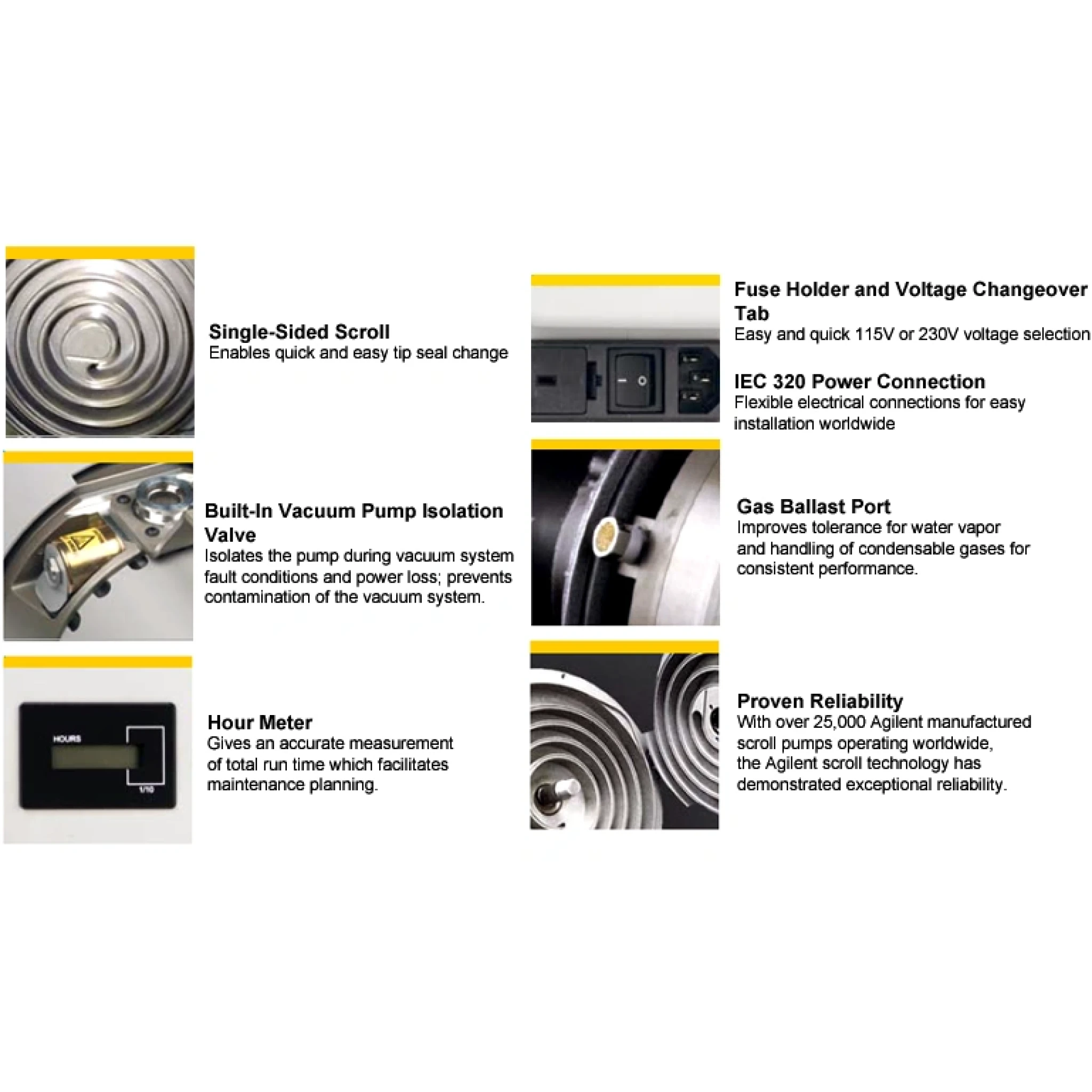

Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.
IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.
In stock
Customize your product
Payment Providers
The IDP-15 is the high-capacity model in the Agilent IDP dry scroll range. At 60 Hz it moves about 9.1 CFM (256 L/min) and pulls down to a base pressure of 1 x 10-2 Torr with no oil anywhere in the vacuum path. That makes it a strong backing pump for rotary evaporators, vacuum ovens and solvent recovery set-ups where oil mist and oil changes are a nuisance.
The integrated inlet isolation valve closes the pump off from your system when it stops. At about 50 dB(A) it is quiet enough to run on the bench next to the operator. The NW25 inlet and NW16 exhaust take standard KF clamps and hoses, and the exhaust can be piped to a fume hood or vent line when you are pulling solvent vapours.
| Base pressure (50 Hz) - Torr & mbar | 1 x 10-2 Torr 1.3 x 10-2 mbar |
| Base pressure (60 Hz) - Torr & mbar | 1 x 10-2 Torr 1.3 x 10-2 mbar |
| Dimensions (WxHxL) | 13.1 in x 14.3 in x 19.1 in |
| Exhaust Connection | NW16 |
| Height | 14.3 in |
| Inlet Connection | NW25 |
| Input Voltage | 100-115 VAC or 220-230 VAC |
| Length | 19.1 in |
| Noise Level | 50 dB(A) |
| Pumping Speed (50 Hz) | 12.8 m3/h 214 L/min 7.5 CFM |
| Pumping Speed (60 Hz) | 15.4 m3/h 256 L/min 9.1 CFM |
| UNSPSC Code | 40151502 |
| Width | 13.1 in |
Standard Package
| Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve | 1 pc |
| Agilent North America 15A/125V power cord (656458203) | 1 pc |
| Quick Start Card | 1 pc |
| Hex Key | 1 pc |
| Breather Vent | 1 pc |
| 10 A Fuse | 1 pc |
