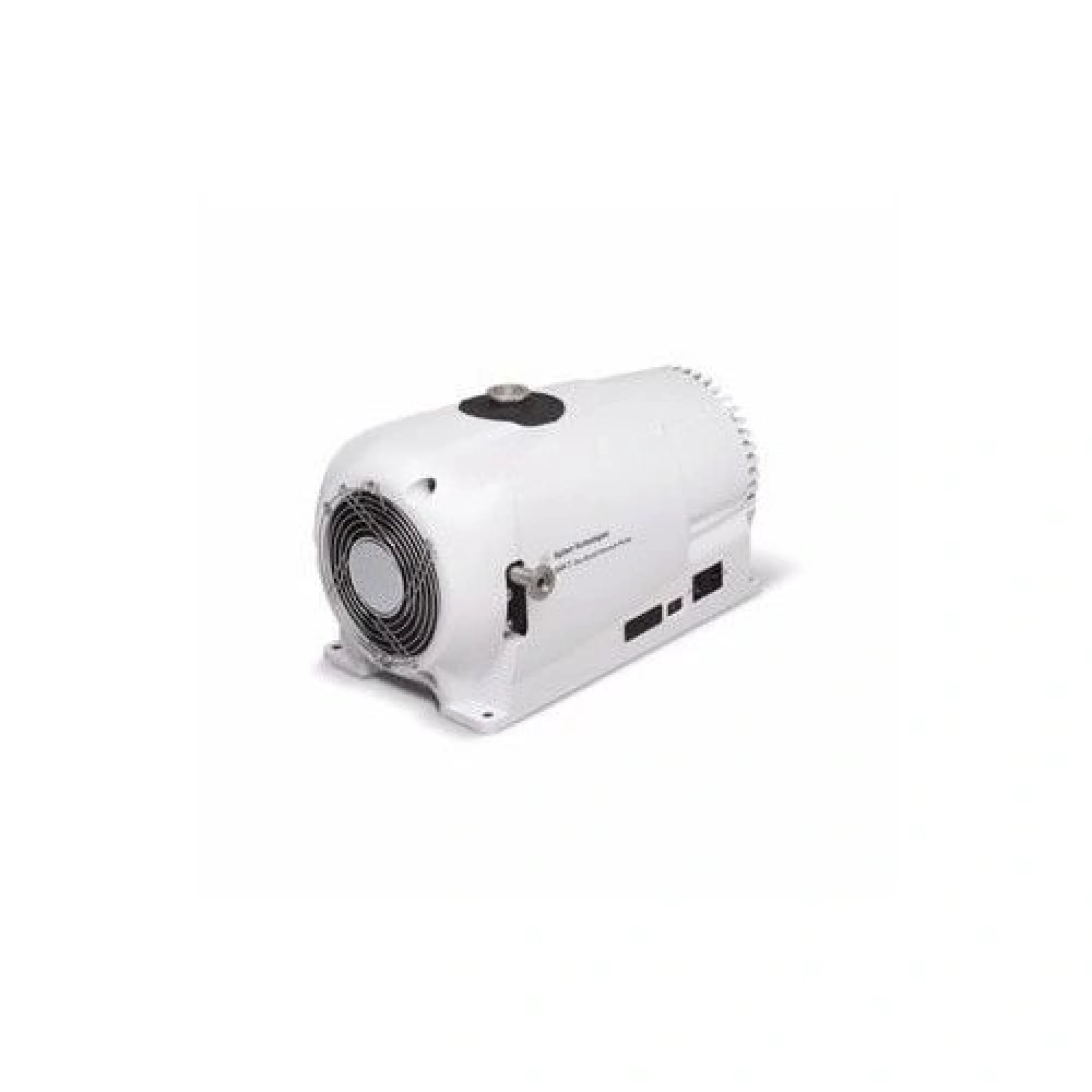

Agilent IDP-7 dry scroll vacuum pump with inlet isolation valve
Reference:
Manufacturer: Agilent
The new Agilent IDP-7 dry scroll pump is a compact, high performance, oil-free vacuum pump, delivering large pumping speed capacity and simple maintenance.
Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.
IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.
In stock
Customize your product
Payment Providers
The IDP-7 sits in the middle of the Agilent IDP dry scroll range: 5.4 CFM (152 L/min) at 60 Hz and a base pressure of 2.0 x 10-2 Torr, delivered without any oil in the pump. That is a practical match for rotary evaporators, vacuum ovens, glove box antechambers and general lab vacuum manifolds where you want clean vacuum and no oil changes.
At 52 dB(A) it is quiet enough for an open lab, and it accepts either a 200-240 VAC or 100-120 VAC supply. The NW25 inlet and NW16 exhaust take standard KF fittings, so it drops into existing vacuum lines, and the exhaust can be piped to a fume hood when pumping solvent vapours.
| Base pressure (50 Hz) - Torr & mbar | 3.0 x 10-2 Torr 4.0 x 10-2 mbar |
| Base pressure (60 Hz) - Torr & mbar | 2.0 x 10-2 Torr 2.6 x 10-2 mbar |
| Dimensions (WxHxL) | 10.24 in x 10 in x 16.54 in |
| Exhaust Connection | NW16 |
| Height | 10 in |
| Inlet Connection | NW25 |
| Input Voltage | 200-240 VAC 100-120 |
| Length | 16.54 in |
| Noise Level | 52 dB(A) |
| Pumping Speed (50 Hz) | 120 L/min 4.2 CFM 7.2 m3/h |
| Pumping Speed (60 Hz) | 152 L/min 5.4 CFM 9.1 m3/hr |
| Width | 10.24 in |
Standard Package
| Agilent IDP-7 dry scroll vacuum pump with inlet isolation valve | 1 pc |
| Agilent North America 15A/125V power cord (656458203) | 1 pc |
| Sintered Filter Breather Vent | 1 pc |
| Fuse 10 A | 1 pc |
| IDP-7 Quick Start Card | 1 pc |
| Safety Information Booklet | 1 pc |
