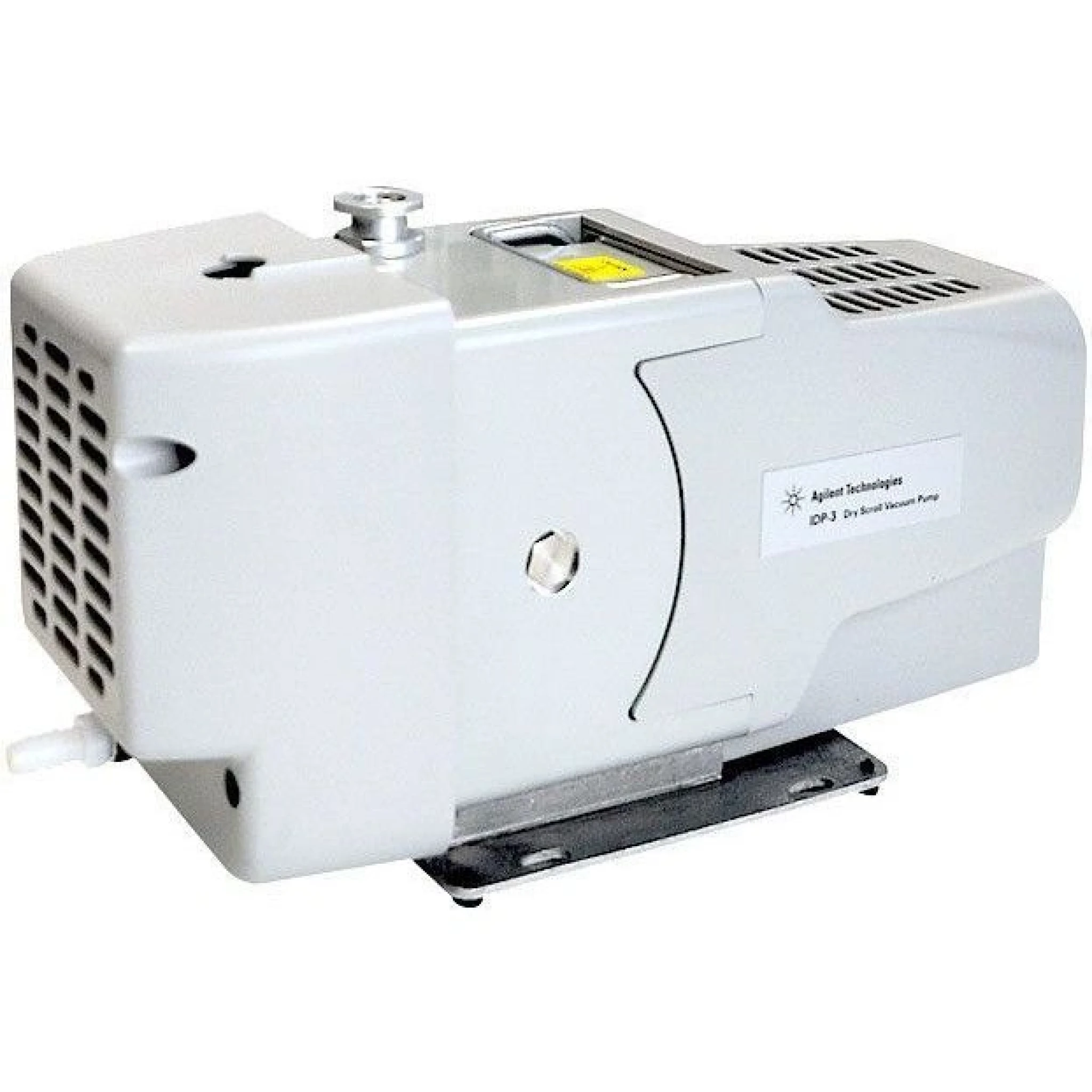

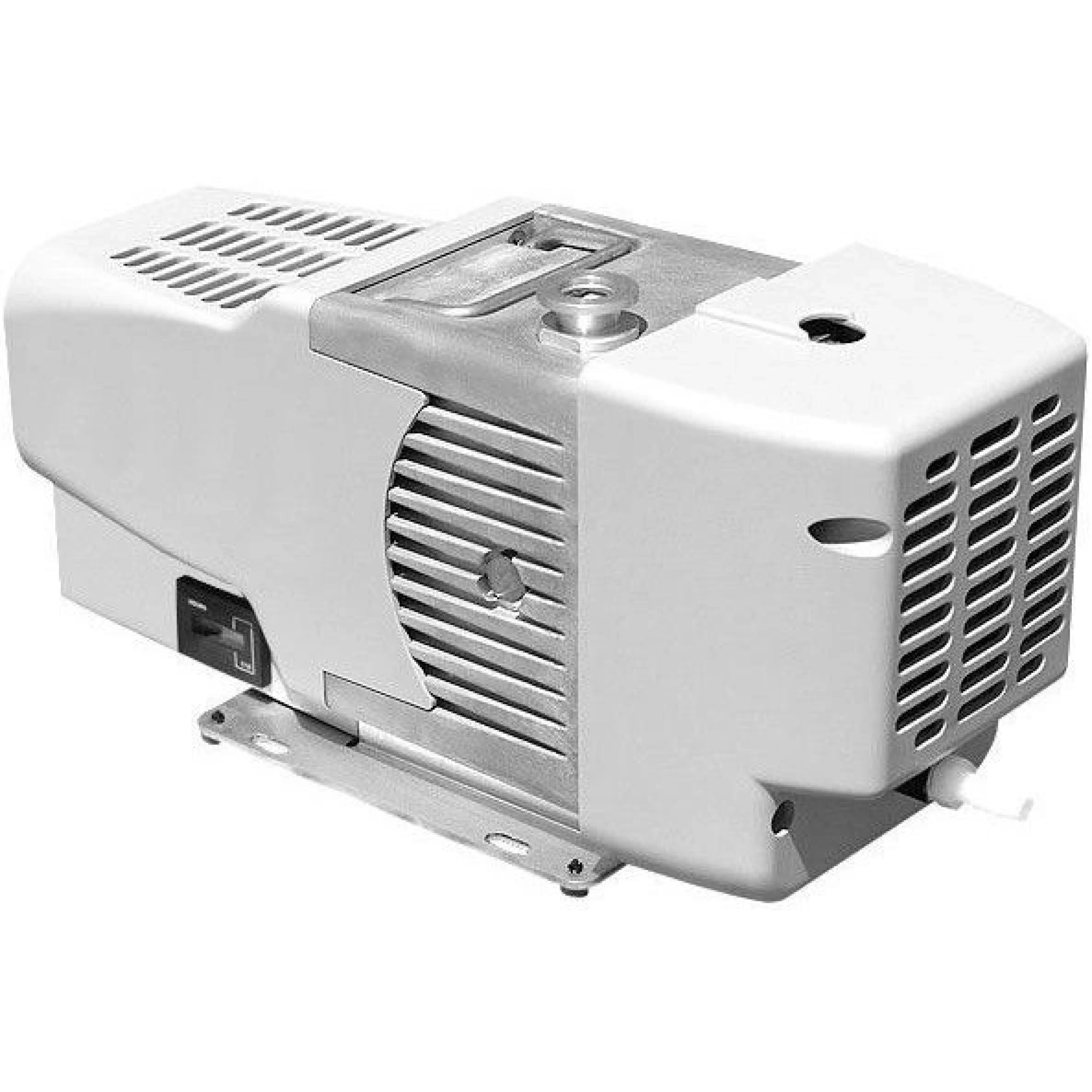

Agilent IDP-3 2.1 cfm Oil-Free Compact Dry Scroll Pump - 110V
Reference:
Manufacturer: Agilent
The Agilent IDP-3 dry scroll pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications. It is the smallest scroll pump made for general vacuum applications, which makes it easy to integrate into OEM systems, and it weighs only 21 pounds (9.5 kg). Yet with a pumping speed of 2.1 cfm (60 L/min) and a very low base pressure of 250 milliTorr, it is the highest-performing dry pump in its class.
Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.
IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump. The IDP-10 uses an inverter driven motor, which provides uniform vacuum performance at all global frequencies and input voltages. Its uniform global performance and compact size make it an ideal choice for analytical instruments and industrial OEMs.
Certificate of Compliance
In stock
Customize your product
Payment Providers
Standard Package
| Agilent IDP-3 2.1 cfm scroll pump (IDP3B01) | 1 pc |
| Agilent North America 15A/125V power cord (656458203) | 1 pc |
| KF16 to KF25 flange adapter | 1 pc |
| KF16 clamp and centering ring | 1 set |
| Sintered Filter | 1 pc |
Documentation Kit (Contained In Plastic Bag) | 1 pc |
Overview
The Agilent IDP-3 is a small, oil-free dry scroll pump for clean rough vacuum. It pumps 60 L/min (2.1 cfm) at 60 Hz and reaches an ultimate pressure of 0.25 Torr, while weighing only 9.5 kg, so it fits easily on a bench or inside an instrument.
Running dry means no pump oil to change or vent into the room, and the motor and bearings sit outside the vacuum path.
It is air-cooled, rated at 55 dB(A), and has an hour meter built in. Agilent states it is not for corrosive, explosive or particle-forming gases, so check your process before you choose it.
Key features
- Oil-free dry scroll design
- 60 L/min (2.1 cfm) peak pumping speed at 60 Hz
- Ultimate pressure 0.25 Torr (0.33 mbar)
- Compact: 181 x 140 x 358 mm, 9.5 kg pump only
- Quiet: 55 dB(A)
- Built-in hour meter and automatic motor thermal protection
- NW16 inlet; KF16 to KF25 adapter included
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Can I use it for hydrocarbon solvent recovery?
Agilent states it is not for explosive gases, so it is not a choice for flammable solvent vapour. It suits clean, non-corrosive vacuum work.
What fittings does it come with?
The inlet is NW16 (KF16). The package includes a KF16 to KF25 adapter, a KF16 clamp and centring ring, and a sintered filter. The exhaust has a 10 mm hose barb.
What maintenance does it need?

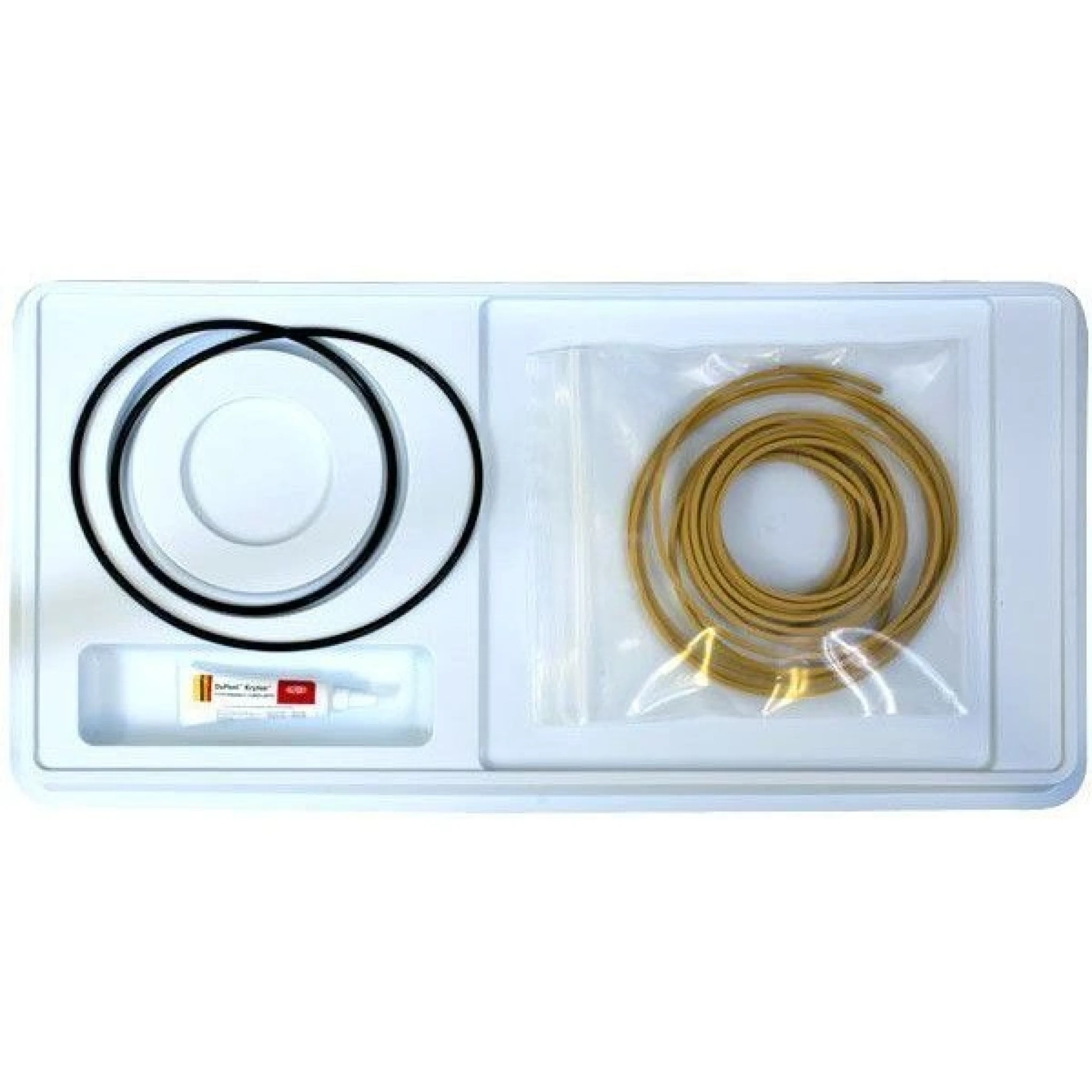

No oil changes. The scroll tip seals are the wear part, and a tip seal kit is offered as an option.
| Peak pumping speed | 60 L/min (3.6 m³/h) at 60 Hz |
| Ultimate pressure | 0.25 Torr (0.33 mbar) |
| Inlet | NW16 |
| Exhaust | 1/4 in female NPT, 10 mm hose barb |
| Motor | 0.16 HP (120 W) |
| Electrical (IDP3B01) | 110 V, 60 Hz, single phase |
| Noise | 55 dB(A) |
| Operating ambient | 5 to 40 °C |
| Leak rate | <1 x 10⁻⁶ mbar·l/s (exhaust sealed) |
| Dimensions (H x W x L) | 181 x 140 x 358 mm |
| Weight | 9.5 kg pump only |
