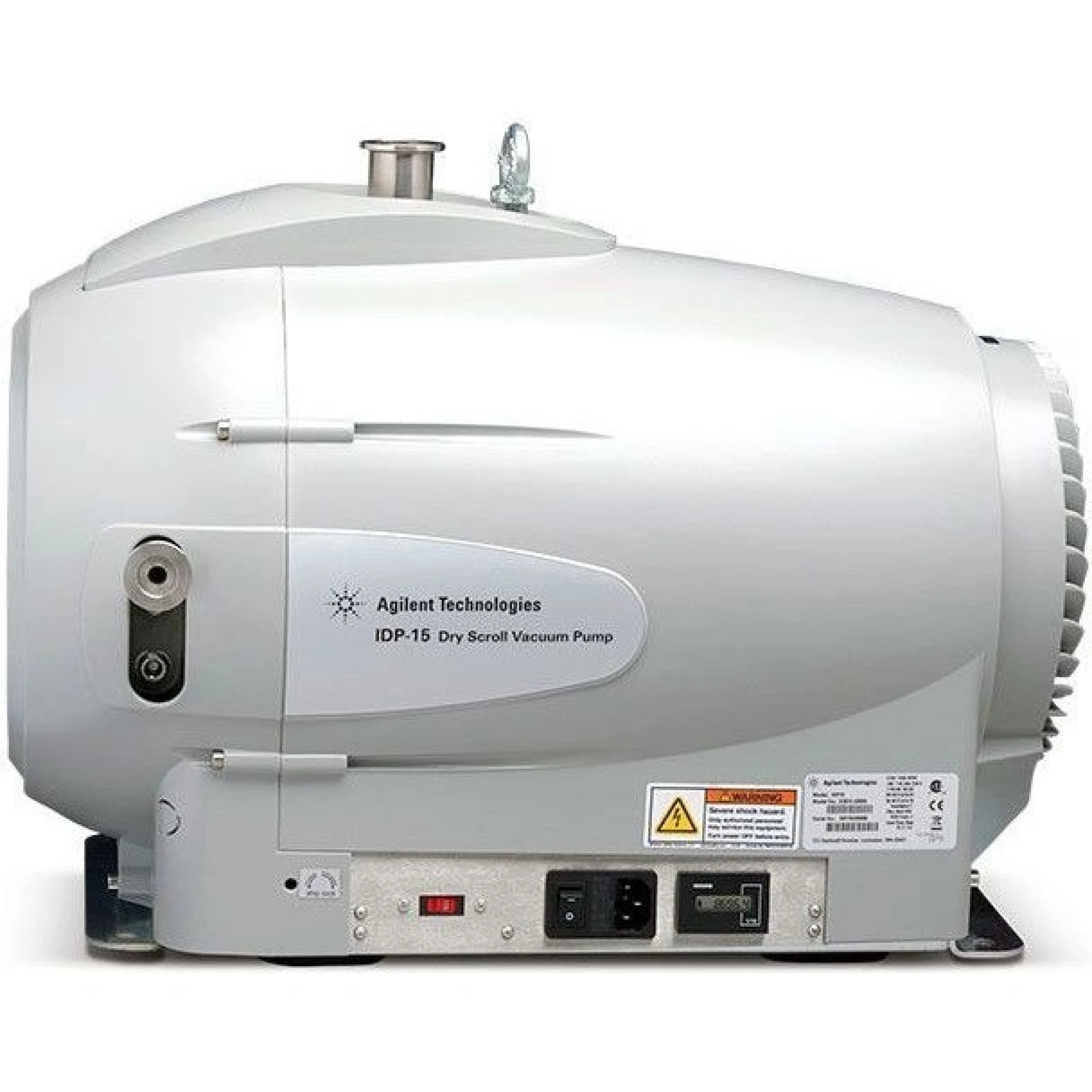

Agilent IDP-15 9 cfm Oil-Free Compact Dry Scroll Pump
Reference:
Manufacturer: Agilent

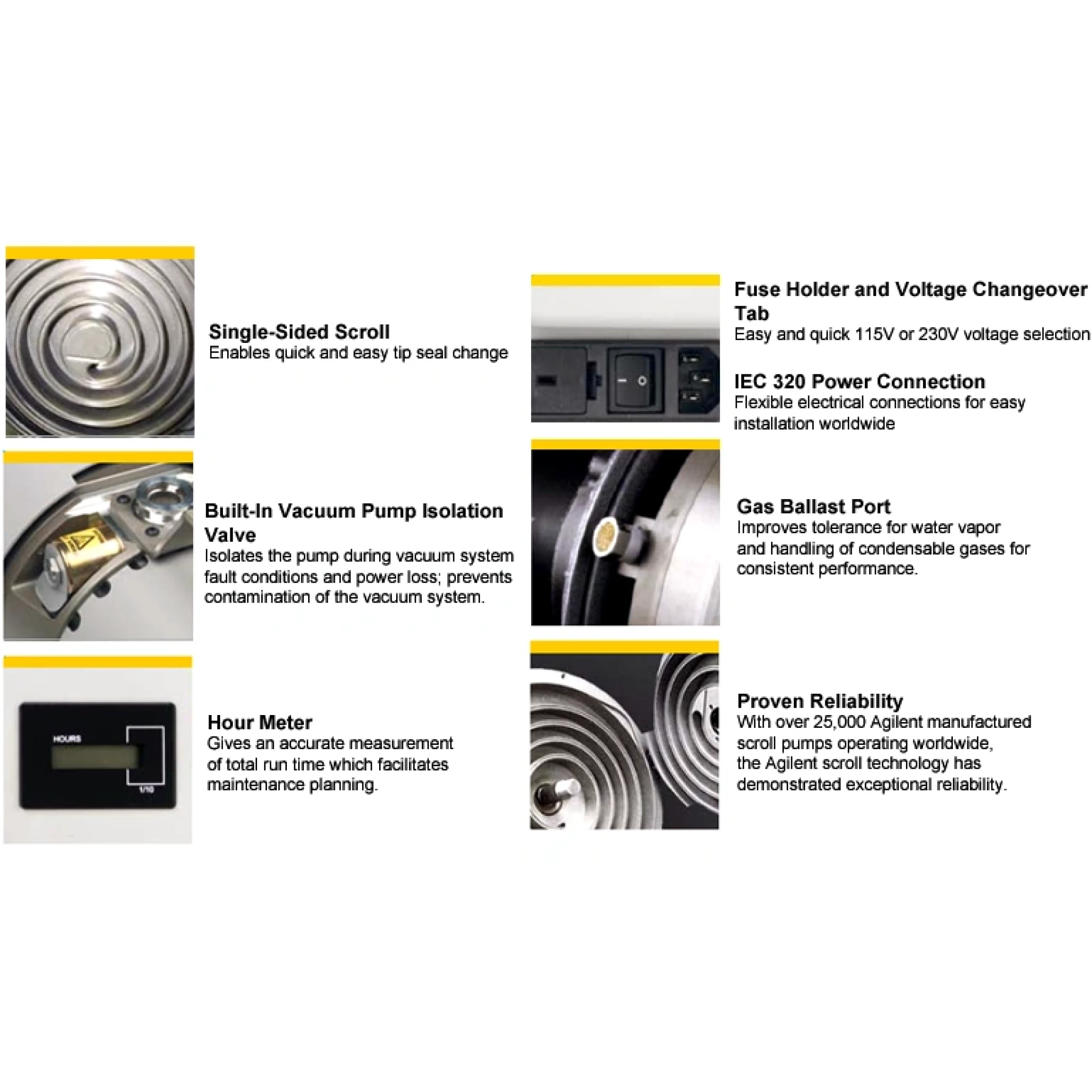

The new Agilent IDP-15 dry scroll pump is designed for extremely quiet (<50dBA) and low vibration operation, delivering a peak pumping speed of 9 cfm at 60Hz.With a single-sided scroll design it offers fast, easy yearly maintenance and low cost of ownership.
Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.
IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.
Certificate of Compliance
In stock
Optional Must Have Accessories
|
KF/NW25 Flange Centering Clamp Ring | +CAD $14.59 |
Customize your product
Payment Providers
Standard Package
| Agilent IDP-15 9 cfm scroll pump (X3815-64000) | 1 pc |
| KF25 flexible stainless steel vacuum bellow (3.3 ft) | 1 pc |
| KF25 wing nut flange quick clamp | 2 pcs |
| KF25 flange centering ring | 2 pcs |
| Agilent North America 15A/125V power cord (656458203) | 1 pc |
| Quick Start Card | 1 pc |
| Hex Key | 1 pc |
| Breather Vent | 1 pc |
| 10 A Fuse | 1 pc |
Overview
The Agilent IDP-15 is an oil-free dry scroll vacuum pump for labs and processes that need clean vacuum without oil changes or the risk of oil in the vacuum line. Its motor and bearings are sealed off from the vacuum path, so the gas you pump never touches lubricant, and it runs quietly at about 50 dBA with low vibration.
Peak pumping speed is 256 L/min (15.4 m³/h) at 60Hz, with an ultimate pressure of 1 x 10-2 Torr. The single-sided scroll keeps service simple: tip seals can be changed in about 15 minutes with basic tools.
Key features
- Oil-free, hermetic design - motor and bearings isolated from the vacuum path
- Peak speed 256 L/min (15.4 m³/h) at 60Hz, 214 L/min at 50Hz
- Ultimate pressure 1 x 10-2 Torr (1.33 x 10-2 mbar)
- NW25 inlet; 1/4 in female NPT exhaust with NW16 adapter
- Available in 110V 60Hz or 220V 50/60Hz
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- Liftgate delivery can be added at checkout for $77.53 if you have no loading dock.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Does it need oil?
No. It is a dry scroll pump; the vacuum path contains no oil or grease.
What connections does it have?
An NW25 (KF25) inlet and a 1/4 in female NPT exhaust with an NW16 adapter. A 3.3 ft KF25 bellows, two clamps and two centring rings are included.
How hard is maintenance?

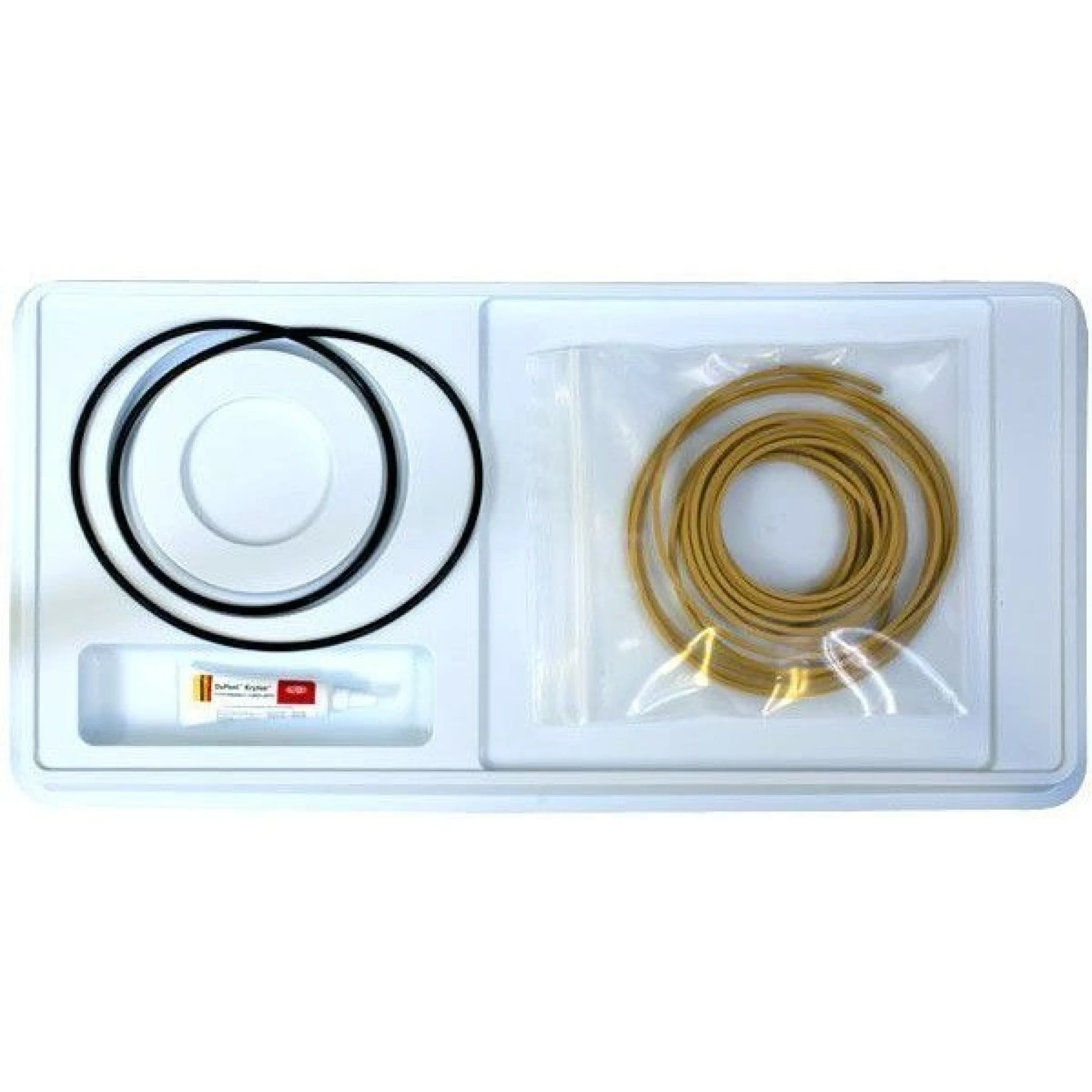

The single-sided scroll lets you replace the tip seals in about 15 minutes with simple tools. A tip seal kit can be added in the options.
| Peak pumping speed | 256 L/min (15.4 m³/h) @ 60Hz; 214 L/min (12.8 m³/h) @ 50Hz |
| Ultimate pressure | 1 x 10-2 Torr (1.33 x 10-2 mbar) |
| Inlet | NW25 |
| Exhaust | 1/4 in female NPT (NW16 adapter) |
| Noise | 50 ±2 dBA |
| Motor | 0.75 HP (560 W) |
| Ambient | 5 to 45°C |
| Dimensions (H x W x L) | 364 x 333 x 485 mm |
| Part number | X3815-64000 |
