Stainless Steel Buchner Funnel Filter 6"
Reference: FB6
Manufacturer: USA Lab
The USA Lab Stainless Steel Buchner Funnel Filter 6" is a sanitary filtration assembly designed for efficient solid-liquid separation in laboratory, extraction, chemical processing, and other fluid-handling applications. Its stainless steel construction…
In stock
Payment Providers
More info
Stainless Steel Buchner Funnel Filter 6"
The USA Lab Stainless Steel Buchner Funnel Filter 6" is a sanitary filtration assembly designed for efficient solid-liquid separation in laboratory, extraction, chemical processing, and other fluid-handling applications. Its stainless steel construction provides a durable solution for filtration workflows requiring a robust sanitary design.

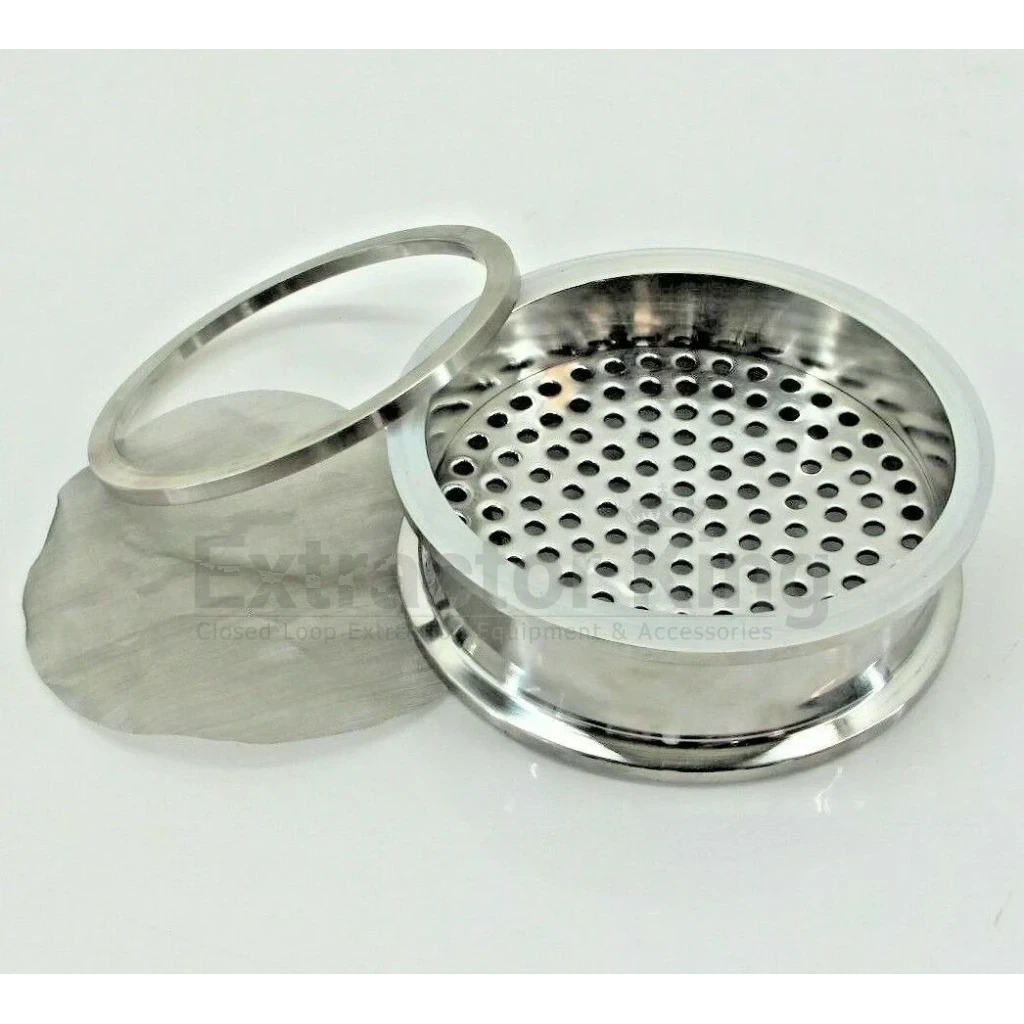

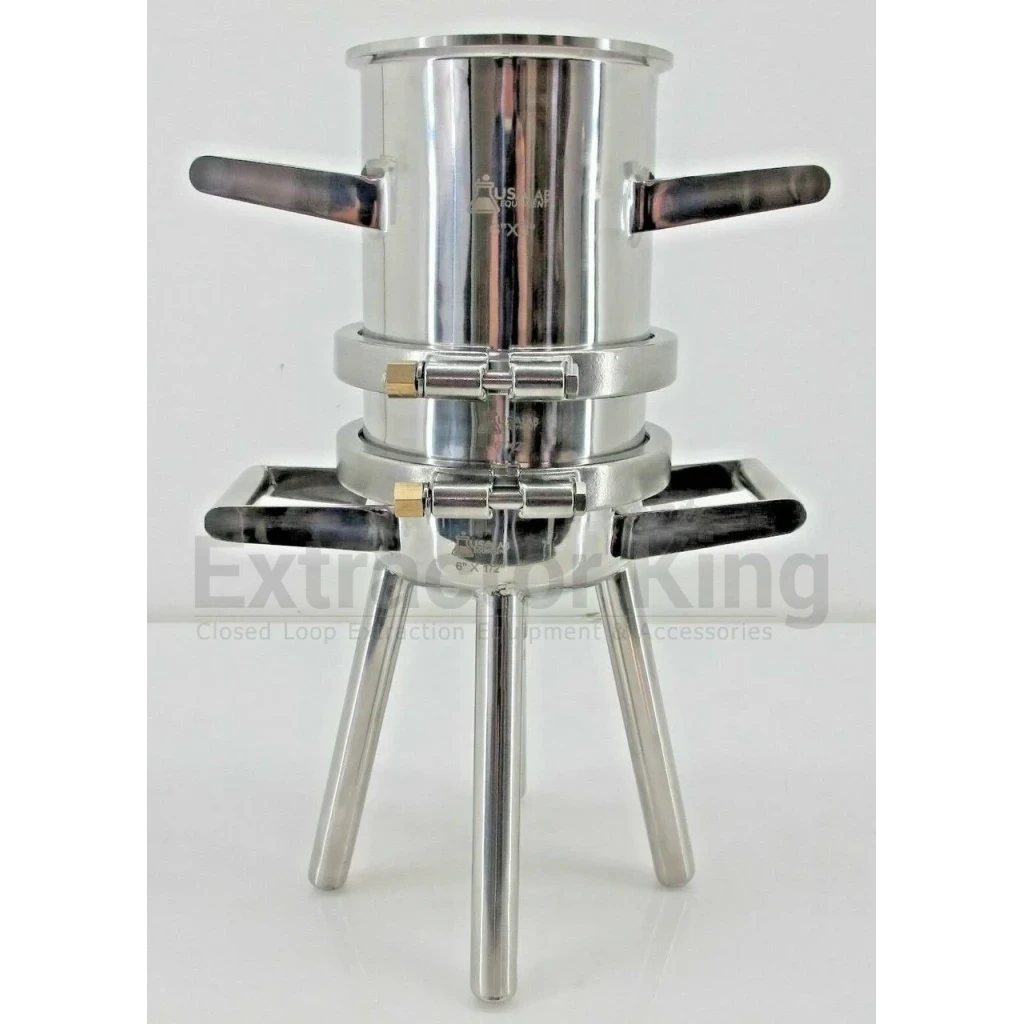

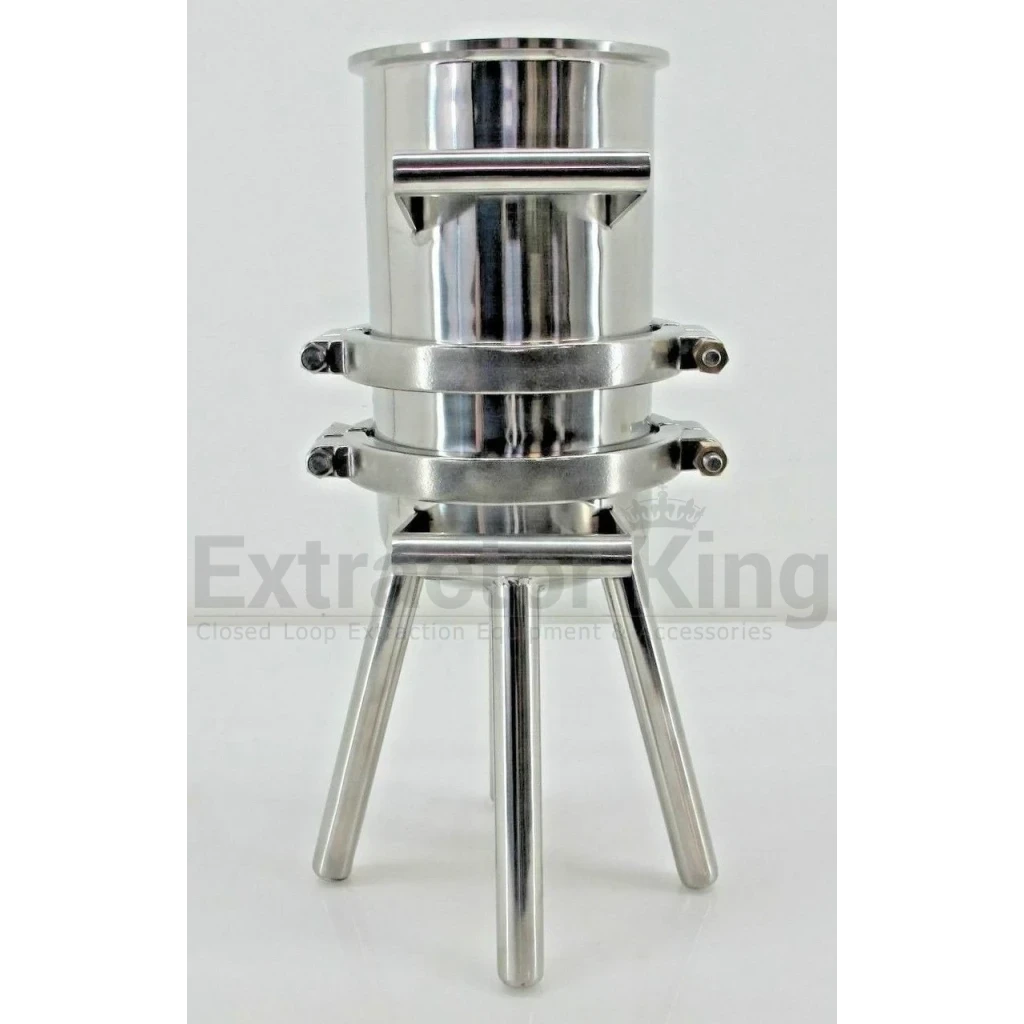

The FB6 assembly combines a 6" sanitary spool with handles, a 6" to 1/2" FNPT hemispherical reducer, and a 6" filter plate kit with 100 micron mesh and filter ring. The included components provide a ready-to-assemble filtration setup with Tri-Clamp connections for convenient installation and disassembly.

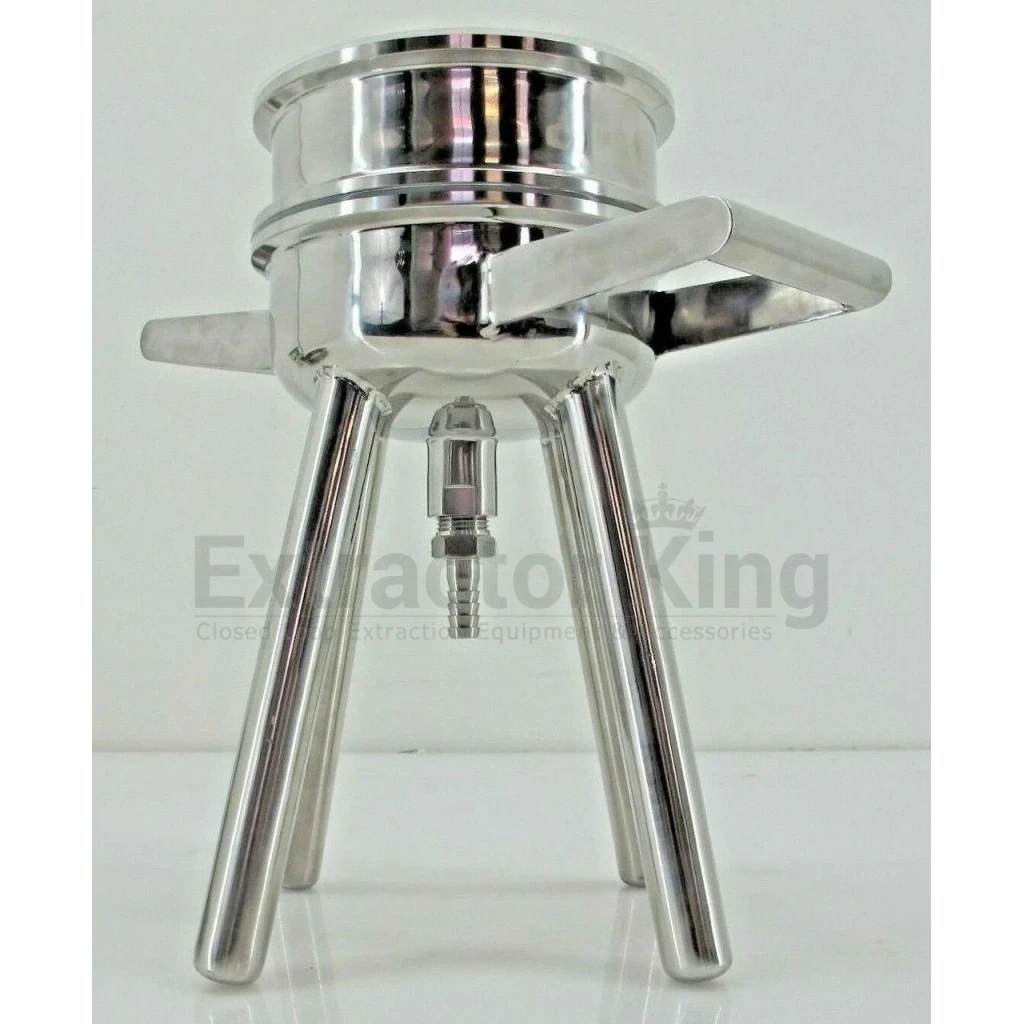

With a 3/8" barb bottom connection and included 1/2" MNPT to 3/8" barb adapter, the Stainless Steel Buchner Funnel Filter 6" provides a practical outlet configuration for controlled fluid transfer. Buna-N gaskets and high-pressure Tri-Clamps are included to complete the sanitary connection assembly.
Why this Stainless Steel Buchner Funnel Filter?
- Durable stainless steel construction — provides a robust filtration assembly suitable for laboratory and fluid-processing environments.
- 6" sanitary configuration — combines a 6" stainless steel spool, hemispherical reducer, and filter plate kit into one practical filtration setup.
- 100 micron filter media — the included filter plate uses 100 micron mesh for controlled filtration.
- Tri-Clamp connections — supports convenient assembly, disassembly, and cleaning of the filtration components.
- Complete component package — includes gaskets, high-pressure Tri-Clamps, filter components, and the bottom outlet adapter.
Technical Specifications
| Specification | Details |
|---|---|
| Model | FB6 |
| Product Name | Stainless Steel Buchner Funnel Filter 6" |
| Brand | USA Lab |
| Product Type | Stainless Steel Buchner Funnel Filter |
| Filter Diameter | 6" |
| Construction | Stainless Steel |
| Dimensions (L × W × H) | 10" × 12.25" × 18.5" |
| Weight | 19.3 lbs |
| Filter Mesh | 100 Micron |

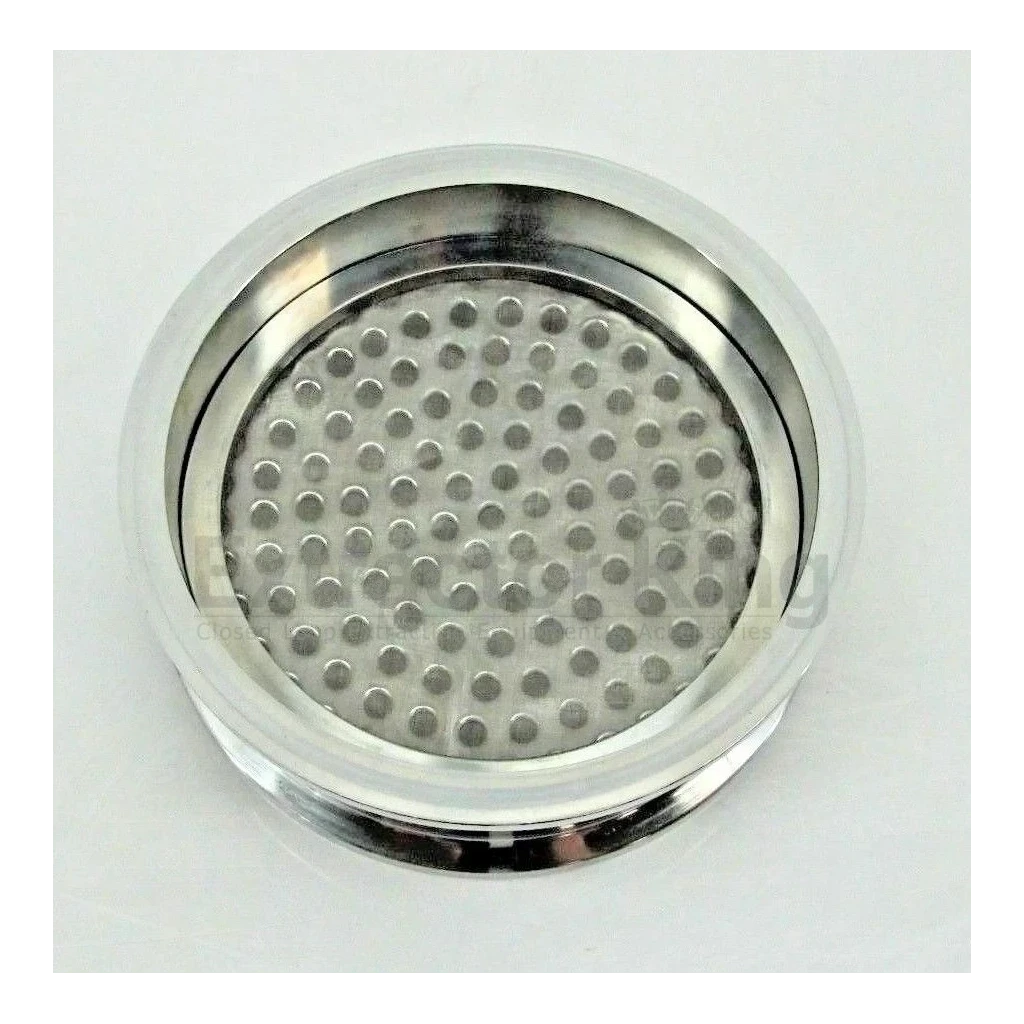

| Filter Plate | 6" Filter Plate with Filter Ring |

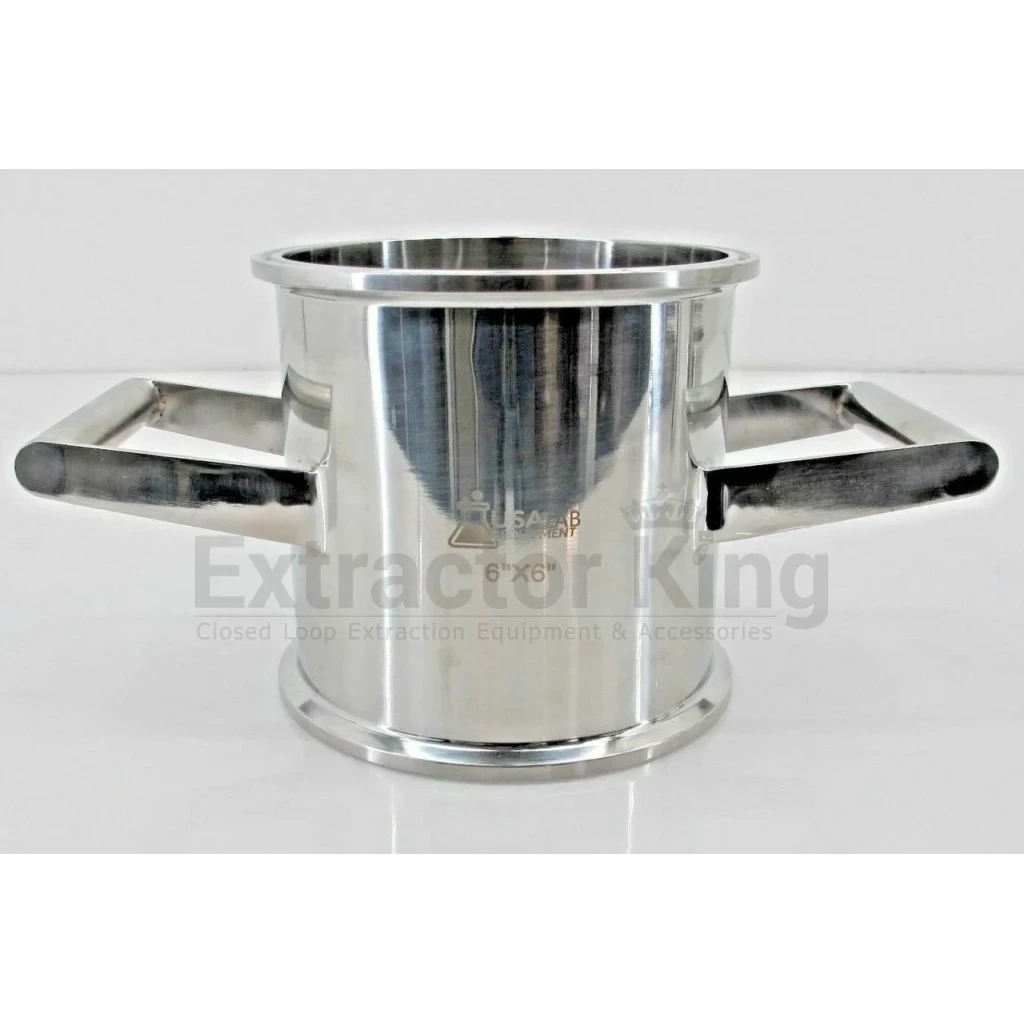

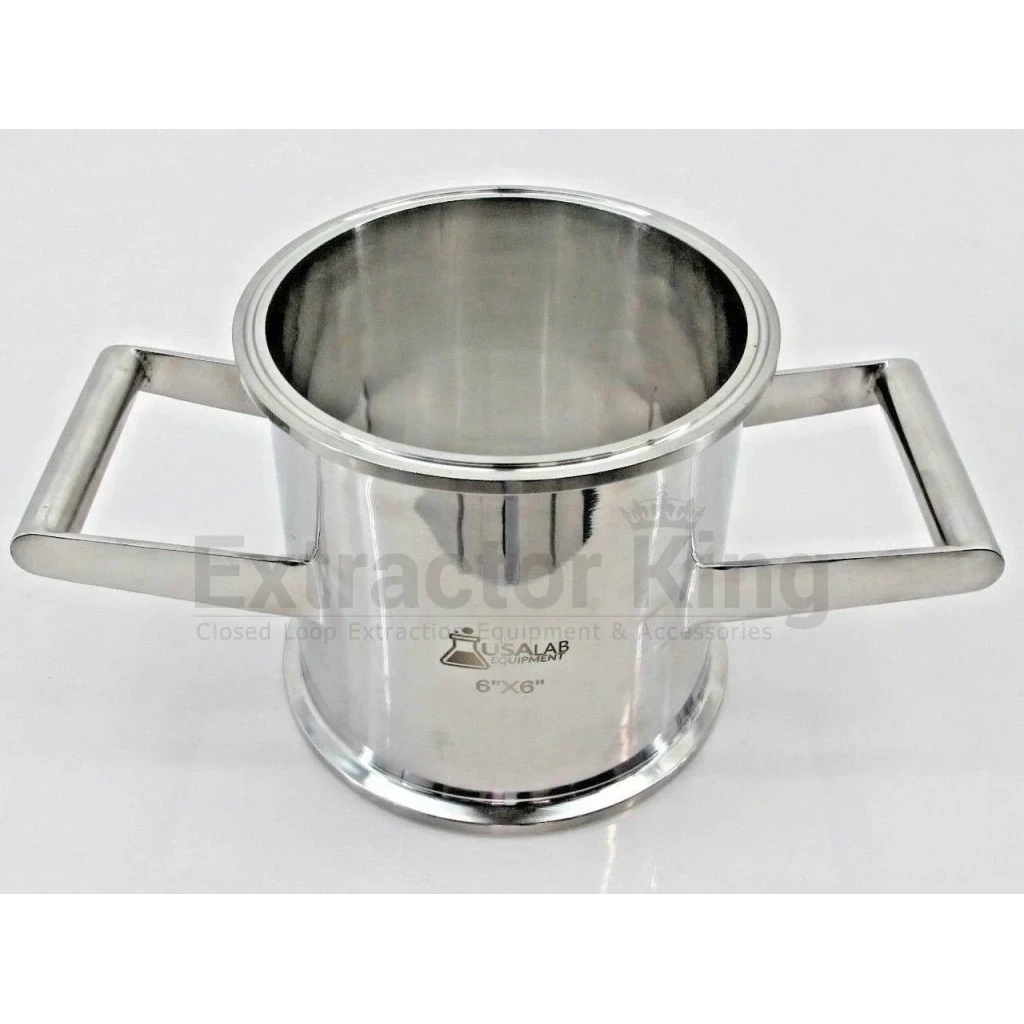

| Top Spool | 6" × 6" Stainless Steel Tri-Clamp Sanitary Spool with Handles |

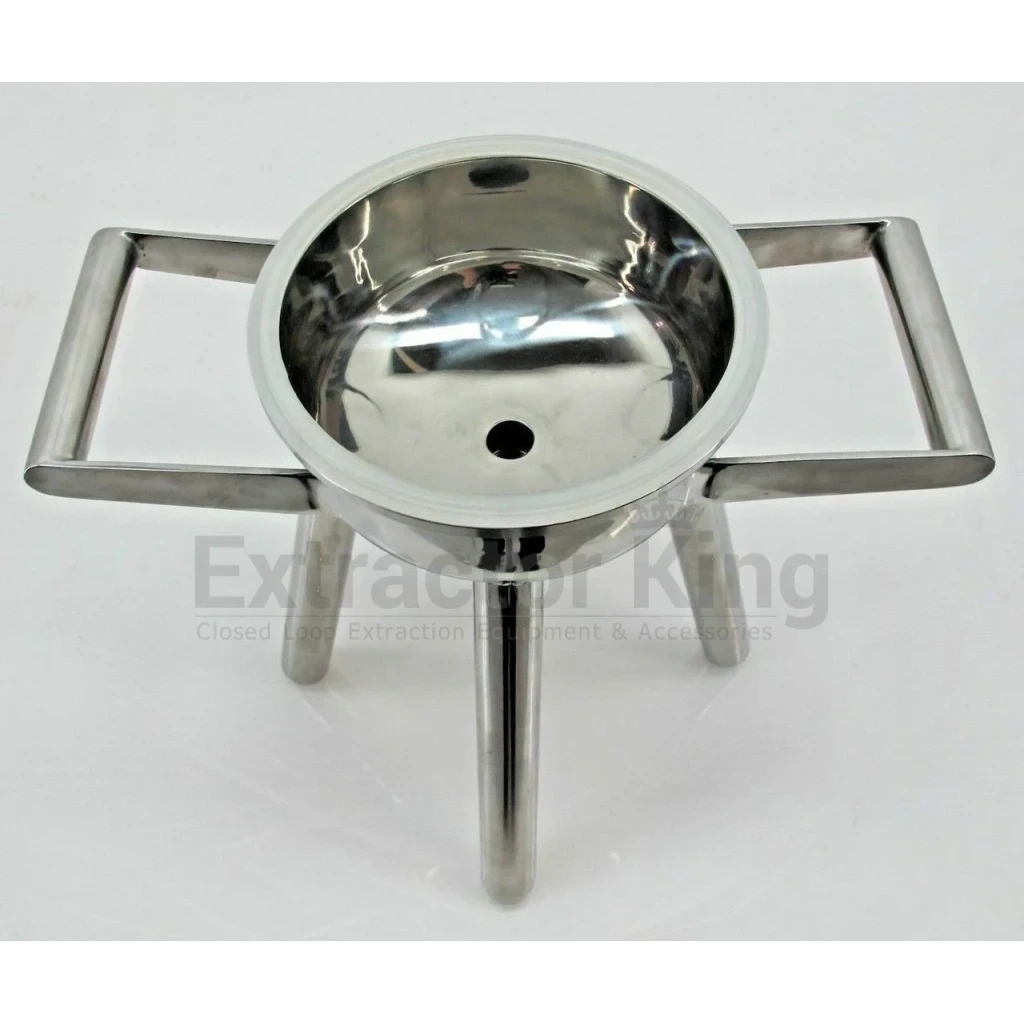

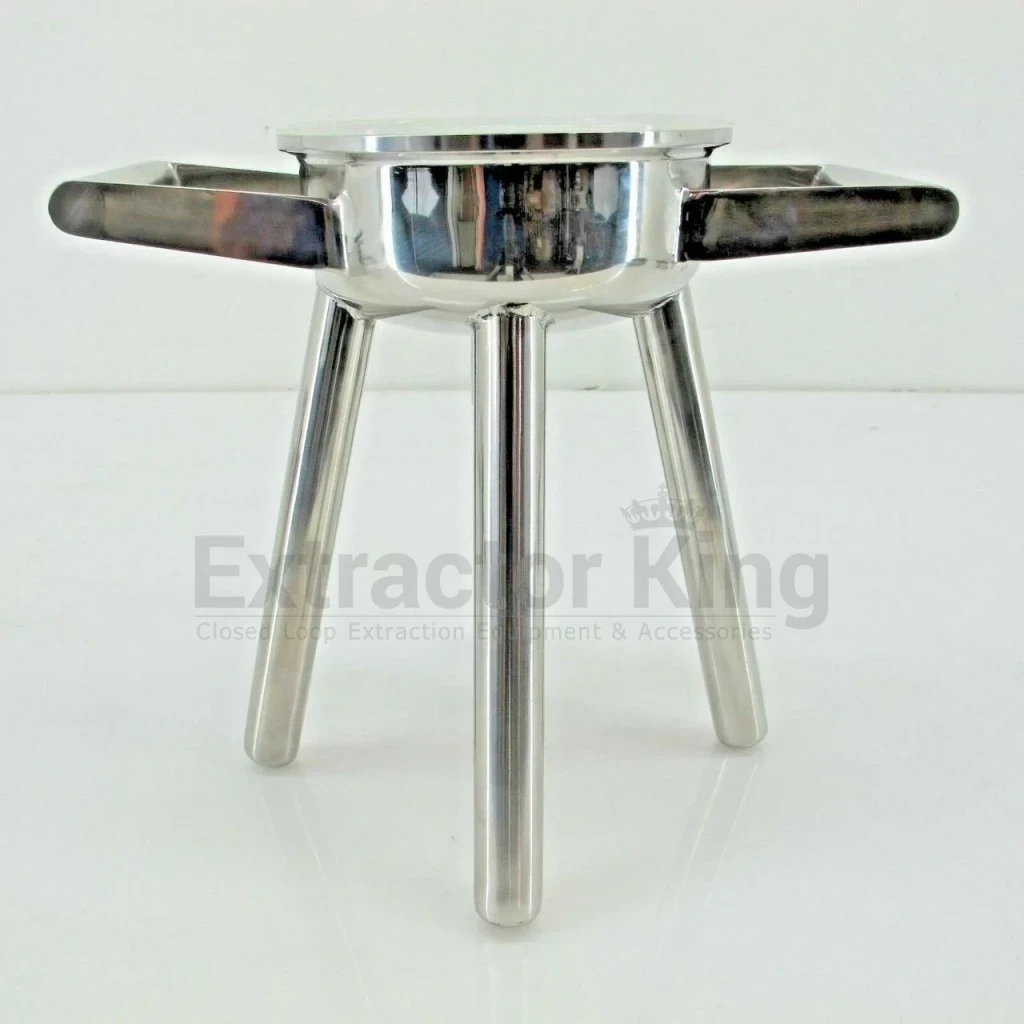

| Hemi Reducer | 6" to 1/2" FNPT Hemi Reducer with 3 Legs and 2 Handles |
| Bottom Connection | 3/8" Barb |
| Adapter | 1/2" MNPT × 3/8" Barb |
| Gasket | 6" Buna-N Tri-Clamp Gasket |
| Tri-Clamp Size | 6" High Pressure Tri-Clamp |
| Gasket Quantity | 2 pcs |
| Tri-Clamp Quantity | 2 pcs |
| Filter Assembly Configuration | 6" Sanitary Spool, Hemi Reducer, Filter Plate Kit, Gaskets, Tri-Clamps, and Bottom Adapter |
FAQ

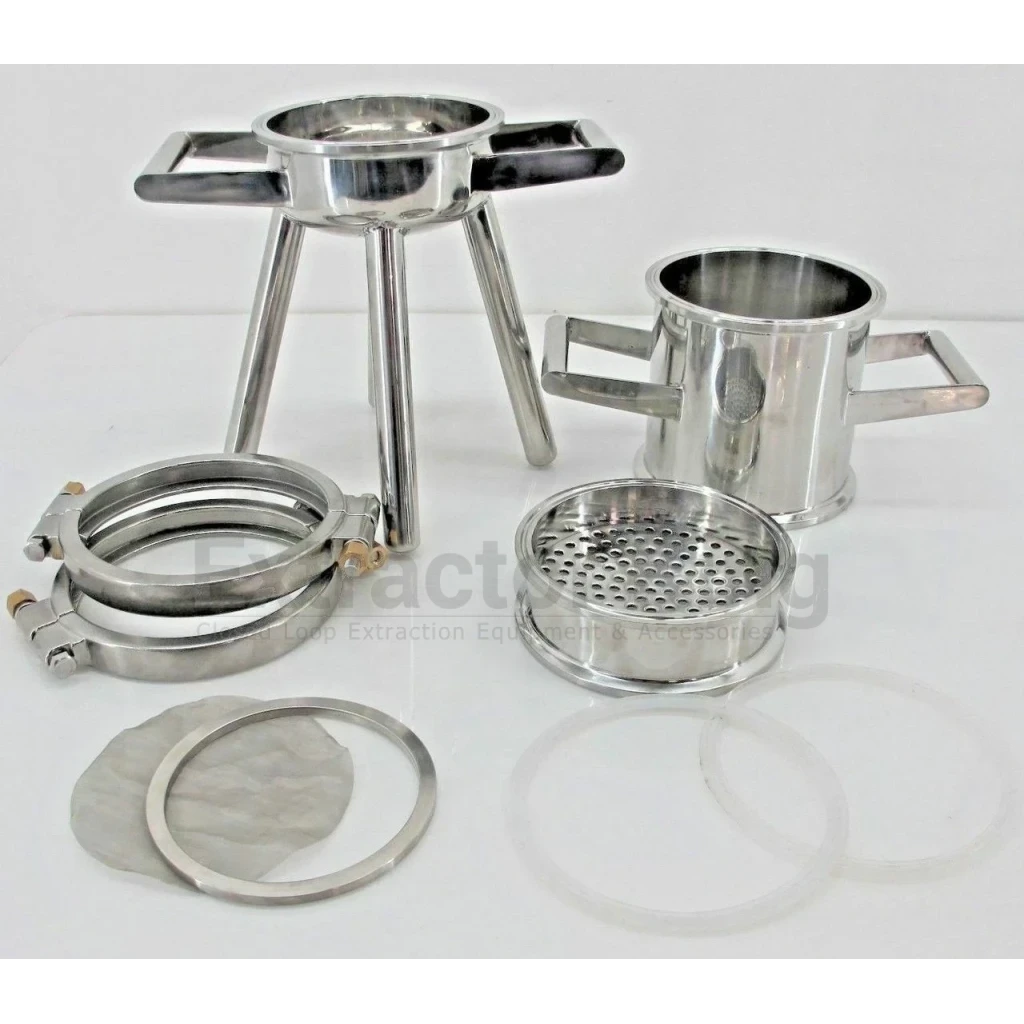

What is included with the Stainless Steel Buchner Funnel Filter 6"?The Stainless Steel Buchner Funnel Filter 6" includes a 6" × 6" stainless steel Tri-Clamp sanitary spool with handles, a 6" to 1/2" FNPT hemi reducer with three legs and two handles, a 6" filter plate kit with 100 micron mesh and filter ring, two 6" Buna-N Tri-Clamp gaskets, two 6" high-pressure Tri-Clamps, and a 1/2" MNPT × 3/8" barb adapter.
The Stainless Steel Buchner Funnel Filter 6" includes a 6" filter plate with 100 micron mesh and a filter ring.
The Stainless Steel Buchner Funnel Filter 6" has a 3/8" barb bottom connection and includes a 1/2" MNPT × 3/8" barb adapter.
The Stainless Steel Buchner Funnel Filter 6" measures 10" × 12.25" × 18.5" (L × W × H) and weighs 19.3 lbs.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Model | Buchner Funnel 6" |
| MPN | BF6 |
| Brand | USA Lab |
| Warranty Term | 1 Year |
