USA Lab Compact Benchtop Air Filtration System
Reference:
Manufacturer: USA Lab
Winged Sentry Benchtop Fume Extractor | USA Lab The Winged Sentry is a compact benchtop air filtration system that provides an energy-efficient, quiet, and economical solution for many fume extraction needs. This system features adjustable "wing flaps" to…
In stock
Customize your product
Payment Providers
More info
Winged Sentry Benchtop Fume Extractor | USA Lab

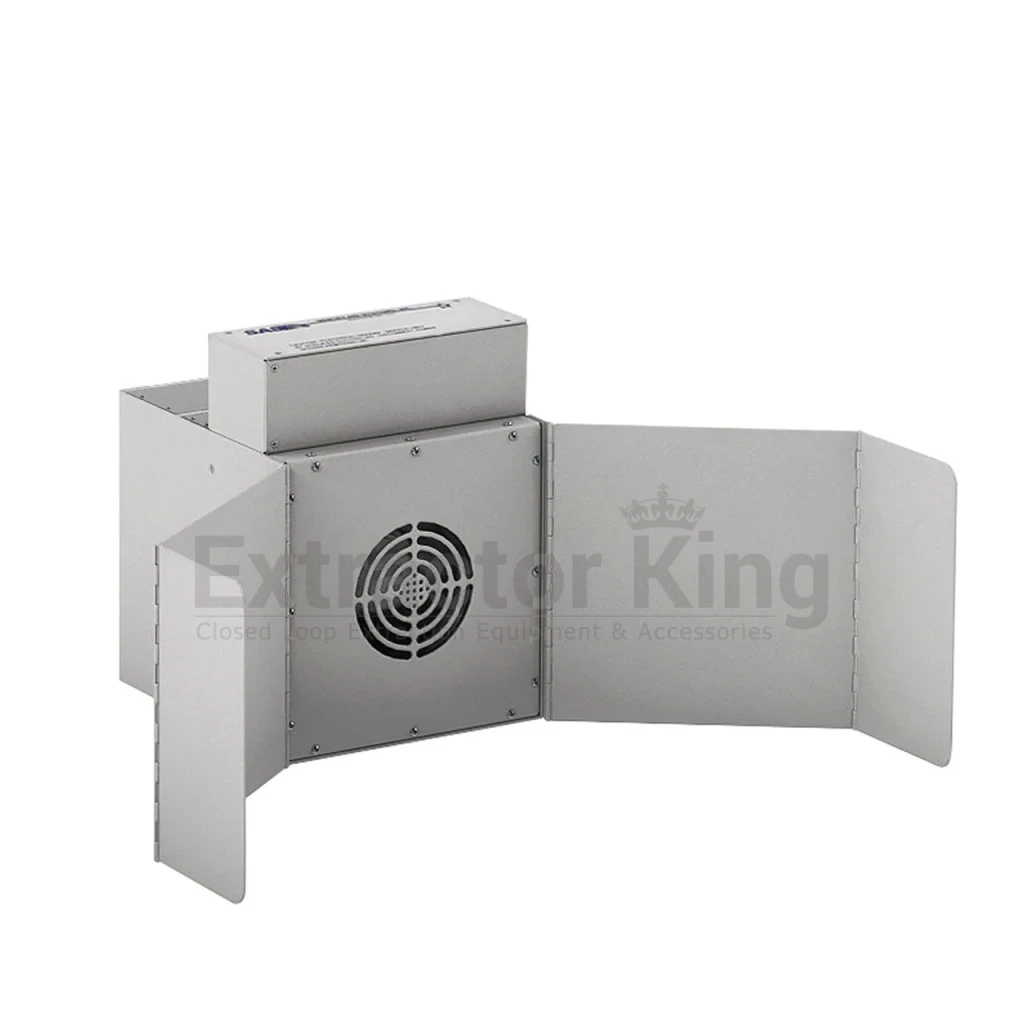

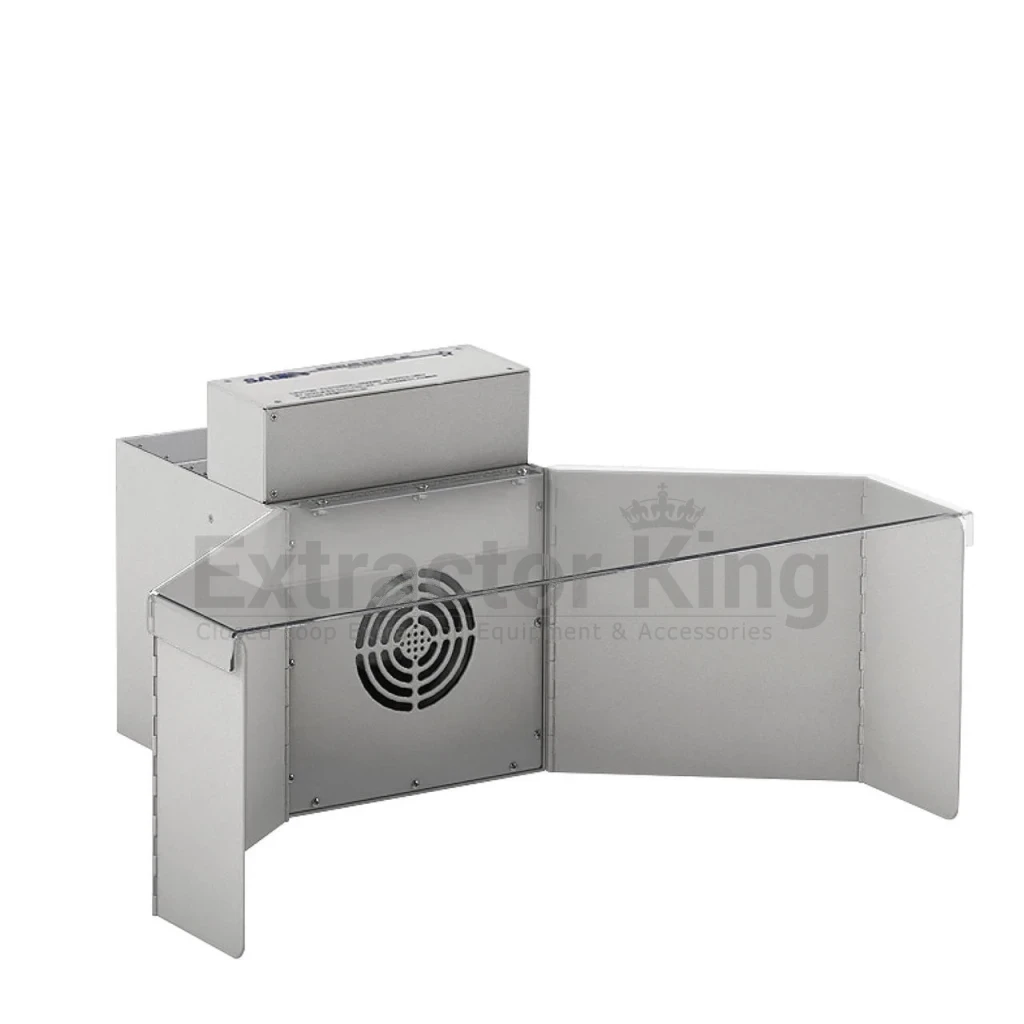

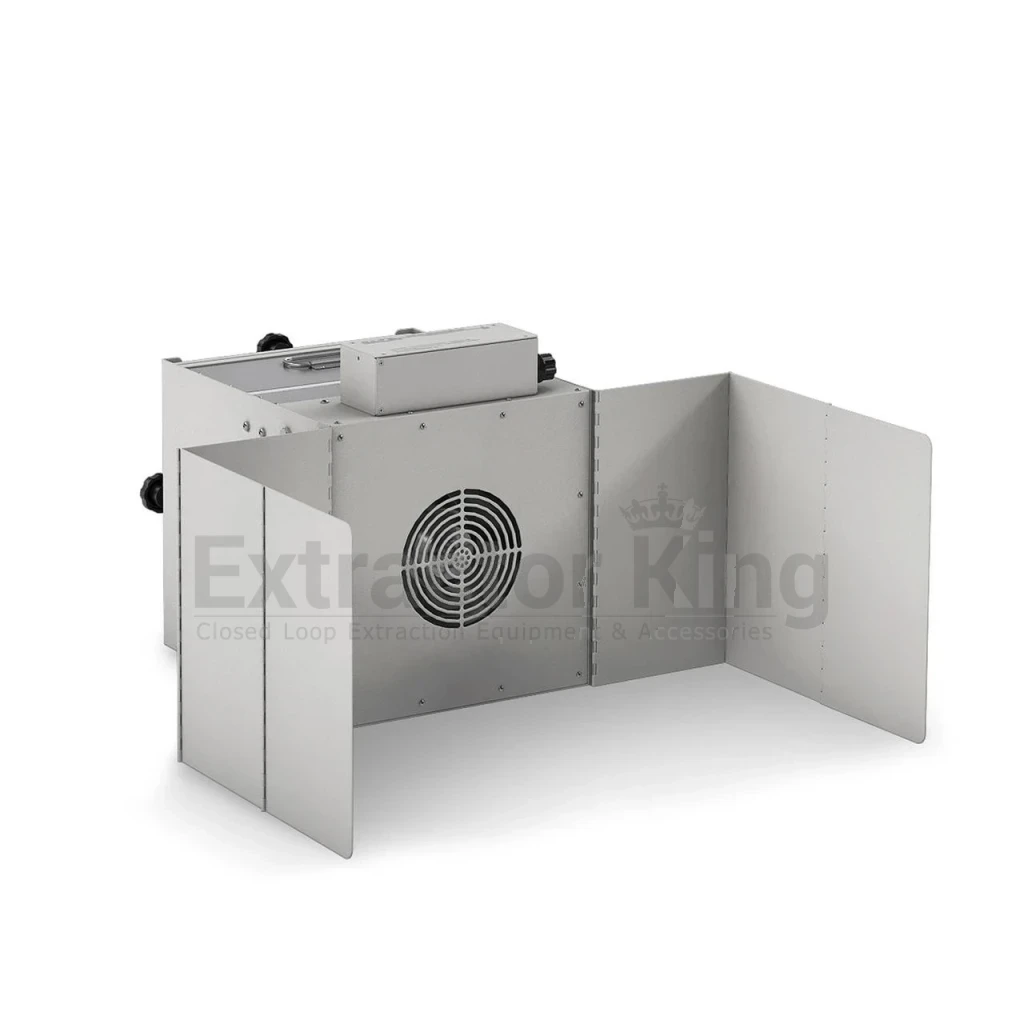

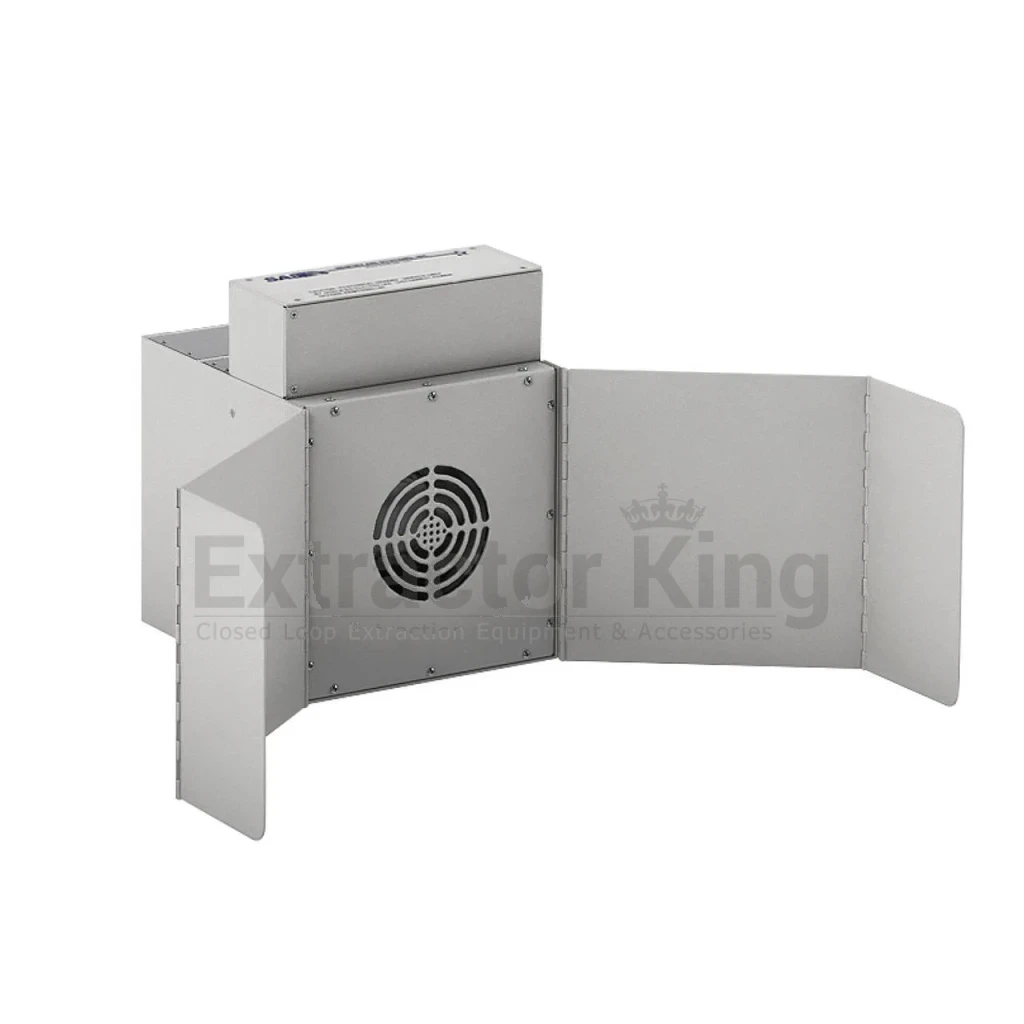

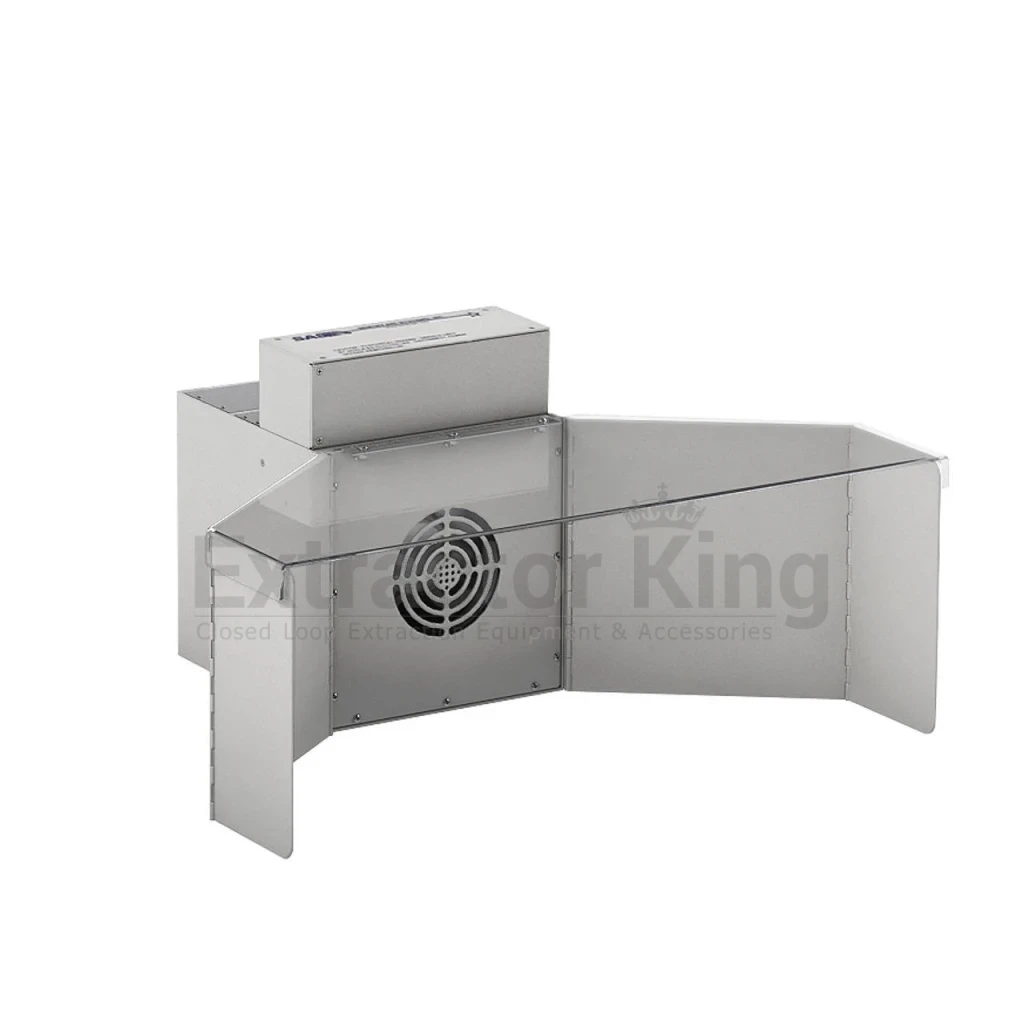

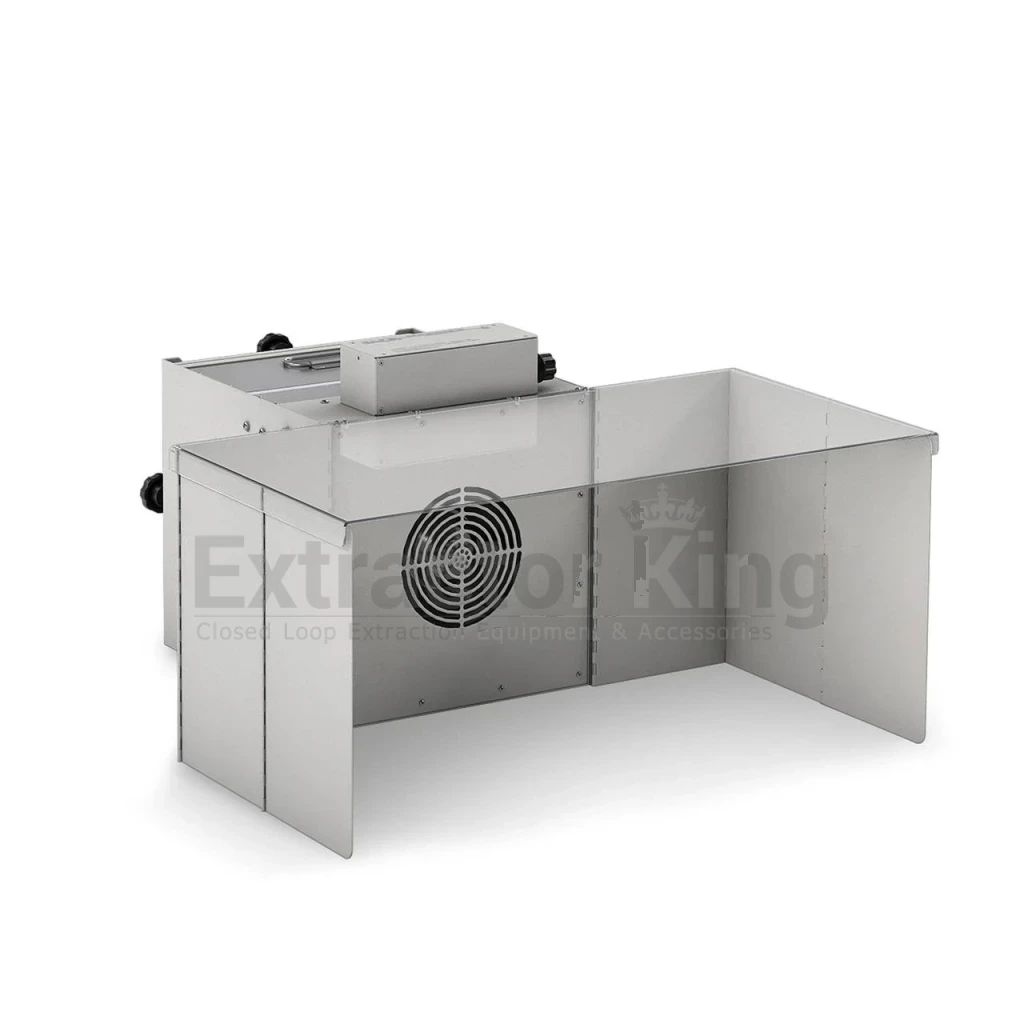

The Winged Sentry is a compact benchtop air filtration system that provides an energy-efficient, quiet, and economical solution for many fume extraction needs. This system features adjustable "wing flaps" to assist in directing fumes towards the unit's inlet, into the filter chamber, and away from the operator’s breathing zone. When used with the acrylic lid, this system offers a “hood-like” enclosure without the confines of an actual fume hood. The operator can place these wings in the most effective position for their particular application, or they can be positioned flat against the sides of the unit to conserve space. New for this line of benchtop fume extractors is the WSL2 – Model 300 Generation 2. This new improved unit offers an LED light and a user-friendly control panel that allows the operator to adjust the fan speed, light intensity, and monitor the filter’s saturation.
Appropriate filtration media are installed in the Winged Sentry based on the application being performed by the operator. HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia] are the most common filters for this unit.
Confirm your process and filter configuration before purchase for best performance.
For corrosive or specialty chemistry, ask our team about compatible filtration media options.
Why this Winged Sentry fume extractor?
- Compact benchtop protection — creates a “hood-like” enclosure with an acrylic lid, without a full hood footprint.
- Adjustable fume guidance — wing flaps position to capture fumes at the source and reduce exposure.
- User-friendly controls — adjust fan speed and light intensity, and monitor filter loading and runtime.
- Quiet, efficient operation — energy-efficient airflow with reliable low-maintenance performance.
- Application-based filtration — supports HEPA, ASHRAE, activated carbon, and specialty media for targeted contaminant capture.
Technical Specifications
| Model | 200 Series | 300 Series | 300 Gen 2 |
|---|---|---|---|
| Cabinet Dimensions | 8.5"L x 8"W x 10.5"H | 14.5"L x 13"W x 15.5"H | 14.5"L x 13"W x 15.5"H |
| CFM | Up to 100 CFM | Up to 350 CFM High, Down to 50 CFM Low | Up to 350 CFM High, Down to 50 CFM Low |
| Filter Size | Small | Medium | Medium |
| Weight | 12 lbs. | 40 lbs. | 40-50 lbs. |
| Electrical | 115/1/60, .3 amps 220/1/50, .2 amps | 115/1/60, 2 amps 220/1/50, .75 amps | 115/1/60, 2 amps |
| Sound Level | Approx. 55 dba @ 3' from inlet | Approx. 61 to 66 dba @ 3' from inlet | Approx. 54 to 68 dba @ 3' from inlet |
FAQ
What is the Winged Sentry fume extractor used for?The Winged Sentry is a compact benchtop fume extraction and air filtration system designed to capture fumes, vapors, smoke, and airborne contaminants at the source. Its adjustable wing flaps help direct emissions into the inlet and away from the operator’s breathing zone for safer bench work.
The Winged Sentry wing flaps can be positioned to guide fumes toward the unit’s inlet for improved source capture. They can also be folded flat against the sides to conserve bench space when needed.
The Winged Sentry supports filtration selected for your application, including HEPA (up to 99.97% efficient at 0.3 microns and larger), ASHRAE (up to 95% efficient at 0.5 microns and larger), ULPA (up to 99.9995% efficient at 0.12 microns and larger), activated carbon, and specialty-blended media (e.g., acid gas, mercury, aldehyde, ammonia).
The Winged Sentry features a user-friendly control panel with fan speed control, LED light control, a digital Magnehelic gauge, and a digital display that shows filter pressure and runtime. A runtime reset button is included to help track filter service intervals.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Warranty Term | 1 Year |
