USA Lab Stainless Steel 12" in. Buchner Funnel SS 304
Reference: BSSBF12
Manufacturer: USA Lab
USA Lab Stainless Steel 12" Buchner Funnel Filter The USA Lab Stainless Steel 12" Buchner Funnel Filter is designed for durable, efficient filtration in laboratory, extraction, chemical processing, pharmaceutical, and other fluid-handling applications.…
In stock
Payment Providers
More info

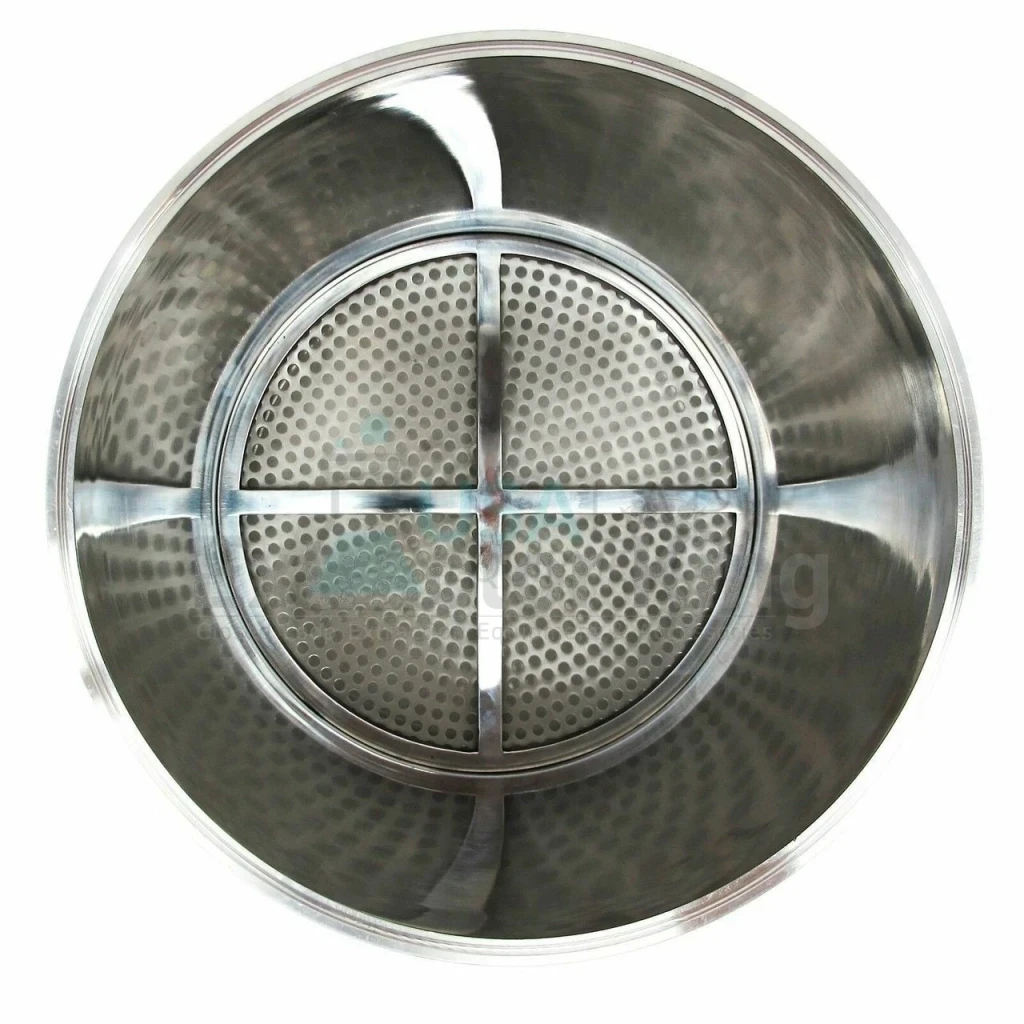

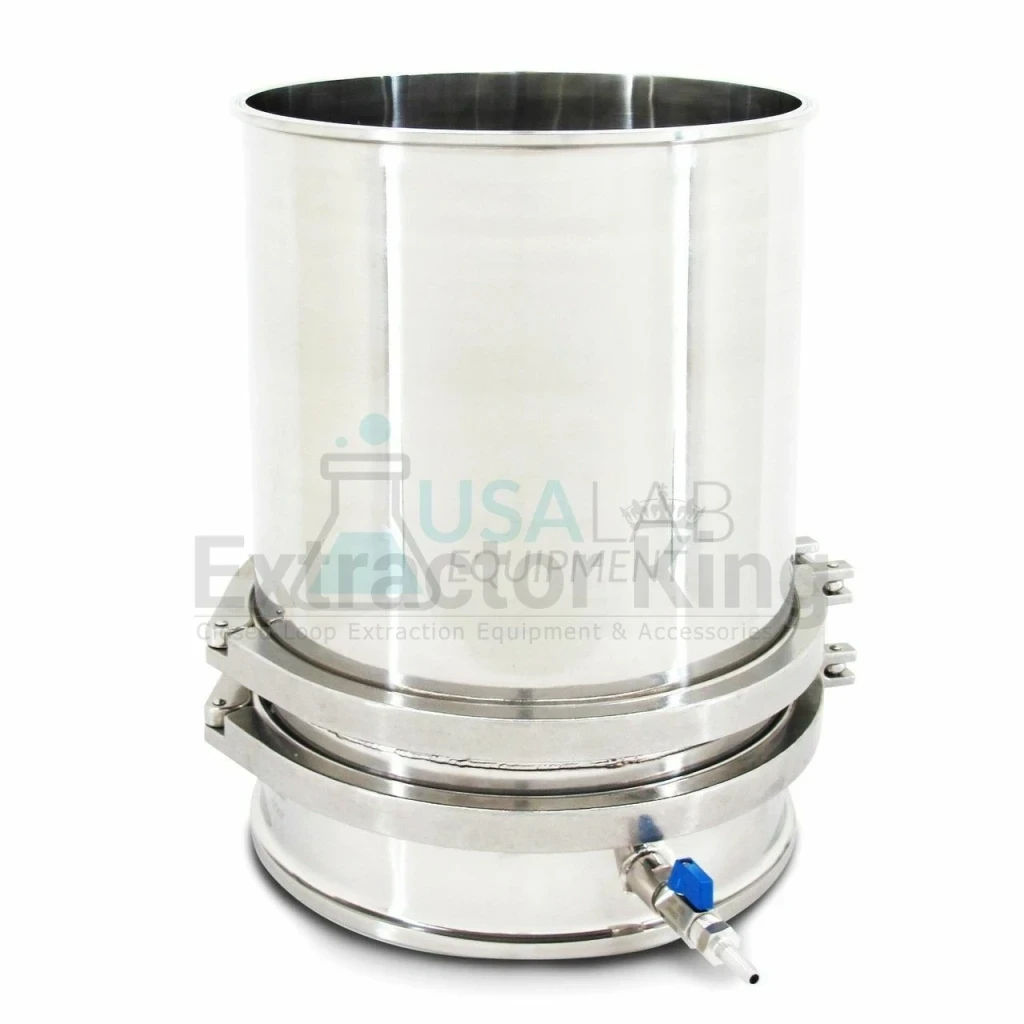

USA Lab Stainless Steel 12" Buchner Funnel Filter
The USA Lab Stainless Steel 12" Buchner Funnel Filter is designed for durable, efficient filtration in laboratory, extraction, chemical processing, pharmaceutical, and other fluid-handling applications. Constructed from 304 stainless steel, this large-capacity Buchner funnel provides a robust filtration solution at an affordable price.
The 12" filter assembly features a 150 mesh (100 micron) stainless steel filter medium and a 12" filter plate with filter ring. Its Tri-Clamp configuration allows the filtration assembly to connect securely with compatible sanitary process equipment, while the 1/2" FNPT bottom connection provides a convenient outlet for controlled fluid transfer.
With a 22.2L capacity and durable stainless steel construction, the USA Lab Stainless Steel 12" Buchner Funnel Filter is well suited for applications requiring reliable filtration and easy integration into sanitary processing systems.
Why this Stainless Steel Buchner Funnel Filter?
- 304 stainless steel construction — provides durable construction for laboratory and processing applications.
- 12" filtration system — includes a 12" Tri-Clamp filter plate and filter ring for large-area filtration.
- 100 micron filtration — the included 150 mesh stainless steel filter medium supports controlled particulate separation.
- 22.2L capacity — provides substantial working capacity for larger filtration batches.
- Complete filtration assembly — includes the stainless steel spool, filter plate, mesh, gasket, Tri-Clamps, ball valve, barb adapter, and vacuum hose.

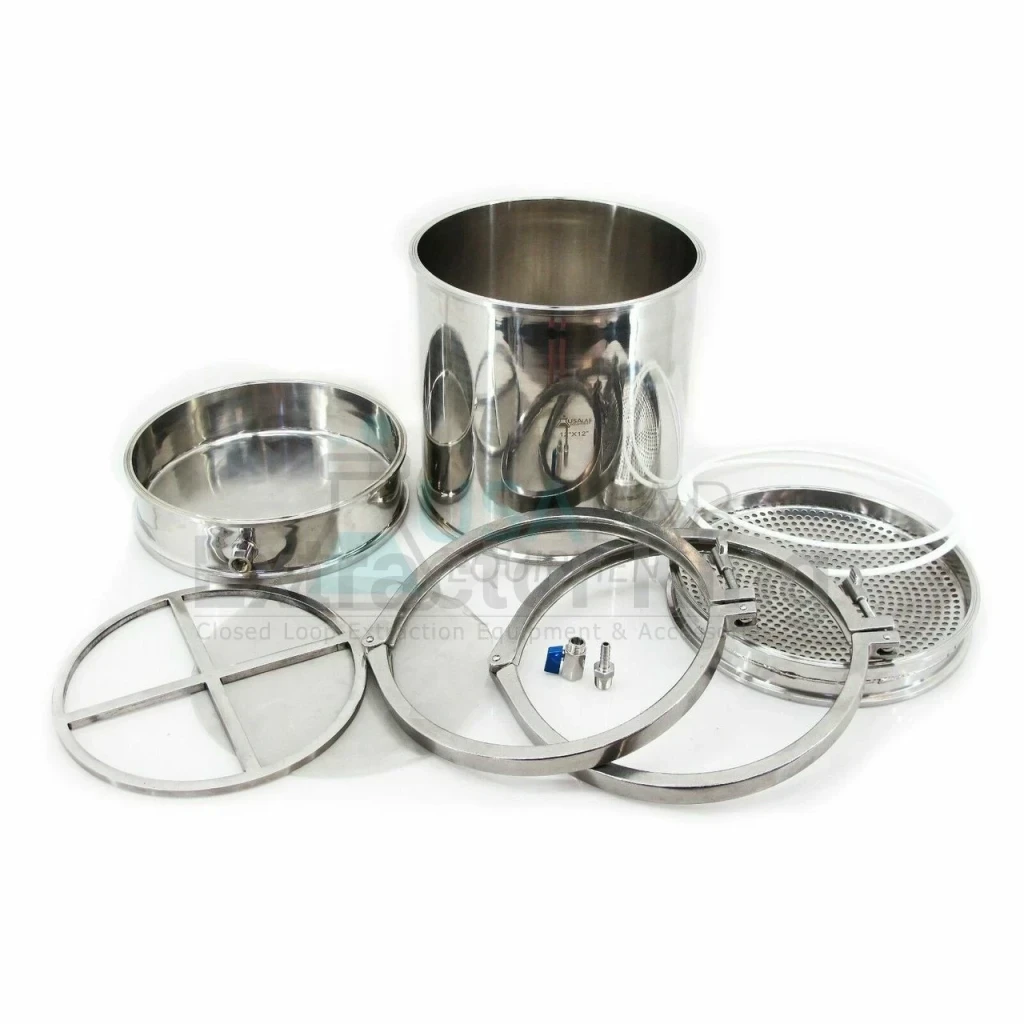

Included Components
- 12" x 12" Tri-Clamp Spool — 1 pc
- 12" Tri-Clamp Filter Plate — 1 pc
- 12" Filter Ring — 1 pc
- 12" Mesh, 150 Mesh (100 Micron) — 1 pc
- 12" Standard Pressure Tri-Clamp — 2 pcs
- 12" Buna Gasket — 2 pcs

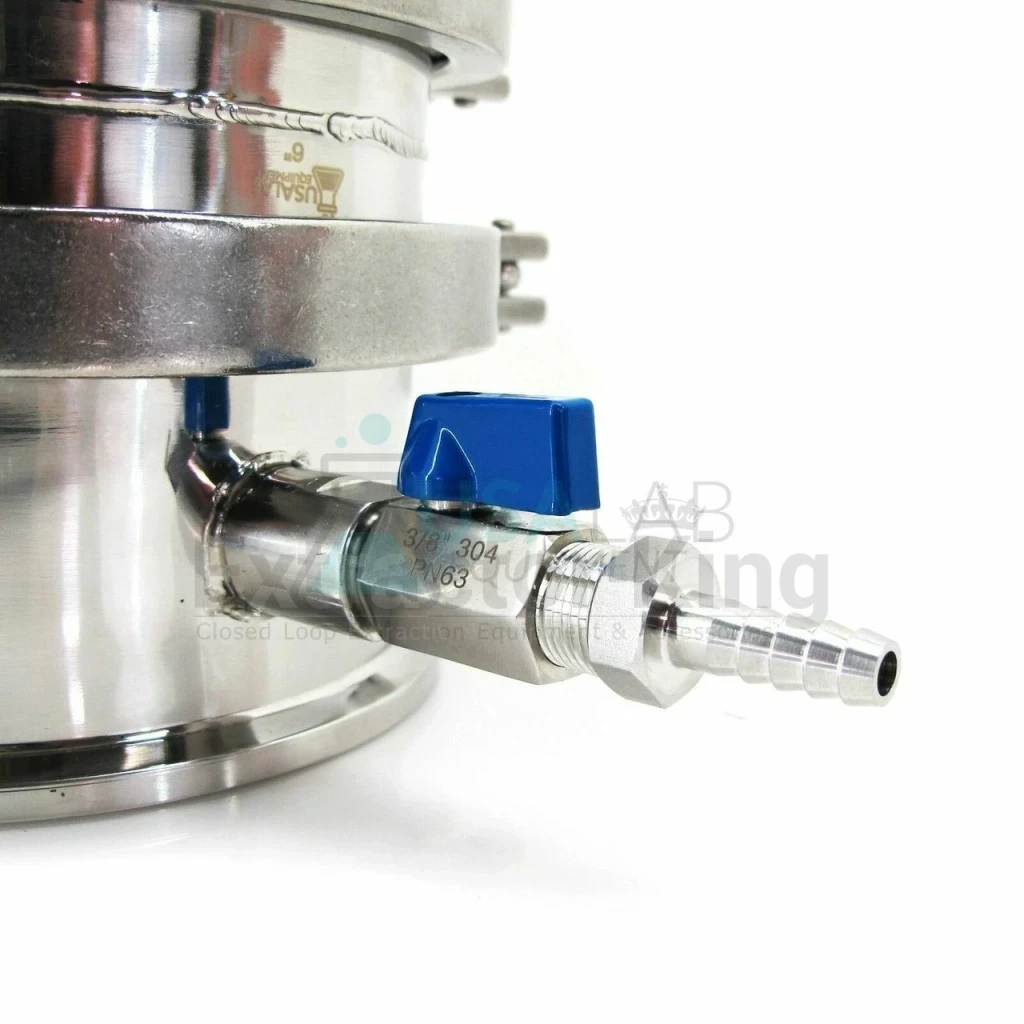

- Superlok Ball Valve, 1/2" FNPT — 1 pc
- 1/2" MNPT to 1/2" Barb Adapter — 1 pc
- Vacuum Hose — 10 ft.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BSSBF12 |
| Product Name | Stainless Steel 12" Buchner Funnel Filter |
| Brand | USA Lab |
| Product Type | Buchner Funnel Filter |
| Material | 304 Stainless Steel |
| Capacity | 22.2L |
| Connection Type | Tri-Clamp |
| Filter Mesh | 150 Mesh (100 Micron) |
| Filter Plate Size | 12" |
| Bottom Connection | 1/2" FNPT |
| Exterior Dimensions | 17" L x 15" W x 17" H |
| Weight | 51 lbs |
| Tri-Clamp Spool | 12" x 12" Stainless Steel Spool |
| Filter Plate | 12" Tri-Clamp Filter Plate |
| Filter Ring | 12" |
| Valve | Superlok Ball Valve, 1/2" FNPT |
| Outlet Adapter | 1/2" MNPT to 1/2" Barb |
| Vacuum Hose | 10 ft. |
| Included Tri-Clamp Hardware | 2 x 12" Standard Pressure Tri-Clamps and 2 x 12" Buna Gaskets |
FAQ
What material is the USA Lab Stainless Steel 12" Buchner Funnel Filter made from?The USA Lab Stainless Steel 12" Buchner Funnel Filter is constructed from durable 304 stainless steel for laboratory and processing applications.
The USA Lab Stainless Steel 12" Buchner Funnel Filter has a listed capacity of 22.2L and uses a 12" filter plate with 150 mesh (100 micron) filter mesh.
The USA Lab Stainless Steel 12" Buchner Funnel Filter uses a Tri-Clamp connection configuration and includes a 1/2" FNPT bottom connection, Superlok 1/2" FNPT ball valve, and 1/2" MNPT to 1/2" barb adapter.
The USA Lab Stainless Steel 12" Buchner Funnel Filter includes a 12" x 12" Tri-Clamp spool, 12" filter plate, 12" filter ring, 150 mesh (100 micron) mesh, two 12" standard pressure Tri-Clamps, two 12" Buna gaskets, a 1/2" FNPT Superlok ball valve, a 1/2" MNPT to 1/2" barb adapter, and 10 feet of vacuum hose.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Model | BSSBF12 |
| Brand | USA Lab |
| Warranty Term | 1 Year |
