USA Lab Stainless Steel 6" in. Buchner Funnel SS 304
Reference: BSSBF6
Manufacturer: USA Lab
USA Lab Stainless Steel 6" Buchner Funnel SS 304 The USA Lab Stainless Steel 6" Buchner Funnel is a durable and affordable filtration solution designed for laboratory and processing applications. Constructed from 304 stainless steel, this funnel provides a…
In stock
Payment Providers
More info

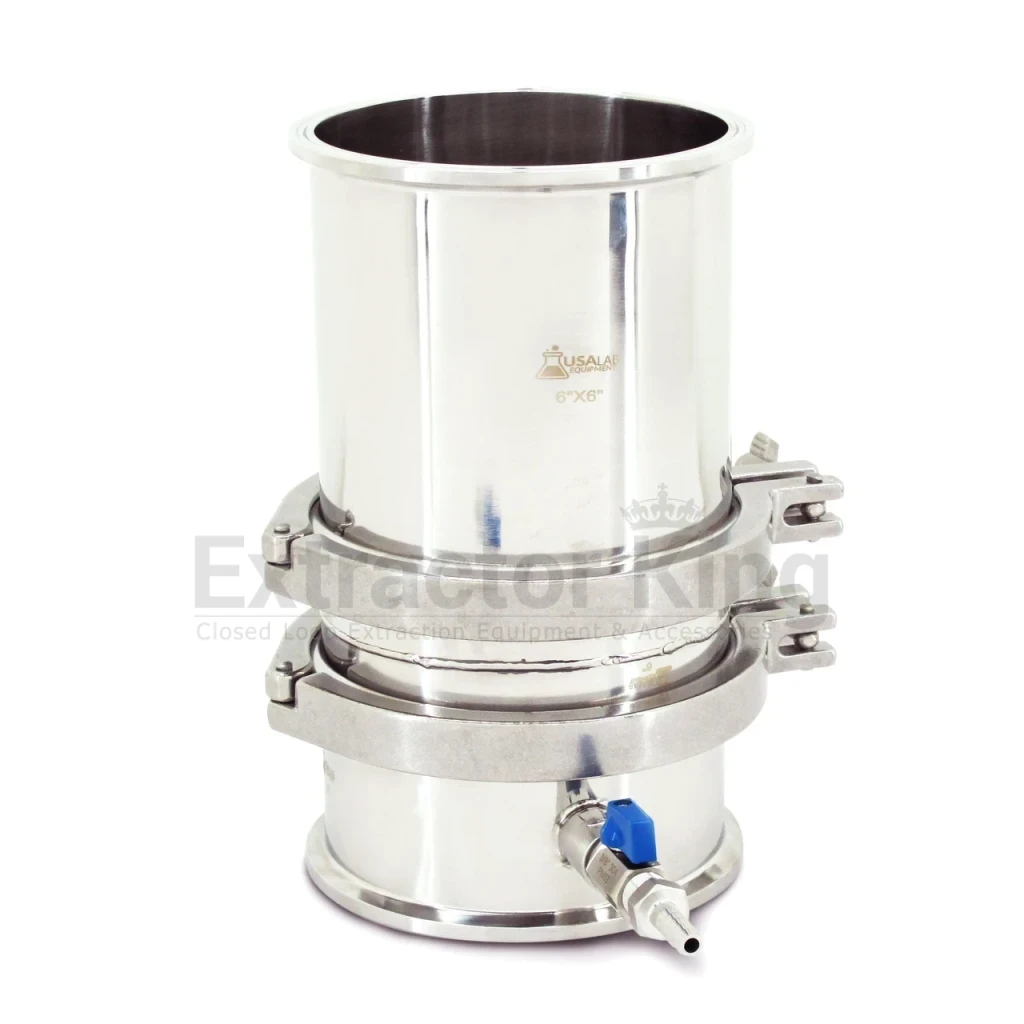

USA Lab Stainless Steel 6" Buchner Funnel SS 304
The USA Lab Stainless Steel 6" Buchner Funnel is a durable and affordable filtration solution designed for laboratory and processing applications. Constructed from 304 stainless steel, this funnel provides a robust option for filtering while offering a cost-effective alternative to more expensive filtration equipment.
The BSSBF6 features a 3.5L capacity, a 6" filter plate, and a Tri-Clamp connection. Its 150 Mesh (100 Micron) filter mesh supports filtration applications requiring a defined filter media specification, while the included stainless steel components provide a complete filtration setup.

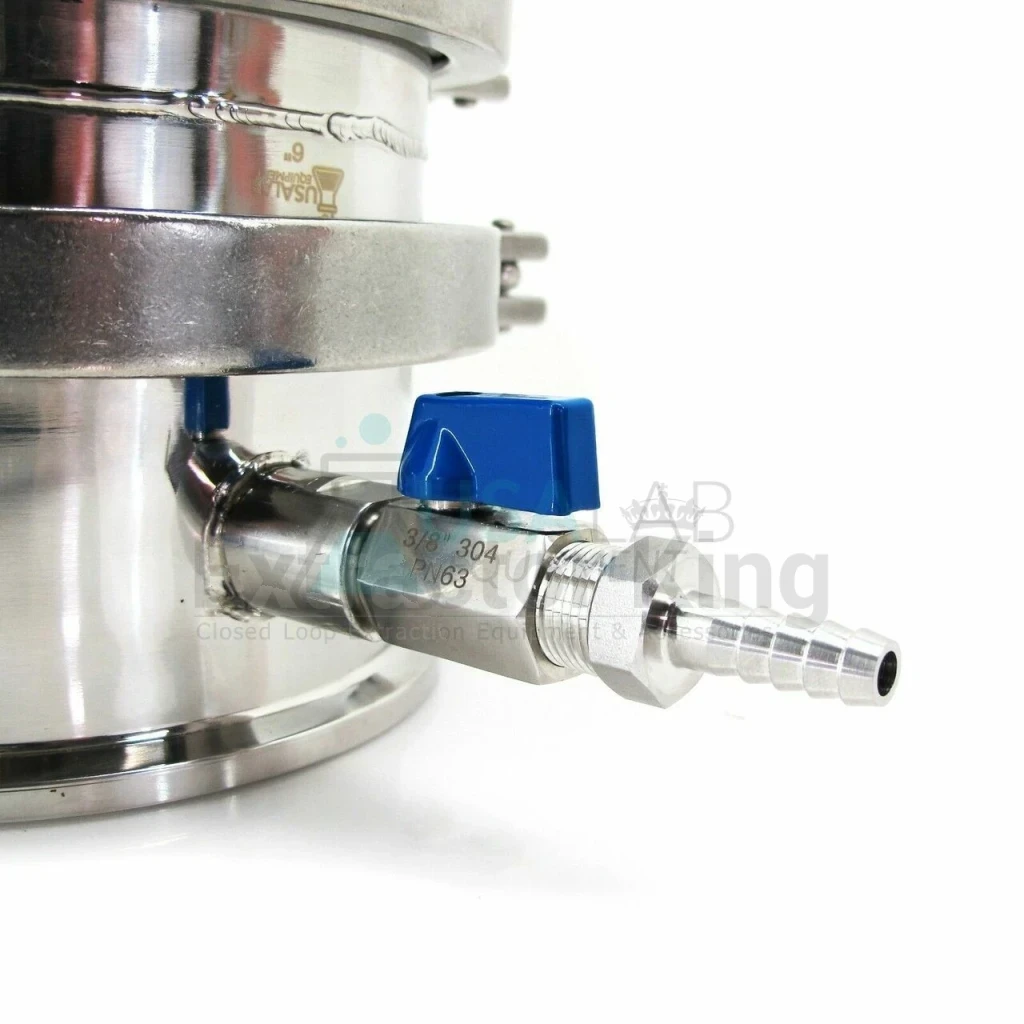

The USA Lab 6" Stainless Steel Buchner Funnel includes a 6" x 6" Tri-Clamp spool, 6" Tri-Clamp filter plate, X filter ring, 6" mesh, standard pressure Tri-Clamps, Buna gasket, Superlok ball valve, 1/2" MNPT to 1/2" barb, and 10 ft. of vacuum hose for a ready-to-use filtration configuration.
Why this 6" Stainless Steel Buchner Funnel?
- 304 stainless steel construction — provides a durable material for filtration applications.
- 6" filter plate — provides a defined filtration area for the BSSBF6 configuration.
- 3.5L capacity — supports practical filtration workflows requiring a larger funnel configuration.
- 150 Mesh (100 Micron) mesh — provides the specified filter media for controlled filtration applications.
- Complete packing list — includes the spool, filter plate, filter ring, mesh, clamps, gaskets, ball valve, barb adapter, and vacuum hose.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BSSBF6 |
| Product Name | USA Lab Stainless Steel 6" Buchner Funnel SS 304 |
| Brand | USA Lab |
| Product Type | Buchner Funnel |
| Material | 304 Stainless Steel |
| Capacity | 3.5L |
| Connection Type | Tri-Clamp |
| Filter Plate Size | 6" |
| Mesh Specification | 150 Mesh |
| Micron Rating | 100 Micron |
| Bottom Connection | 1/2" FNPT |
| Exterior Length | 11" |
| Exterior Width | 8" |
| Exterior Height | 11" |
| Weight | 17 lbs |
| Tri-Clamp Spool | 6" x 6" Tri-Clamp Spool, 1 pc |
| Filter Ring | X Filter Ring - 6", 1 pc |
| Gasket | 6" Buna Gasket, 2 pcs |
| Included Vacuum Hose | 10 ft. |
FAQ
What is the capacity of the USA Lab Stainless Steel 6" Buchner Funnel?The USA Lab Stainless Steel 6" Buchner Funnel has a 3.5L capacity.
The USA Lab Stainless Steel 6" Buchner Funnel is constructed from 304 stainless steel.
The BSSBF6 includes 6" mesh specified at 150 Mesh (100 Micron).

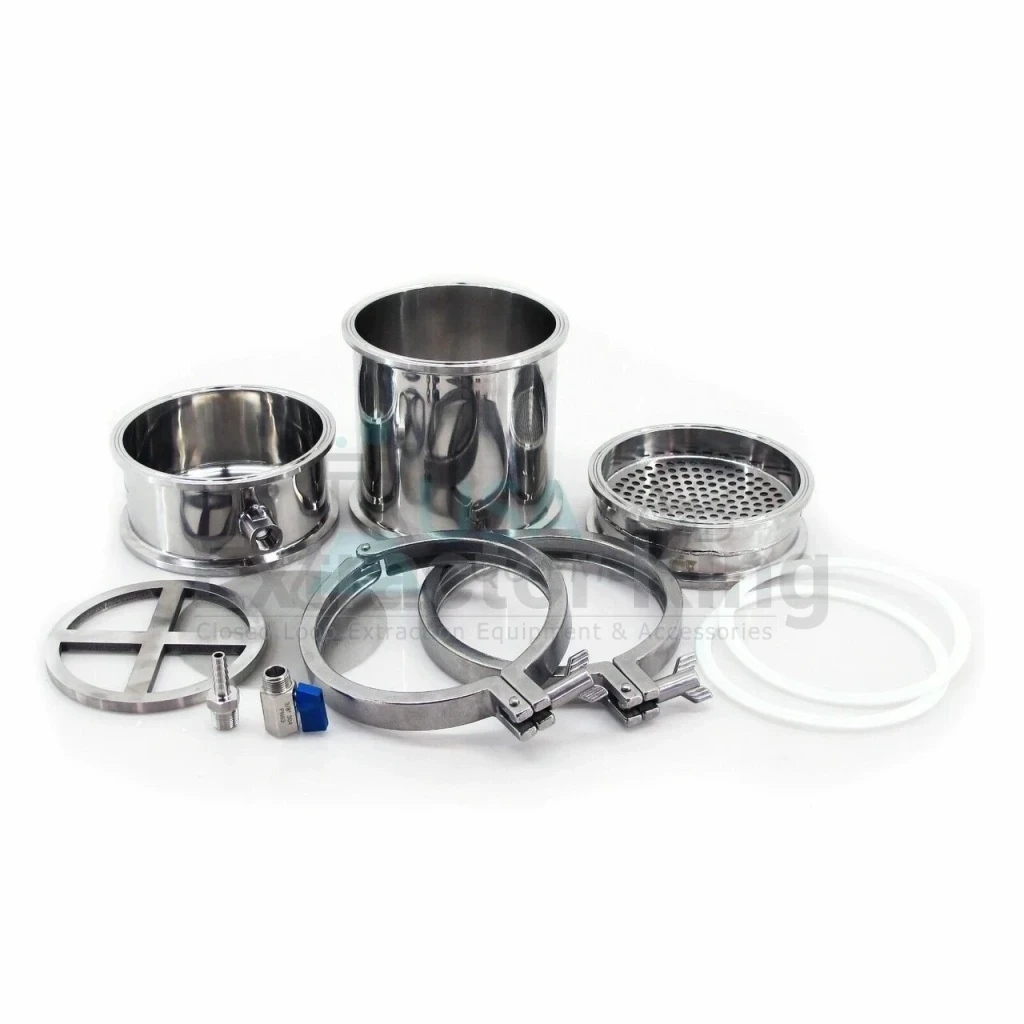

The packing list includes a 6" x 6" Tri-Clamp spool, 6" Tri-Clamp filter plate, X filter ring, 6" 150 Mesh (100 Micron) mesh, two 6" standard pressure Tri-Clamps, two 6" Buna gaskets, a Superlok ball valve with 1/2" FNPT connection, a 1/2" MNPT to 1/2" barb, and 10 ft. of vacuum hose.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Model | BSSBF6 |
| Brand | USA Lab |
| Warranty Term | 1 Year |
