HUBER Stepless controlled VPC Bypass M30x1,5
Reference: Huber-VPC-Bypass
Manufacturer: Huber

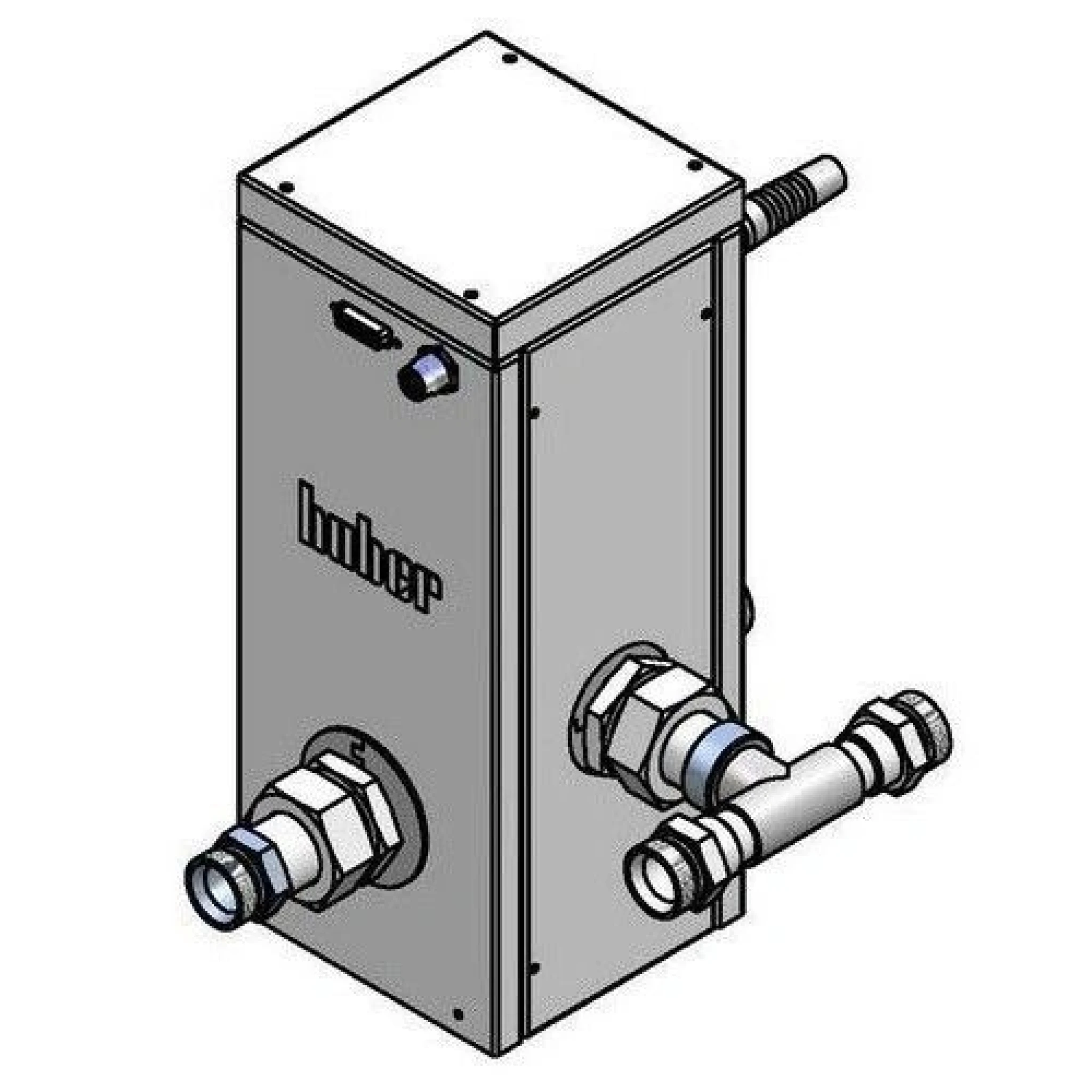

Huber VPC Bypass M30x1,5
Stepless controlled VPC bypass M30x1,5 (not mounted on unit) for Unistats
temperature range: -90C ... 200C
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Payment Providers
Overview
This Huber VPC bypass is a stepless controlled bypass for Huber Unistat temperature control systems with M30x1.5 connections. It comes with a T-piece and is installed in the pipework before your application, either fixed or on a hose, to limit the pressure in the circuit.
It is supplied loose, not mounted on the Unistat. To fit it at the unit itself you need a Huber M30x1.5 hose.
Key features
- Stepless controlled bypass with T-piece
- M30x1.5 connections
- Working range -90 °C to 200 °C
- Maximum differential pressure 6 bar
- IP 20, for indoor installation only
- Mounts in the pipework, fixed or via hose
Compatible with
Huber Unistat temperature control systems with M30x1.5 connections.
Delivery and pickup
- Ships across Canada and to the USA by Purolator, UPS or FedEx - live rates at checkout.
- Free pickup in Langley, BC.
- We deliver orders of $1000 or more in the Lower Mainland and Fraser Valley ourselves.
Questions
Which units does it fit?
Huber Unistats with M30x1.5 connections.
Is it mounted on the Unistat?
No. It is supplied loose and goes in the pipework before your application. Mounting it at the unit is only possible together with a Huber M30x1.5 hose.
Can it be installed outdoors?
No. It is rated IP 20, for indoor installation only.
| Type | Stepless controlled VPC bypass, with T-piece |
| Connection | M30x1.5 |
| Working range | -90 °C to 200 °C |
| Max. differential pressure | 6 bar |
| Protection class | IP 20 (indoor only) |
| Mounting | Loose, in the pipework before the application |
| Huber order number | 9726 |
| Fits | Huber Unistats with M30x1.5 connection |
