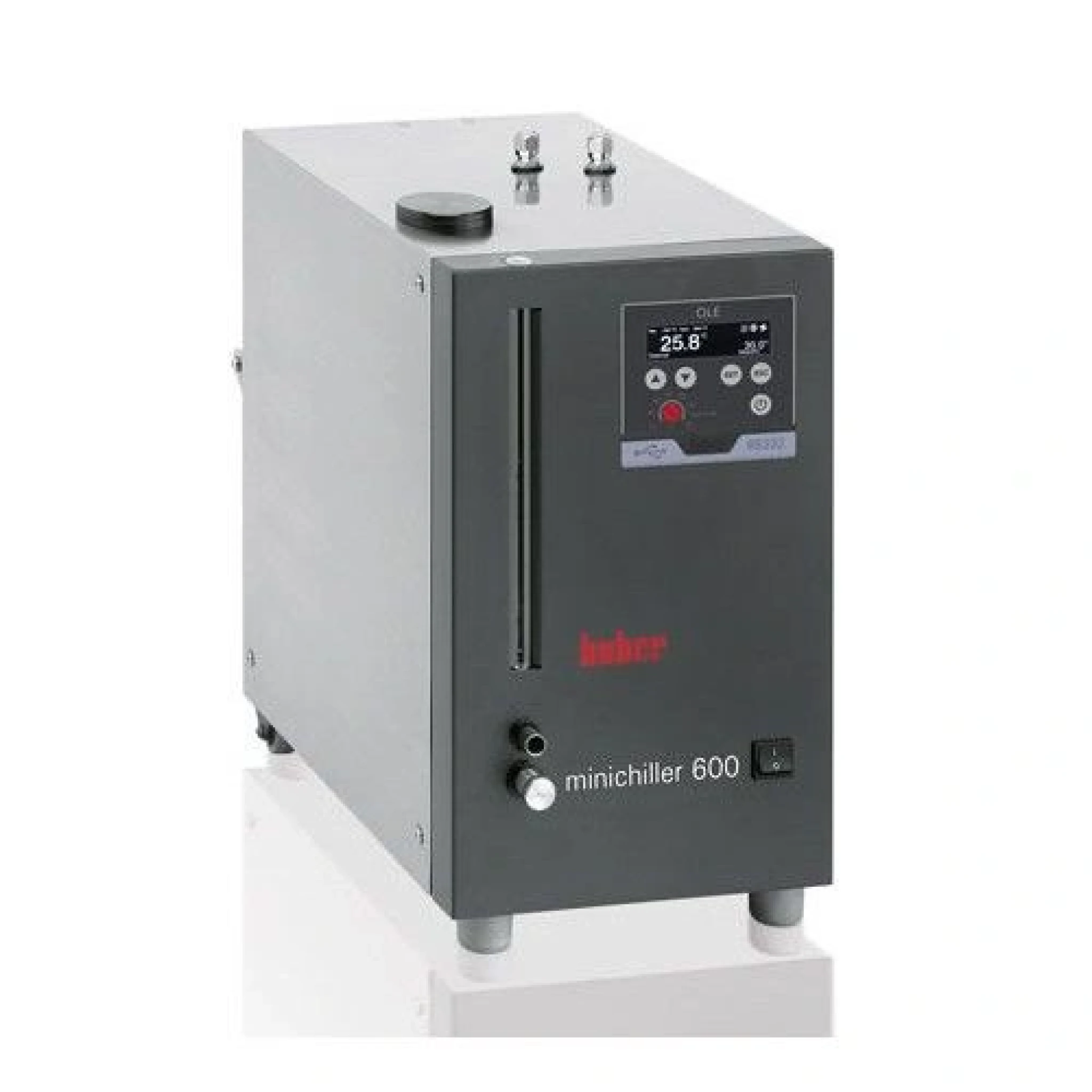

HUBER -20C Minichiller 600 Compact Chiller with OLED Display
Reference:
Manufacturer: Huber
The new Huber OL controller combines state-of-the-art technology with simple operation. OL models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100C. Minichillers are available as both air and water cooled models and use natural refrigerants.
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Customize your product
Payment Providers
Huber Minichiller features
- Environmentally-friendly, economic cooling solution
- High efficiency
- Precise temperature control
- Simple operation with menu navigation
- Robust stainless construction
- Reliable continuous operation with warning functions
- Easy to fill and empty
- Illuminated filling level indicator

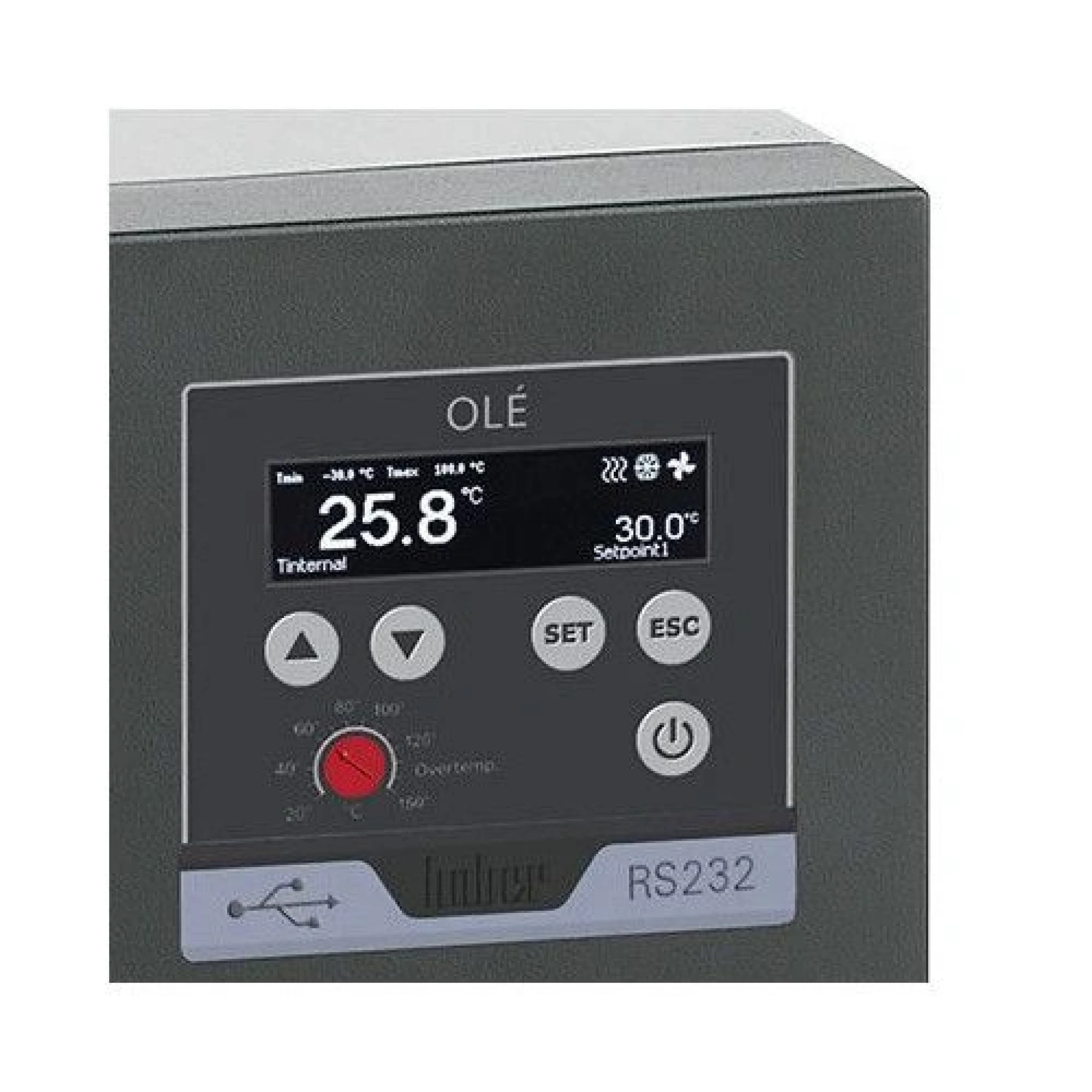

- Bright, large OLED display

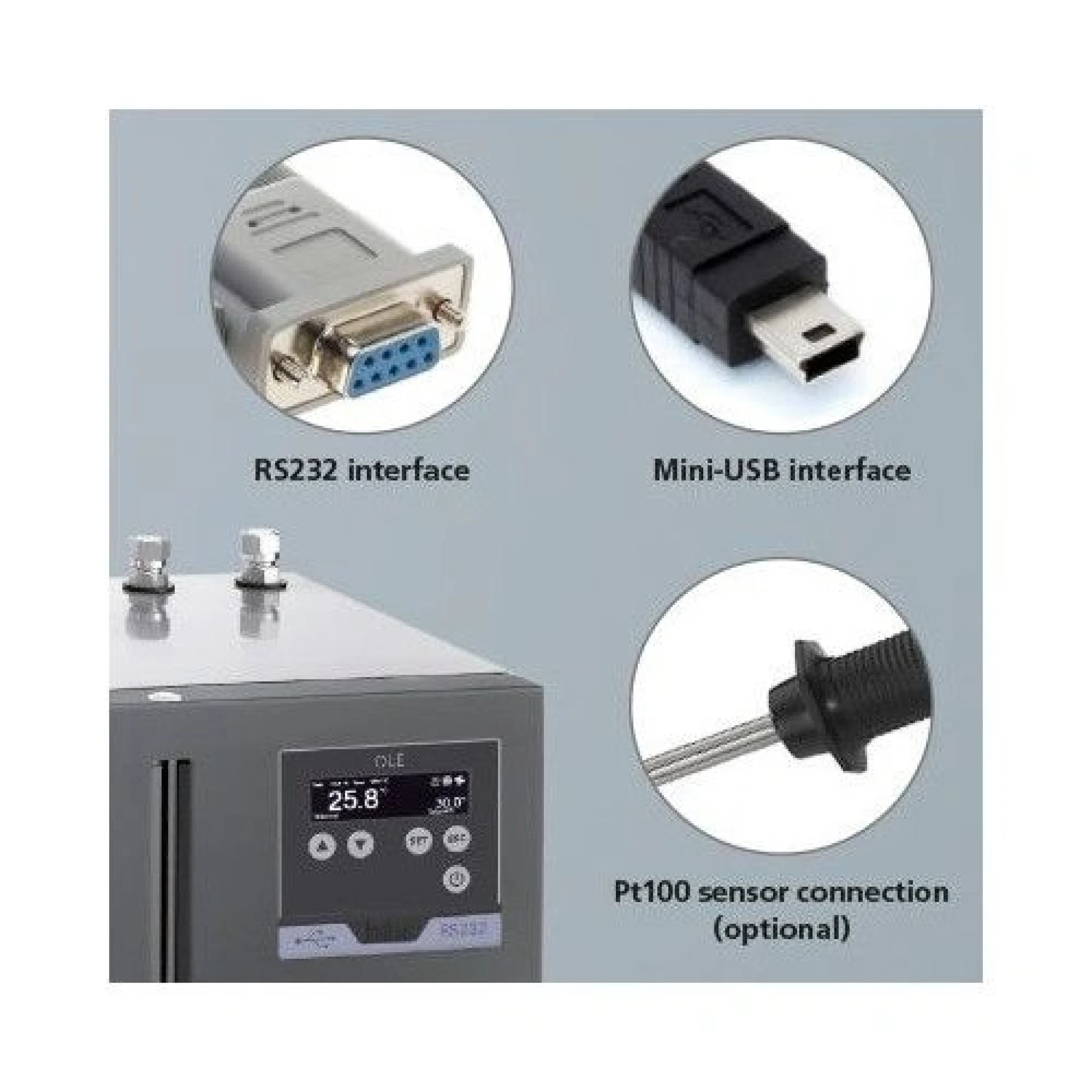

- USB and RS232 interfaces
The Minichiller 600 is a bench-top recirculating chiller that replaces tap-water cooling on rotary evaporator condensers, vacuum pumps, reactor blocks and heat exchangers. It holds its set point within 0.5 °C anywhere from -20 to 40 °C, so condenser temperatures stay steady through a long run.
The pressure pump delivers up to 24 lpm at 0.7 bar, enough to push coolant through hoses to a condenser or small jacketed vessel. Cooling uses R290 natural refrigerant with an air-cooled condenser, and the unit runs from a standard 110V outlet. It needs a minimum of only 2.8 litres of coolant, so filling and changing fluid is quick and inexpensive.
|
Standard Package
| HUBER -20C Minichiller 600 Compact Chiller with OLED Display | 1 pc |
| Hose Connector NW12 | 2 pc |
| Blank Plug for M16x1 | 1 pc |
| Cover Expansion Vessel | 1 pc |
| Sleeve Nuts Thread M16X1 | 2 pc |
| User's manual | 1 pc |
