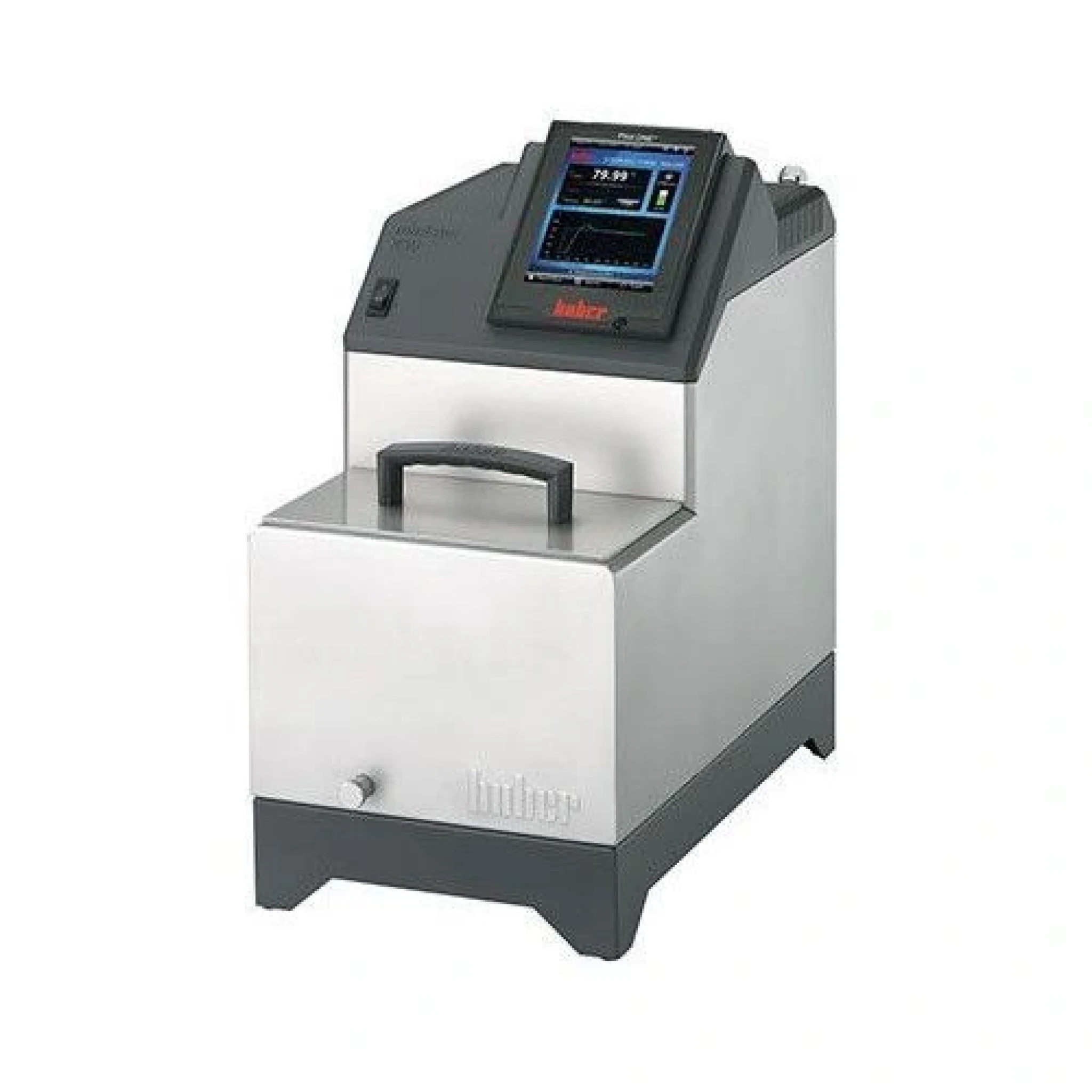

HUBER Ministat 230 -40°C to 200°C with Pilot ONE
Reference:
Manufacturer: Huber

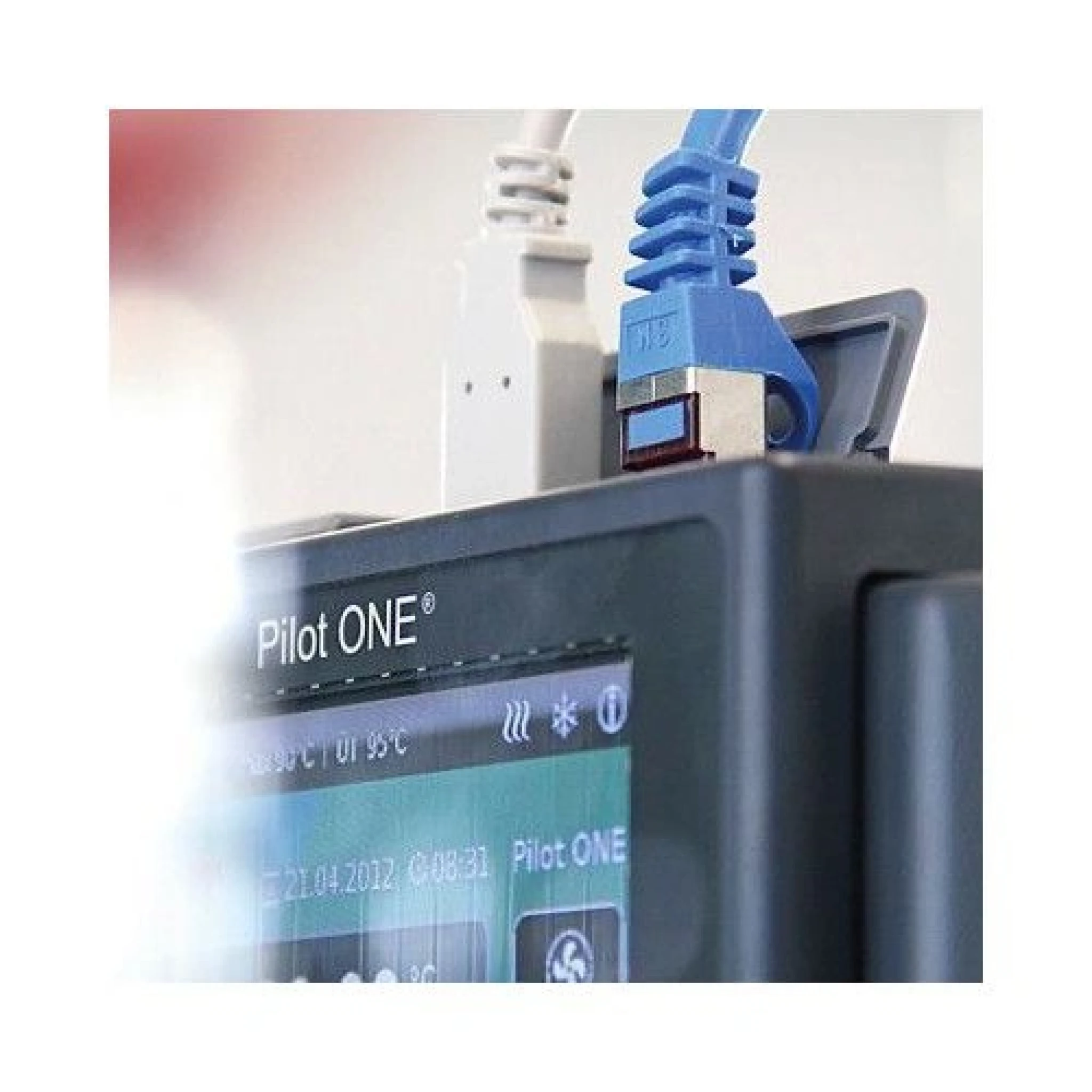

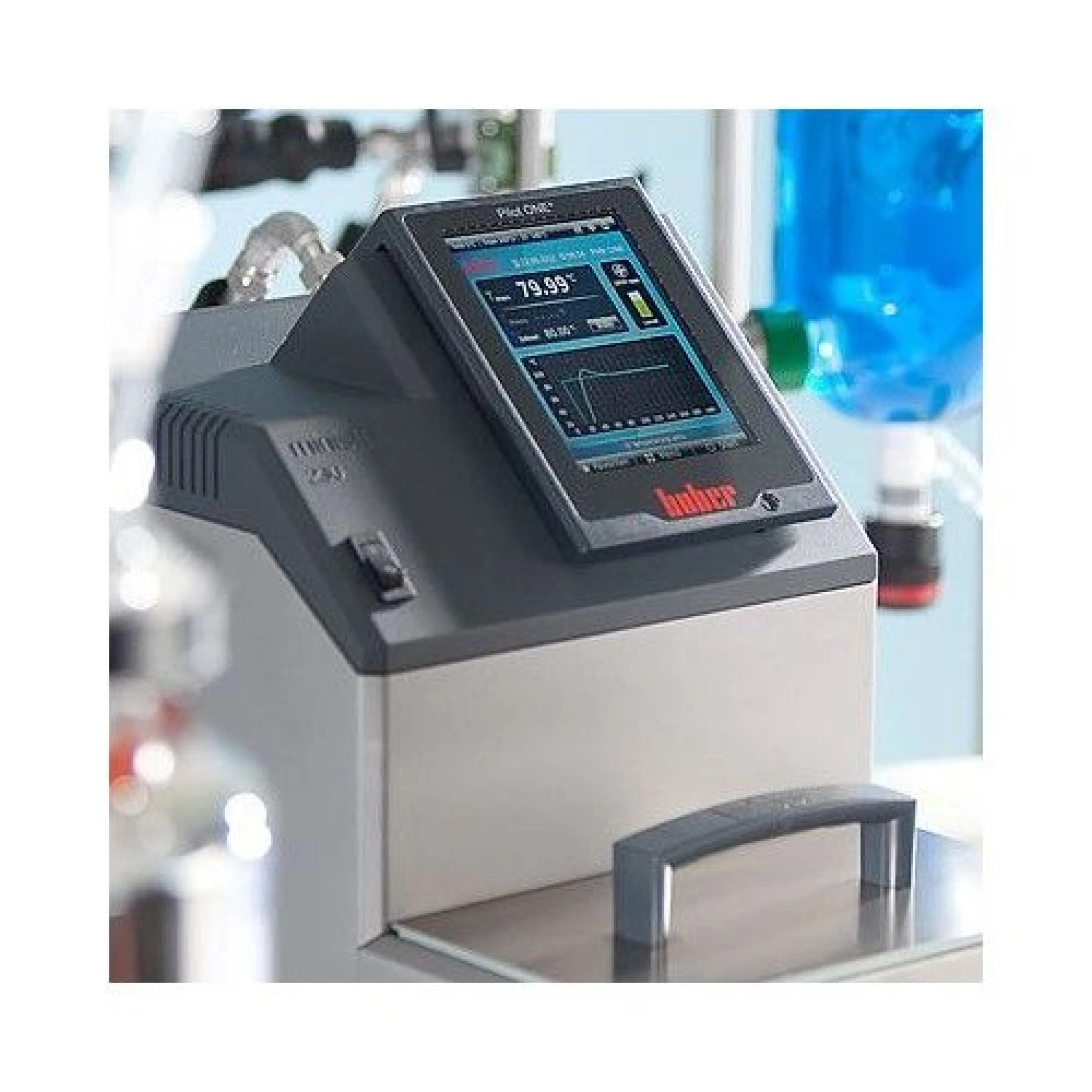

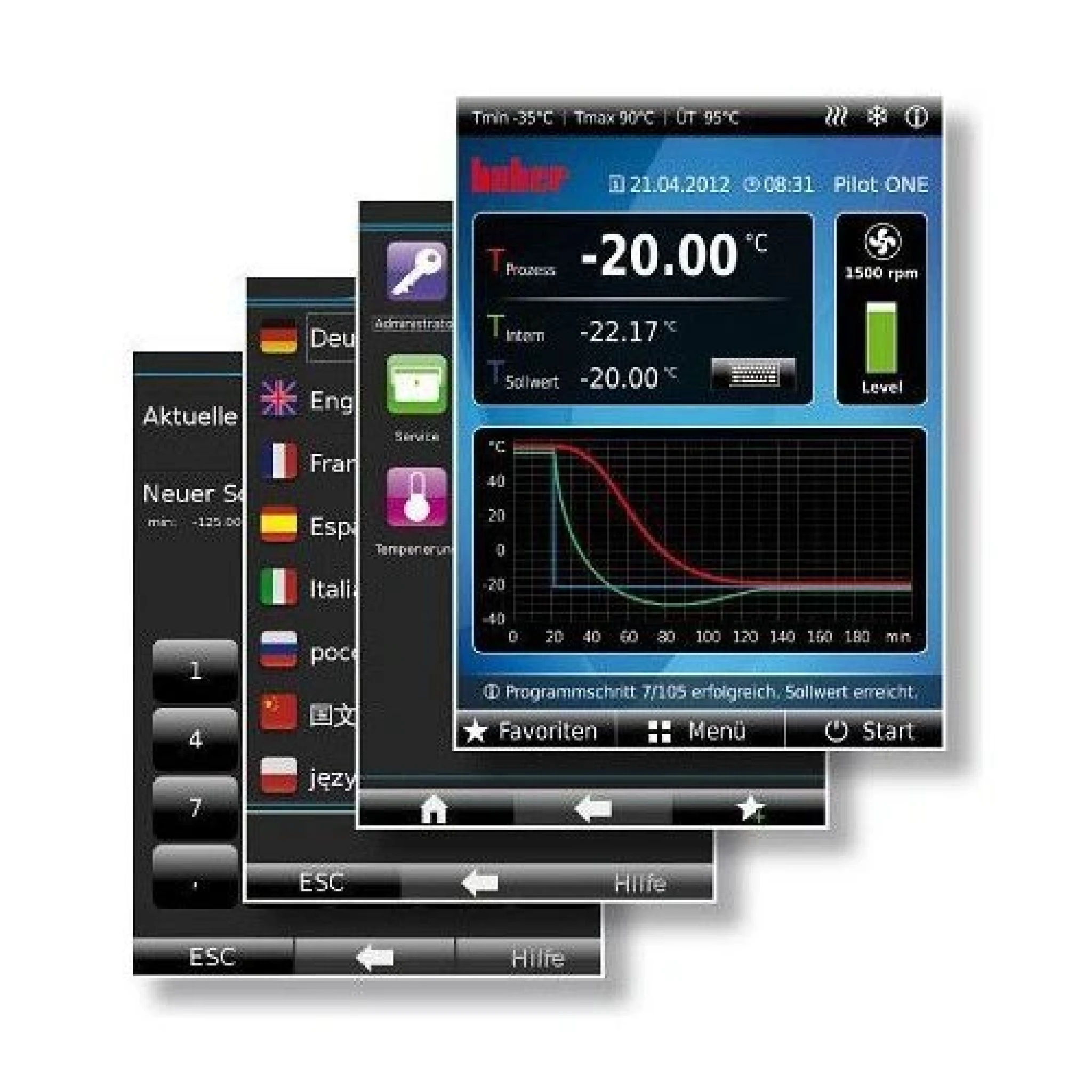

The new Huber multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

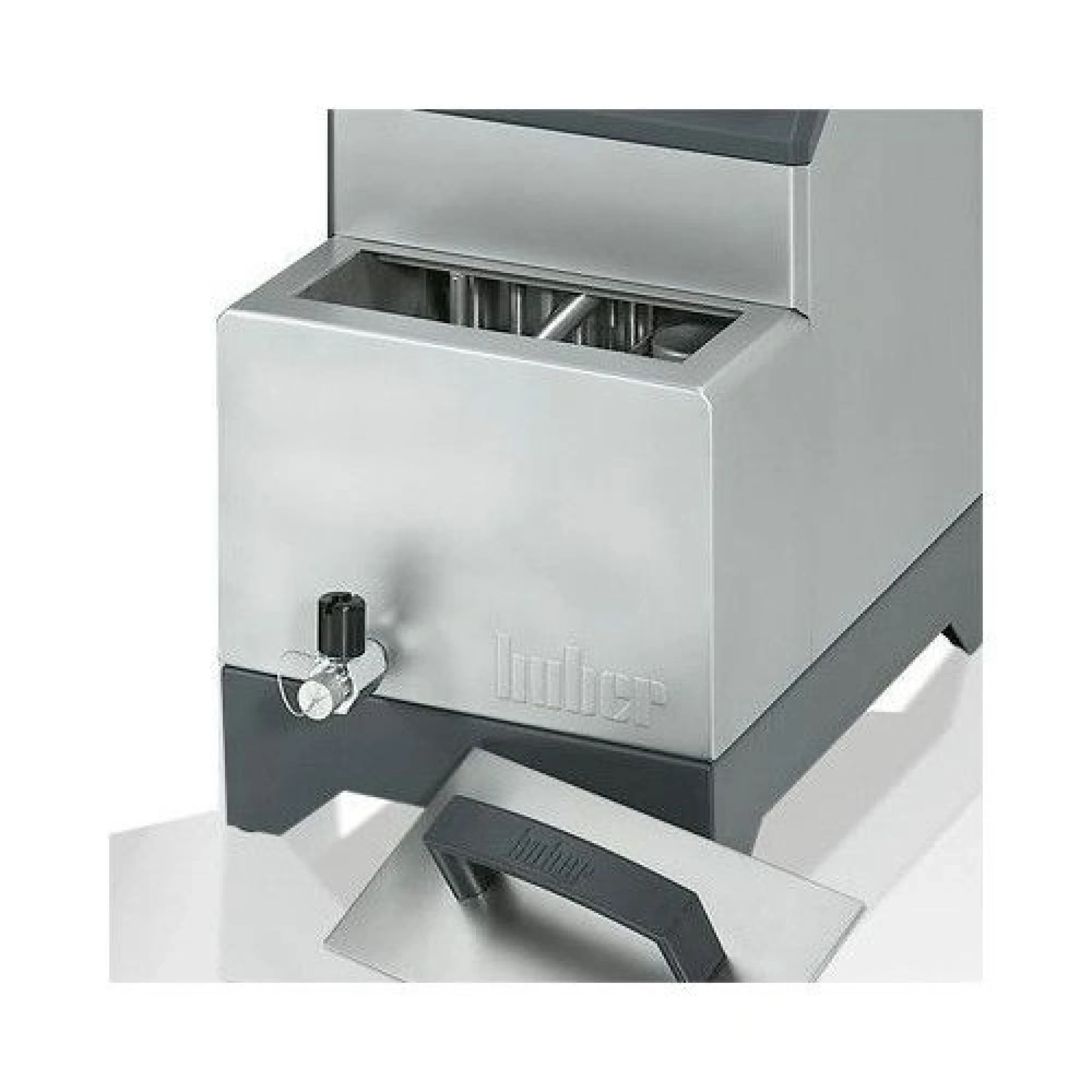

Huber Ministats are the smallest cooling circulator in the world. Their small dimensions allow Ministats to be placed in the smallest of spaces, for example in a laboratory fume cupboard or inside technical plant. Despite their minimal size the systems are extensively fitted out and offer sufficient performance for temperature control of photometers, refractometers, viscometers, distillation apparatus, reaction vessels and mini-plants. The main applications are using external applications however the bath opening allows objects to be thermoregulated directly in a thermostat bath. A powerful pressure/suction pump with an infinitely controlled rotational speed ensures optimal circulation. The maximum pressure can also be regulated by an optional pressure sensor, meaning that sensitive glass reactors and apparatus can reliably be protected from breakage. Additionally, Ministats offer the Pilot ONE controller as standard with a colour TFT display and comfortable operator guidance. Analogue connections according to NAMUR are available via the optional Com.G@te module allowing Ministats to integrate into plant and process control systems.
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Customize your product
Payment Providers
Huber Ministat features
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7“ touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- RS232 interface and Pt100 connection
- Natural refrigerant
Huber Ministat 230 adapters, tubing for Ai 10L glass reactors (no fluid)
- P/N 6278 x 2 Adapter M16x1 m - M16x1 m
- P/N 9610 x 2 2m (-50 to 200) f to f - tubing
- P/N 11028 x 2 M16 X1 m - 3/4" NPT
Huber Ministat 230 adapters, tubing and fluid for Ai 10L glass reactors
- P/N 6278 x 2 Adapter M16x1 m - M16x1 m
- P/N 9610 x 2 2m (-50 to 200) f to f - tubing
- P/N 11028 x 2 M16 X1 m - 3/4" NPT
- P/N 6166 x 1 M60 (-60 to 115) 10L - fluid
|
Standard Package
| HUBER Ministat 230 -40°C to 200°C with Pilot ONE | 1 pc |
| Adapter (12 mm diameter) | 2 pc |
| Mini-USB Cable | 1 pc |
| Blank Plugs for M16x1 | 2 pc |
| Sleeve Nuts Thread M16X1 | 2 pc |
| User's manual | 1 pc |
