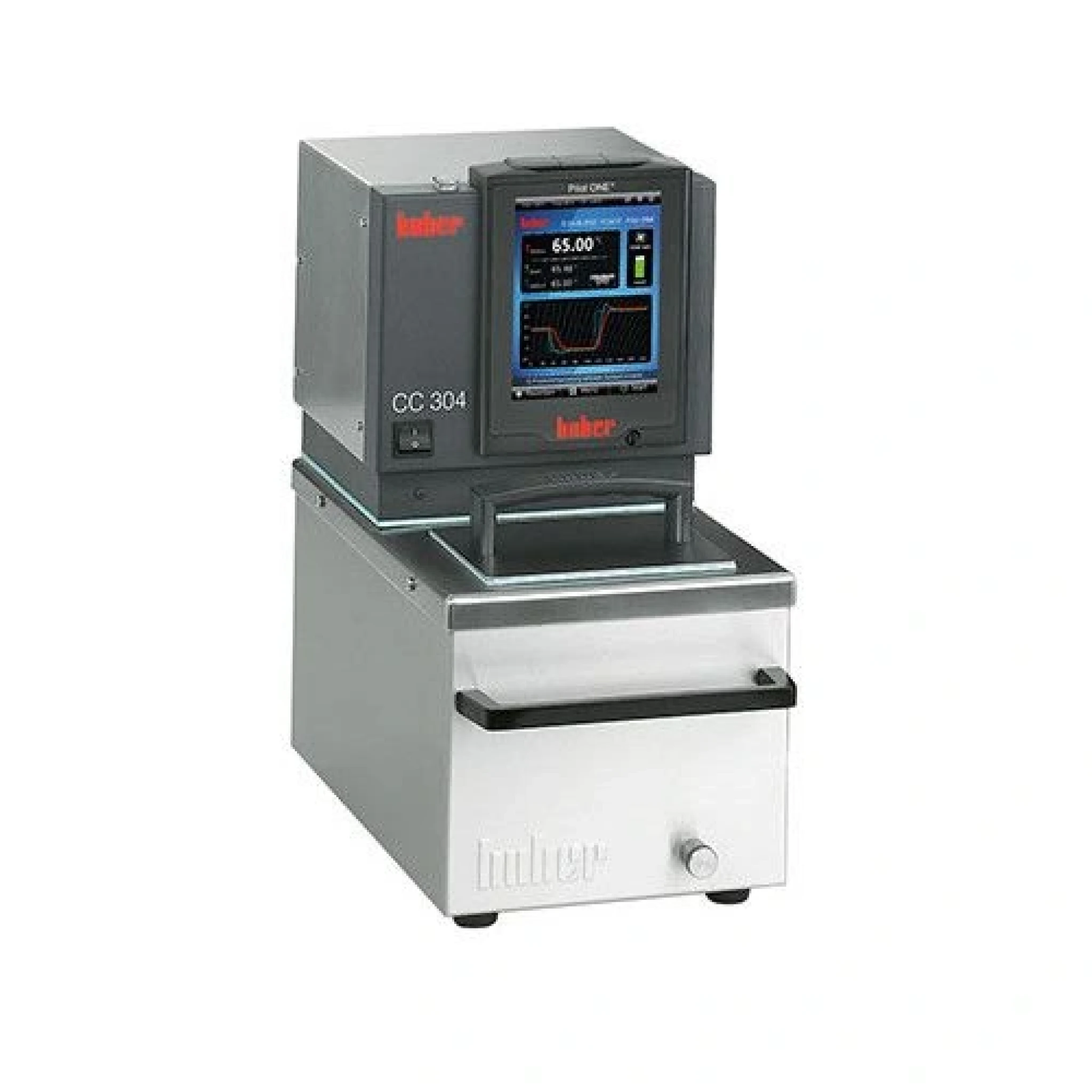

HUBER CC-304B Heating Circulator with Pilot ONE
Reference:
Manufacturer: Huber
Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications.
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Customize your product
Payment Providers

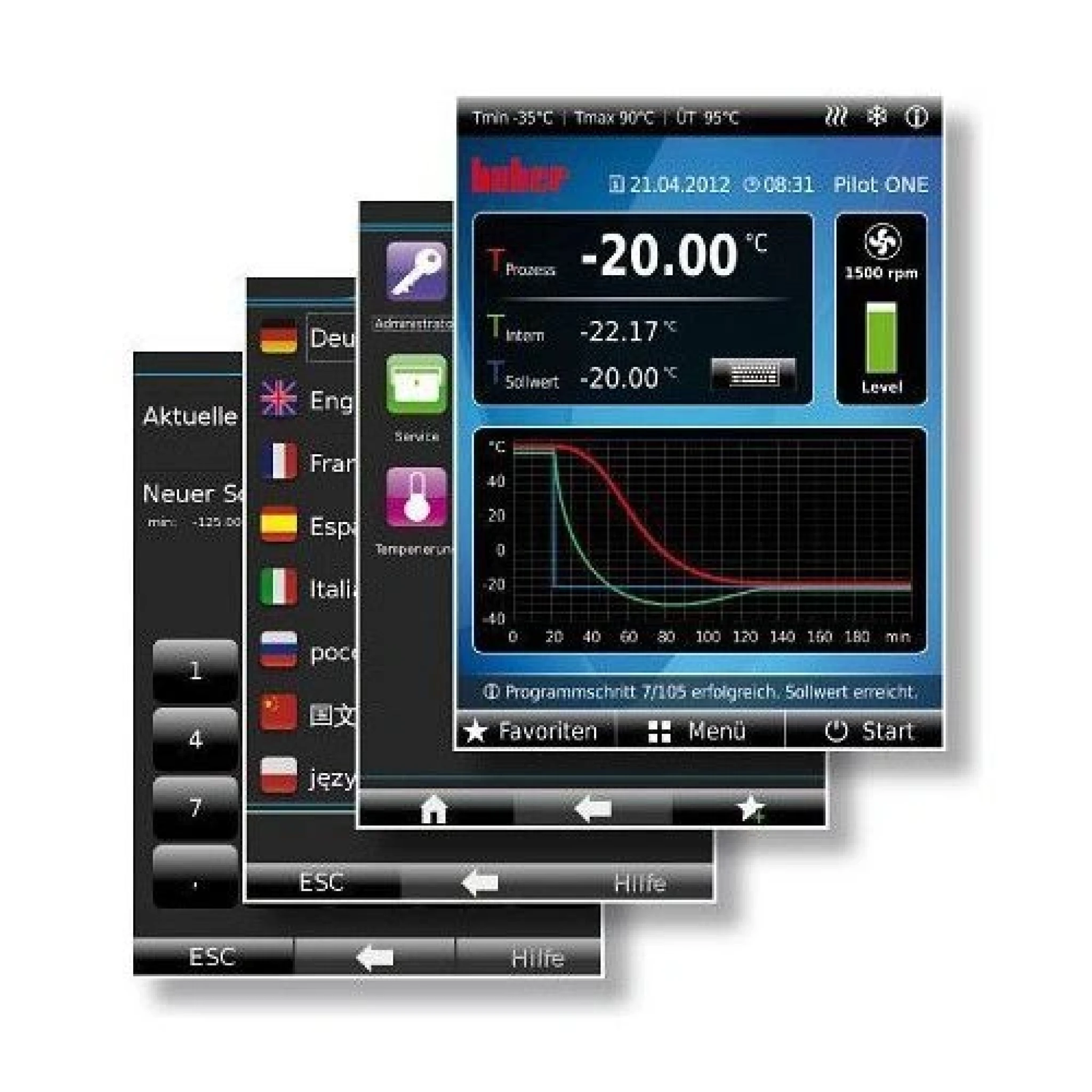

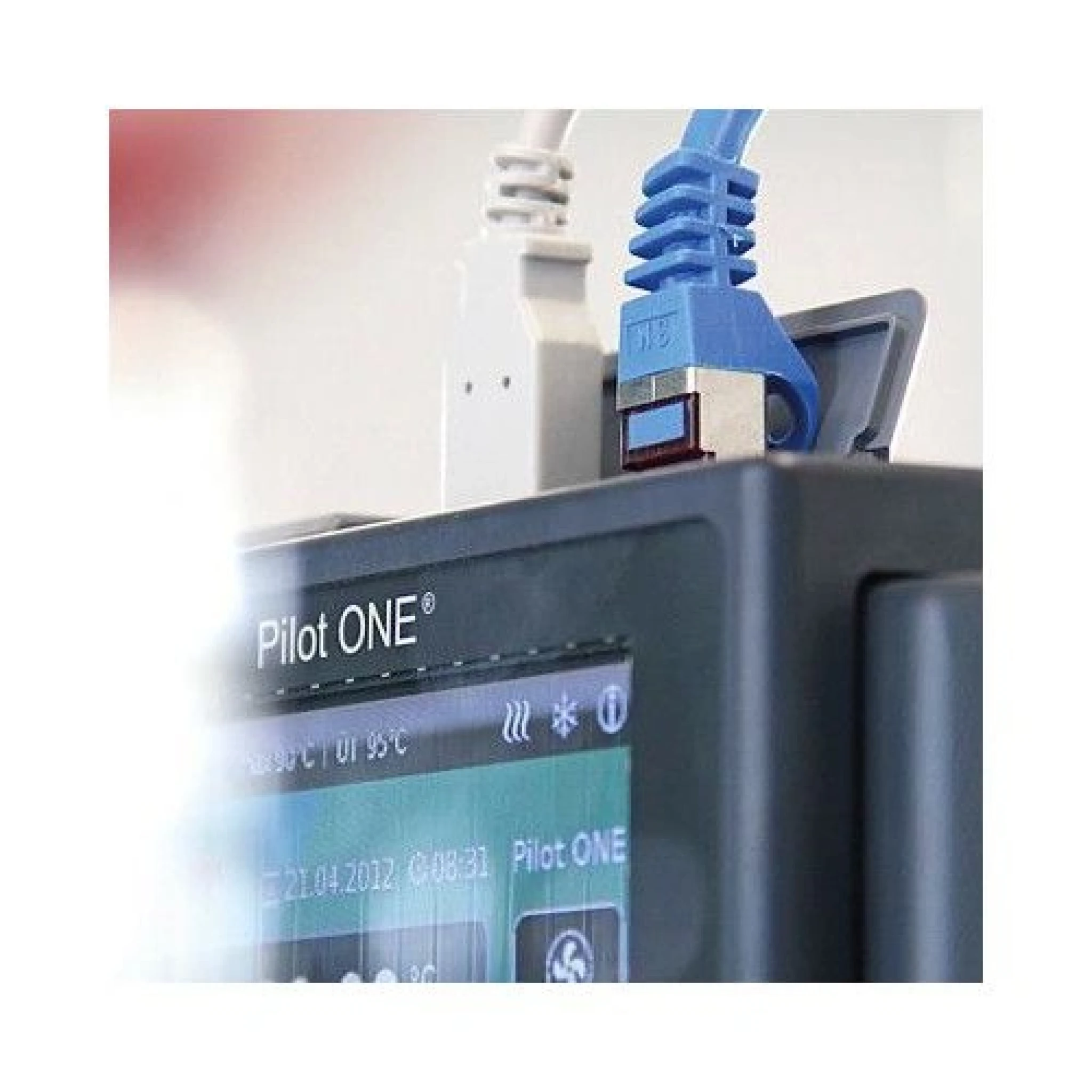

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Features：
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7“ touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- Pt100 sensor connection
Huber CC-304B adapters, tubing, and fluid for Ai 10L glass reactors:
- 2X 6746 : M16 X 1 (male) to 3/4" NPT (male)
- 2X 6195 : 90degree bend M16 female to M16 male
- 2X 9610 : M16 insulated hose -2m(-50 to 200C)
- 1X 6158 : Sil Oil (20 to 275) 10L
Miscellaneous：
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products.
The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%
This equipment is compliant to US-SNAP and all applicable EU laws. The US-SNAP end-use for this equipment is the industrial process refrigeration. Certification by a Notified Body upon request.
| Temperature range | (-20) 28...300 °C |
| Temperature stability | ±0.02 °C |
| Controller | Pilot ONE (E-grade "Basic") |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 210 x 335 x 392 mm | 8.27 x 13.19 x 15.43 inches |
| Weight | 14 kg | 30.87 pounds |
| Heating capacity | 110v - 1.5kw 200-240v - 2.2~3kw |
| Pressure pump max. | 25 lpm ; 0.7 bar | 6.6 gpm ; 10.15 psi |
| Suction pump max. | 18.5 lpm ; 0.4 bar | 4.89 gpm ; 5.8 psi |
| Pump connection | M16x1 AG male |
| Permissible viscosity | 50 mm²/s |
| Pump speed adjustable | Yes |
| Pt100 connection | Pt100 |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
| Permissible ambient temp. | 5...40 °C |
| Bath opening W x D / BD | 130 x 100 / 155 mm | 5.12 x 3.94 / 6.1 inches |
| Bath volume | 5 Liters | 1.32 gal |
| Filling volume min. | 3.2 Liters | 0.85 gal |
| Power supply | 200-240V 1~/2~ 50/60Hz |
| Current max. | 14 A |
| Fusing | 16 A |
