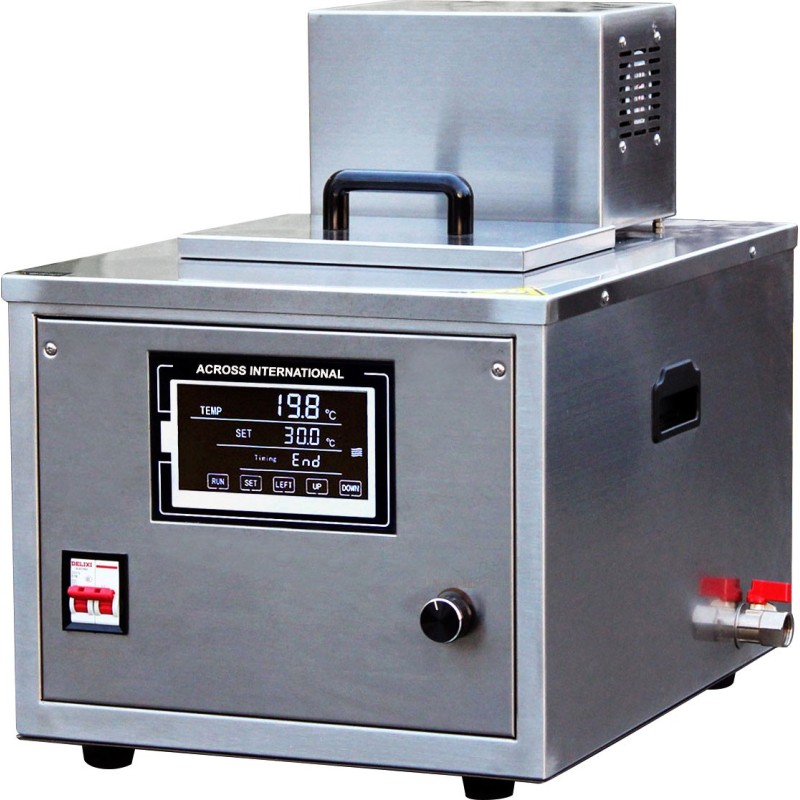

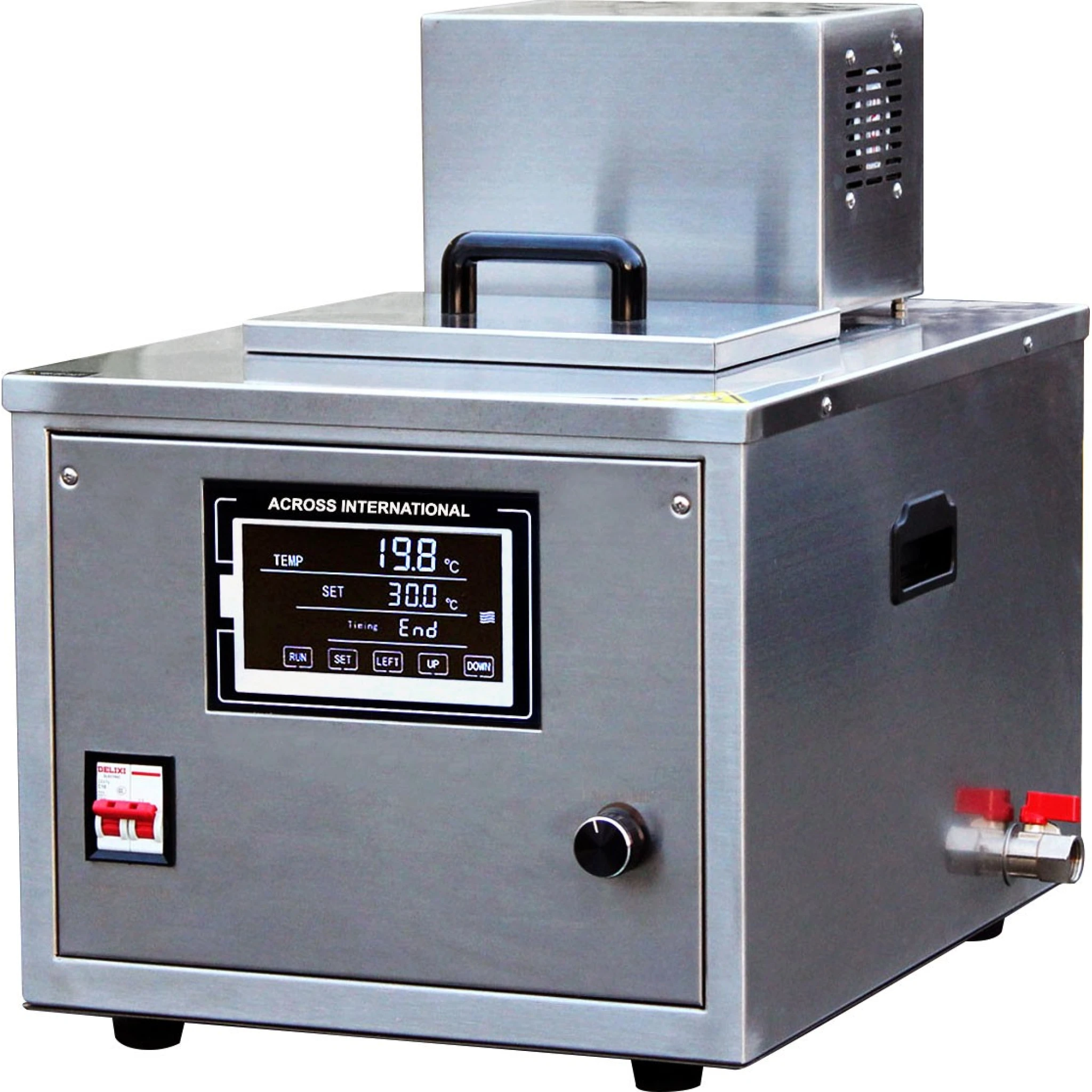

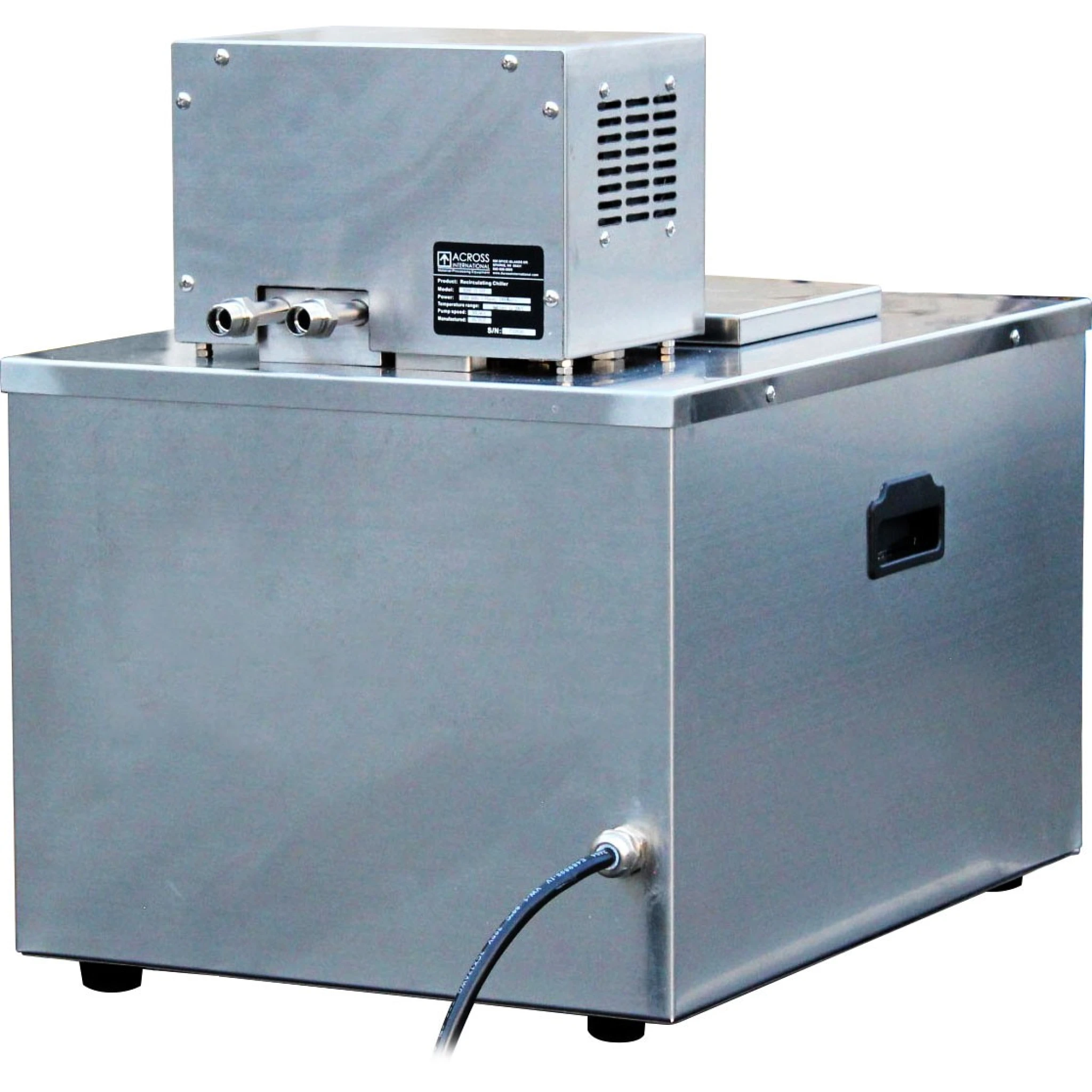

Ai 200°C 15L SST Compact Desktop Heated Recirculator 220V
Reference: H200-15sst.220
Manufacturer: Across International
The Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Payment Providers
Features

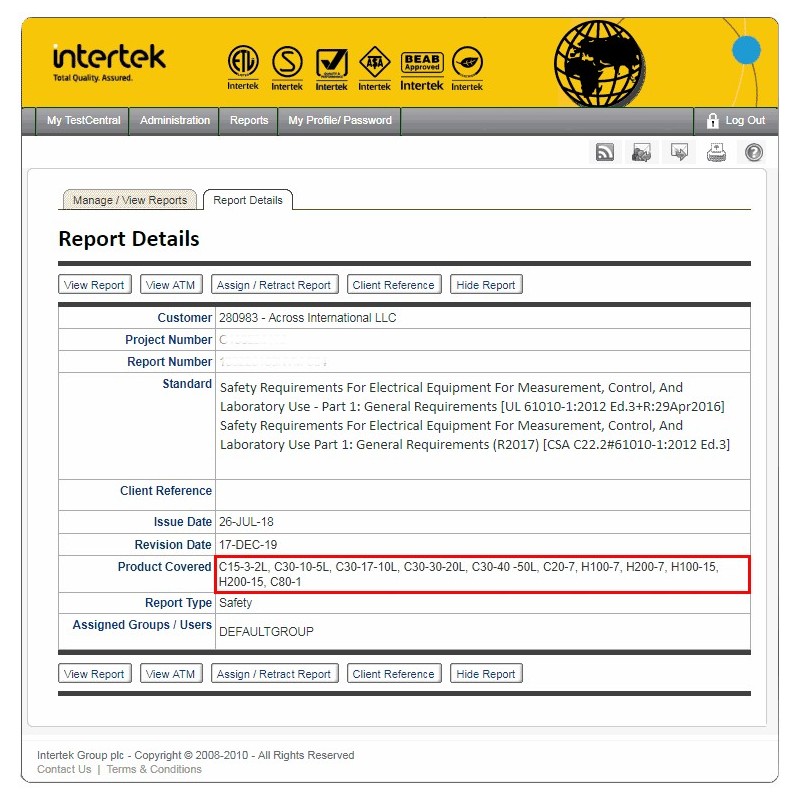

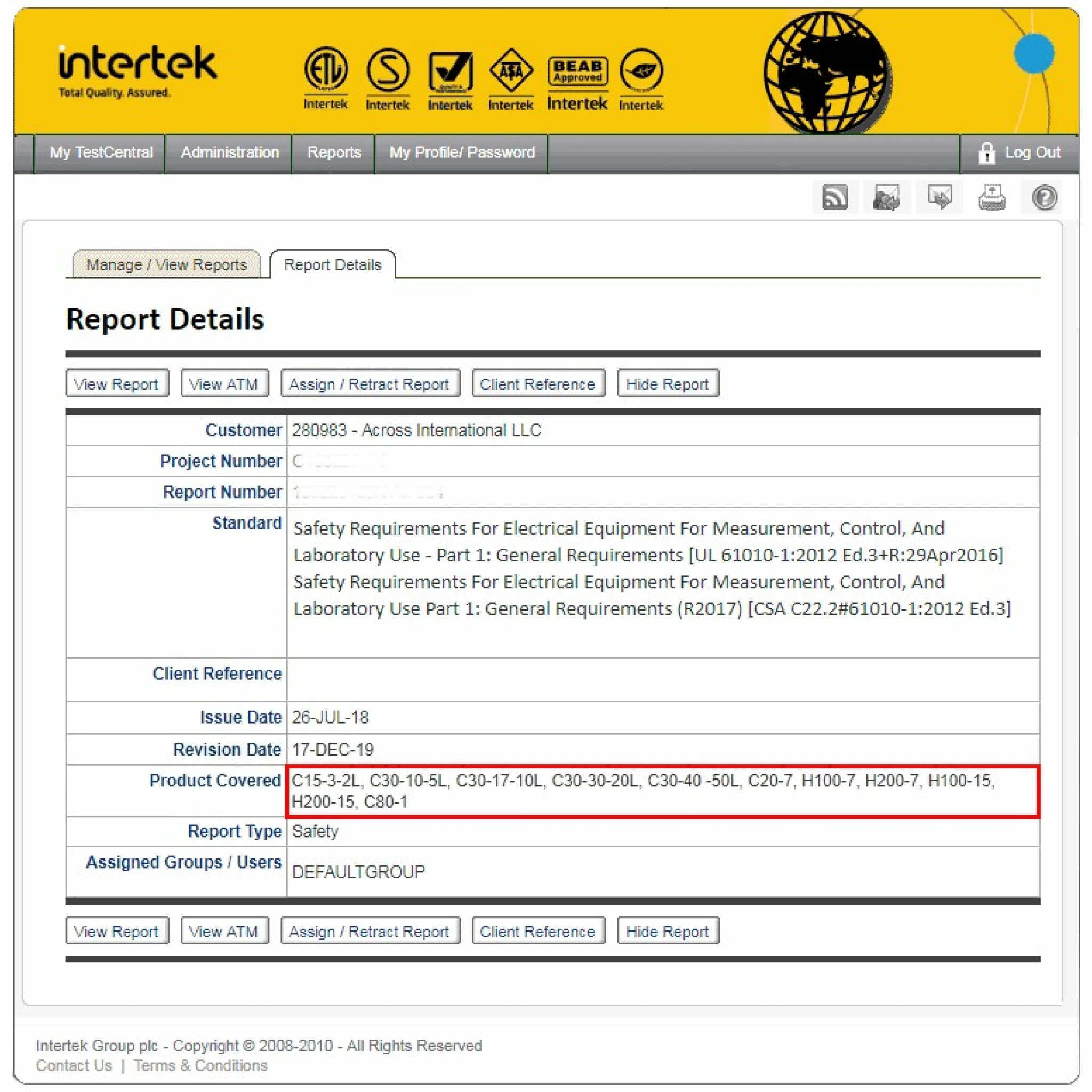

- ETL tested to UL and CSA standards
- Powerful 2,800 watts heater
- Adjustable pumping speed up to 15 liters per minute

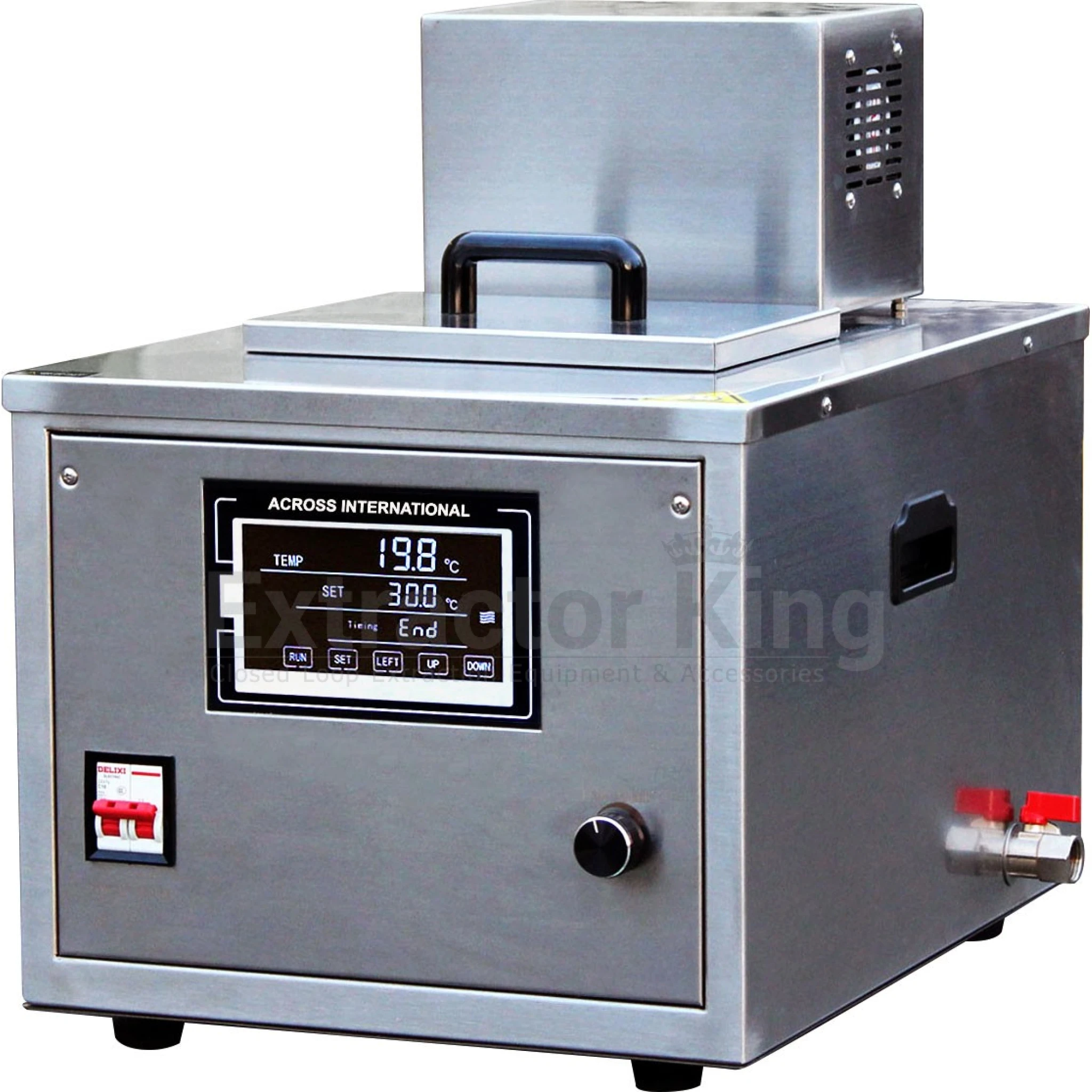

- 2nd generation 7" TFT touch screen controller
- Front placed controller keeps all electronics away from the heat and expends lifespan of the controller

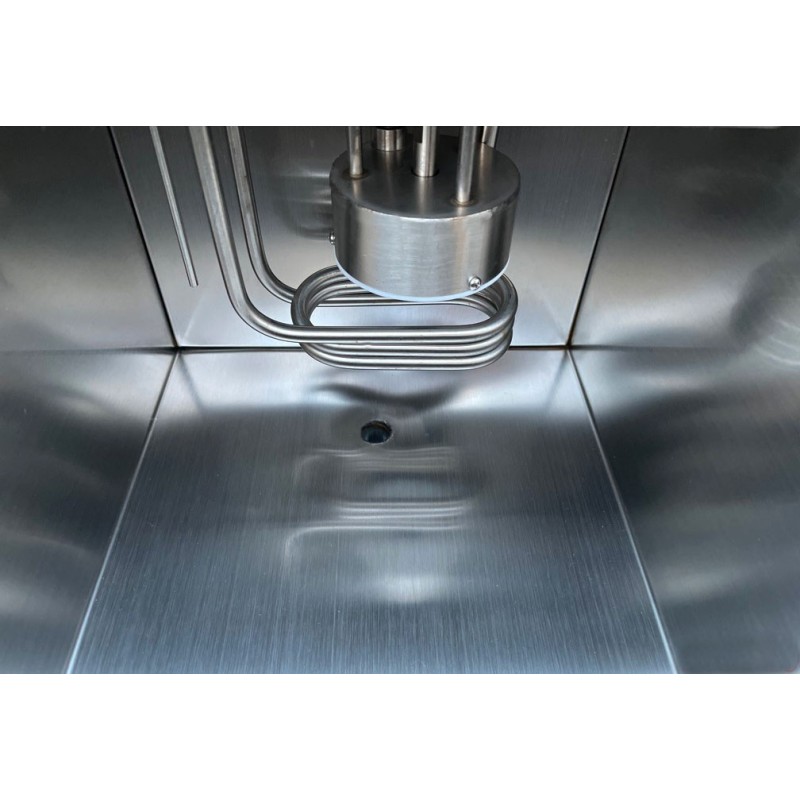

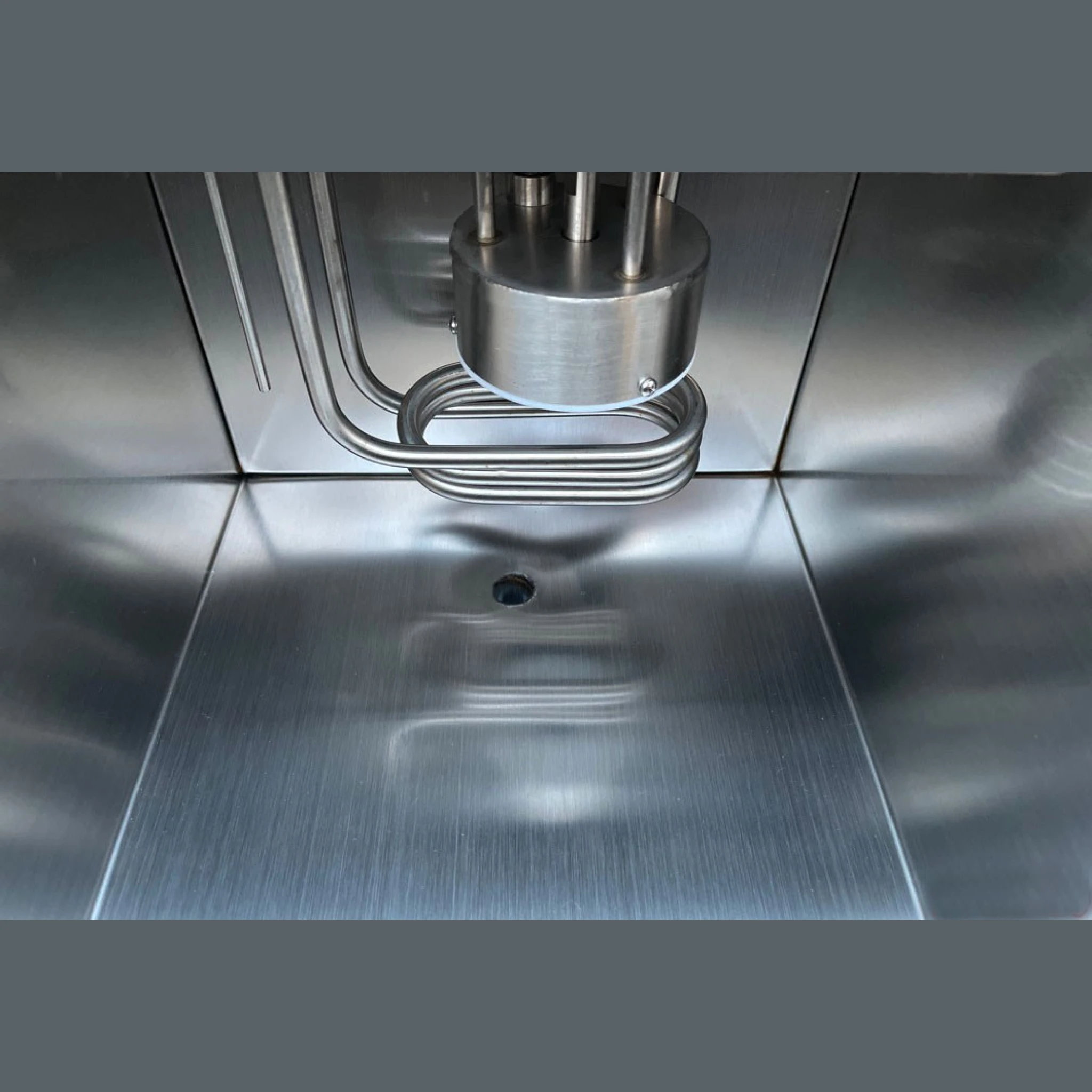

- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space

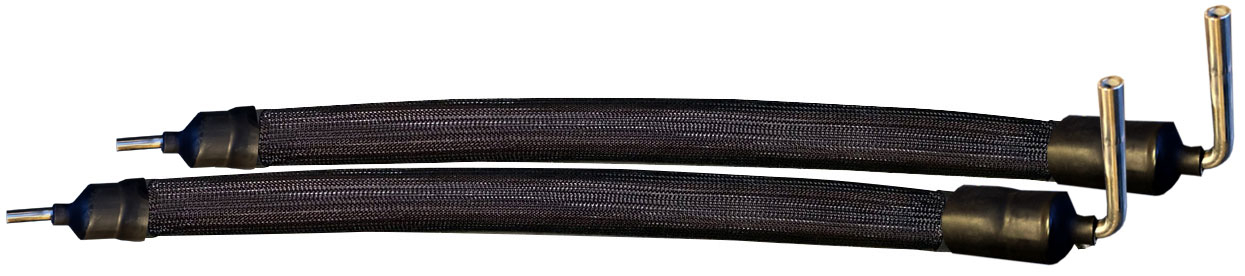

- Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation
Optional M16 male to 3/4" NPT adapters for Ai glass reactors $118.99
- M16x1.0 male to 1/2" NPT female x 2
- 1/2" NPT male to 3/4" NPT male x 2
| Model | H200-15 |
| Temperature range | Ambient to 200°C |
| Electrical requirements | 220V 60Hz 1-Phase 2,900 watts |
| Heating capacity | 2,800 watts |
| Recirculating pump | Pumping speed: 15 liters per minute, adjustable Maximum head: 16 feet or 5 meters Power: 100 watts |
| Reservoir |

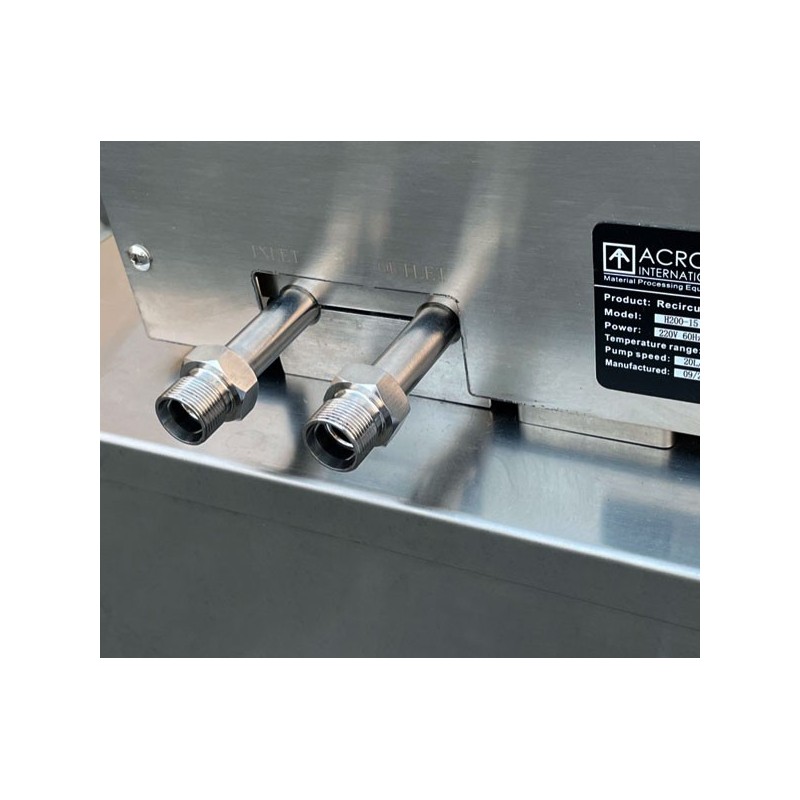

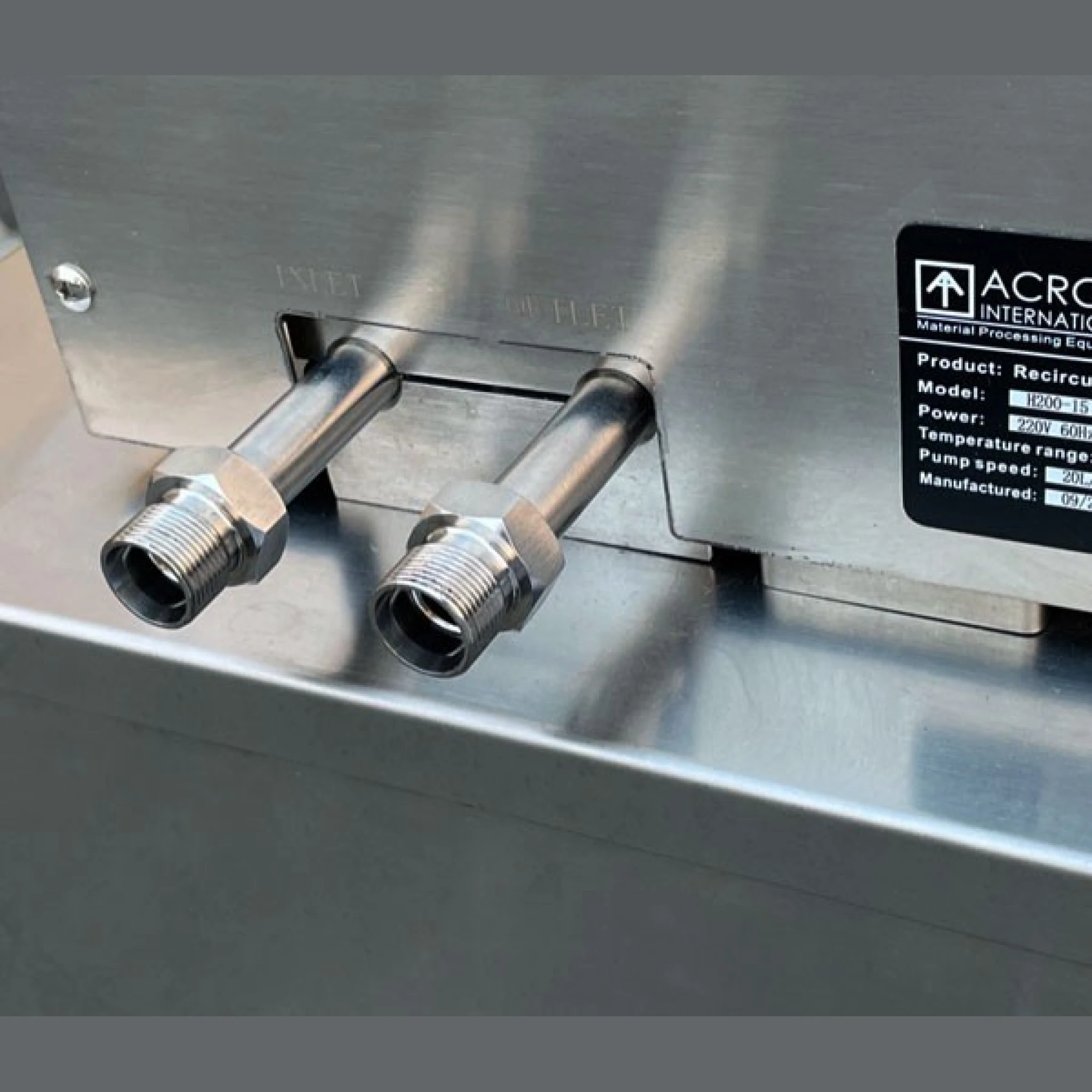

Dimensions: 10 x 12 x 8" (WxDxH) Material: Type 304 stainless steel Capacity: 15 liters or 4 gallons Thermo fluid connection: M16 x 2 Fluid drain port: 3/8" hose barb with on/off valve |
| Temperature controller | Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 200°C |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Unit/shipping dimensions | 14.75 x 19 x 18.25" / 17 x 22 x 22" (WxDxH) |
| Unit/shipping weight | 40 Lbs / 55 Lbs |
| Safety | Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection |
| Warranty | One year |

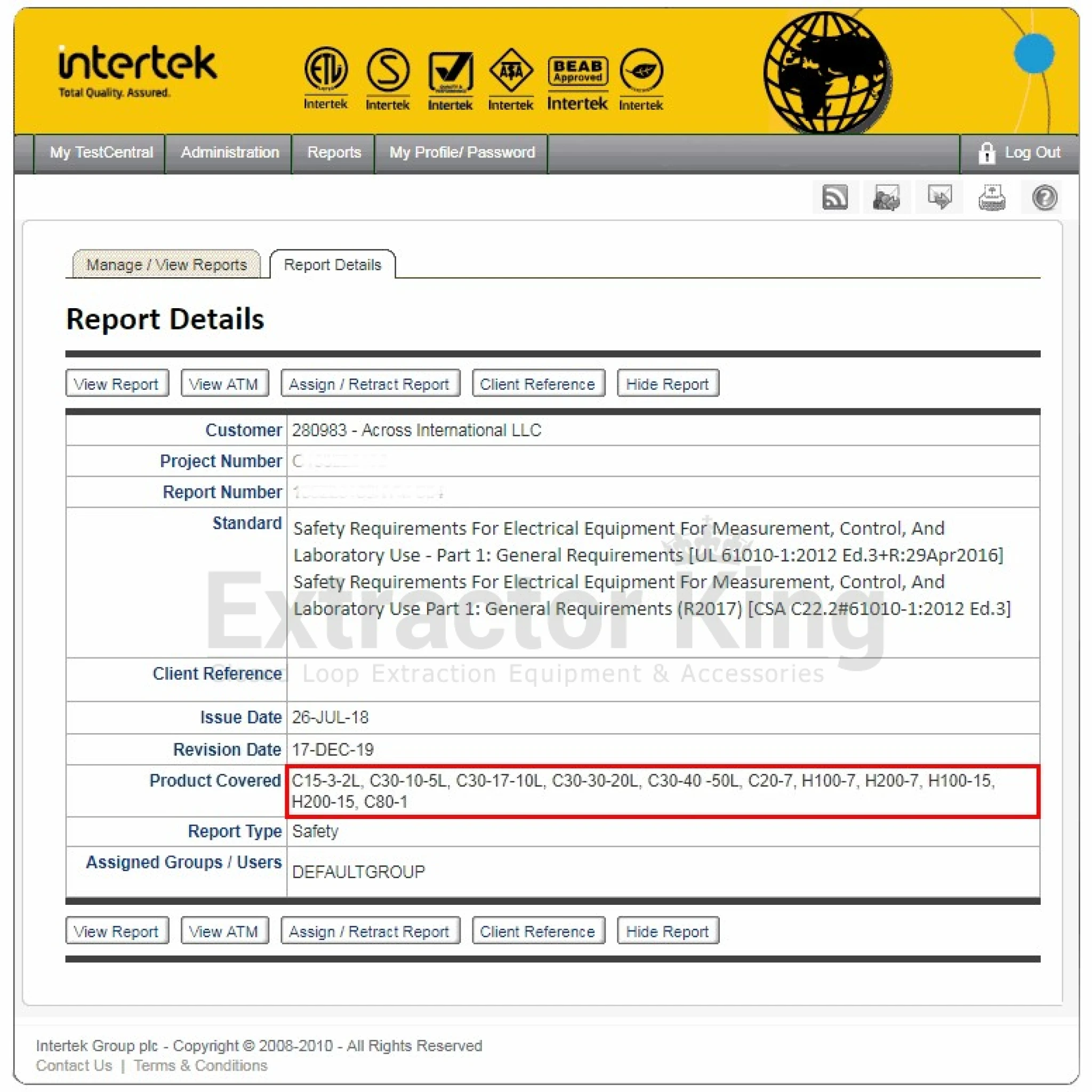

| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
|
Part description |
Quantity |
| Ai H200-15 200°C 15L heated recirculator | 1 pc |
| 250°C rated flexible insulated stainless steel tubing (40" L), pipe connection with M16 connection fitting |
2 sets |
| 1/2" NPT to 3/8" hose barb drain port adapter | 1 pc |
| M16 Nuts, Ferrules and Sleeves | 4 sets |
| Users manual | 1 pc |
Reviews
19 other products in the same category:
-
Ai 100°C 7L Capacity Compact Heated Recirculator 110V
The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet...
CAD $1,986.54
-
Ai 100°C 7L Capacity SST Compact Heated Recirculator 220V
The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet...
CAD $2,686.87
-
Ai 200°C 7L SST Compact Desktop Heated Recirculator 220V
The new Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding...
CAD $4,226.89
-
Ai SST -20°C To 99°C 7L Compact Recirculating Chiller
Ai C20 series recirculating chillers are the true thermostatic control laboratory chiller, this closed...
CAD $4,506.03
-
Ai -15°C 3L Compact Recirculating Chiller With Centrifugal Pump
Ai C15 series recirculating chillers are the true thermostatic control laboratory chiller, this closed...
CAD $3,946.95
-
Ai -30°C 10L Recirculating Chiller With 20L/Min Centrifugal Pump
Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed...
CAD $8,346.82
-
Ai -30°C 17L Recirculating Chiller With 20L/Min Centrifugal Pump
Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed...
CAD $9,682.95
-
Ai -30°C 30L Recirculating Chiller With 20L/Min Centrifugal Pump
Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed...
CAD $12,485.84
-
Ai -30°C 40L Recirculating Chiller With 30L/Min Centrifugal Pump
Ai C30-40 series recirculating chillers are the true thermostatic control laboratory chiller, these closed...
CAD $19,987.62
-
Ai -75°C 10L Recirculating Chiller With 30L/Min Centrifugal Pump
The re-designed Ai C80-10 series recirculating chillers are the true thermostatic control laboratory...
CAD $27,684.31
-
Ai C20 -20°C to 99°C 7L Compact Recirculating Chiller 110V
A i C20 series recirculating chillers are the true thermostatic control laboratory chillers, this closed...
CAD $6,887.86
-
Calflo Heat Transfer Fluid 316°C (600°F)
CALFLO AF is a highly efficient heat transfer fluid recommended for operating temperatures up to 316°C...
CAD $375.00
-
Ai 100°C 15L Capacity SST Compact Heated Recirculator 220V
The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet...
CAD $2,577.45
-
Ai 10°C to 25°C 33L/Min 35L Capacity Recirculating Chiller
Digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for...
CAD $13,600.52
-
Ai 10°C to 25°C 33L/Min 17L Capacity Recirculating Chiller
Ai WAC-1 digital temperature controlled recirculating water chiller with built-in swivel casters,...
CAD $7,602.67
-
Ai industrial water chillers WAC 8 to 30
Ai industrial water chillers WAC 8 to 30
CAD $21,073.52
-
Ai 10°C to 25°C 66L/Min 60L Capacity Recirculating Chiller
WAC-6 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended...
CAD $15,545.77
-

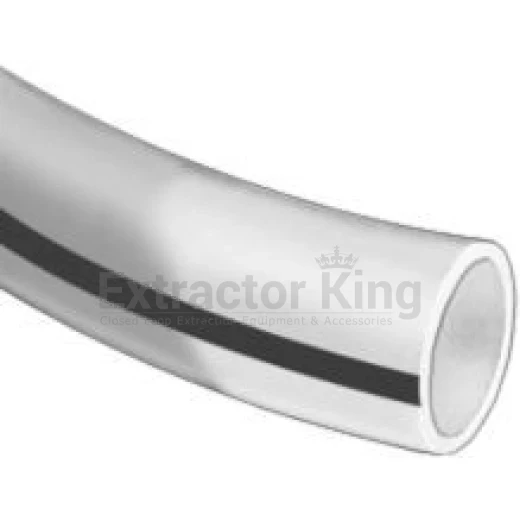

3/8" ID 1/2" OD Extreme-Temperature PTFE Tubing For Chemicals
