Ai 10°C to 25°C 33L/Min 17L Capacity Recirculating Chiller
Reference:
Manufacturer: Across International

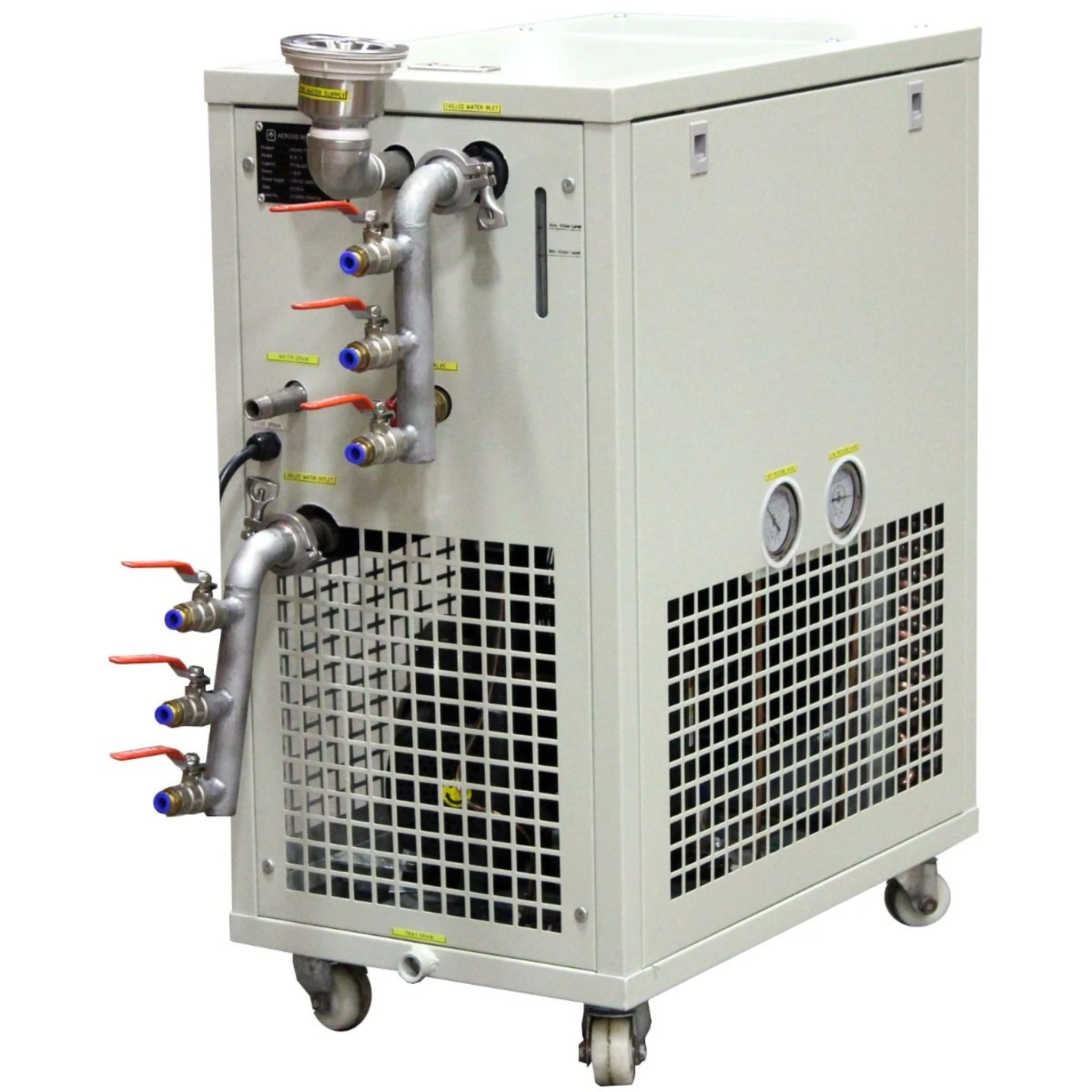

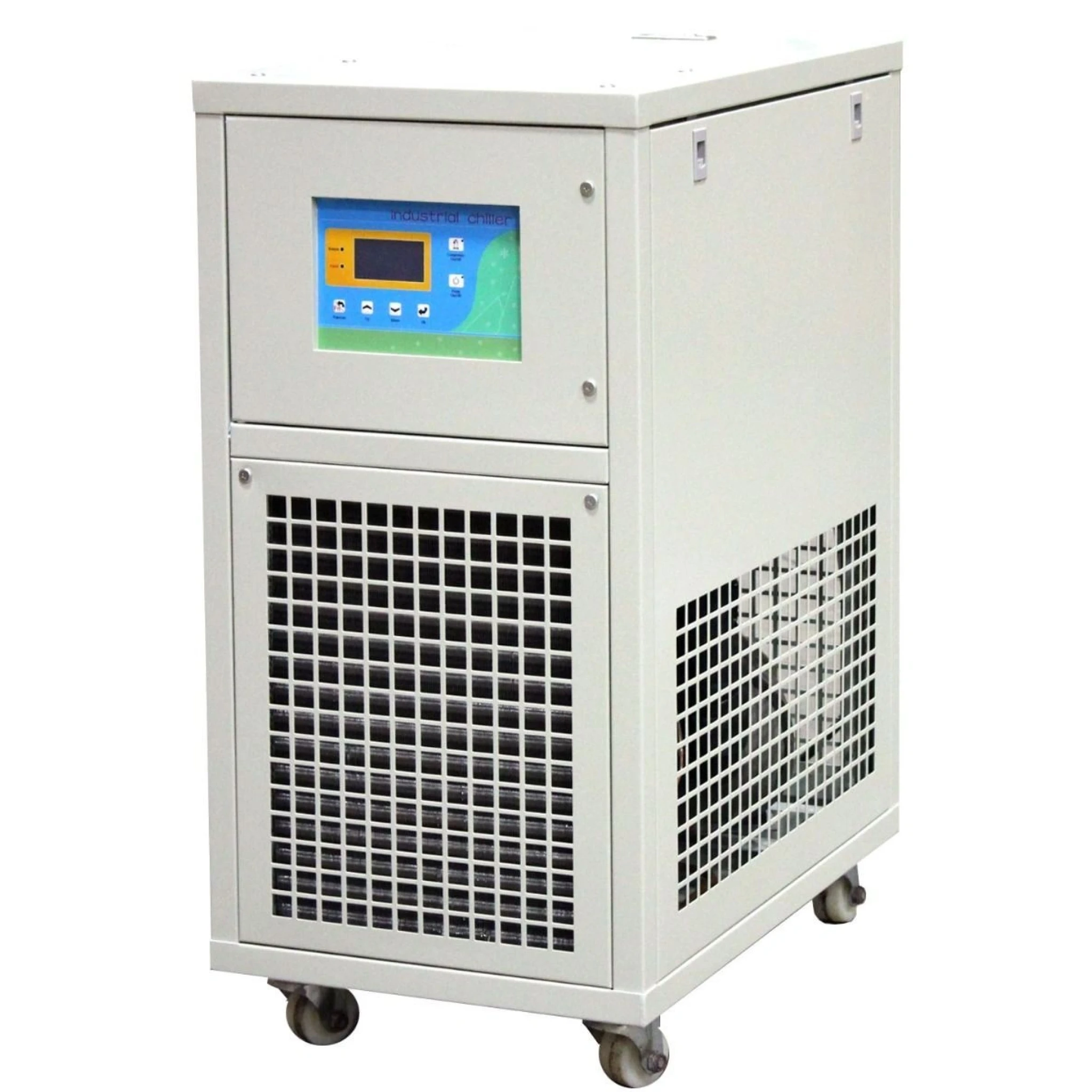

Ai WAC-1 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank and water pump for durability and rust-free operation. two sets of water manifolds included for immediate use.
Customize your product
Payment Providers
Manual Pressure Control Valve for 0 to 80 psi is an optional add-on, not standard with every unit
| Model | WAC-1 |
| Input power | 110 VAC 60 Hz single-phase (1PH) 1460 watts |
| Nominal cooling capacity | 1935 kcal/h |
| Compressor | Make: Panasonic, UL Listed Power: 110VAC 60Hz 1-PH, LRA42, thermally protected Refrigerant: R410A (800g) Number of compressor installed: one |
| Water pump | Make: LX (CMFL2-20-A-W-G-BABE) Power: 110VAC 60Hz 1-PH 370 watts 3.7A 3450 rpm IP55 Flow rate: 528 gallons per hour Max pressure: 10 bar. H(max); 20.5m, H(n): 16m |
| Reservoir volume | 4.5 gallons |
| Cooling fan | Make: Kunli (YWF A2S-300S-5DIIIA05) Power: 110VAC 60Hz 1-PH 155 watts 1.35A 2700rpm 16uF/500V IP44 Flow rate: 70,000 cu ft per hour Number of fan installed: one |
| Temperature accuracy | +/- 2 °C |
| Recommended coolant | Distilled water |
| Water inlet & outlet on chiller | 1.5" tri clamp flange |
| Manifold | Inlet: 1.5" tri clamp flange with silicon gasket and clamp, outlet: 8mm quick connect with ball valve |
| Unit/shipping weight | 200 Lb / 260 Lb |
| Unit/shipping dimensions | 29 x 17 x 35" / 36 x 21 x 42" (DxWxH) |
| Safety | Over current and compressor thermal protection |
| Working environment | Temperature range of chilled fluid: 5°C - 35°C Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C. It is better to use the chiller while the ambient temperature at or below 35°C |
| Compatiable Ai induction heaters | High frequency 4kW, 6.6kW Mid frequency 15kW, 25kW Low frequency 15kW |
| CE compliant | Yes |
| Warranty | One Year |
Standard Package
| Item | Quantity |
| WAC-1 recirculating chiller | 1 pc |
| Water manifold | 2 pcs |
| KF40 clamp | 2 pcs |
| Users manual | 1 pc |
