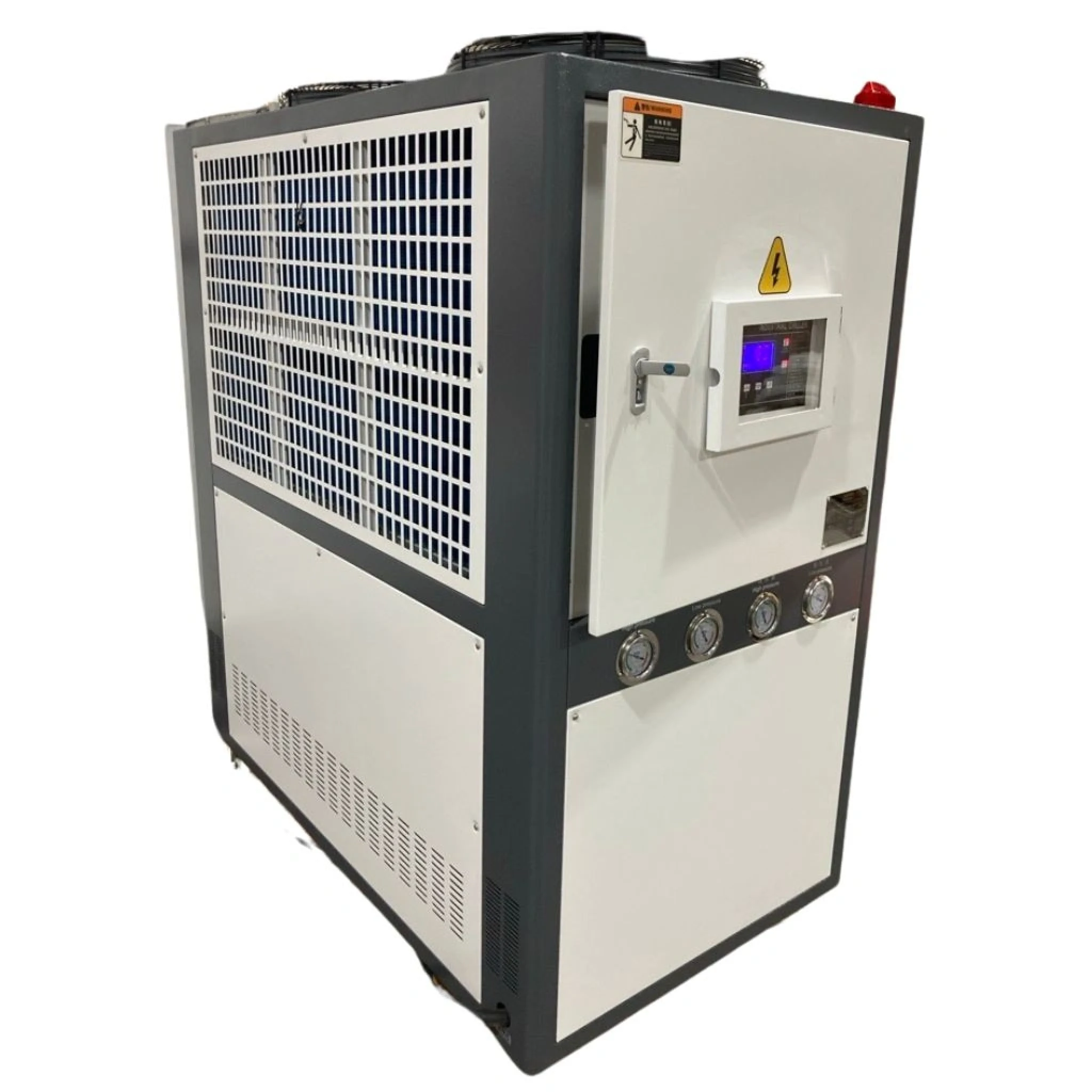

Ai industrial water chillers WAC 8 to 30
Reference:
Manufacturer: Across International
Ai industrial water chillers WAC 8 to 30
Customize your product
Payment Providers

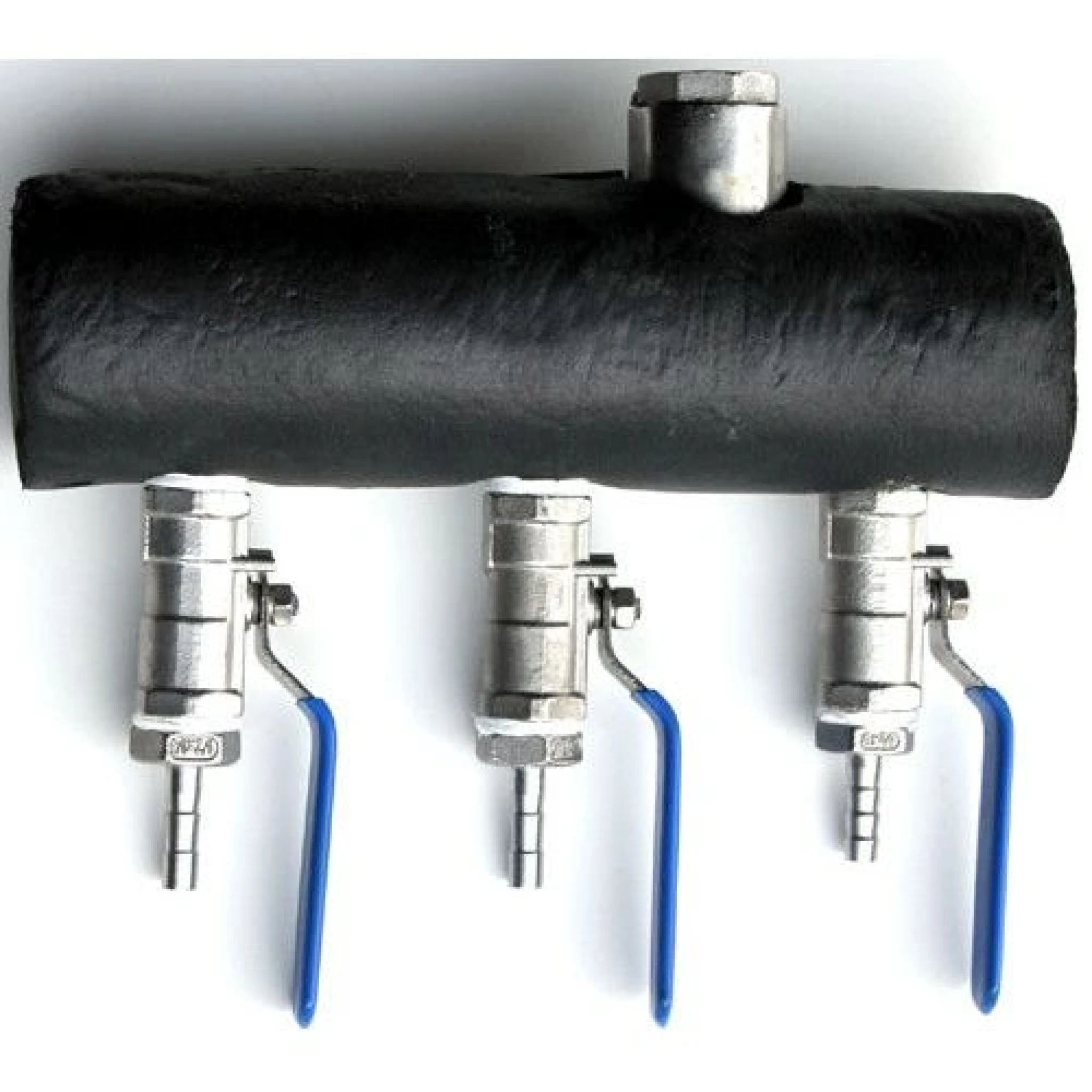

Across International WAC digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.
Manual Pressure Control Valve for 0 to 80 psi is an optional add-on, not standard with every unit
Water Chiller | 8P |
Power Supply | 3PH-480V/60HZ |
Cooling capacity @7C | 21.2 KW |
Cooling Air Volume | 8000 m³/h |
Power | 8.4 kW |
Water pumping distance | 50M |
Pump flow | 12m3/h |
Water tank capacity | 130L |
Evaporator | Water tank coil type/plate replacement + water tank |
| Compressor | Fully Enclosed Scroll Compressor |
| Condenser | High-efficiency copper tube sheathed aluminum fin type + low-noise external rotor fan |
| Refrigerant | R410A |
Item Dimensions (inch) | 29 x 53 x 56" |
Net weight (lbs) | 629 |
Warranty | 1 year |
Standard Package
| Item | Quantity |
| WAC recirculating chiller | 1 pc |
| Users manual | 1 pc |
