Ai WAC-6 60L Capacity Recirculating Chiller
Reference:
Manufacturer: Across International

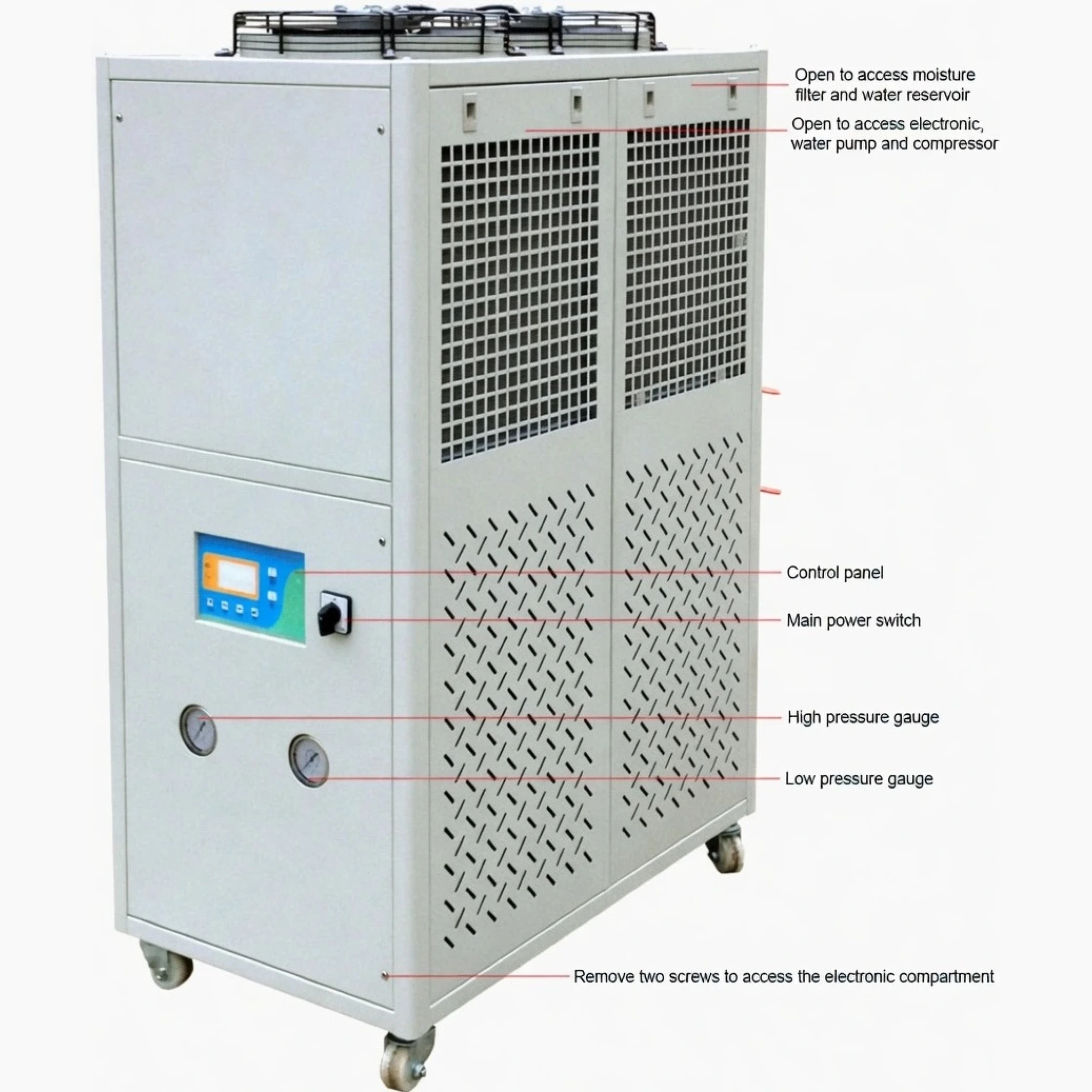

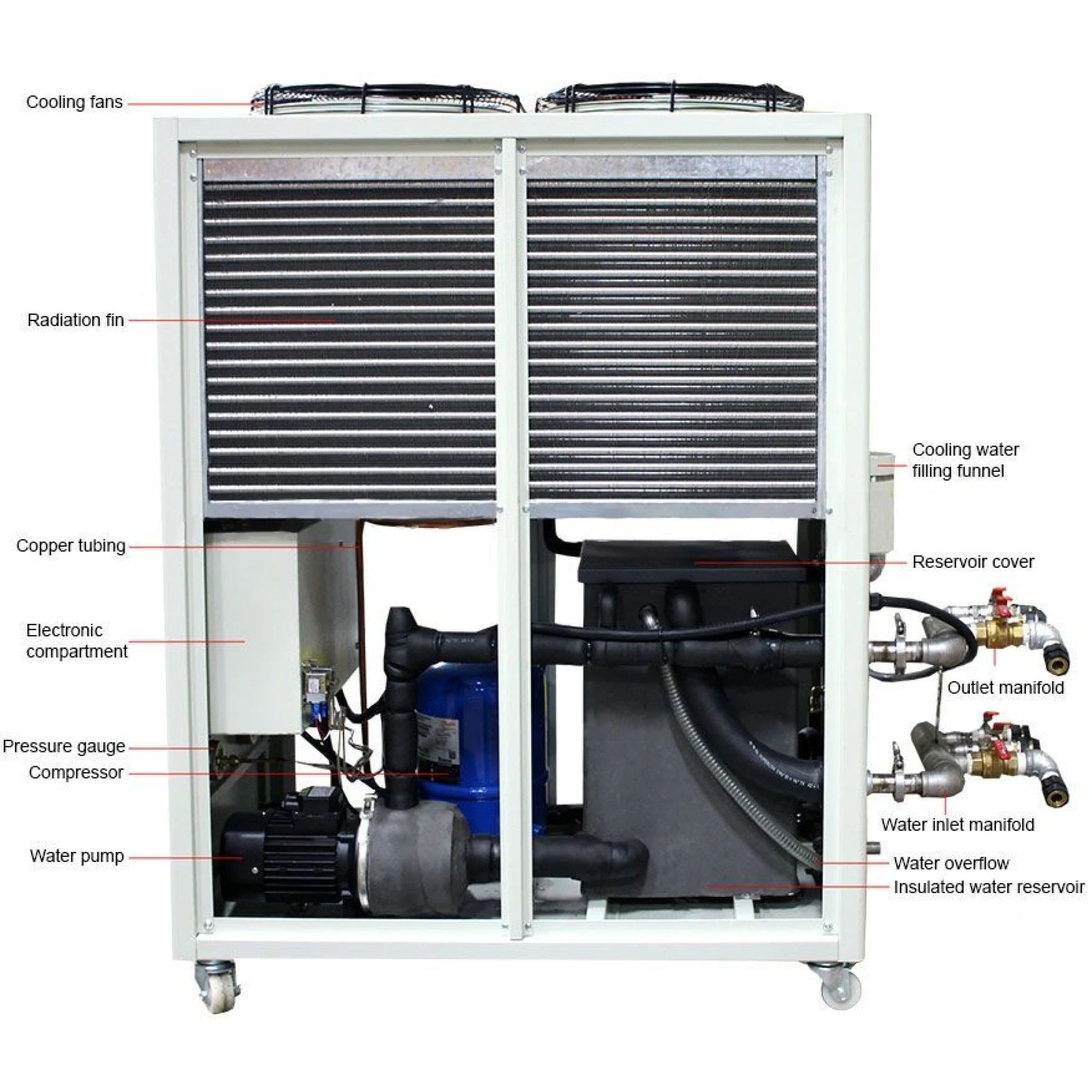

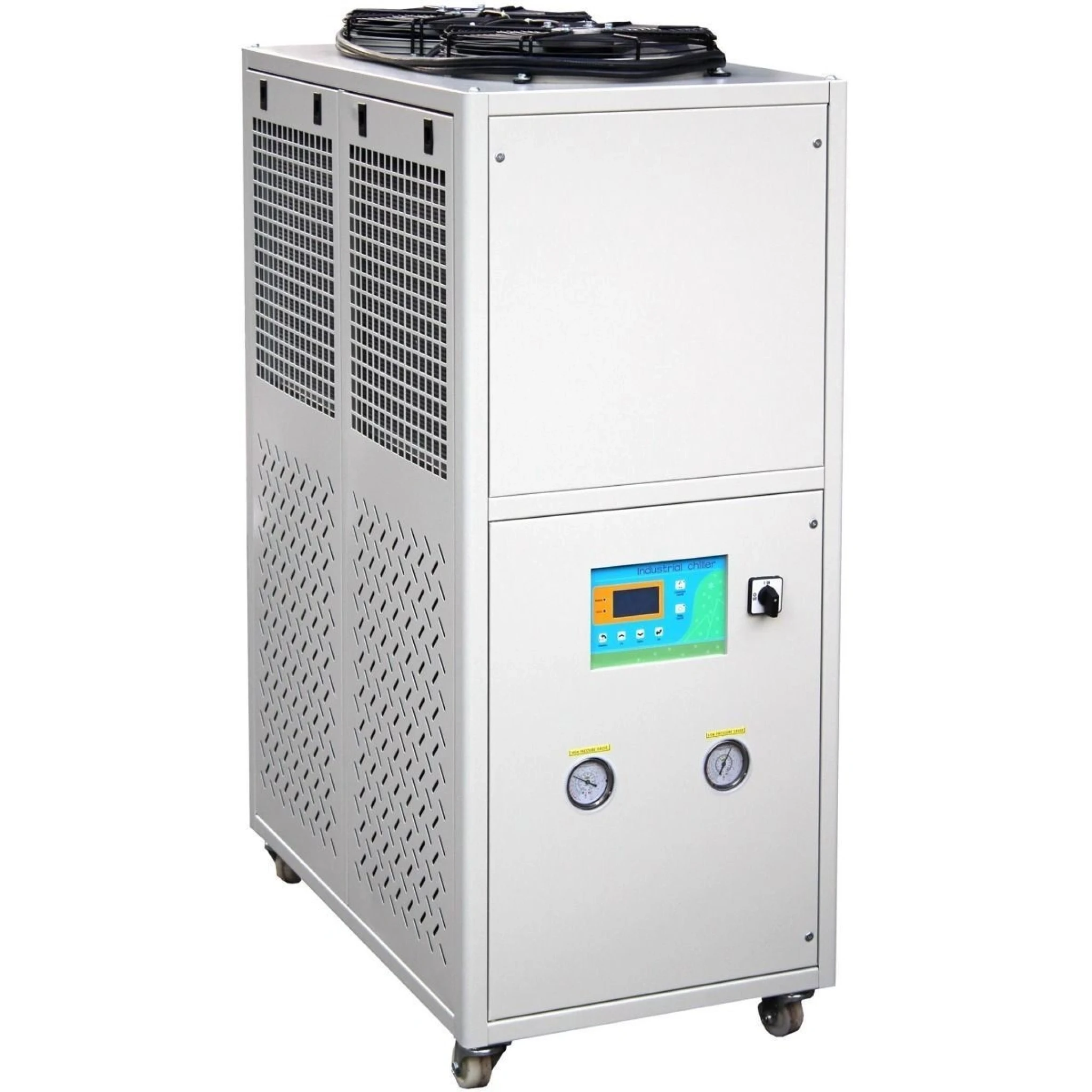

WAC-6 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for Ai IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Customize your product
Payment Providers
Manual Pressure Control Valve for 0 to 80 psi is an optional add-on, not standard with every unit
The WAC-6 is the largest chiller in this series, sized for high-power induction heaters and other equipment that needs a lot of heat removed continuously. The maker recommends it for Ai high frequency 20kW, 30kW and 40kW, mid frequency 35kW and 45kW, and low frequency 35kW and 45kW heaters.
It runs on 480V three-phase power with a rated cooling capacity of 14028 kcal per hour. The 60L stainless reservoir gives a large thermal buffer, and four 1-inch inlets with four outlets let one chiller feed several cooling circuits at once. The LCD controller shows fluid level, and condenser airflow of 212,000 cu ft per hour keeps the refrigeration side working hard in a warm shop.
- Pump rated up to 10 bar
- Delayed compressor start and phase protection
- Over-voltage and under-voltage protection
- Holds temperature to ±2°C; fill with distilled water
| Model | WAC-6 |

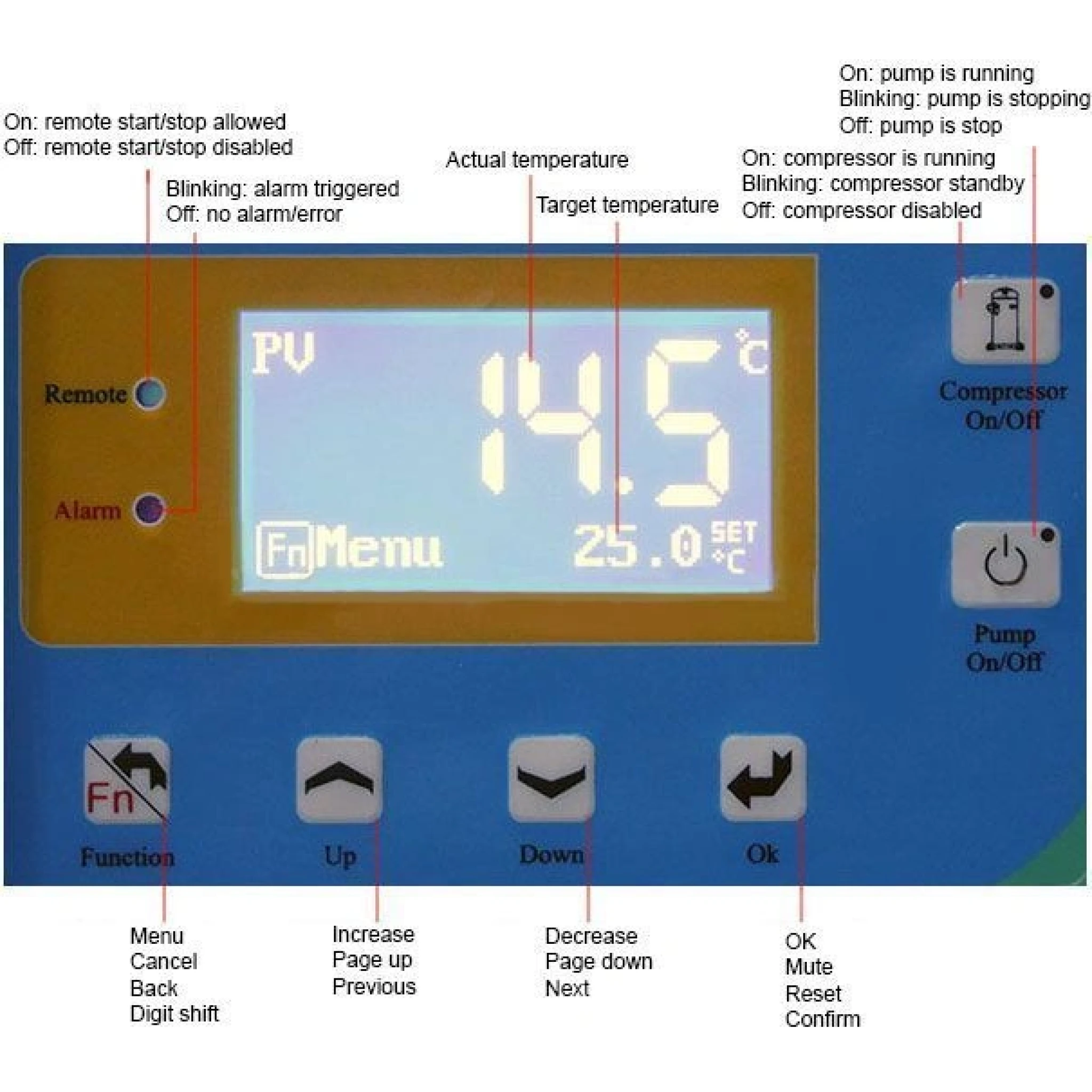

| Controller | Digital micro-chip controlled with LCD screen and fluid level display |
| Input power | 480V 60Hz three-phase (3PH) 5.5kW |
| Nominal cooling capacity | 14028 kcal per hour |
| Water pump | 480VAC 50/60Hz three-phase (3PH) 750W 3450 rpm. Max pressure 10 bar. Max liquid temperature: 70°C Pumping speed: 66L per minute |
| Reservoir capacity | 60L |
| Recommended coolant | Distilled water |
| Compressor | 460VAC 50/60Hz three-phase (3PH) 10A Max |
| Temperature accuracy | +/- 2 °C |
| Condenser cooling air flow | 212,000 cu ft per hour |
| Chilled fluid flow | 60L/min |
| Inlet & outlet diameter | 25mm/1 inch (four inlets and four outlets) |
| Unit/shipping weight | 200 kg / 260 kg |
| Unit/shipping dimensions | 1040 x 610 x 1370 mm / 1220 x 660 x 1520 mm (DxWxH) |
| Safety | Over current, compressor delay start, water pump over load, built-in fuse, over-voltage and under- voltage, abnormal operations, phase protection |
| Working environment | Temperature range of chilled fluid: 5°C - 35°C. Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C. It is better to use the chiller while the ambient temperature is at or below 35°C |
| Recommended to use with these induction heaters (result may vary on different applications) | High frequency 20kW, 30kW, 40kW Mid frequency 35kW, 45kW Low frequency 35kW, 45kW |
| CE compliant | Yes |
Standard Package
| Item | Quantity |
| WAC-6 recirculating chiller | 1 pc |
| Water manifold | 2 pcs |
| Users manual | 1 pc |
