Ai -15°C 3L Compact Recirculating Chiller With Centrifugal Pump
Reference: C15-3-2L.110
Manufacturer: Across International
Ai C15 series recirculating chillers are the true thermostatic control laboratory chiller, this closed laboratory chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
In stock
Optional Must Have Accessories
|
3/8" Reinforced Food Grade Vacuum Chilling Tubing -60C to +135C | +CAD $48.63 |
Payment Providers
Ai C15 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -15C/5F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Features
- ETL tested to UL and CSA standards
- No dry ice or liquid nitrogen needed
- 360 degree rotating chilling fluid connectors
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Cost saving as the water consumption is completely eliminated
- Eco-friendly R404A refrigerant
- Insulated tubing included
- Recommended for 2L rotary evaporators
Attention! Do NOT use with this unit.
| Model | C15-3-2L |
| Temperature range | Ambient to -15°C (No load) |
| Electrical requirements | 110V 60Hz 1-PH, 500 watts |
| Compressor | Make: Embraco (Brazil) Power: 110V 60Hz 1 HP Number of compressor: one Refrigerant: R404A (Eco-friendly) |
| Cooling capacity | @0°C: 400W |
| Recirculating pump | Make: Shanghai XinXiShan MP-20R (China) Type: Centrifugal Output: 15 watts Power: 110V 50/60Hz 310mA 2650-3100 rpm Pumping speed: 17 L/min or 4.5 gallon/min Maximum head: 6.6 feet or 2 meter Maximum pressure: 2.9 psi |
| Reservoir | Dimensions: 5 x 11 x 5" (WxDxH) Material: Type 304 stainless steel, polished Chilling fluid connection: 3/8" hose barb x 2 Capacity: 3 liters or 0.8 gallons |
| Temperature controller |
Type: Digital microprocessor PID controlled |
| Temperature sensor type |
Pt100 |
| Housing | Powder coated type 42 stainless steel |
| Recommended coolant | For 50°F/10°C or higher: distilled water Between 50°F/10°C and 5°F/-15°C: 50% ethylene glycol + 50% distilled water |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | No |
| Unit/shipping dimensions | 16 x 9 x 22" / 24 x 14 x 30" (WxDxH) |
| Unit/shipping weight | 60 Lbs / 105 Lbs |
| Safety | Compressor over-temp protection Short circuit and ground protection Over-current protection Compressor delay start protection |
| Recommended for rotary evaporators | Ai 2L SolventVap rotary evaporators |
| Warranty | One year |

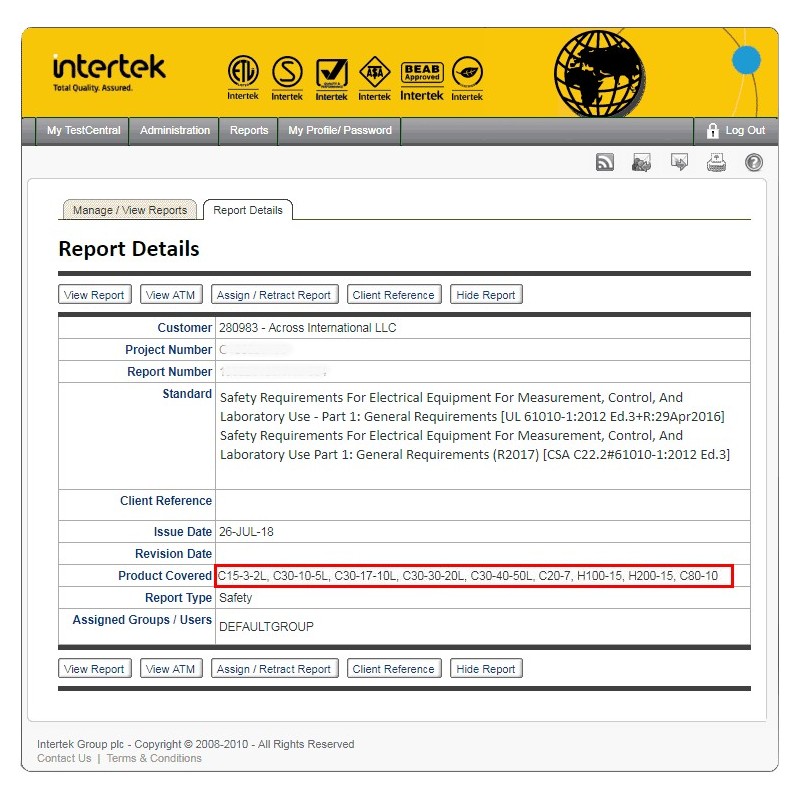

| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
|
Part description |
Quantity |
| Ai -15°C/5°F 17L/min recirculating chiller | 1 pc |
| 3/8" insulated chilling fluid tubing | 11 ft |

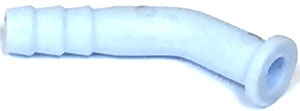

| Rubber chilling fluid connector | 2 pcs |
| Chilling fluid connector gaskets | 2 pcs |
| Brush | 1 pc |
| Power Cord (110) | 1 pc |
| Users manual | 1 pc |
