Ai 100°C 15L Capacity SST Compact Heated Recirculator 220V
Reference:
Manufacturer: Across International

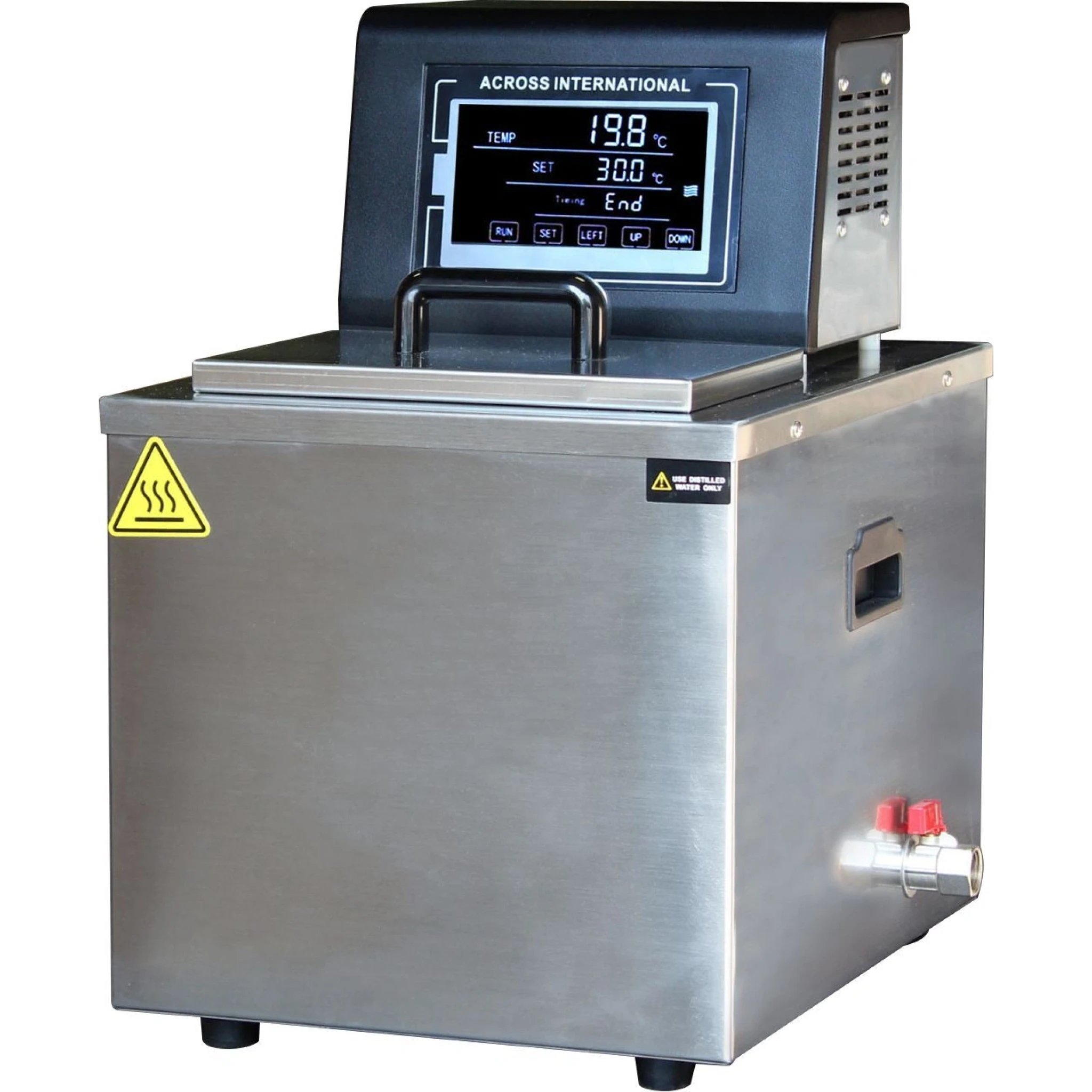

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
In stock
Optional Must Have Accessories
Customize your product
Payment Providers
Features
- ETL tested to UL and CSA standards

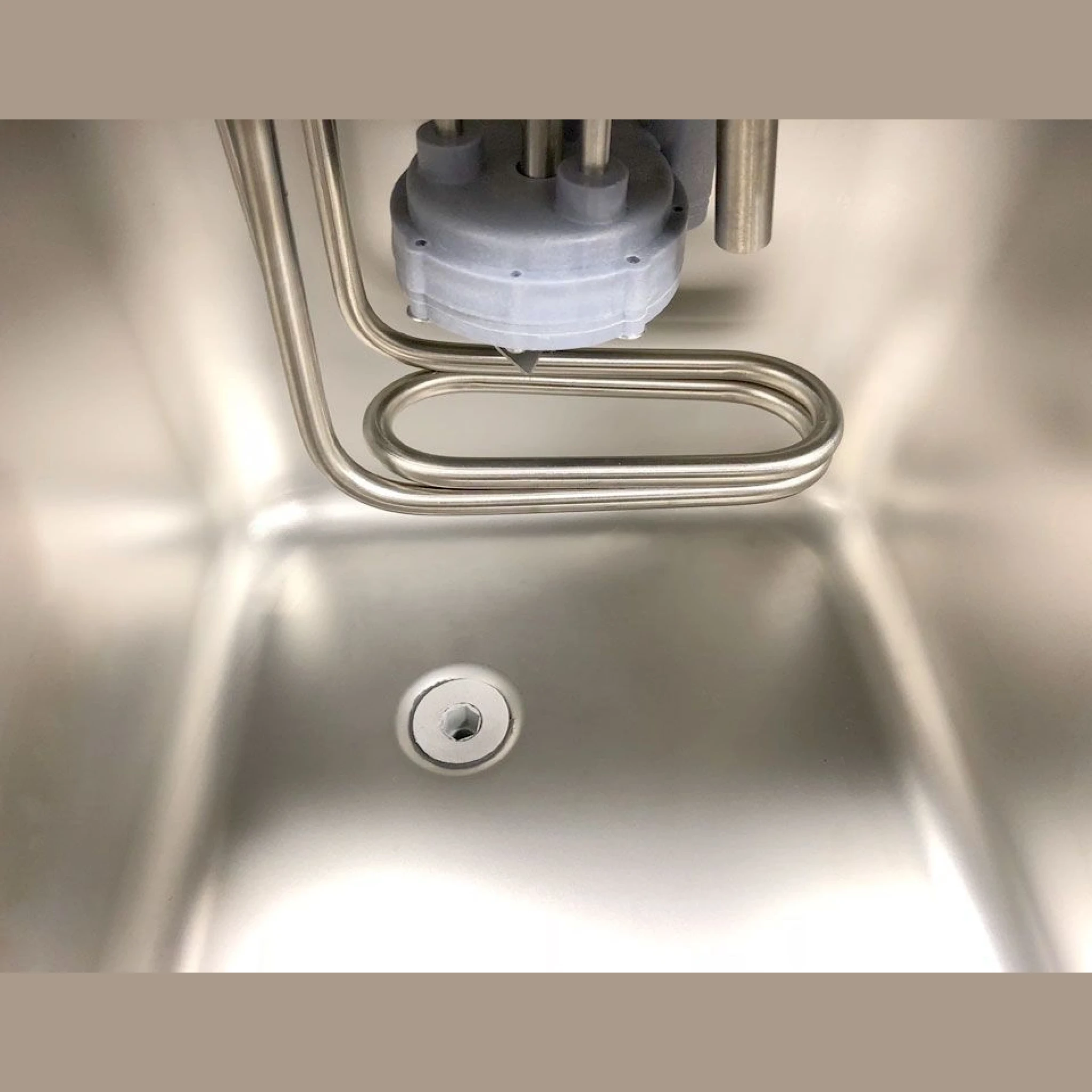

- Powerful 2,500 watts heater
- All stainless steel finish
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Connection tubing included
- Recommended for 2L to 10L distillation systems

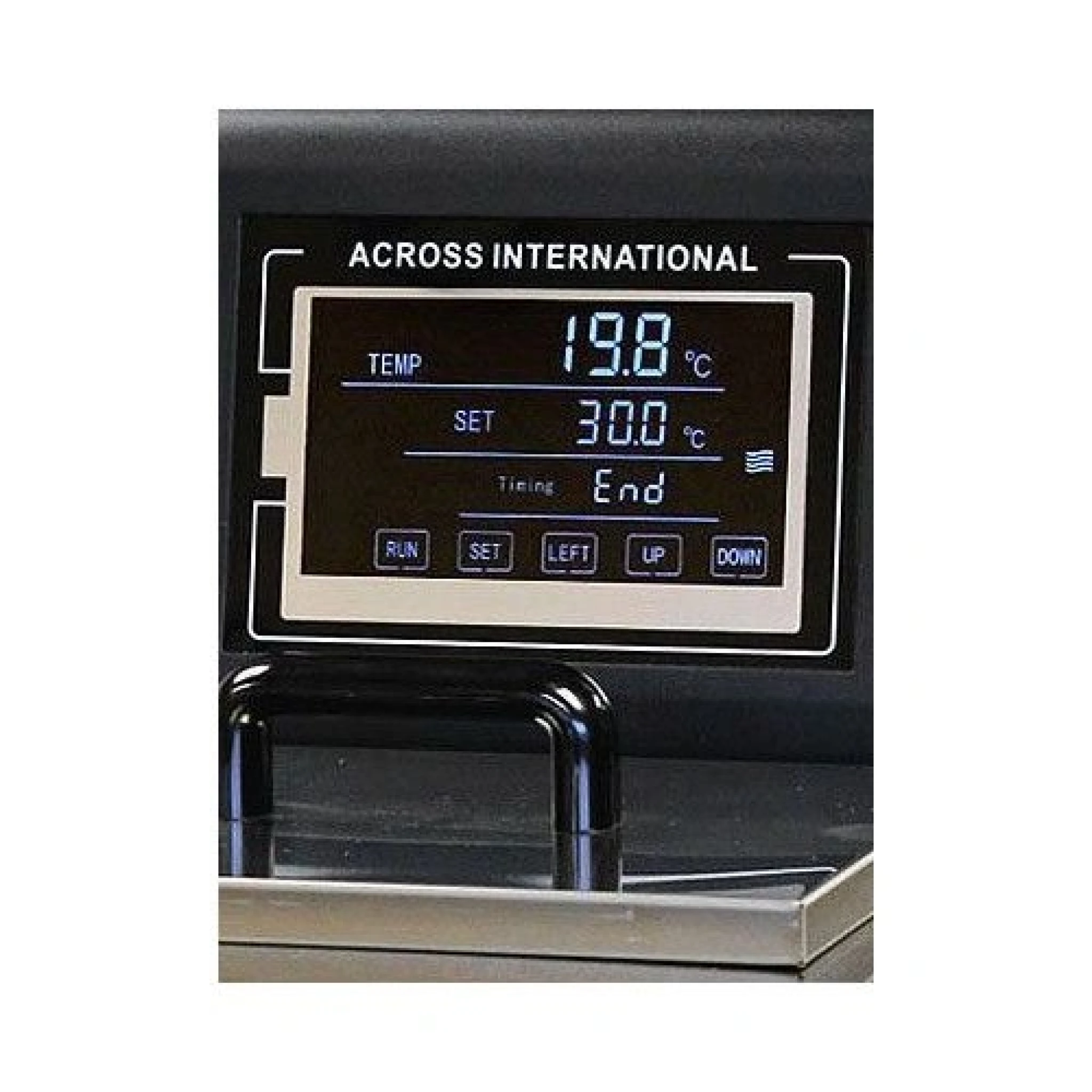

7" TOUCH SCREEN CONTROLLER
| Model | H100-15sst |
| Temperature range | Ambient to 100°C (No load) |
| Electrical requirements | 220V 60Hz 1-Phase 2,600 watts |
| Heating capacity | 2,500 watts |
| Recirculating pump | Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters |
| Reservoir | Dimensions: 9.5 x 12 x 7.5" (WxDxH) Material: Type 304 stainless steel Capacity: 15 liters or 4 gallons Thermo fluid connection: 3/8" hose barb x 2 Thermo fluid drain port: 3/8" hose barb with on/off valve |
| Temperature controller | Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 100°C |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | No |
| Unit/shipping dimensions | 12.5 x 17 x 19.25" / 17 x 20 x 22" (WxDxH) |
| Unit/shipping weight | 30 Lbs / 36 Lbs |
| Safety | Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection |
| Warranty | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
Standard Package
| Ai H100-15 100°C 15L heated recirculator | 1 pc |
| 3/8" tubing (10 ft) | 1 pc |
| 1/2" NPT to 3/8" hose barb drain port adapter | 1 pc |
| User's manual | 1 pc |
