Ai 10°C to 25°C 33L/Min 35L Capacity Recirculating Chiller
Reference:
Manufacturer: Across International

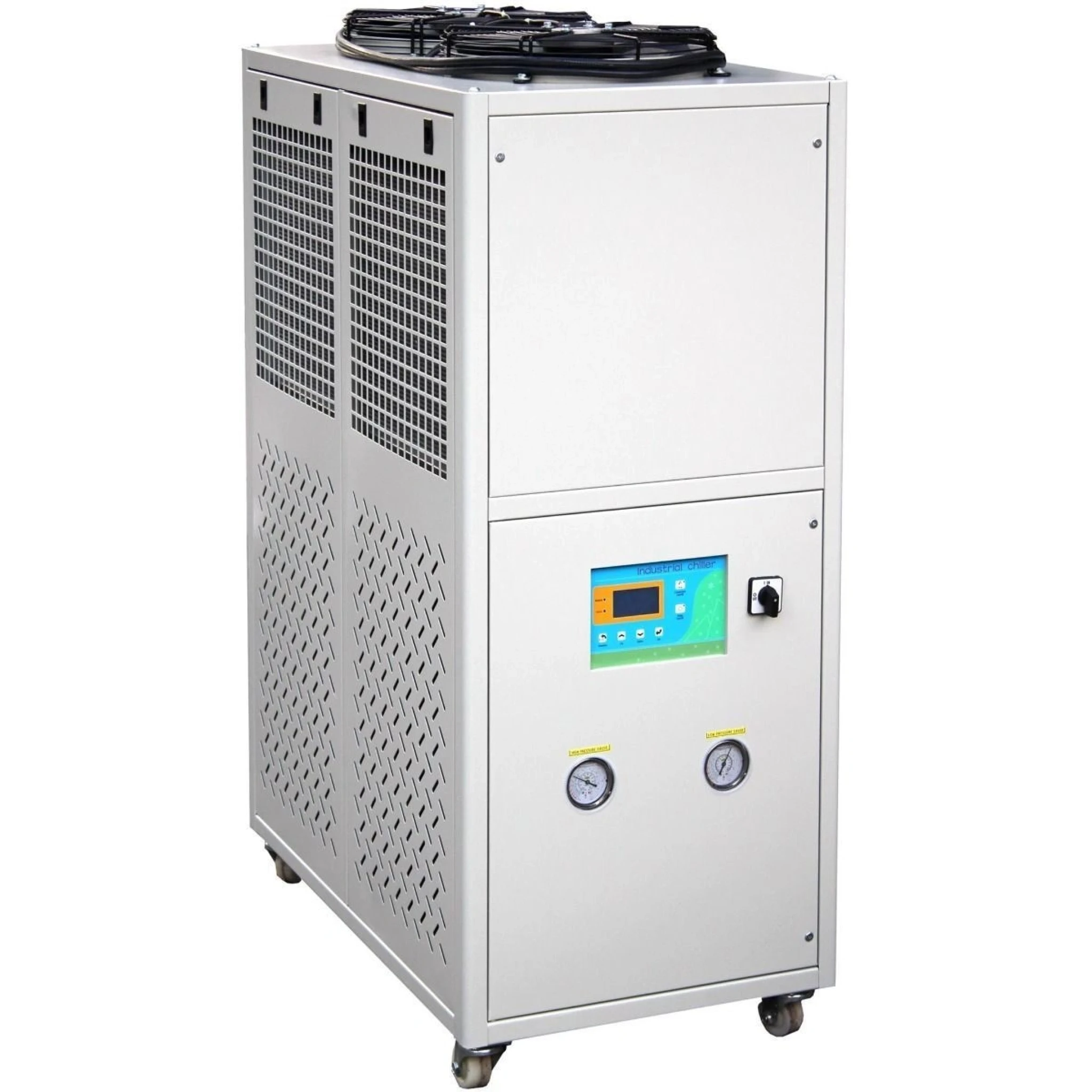

Digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.
Customize your product
Payment Providers
Manual Pressure Control Valve for 0 to 80 psi is an optional add-on, not standard with every unit
| Model | WAC-4 |

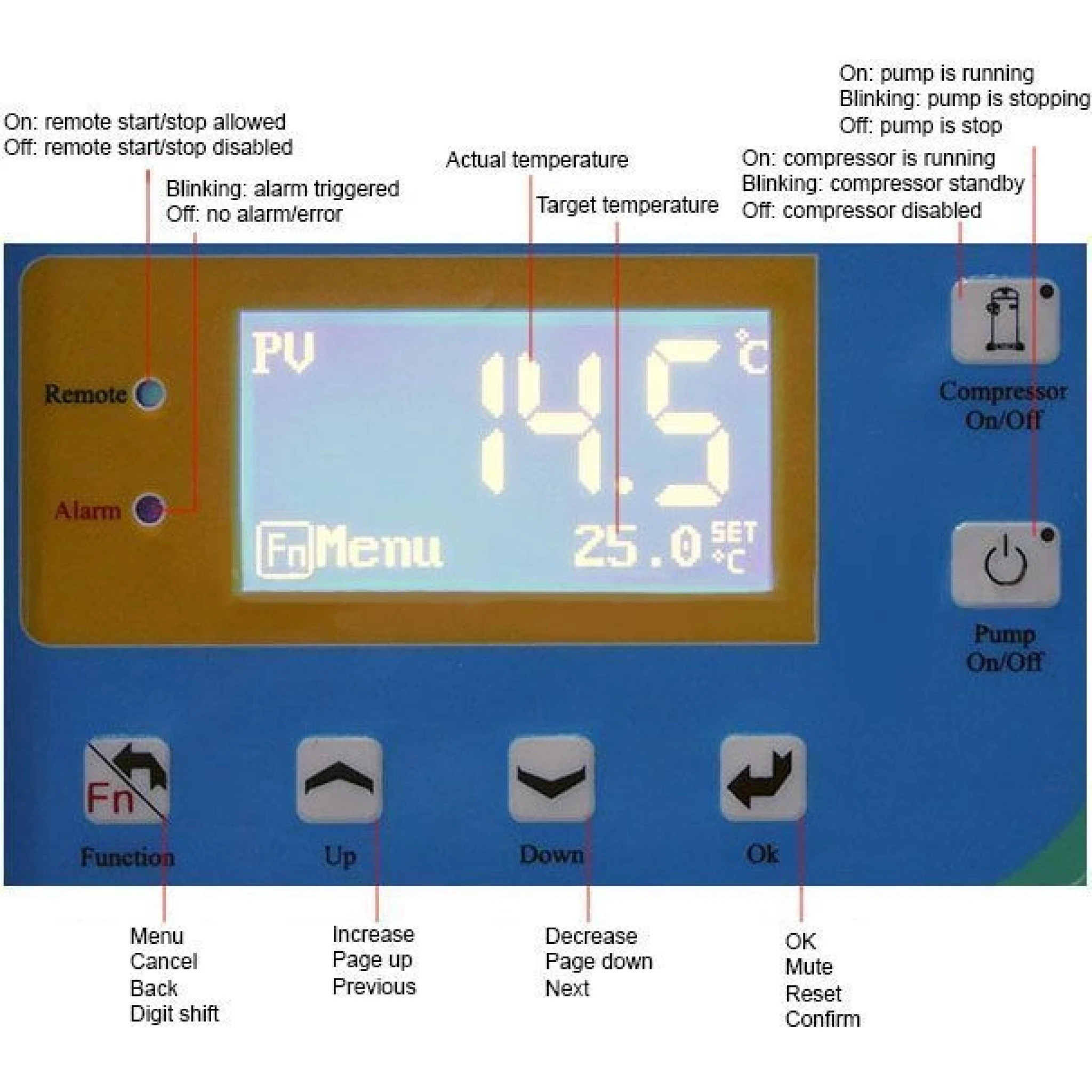

| Controller | Digital micro-chip controlled with LCD screen and fluid level display |
| Input power | 480VAC 60Hz three-phase (3PH) 3.75kW |
| Nominal cooling capacity | 10366 kcal per hour 10°C, cooling capacity 8175W 15°C, cooling capacity 10198W Nominal cooling capacity is according to: Inlet chilled fluid temperature: 12°C Outlet chilled fluid temperature: 7°C Inlet cooling air temperature: 30°C Outlet cooling air temperature: 35°C |

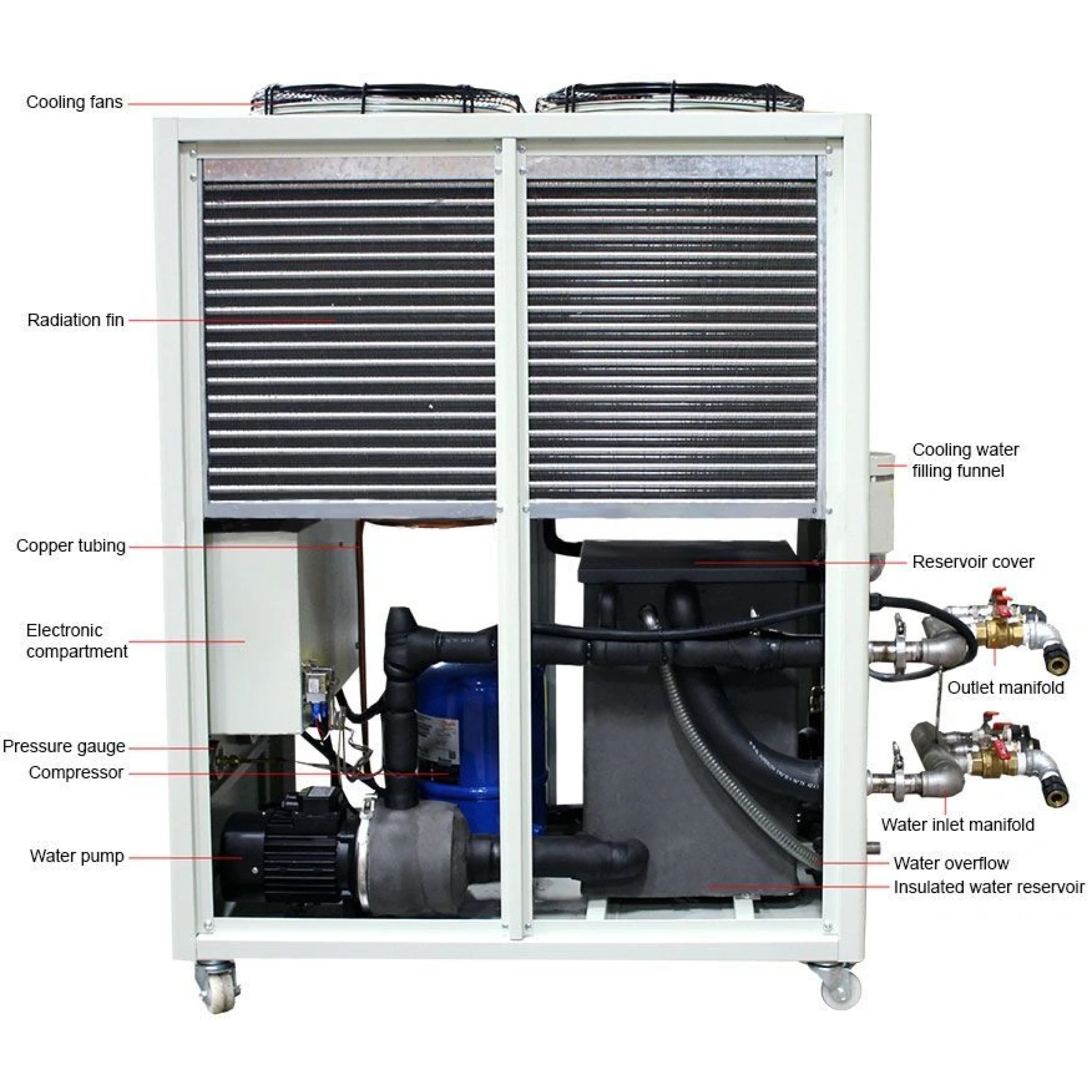

| Compressor | Make: Danfoss (UL Listed) Power: 460V 3-60Hz 8A 3750 watts, LR 25A, thermally protected Refrigerant: R407C (2,400g) PS: 22.6 bar, TS max: 50°C, TS min: -35°C Number of compressors installed: one |
| Water pump | Make: LX (CMF2-50T-A-W-G-BABE) Power: 480V 60Hz 3-PH 550 watts 2.5/Y1.4A 3450 rpm IP55 Max liquid temperature: 70°C Pumping speed: 33L per minute Max pressure: 10 bar. H(max): 64m, H(n): 51m |
| Reservoir capacity | 35L |
| Recommended coolant | Distilled water |
| Cooling fan | Make: Weiguang (YWF4D-350S-102/34-G) Power: 480V 60Hz 80/150 watts 0.27A 1640 rpm Number of fans installed: two Flow rate: 142,000 cu ft per hour |
| Temperature accuracy | +/- 2 °C |

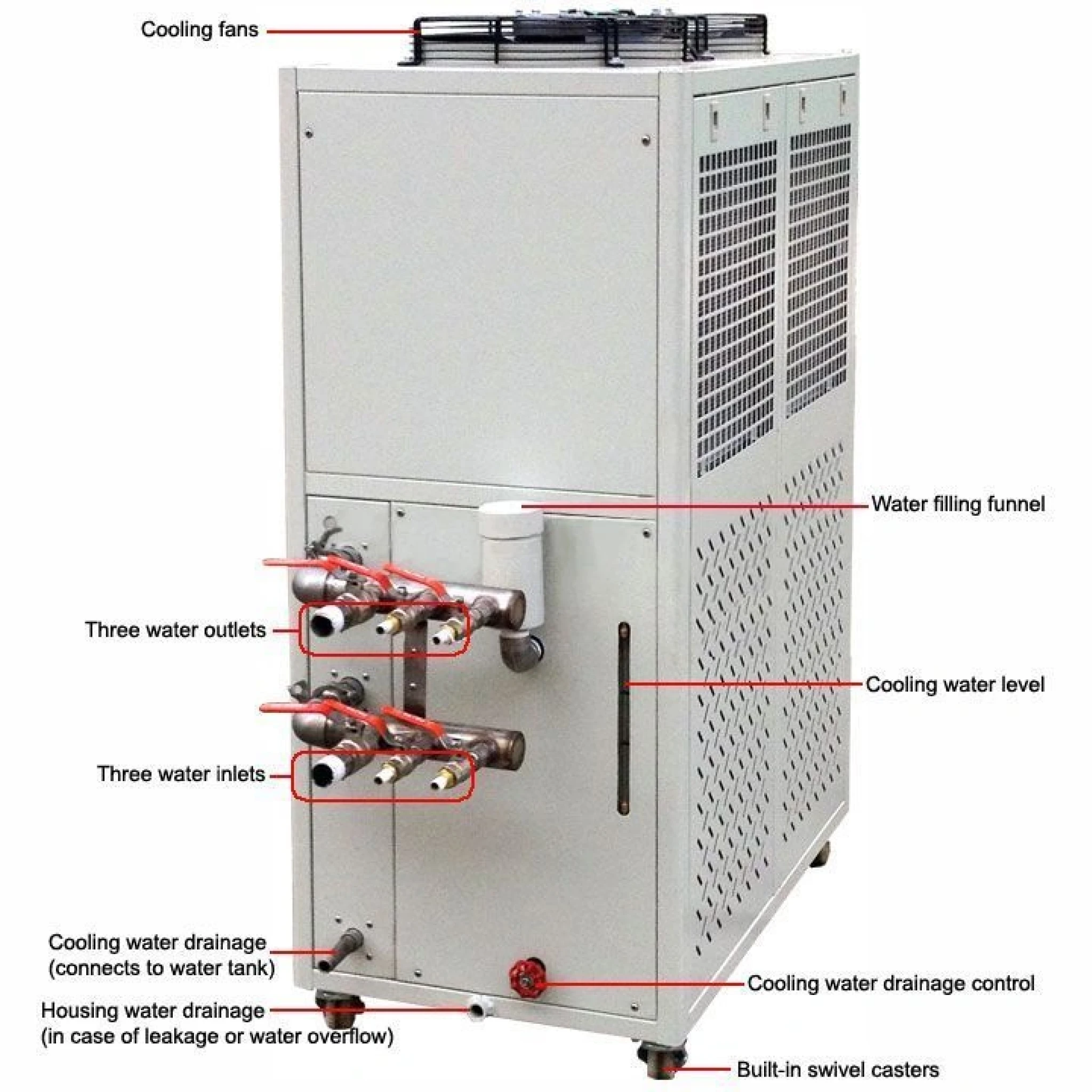

| Water inlet & outlet on chiller | 1.5" inch Tri-Clamp |
| Water manifold | Inlet: 1.5” inch Tri-clamp, manifold: one 1” inch, two 8mm quick connect with ball valve |
| Unit/shipping weight | 375 Lb / 485 Lb |
| Unit/shipping dimensions | 41 x 22 x 54" / 50 x 25 x 61" (DxWxH) |

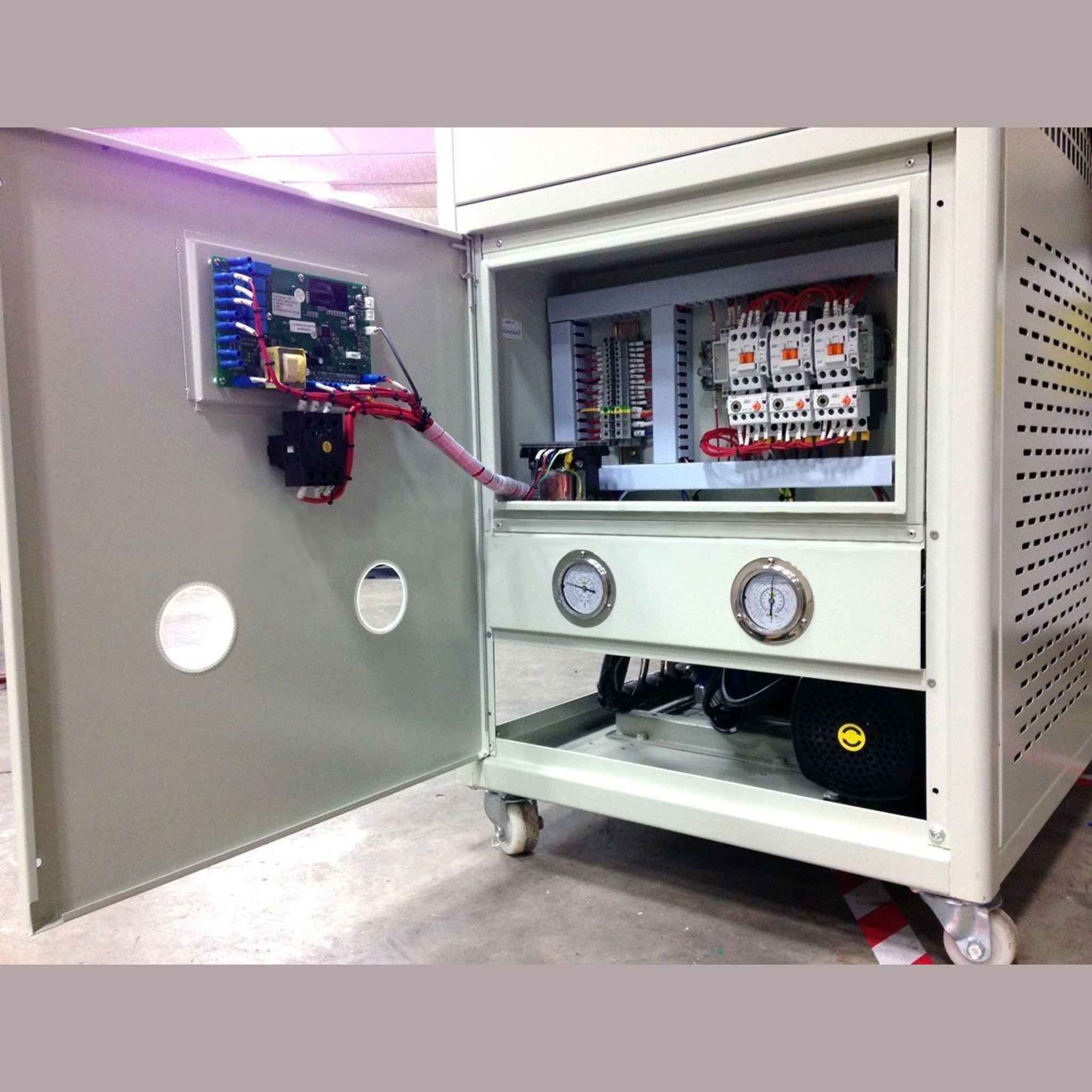

| Safety | Over current, compressor delay start, water pump over load, built-in fuse, over-voltage and under- voltage, abnormal operations, phase protection and |
| Working environment | Temperature range of chilled fluid: 5°C - 35°C. Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C. It is better to use the chiller while the ambient temperature is at or below 35°C |
| Recommended to use with these induction heaters (result may vary on different applications) | High frequency 10kW, 20kW, 30kW Mid frequency 25kW, 35kW, 70kW Low frequency 25kW, 35kW |
| CE compliant | Yes |
| Warrenty | One Year |
Standard Package
| Item | Quantity |
| WAC-4 recirculating chiller | 1 pc |
| Water manifold | 2 pcs |
| KF40 flange | 2 pcs |
| Users manual | 1 pc |
