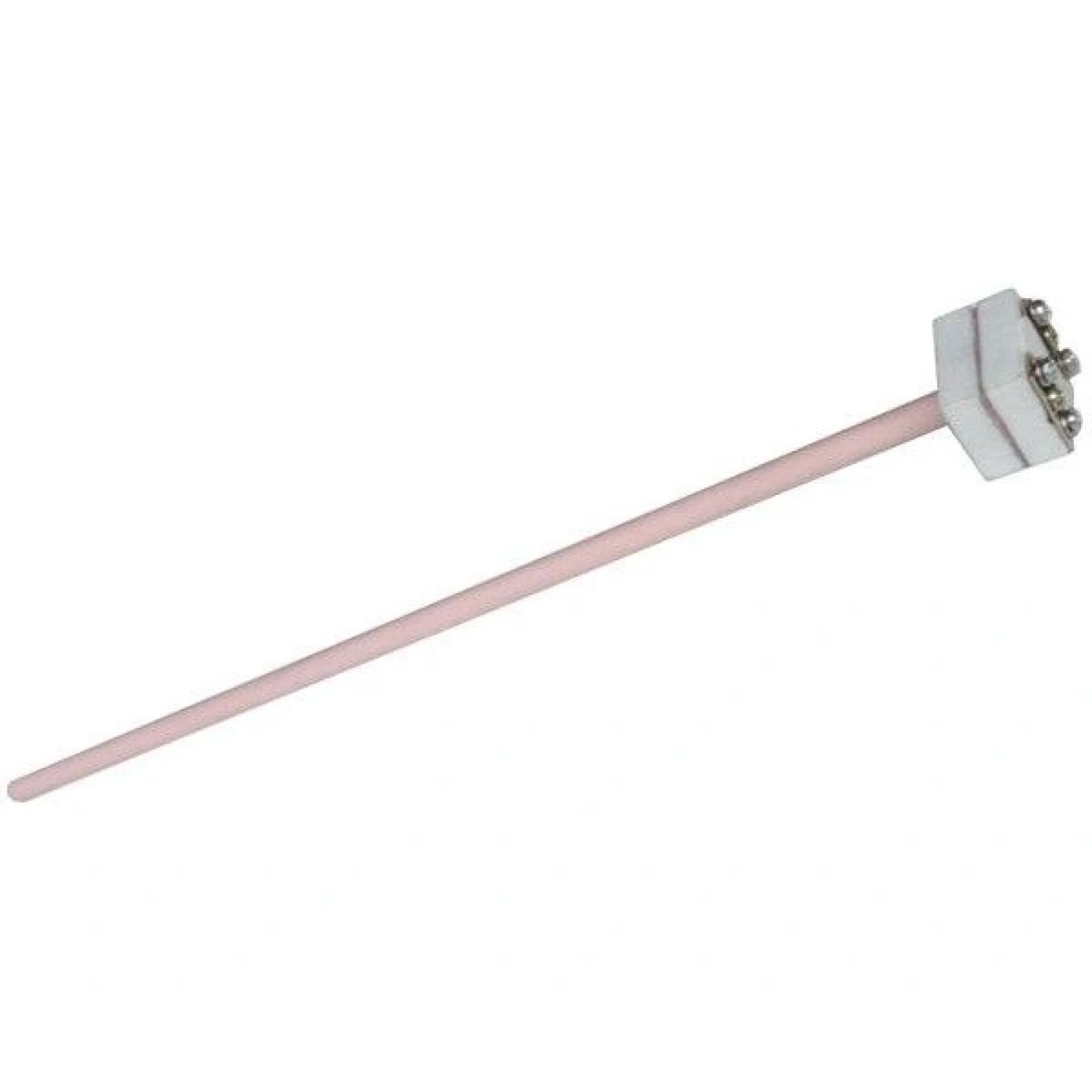

Type B Thermocouple (9.8" L) with Ceramic Sheath (Item# TCB)
Reference: TCB
Manufacturer: Across International
Type B thermocouple for application of up to 1700C. Fits our 1600C and 1700C tube and muffle furnaces.
Warning: Last items in stock!
Availability date:
| Length | 250 mm |
| Diameter of sheath | 8 mm |
| Highest temperature | 1700°C |
| Lowest temperature | 50°C |

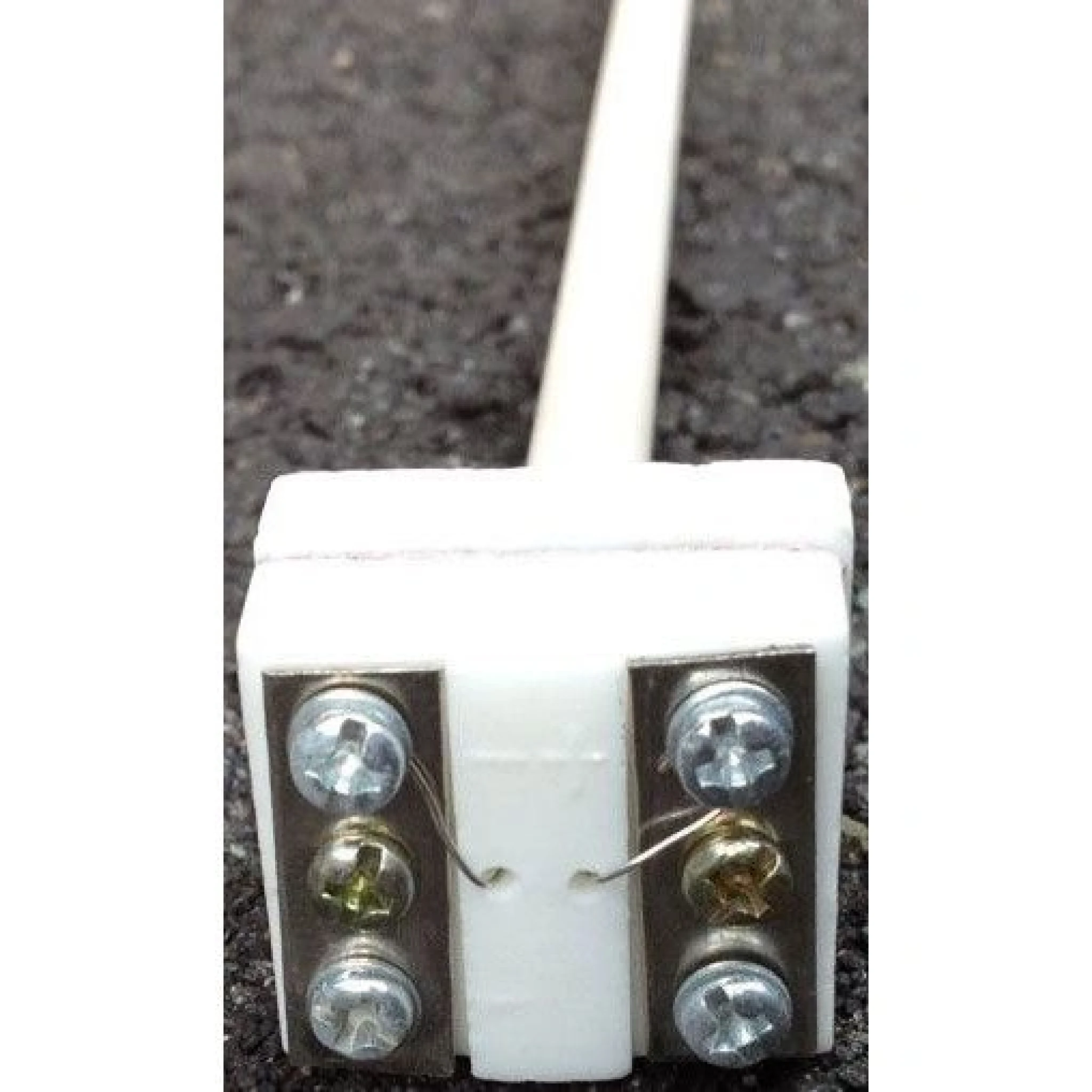

| Ceramic end holder | Four screws for connection |
| Positive material | Pt/Rh (30%) |
| Negative material | Pt/Rh (6%) |
| Minimum standard error | +/- 1.4 °C |
