Stainless Steel Vacuum Sealing Flange Kit for 25-150mm OD Tubes
Reference:
Manufacturer: Across International
- One flange with vacuum gauge and valve
- One flange with valve
- Four high temperature silicone o-rings
- Securing screws
In stock
Customize your product
Payment Providers
Warning: Refractory tube blocks must be placed in front of flanges to avoid heat damage to the silicone o-rings.
This Stainless Steel Vacuum Sealing Flange Kit is NOT compatible with rotary tube furnaces.
Call for custom flange pricing

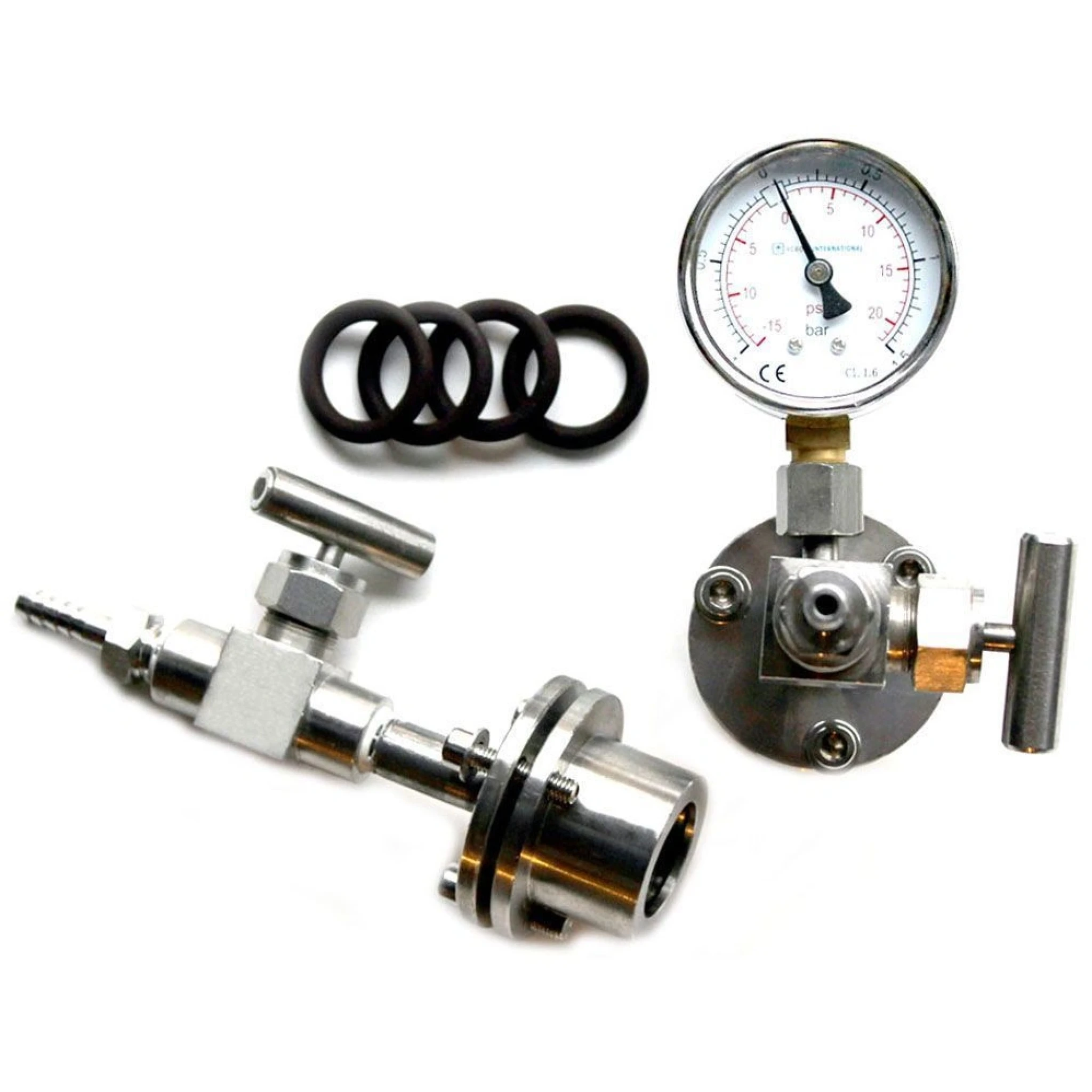

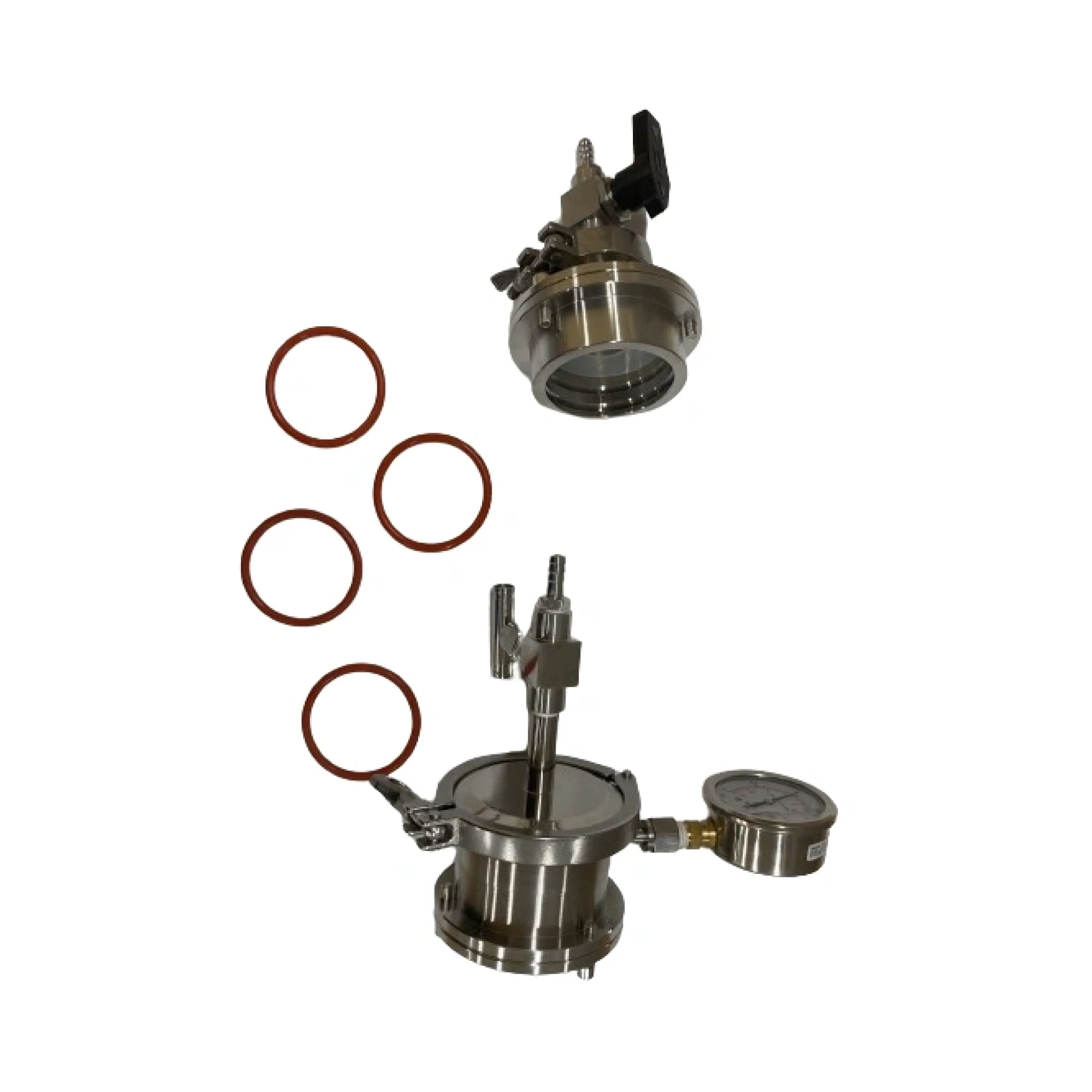

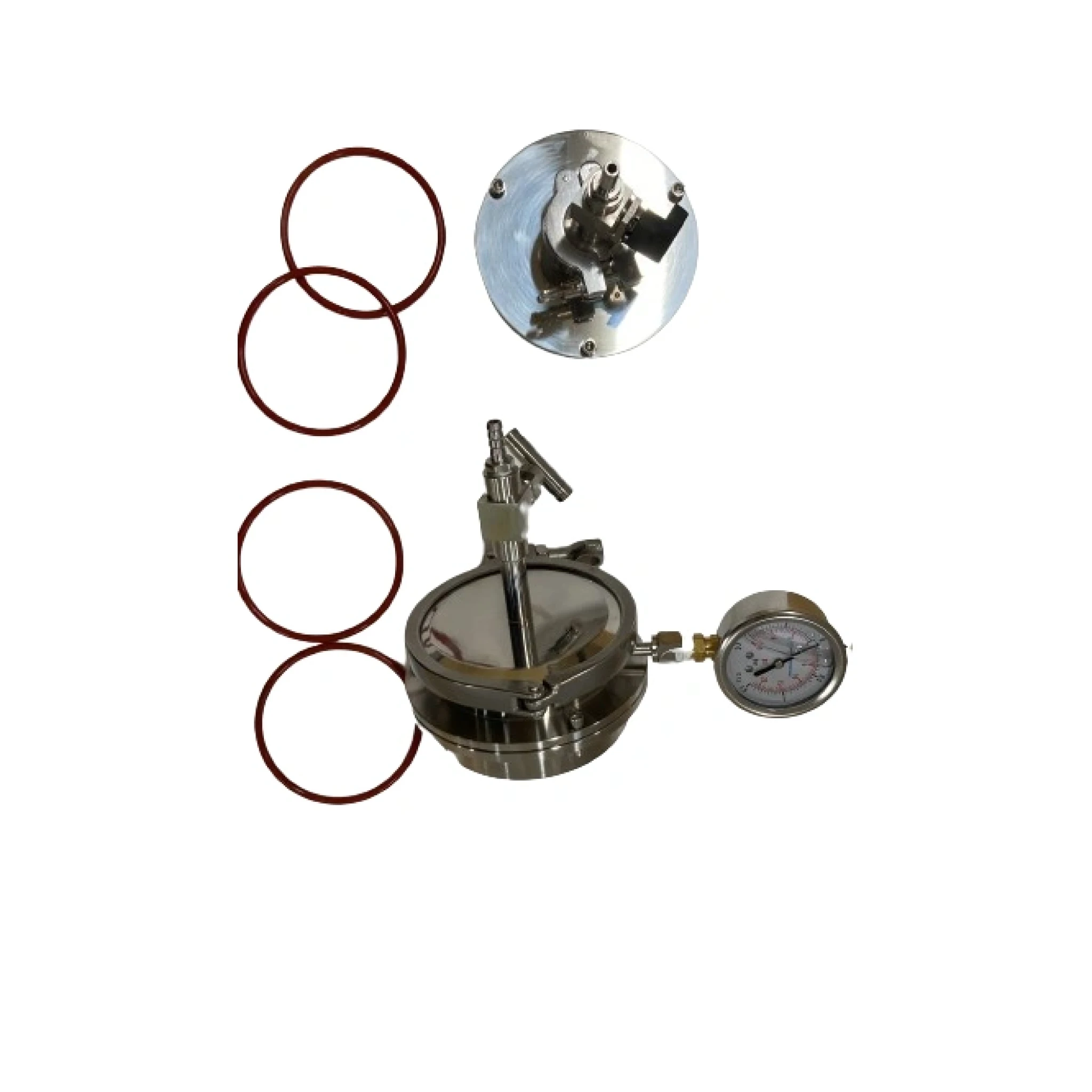

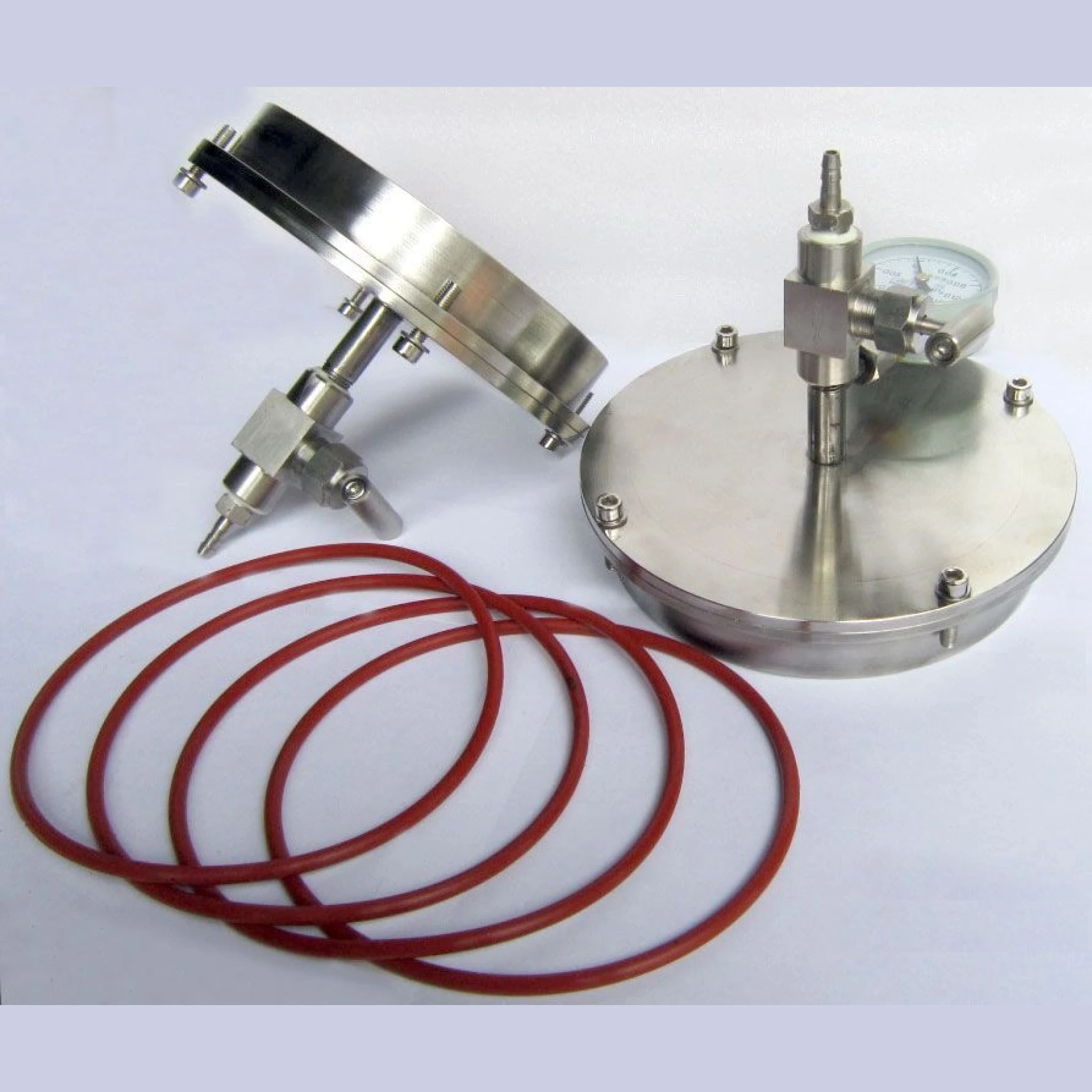

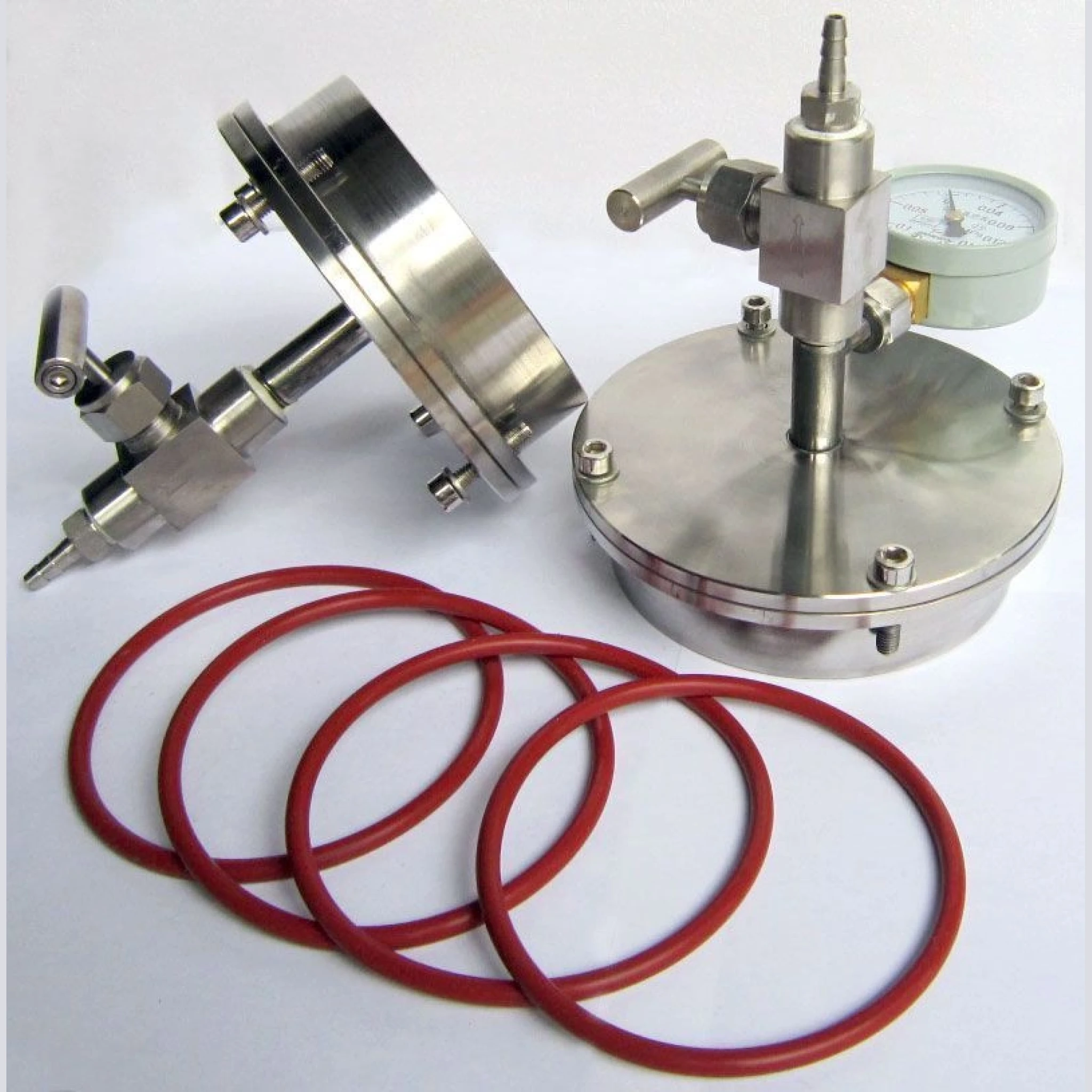

Pair of smart sealing assembly for vacuum tube furnaces to tighten both sides of their tubes without any welding or gluing. Silicon vacuum sealing gasket included. Excellent for any types of tubes including ceramic, glass, quartz, steel, etc.
Package includes
- One flange with vacuum gauge and valve
- One flange with valve
- Four high temperature silicone o-rings
- Securing screws
| SKU | FS |
| Tube OD Range | 25-150 mm |
| Material | Polished stainless steel |
| Seals | High-temperature silicone o-rings |
| Tube Fitting | 1/4" hose barb (KF25 upon request) |
| Vacuum Barb Adapter | M14 tapered |
| Vacuum Gauge Port | M14 non-tapered |
| Compatible Tubes | Ceramic, glass, quartz, steel |
| Included | 1 flange with vacuum gauge and valve; 1 flange with valve; 4 high-temperature silicone o-rings; securing screws |
