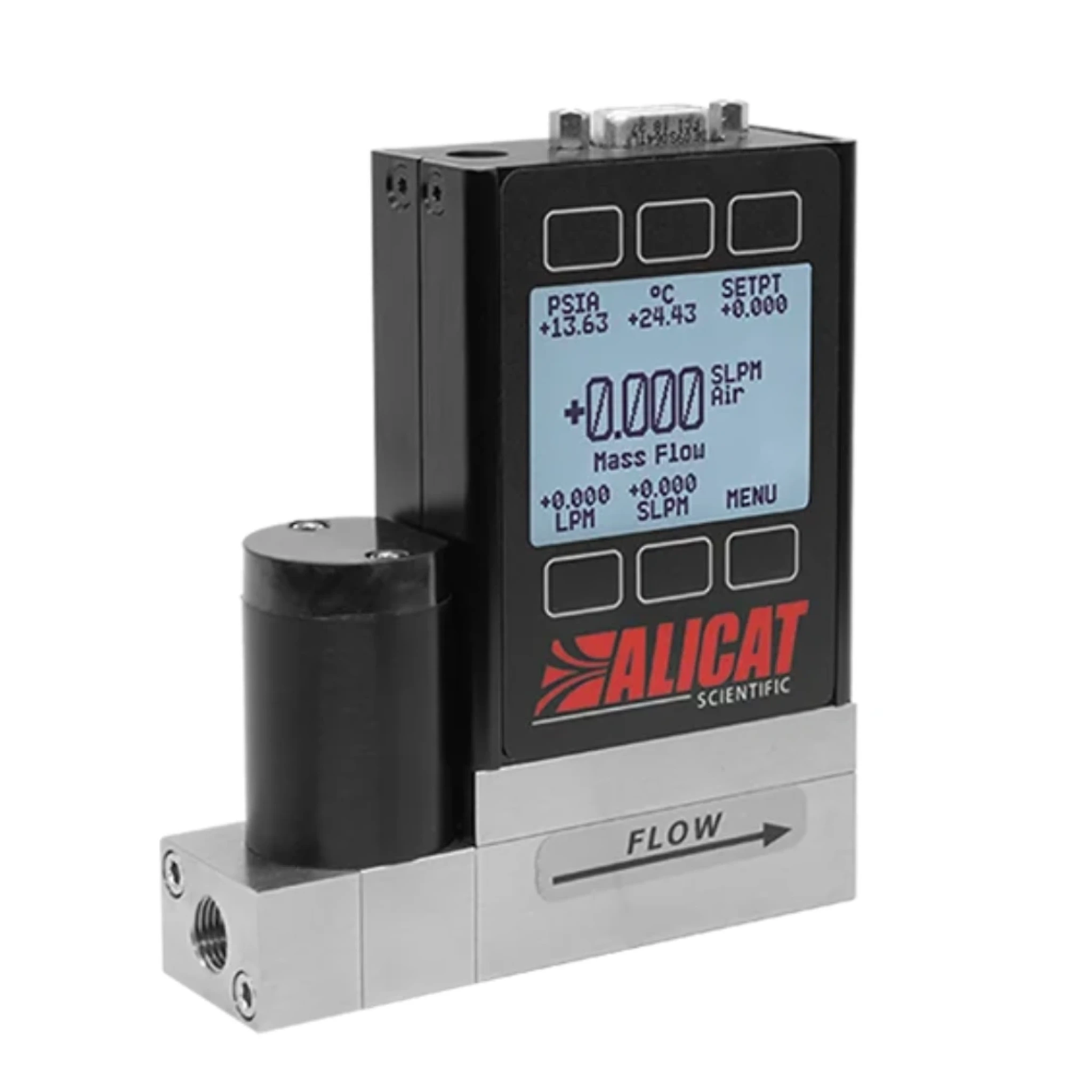

Alicat Mass Flow Controller
Reference:
Manufacturer: Across International
- Laminar DP (differential pressure) mass flow measurement technology
- 98-130 pre-loaded gas calibrations — switch without losing accuracy
- Measures mass flow, volumetric flow, temperature, and pressure
- Ultra–fast control response time as low as 30 ms
In stock
Customize your product
Payment Providers
Alicat Mass Flow Controllers with Laminar Differential Pressure (DP) Technology -
are the premier choice for scientific and industrial applications. Alicat MFC’s couple high quality components with an innovative design in order to deliver a precise and repeatable solution across a wide range of flow control applications. Gas flow controllers and meters provide mass - or volumetric - flow measurement, which is critical for many applications. Key uses include regulating inert gas flows into vacuum drying ovens and high temperature furnace, metering reactive gases into CVD systems, regulating inert gas conditions within reactors, and much more.
Our most versatile gas flow controllers for most industrial processes and research applications.
- Laminar DP (differential pressure) mass flow measurement technology
- 98-130 pre-loaded gas calibrations — switch without losing accuracy
- Measures mass flow, volumetric flow, temperature, and pressure
- Ultra–fast control response time as low as 30 ms
- As high as 0.01 – 100% measurement and control range (10,000:1 turndown)
- Limited Lifetime Warranty
Alicat Mass Flow Controllers intended and configured for use with Across International systems only

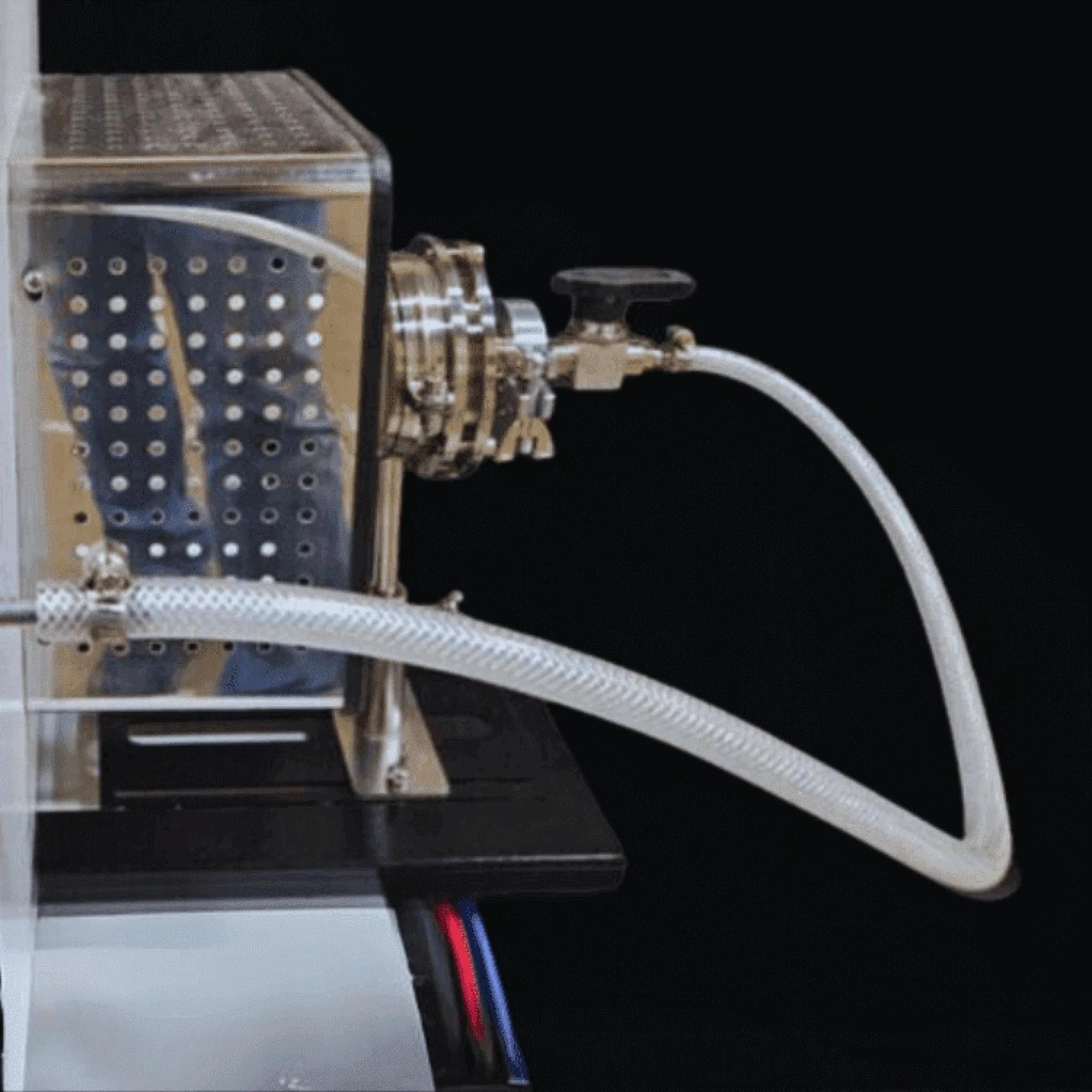

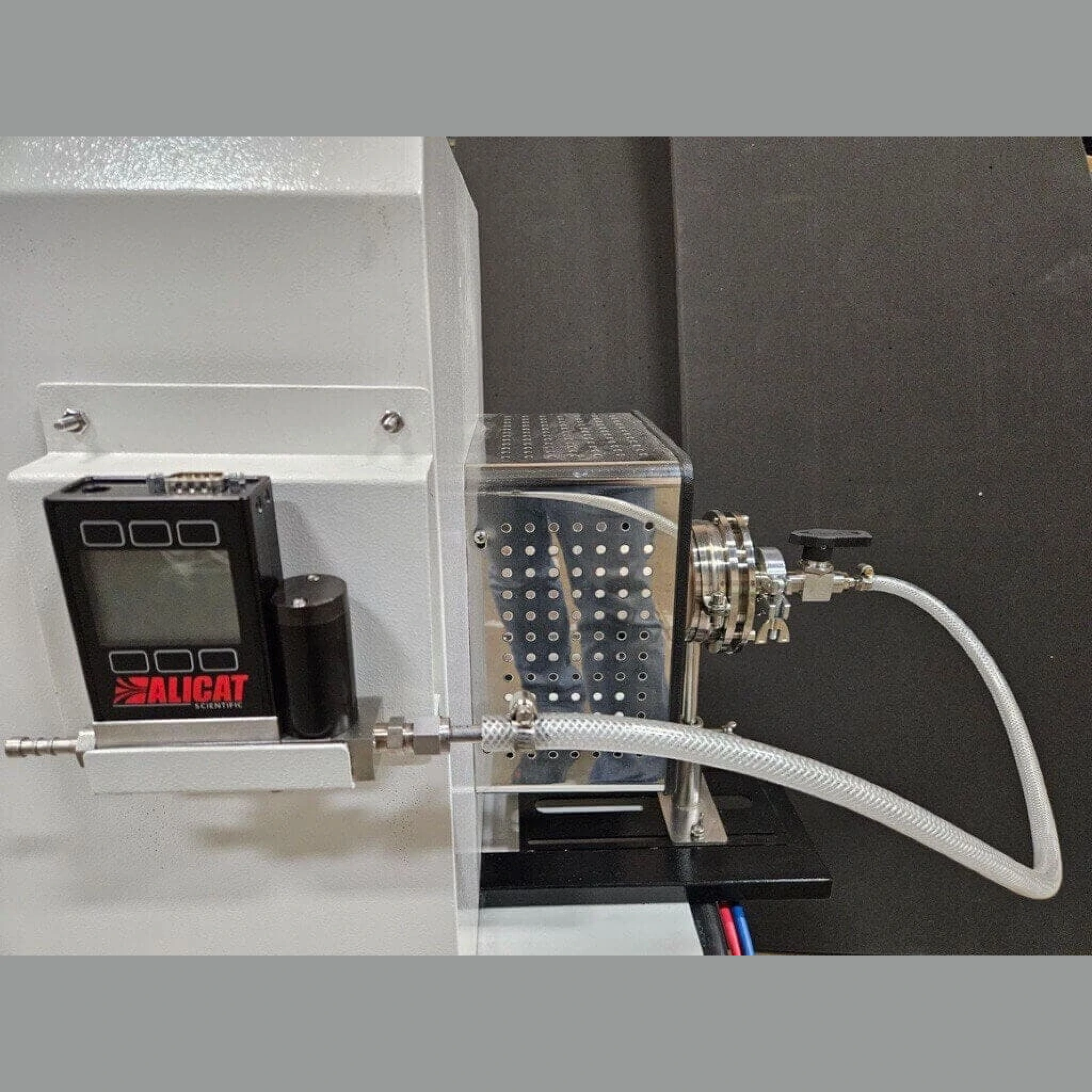

Connection kit for 1/8” NPT:
2x 1/8" NPT male to 1/4 barb – SS
25 ft- tubing, Soft, Durometer 50A, 1/4" ID, 3/8" OD, Semi-Clear White

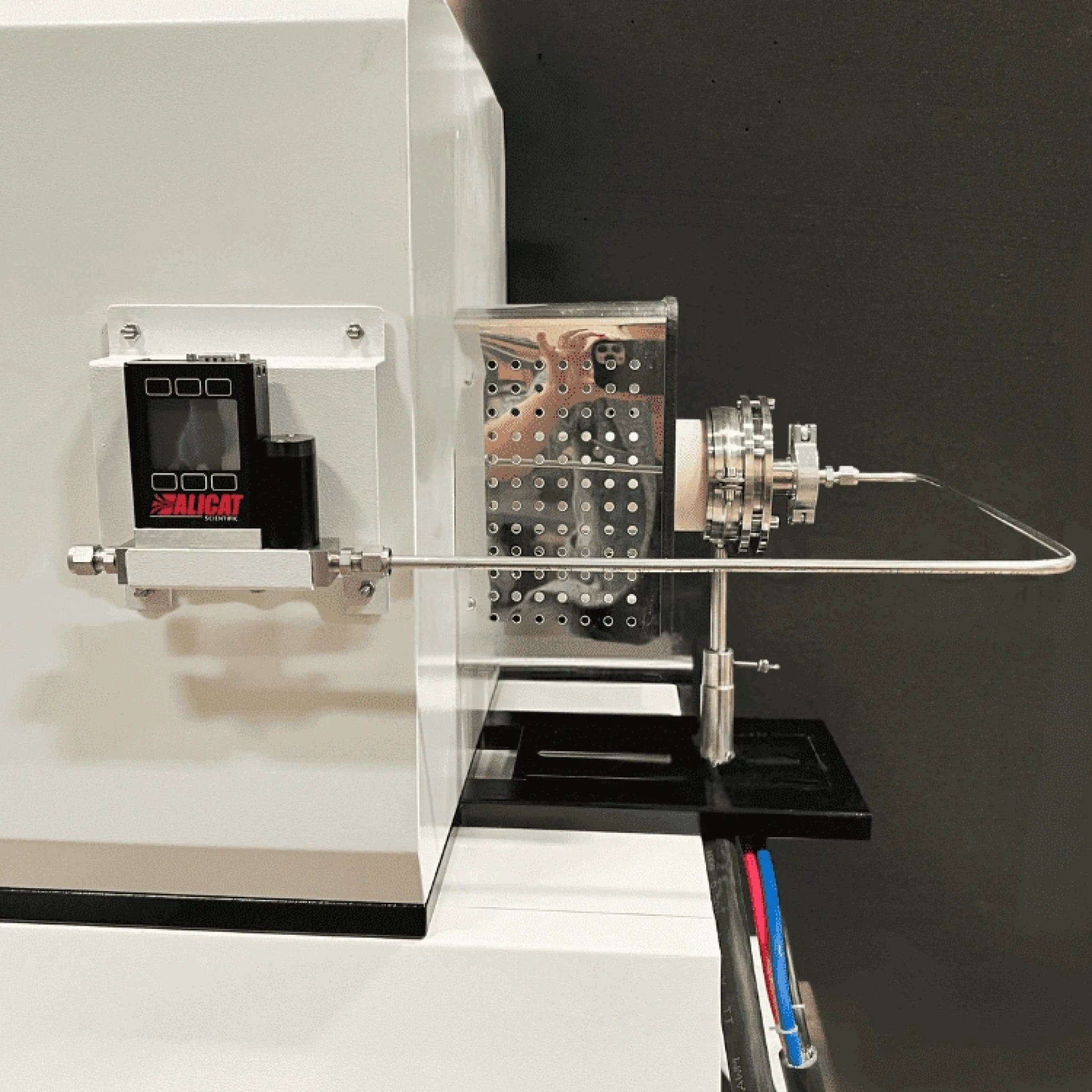

Connection kit for 1/4" compression fitting
1x KF25 to 1/4" compression fitting x 1 (on flange)
25 ft- Stainless steel tubing, 1/4" OD, 0.02" Wall Thickness, Coil
| Flow ranges | 0-500 SCCM, 0-5 SLPM, 0-10 SLPM, 0-20 SLPM |
| Process ports | 1/8" female NPT or 1/4" compression fitting |
| Measurement technology | Laminar differential pressure (DP) |
| Gas calibrations | 98-130 pre-loaded |
| Measures | Mass flow, volumetric flow, temperature, pressure |
| Control response time | As low as 30 ms |
| Control range | As high as 0.01-100% (10,000:1 turndown) |
| Connection kit, 1/8" NPT | 2x 1/8" NPT male to 1/4 barb (SS); 25 ft soft tubing, Durometer 50A, 1/4" ID, 3/8" OD |
| Connection kit, 1/4" compression | 1x KF25 to 1/4" compression fitting; 25 ft stainless steel tubing, 1/4" OD, 0.02" wall |
| Communication cable options | USB to DB9-232 or USB to DB9-485 serial converter |
| Options | Helium leak testing |
| Warranty | Limited lifetime |
