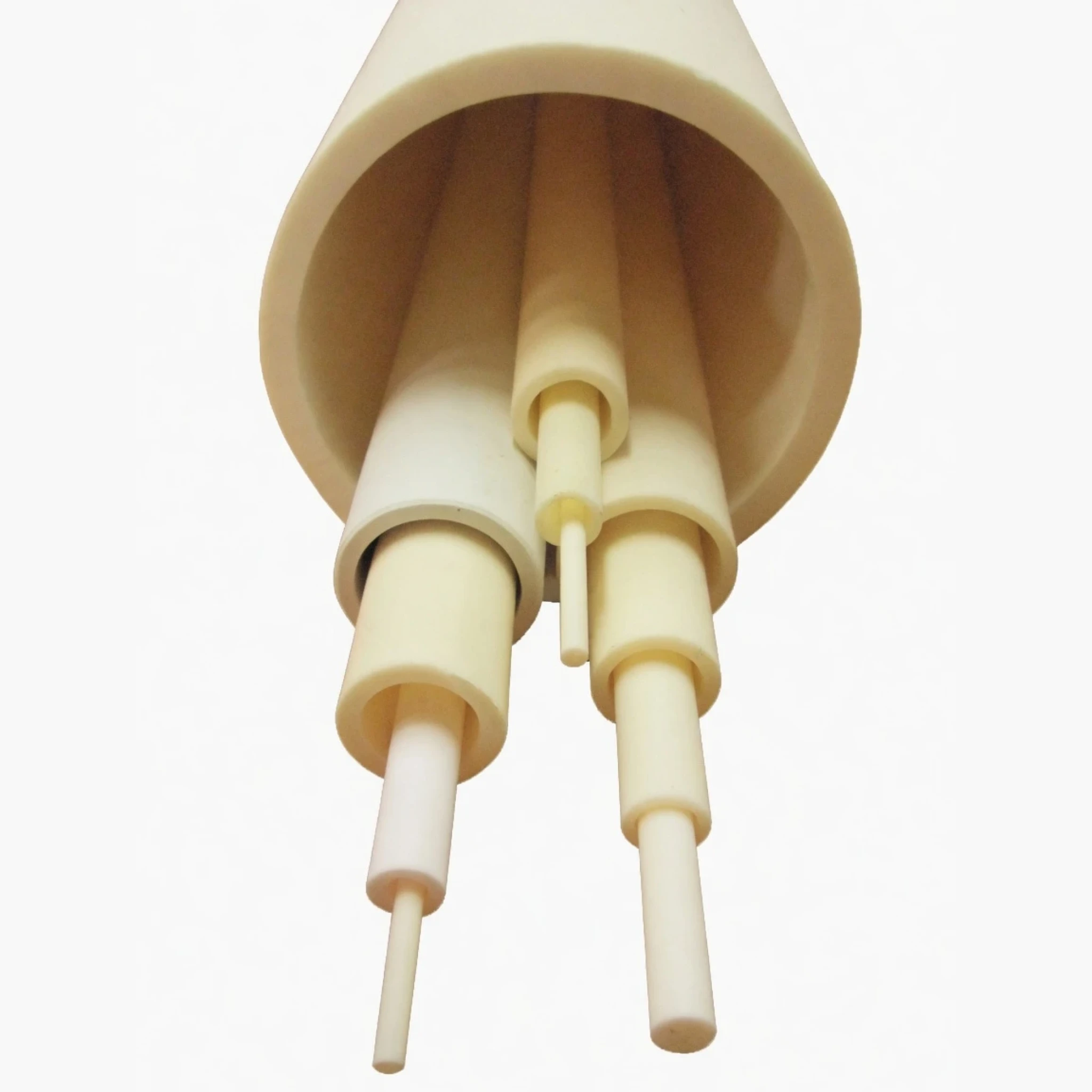

Alumina Ceramic Process Tubes, Open Both Ends
Reference:
Manufacturer: Across International
- Round single bore, open both ends
- Alumina: > 99.5%; Fe2O3: < 0.01%
- 100% impervious
- Density: > 3.8 g/cm3
In stock
Customize your product
Payment Providers
High purity alumina ceramic process tube for metal casting or ceramic sample preparation, designed to fit our TF furnaces.
Note: Not compatible with our STF1200, TFM2.1200 and TFM3.1200 series furnaces.
The process tube is the working chamber of a tube furnace: samples sit inside it while the heating elements surround it, and with sealing flanges fitted it can hold a vacuum or a controlled gas atmosphere.
With over 99.5% alumina and less than 0.01% iron oxide, the tube stays clean and stable at working temperatures up to 1750°C. Its impervious body is rated to hold vacuum down to 0.001 Pa, but positive pressure is limited to 3 psi, so gas flow should vent freely rather than build up in the tube.
Pair the tube with alumina thermal blocks placed in front of the sealing flanges to keep heat away from the flange gaskets.
| Features | |
| Round single bore, open both ends | |
| Alumina | > 99.5%; Fe2O3: < 0.01% |
| 100% impervious | |
| Density | > 3.8 g/cm3 |
| Maximum working temperature | 1750°C or 3180°F |
| Rated vacuum pressure | 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Rated positive pressure | 0.02 MPa / 150 torr / 3 psi |
| Tolerance | 2 mm |
