Type K Thermocouple with Ceramic Sheath (Item# TCK)
Reference:
Manufacturer: Across International
Type K thermocouple for application of up to 1200C. Fits all Ai 1100C muffle furnaces (except CF1100 5x4x4").
In stock
Customize your product
Payment Providers
The thermocouple is the furnace's temperature sensor: it sits in the chamber and reports the real temperature back to the controller. A worn or damaged sensor gives false readings, so replacing it restores accurate, repeatable heating cycles.

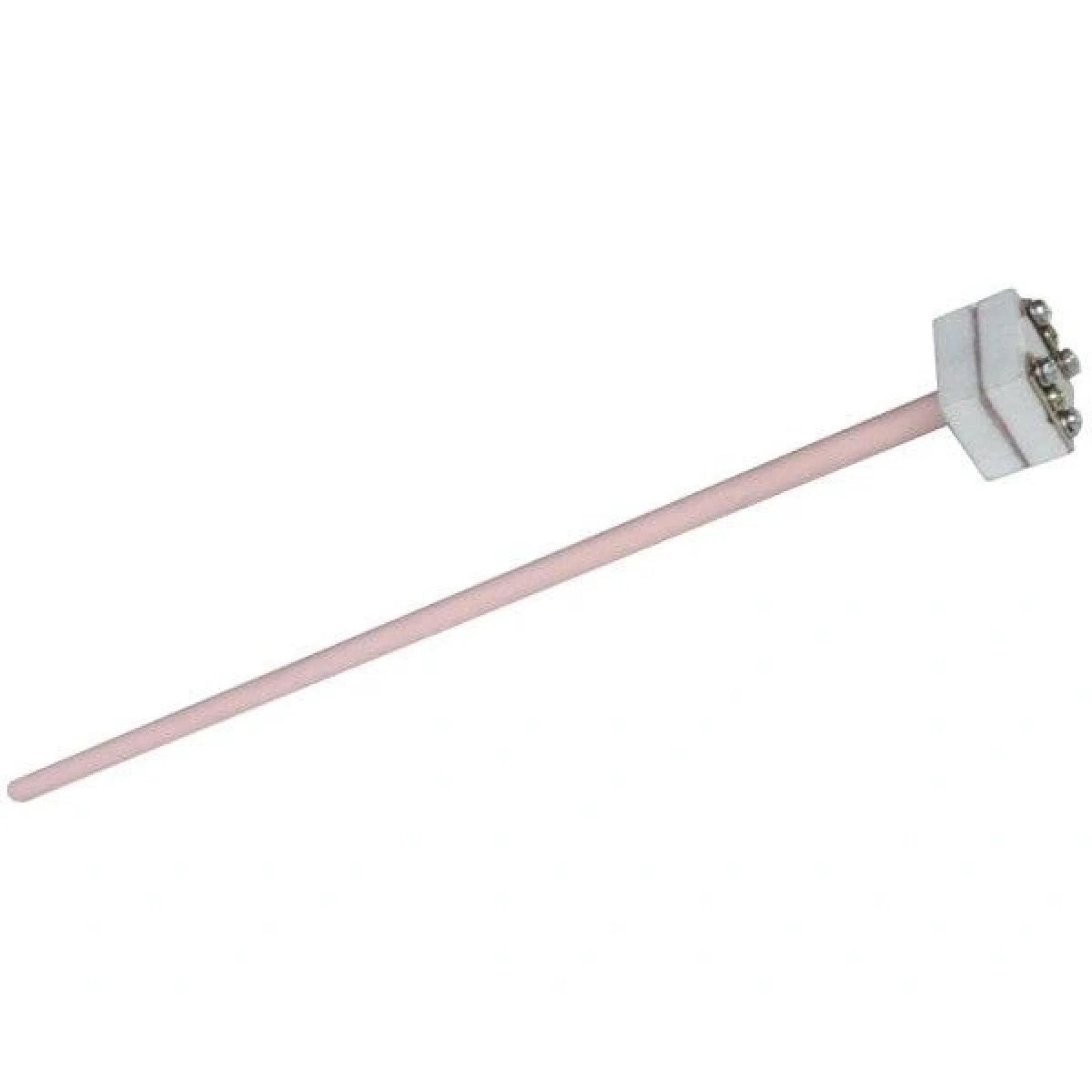

This Type K version is protected by a rigid alumina ceramic sheath, 8 mm in diameter, which suits the steady high heat of a muffle furnace. It reads from 50 °C to 1200 °C with a standard error of about +/- 1.4 °C, and comes in 280 mm or 343 mm lengths. It fits the 1100 °C muffle furnaces, except the CF1100 5x4x4 inch model, so confirm the length your furnace takes before ordering.
| Length | 280mm or 343mm |
| Diameter of sheath | 8 mm |
| Highest temperature | 1200°C |
| Lowest temperature | 50°C |

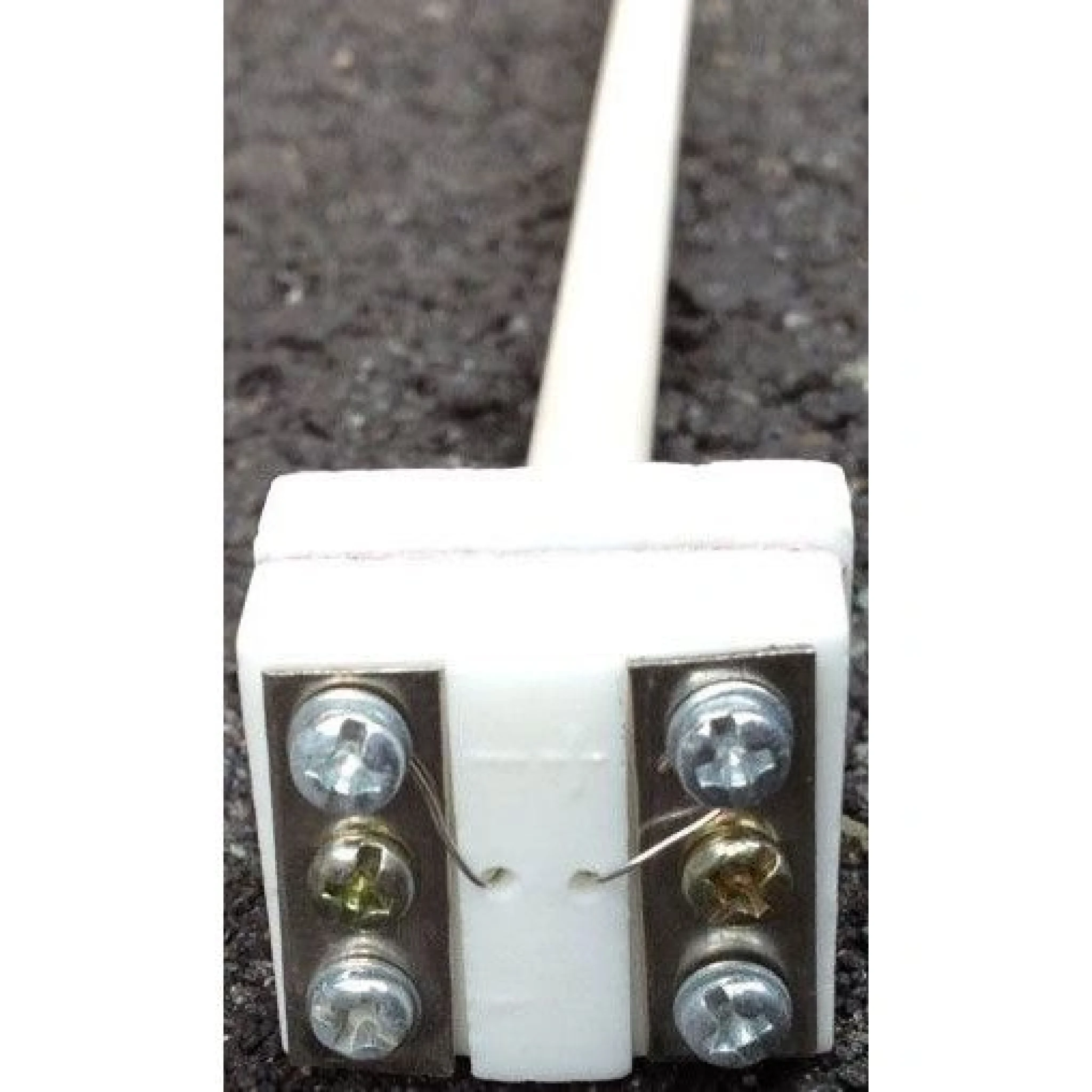

| Ceramic end holder | Four screws for connection |
| Positive material | Approx. 90% Nickel and 10% Chromium |
| Negative material | Approx. 95% Nickel, 2% Aluminum, 2% Manganese and 1% Silicon |
| Minimum standard error | +/- 1.4 °C |
| Compatible furnaces | 1100°C max muffle furnaces (except CF1100 5x4x4") |
| Sheath material | Aluminum Ceramic |
