350C 2000RPM 1.5-Gallon PID Magnetic Stirrer w/ 9" Heated Plate
Reference:
Manufacturer: Across International
The Ai HP9 heats to 350°C on a 9" ceramic-coated aluminum plate and stirs from 110 to 2000 rpm, for batches up to 1.5 gallon. PID control with digital temperature and speed displays, plus an external PT100 probe (11" stainless, 35" cable) for accurate fluid temperature. 110V, 750 W.
In stock
Customize your product
Payment Providers

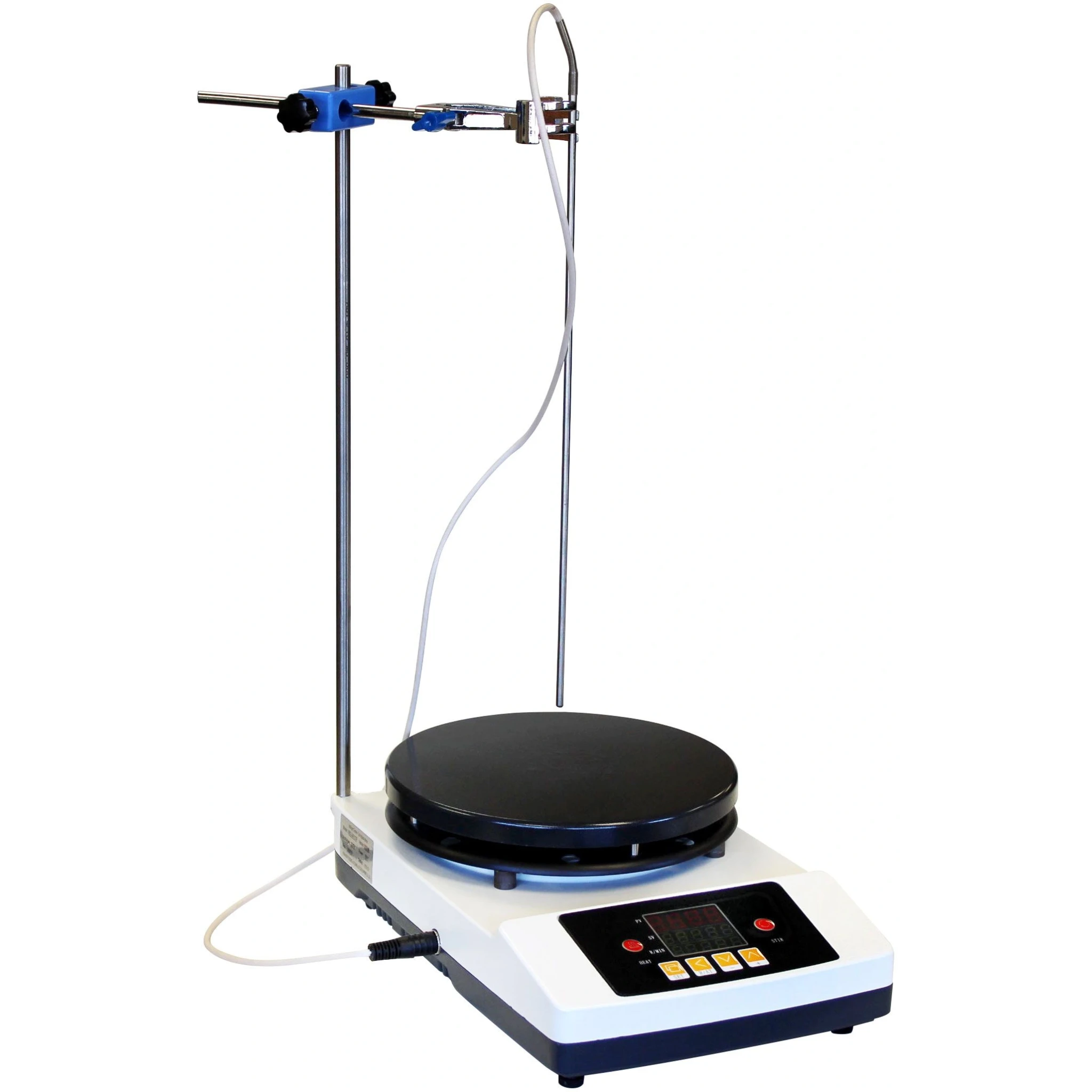

The HP9 has a 9 inch plate and 750 watts of heating, enough to bring up to 1.5 gallons of liquid to temperature and keep it stirring. It suits larger flasks and beakers used for solvent washes, dissolving and holding a batch at a set temperature.

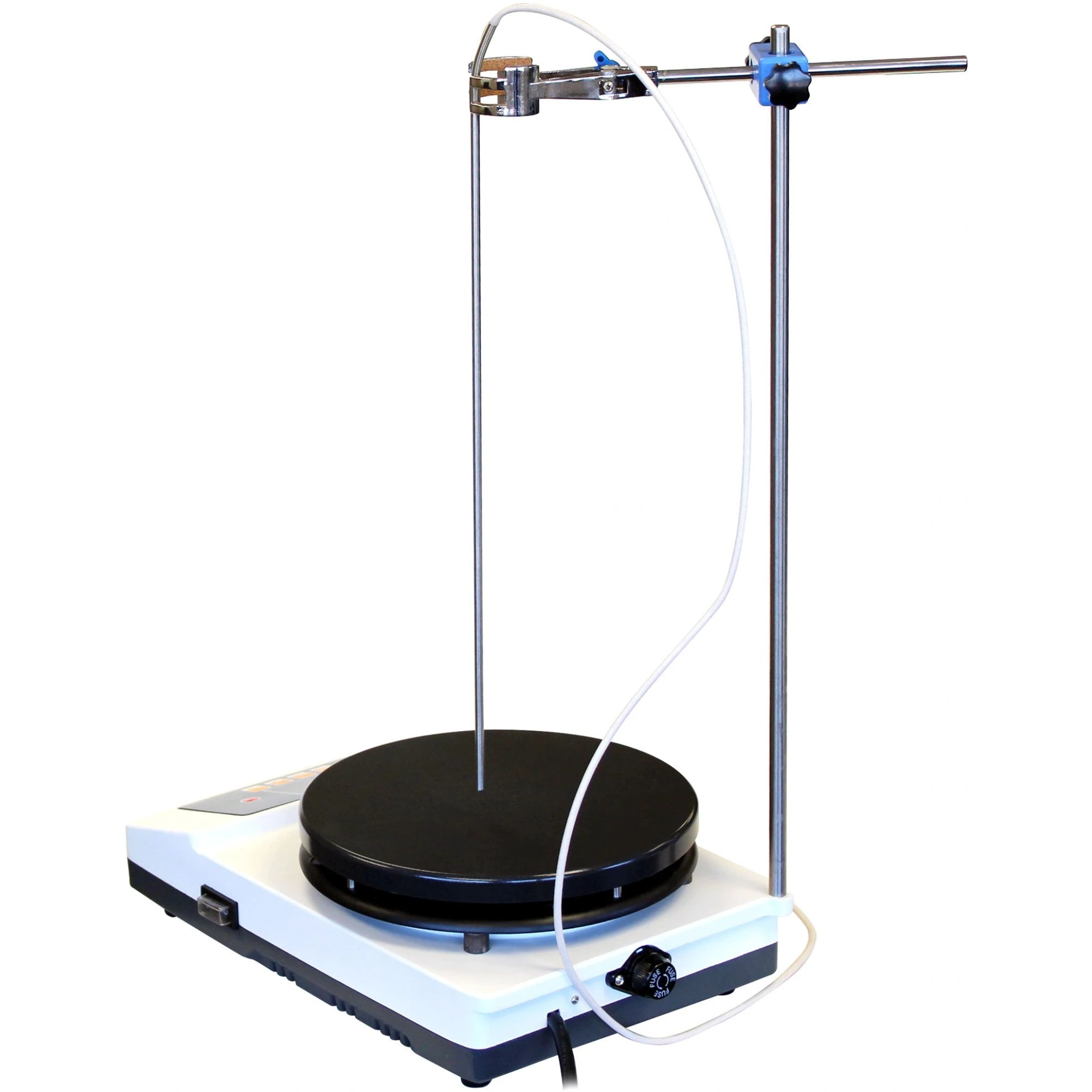

PID control drives the ceramic coated aluminium plate to 350°C, and in maker testing with heat transfer fluid in a 5L beaker over 2 hours, the liquid at the centre stayed within ±2% of the displayed temperature. The brushless DC motor covers 110 to 2000 rpm. The kit includes an external PT100 probe on a 35-inch cable with an 11-inch stainless tip, so the controller can regulate the temperature of the liquid itself rather than just the plate. A support rod, boss head and 4 prong clamp hold the probe or flask in place, and two PTFE stir bars and a bar remover are included.
| Model | HP9 |
| Electrical requirements | 110V 60Hz 1-Phase, 750 watts |
| Temperature range | Ambient to 350°C |
| Temperature stability | ±2% between center of fluid in beaker and temp displayed on hot plate (tested with Duratherm S in a 5L beaker over a period of 2 hours) |
| Heating plate | Diameter: 9 inches Material: ceramic coated aluminum |
| Stirring | Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brush-less DC motor Max. stirring volume: 1.5 gallon (water as media) |

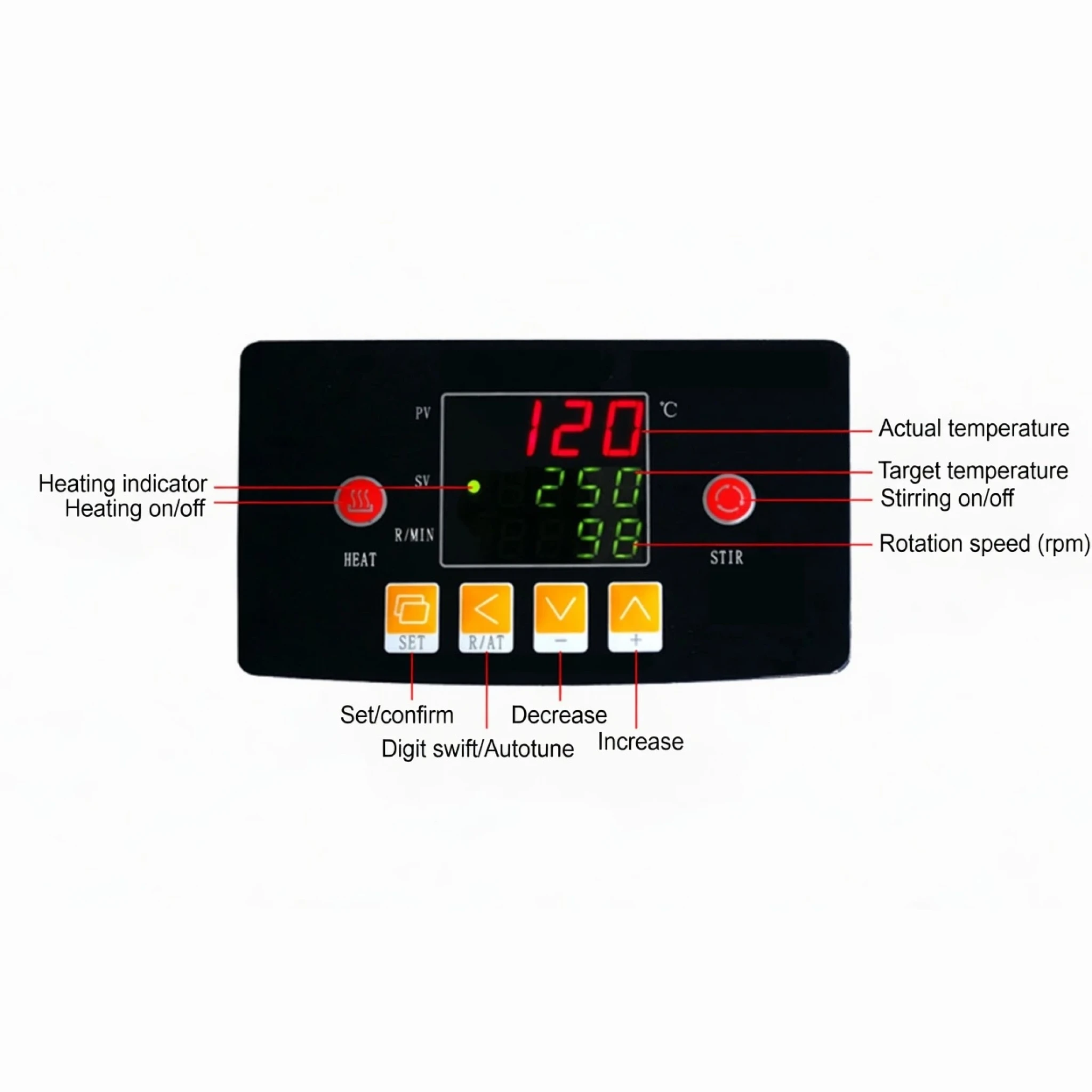

| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple | Type: PT100 Cable length: 35 inches Stainless steel probe length: 11 inches Stainless steel probe diameter: 5 mm |
| Dimensions (WxDxH) | Unit: 9 x 14.5 x 4.5 inches, shipping: 16 x 20 x 9 inches |
| Weight | Unit: 13 lbs, shipping: 25 lbs |
| Safety | Thermocouple failure protection Built-in fuse protection |

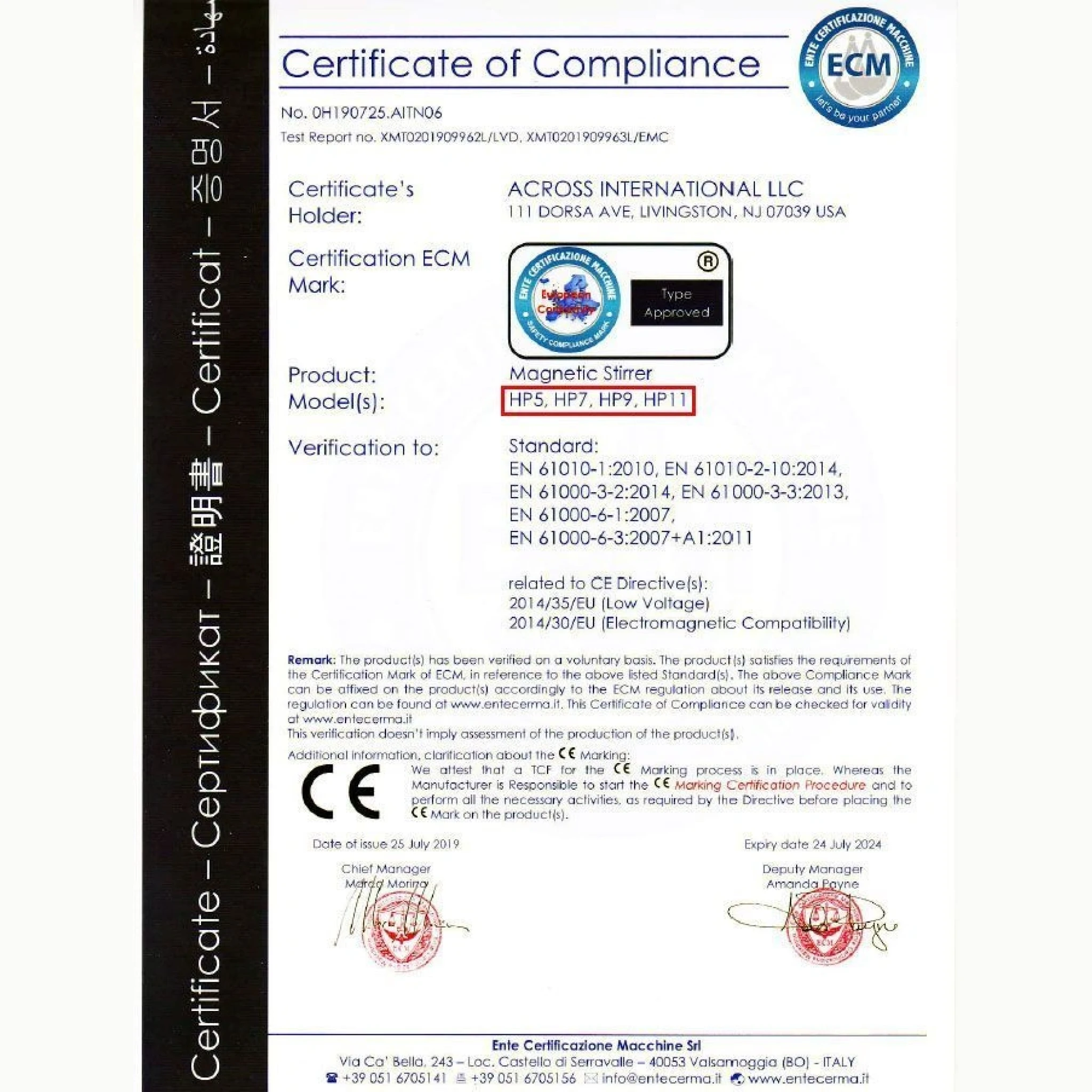

| Certification | ETL tested to UL and CSA standards (optional), CE (standard) |
| Warranty | One year |
Standard Package
| Ai HP9 digital heated magnetic stirrer | 1 set |
| External temperature probe | 1 pc |
| Internal temperature plug | 1 pc |
| Boss head | 1 pc |
| Stainless steel support rod (16 inches) | 1 pc |
| PTFE coated stir bar | 2 pcs |
| Magnetic stir bar remover, PTFE coated | 1 pc |
| 4 prong stainless steel clamp opens to 3 1/2" | 1 pc |
| Users manual | 1 pc |
