350C 2000RPM 1-Gallon PID Magnetic Stirrer with 7" Heated Plate
Reference:
Manufacturer: Across International
The Ai HP7 heats to 350°C on a 7" ceramic-coated aluminum plate and stirs from 110 to 2000 rpm, for batches up to 1 gallon. PID control with digital temperature and speed displays, plus an external PT100 probe (11" stainless, 35" cable) for accurate fluid temperature. 110V, 450 W.
In stock
Customize your product
Payment Providers
The HP7 steps up to a 7 inch plate and stirs up to 1 gallon of liquid, a good middle size for common flasks and beakers. It is used to heat and mix solvent washes, dissolve solids and keep a sample at a set temperature during a process step.

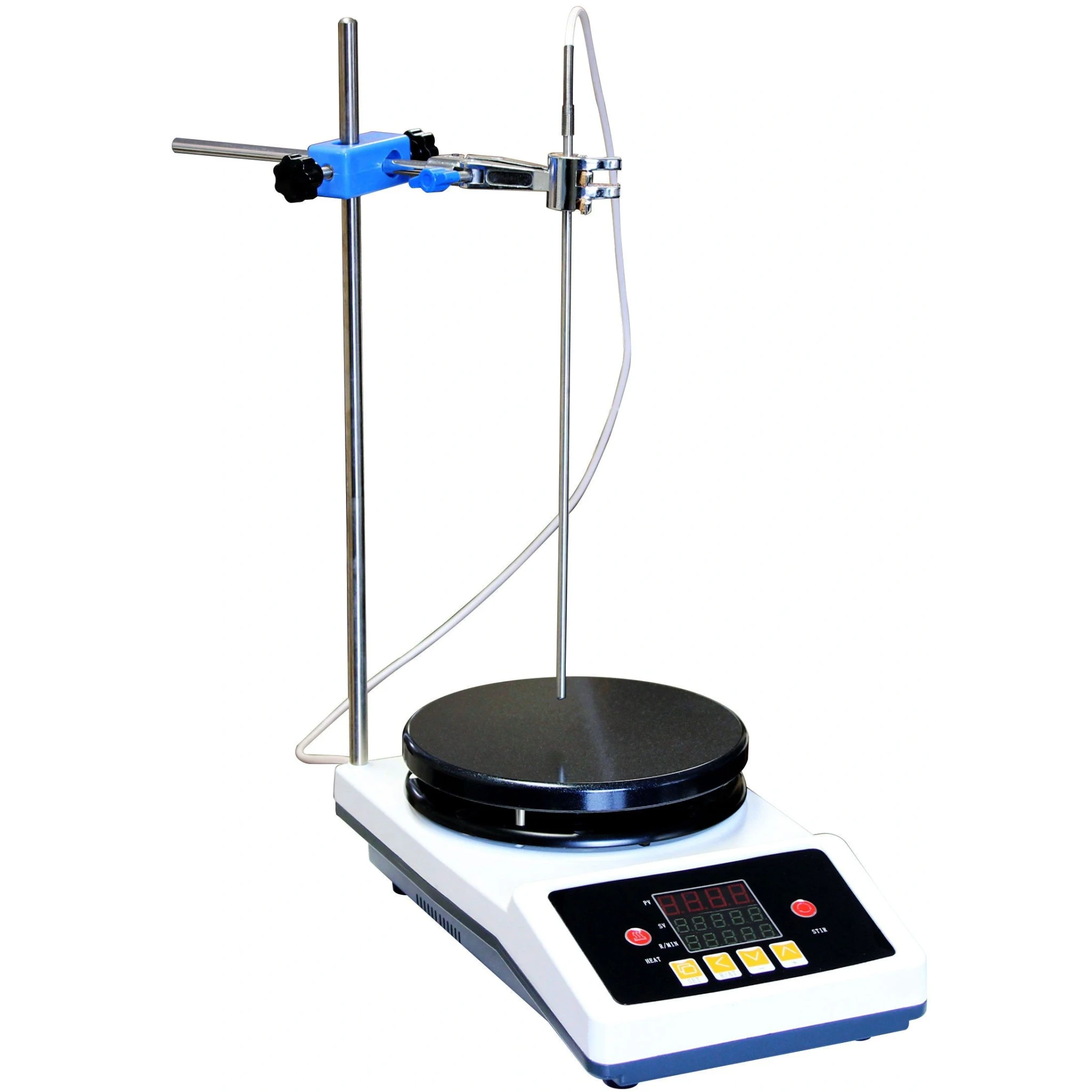

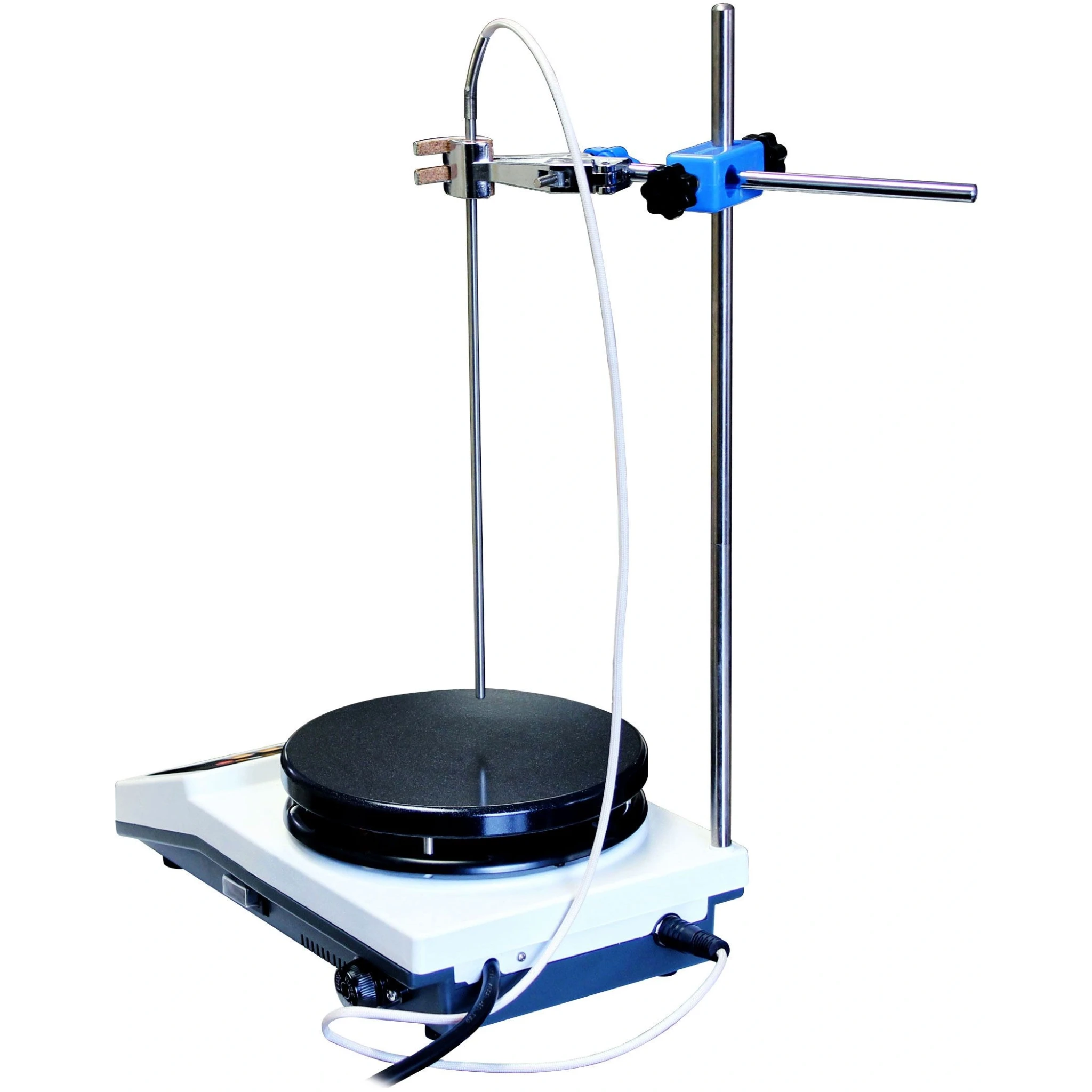

The ceramic coated aluminium plate reaches 350°C with PID control, and the brushless DC motor runs smoothly from 110 to 2000 rpm. The kit includes an external PT100 probe on a 35-inch cable with an 11-inch stainless tip, so the controller can regulate the temperature of the liquid itself rather than just the plate. A support rod, boss head and 4 prong clamp hold the probe or flask in place, and two PTFE stir bars and a bar remover are included.
Built-in fuse protection and thermocouple failure protection add a margin of safety while heating.
| Model | HP7 |
| Electrical requirements | 110V 60Hz 1-Phase, 450 watts |
| Temperature range | Ambient to 350°C |
| Heating plate | Diameter: 7 inches Material: ceramic coated aluminum |
| Stirring | Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brush-less DC motor Max. stirring volume: 1 gallon (3.8 liters, water as media) |

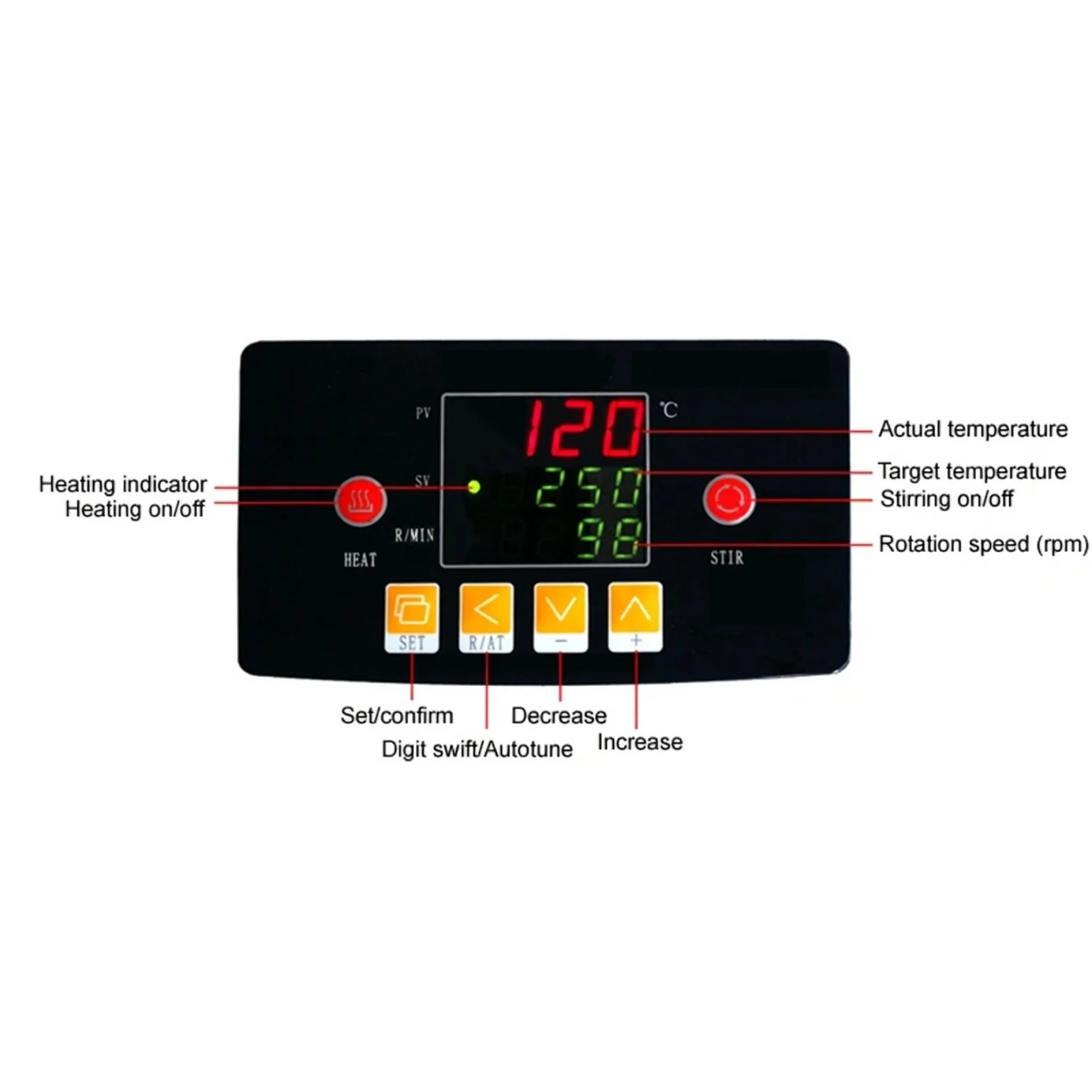

| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple | Type: PT100 Cable length: 35 inches Stainless steel probe length: 11 inches Stainless steel probe diameter: 5 mm |
| Dimensions (WxDxH) | Unit: 7 x 12.5 x 4.5 inches, shipping: 10 x 16 x 9 inches |
| Weight | Unit: 10 lbs, shipping: 20 lbs |
| Safety | Thermocouple failure protection Built-in fuse protection |

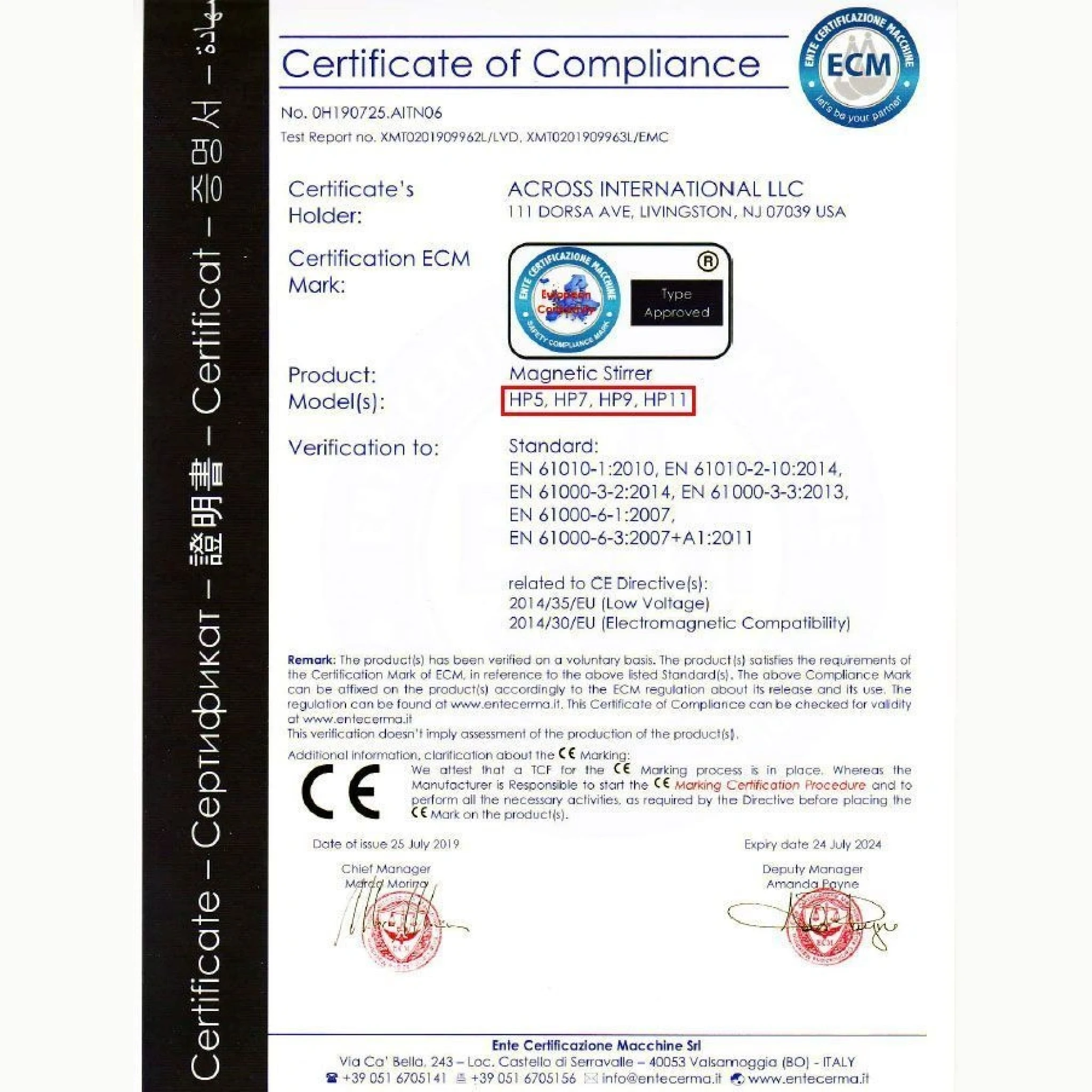

| Certification | ETL tested to UL and CSA standards (optional), CE (standard) |
| Warranty | One year |
Standard Package
| Ai HP7 digital heated magnetic stirrer | 1 set |
| External temperature probe Cable Length: 35”, Probe Length 11” | 1 pc |
| Internal temperature plug | 1 pc |
| Boss head | 1 pc |
| Stainless steel support rod (16 inches) | 1 pc |
| PTFE coated stir bar | 2 pcs |
| PTFE coated magnetic stir bar remover | 1 pc |
| 4 prong stainless steel clamp opens to 3 1/2" | 1 pc |
| User's manual | 1 pc |
