USA Lab Hotplate Stirrer - 3L - TUV Certified
Reference: USA-H280-PRO
Manufacturer: USA Lab
USA Lab H280 LED Digital Hotplate Stirrer | 3L | 5" Ceramic-Coated Plate | 280°C Max The USA Lab H280 is a compact and economical hotplate stirrer designed for everyday laboratory heating and magnetic mixing applications below 280°C . LED digital displays…
In stock
Payment Providers
More info

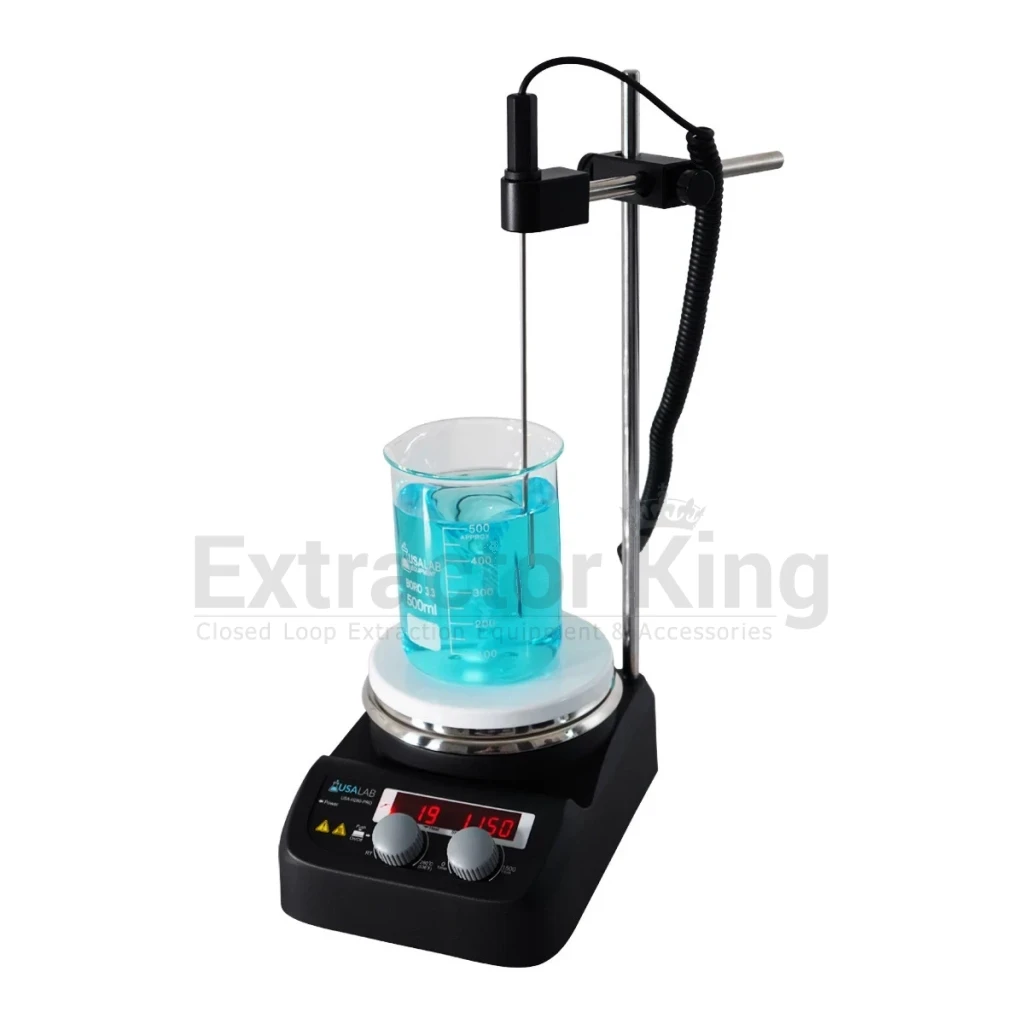

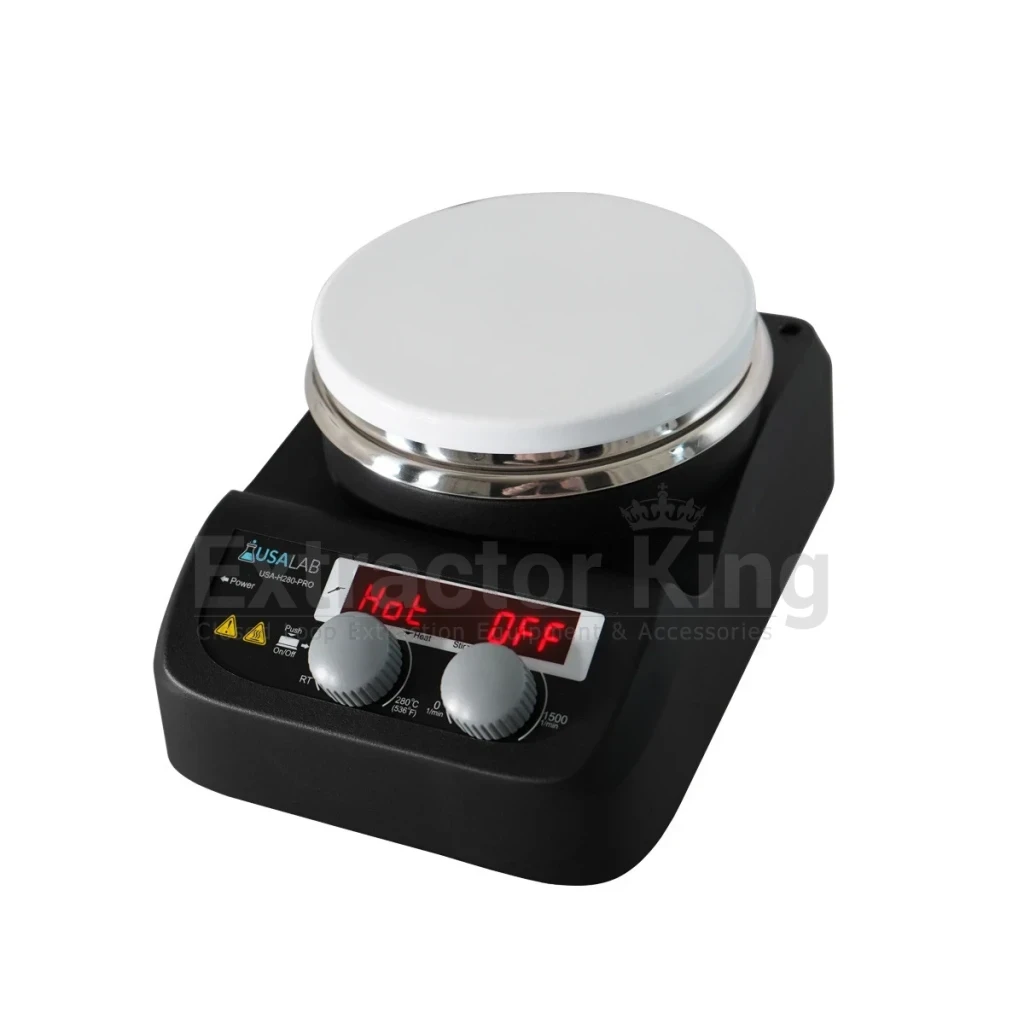

USA Lab H280 LED Digital Hotplate Stirrer | 3L | 5" Ceramic-Coated Plate | 280°C Max
The USA Lab H280 is a compact and economical hotplate stirrer designed for everyday laboratory heating and magnetic mixing applications below 280°C. LED digital displays provide convenient temperature and speed monitoring, while PID-style control delivers plate accuracy of ±1°C with optional PT1000 feedback for accuracy up to ±0.5°C.
The H280 features a durable 5" × 5" stainless-steel work plate with ceramic coating for chemical resistance and efficient heat transfer. Its maintenance-free brushless DC motor provides smooth, stable stirring from 200 to 1,500 rpm for volumes up to 3 L of H2O, making it suitable for teaching laboratories, QA/QC workflows, sample preparation, and routine bench chemistry.
Built-in safety features include 320°C over-temperature protection and a persistent "HOT" warning above 50°C, including after power-down. The USA Lab H280 is TÜV certified to UL standards for laboratory safety and compliance.
Why the USA Lab H280 Hotplate Stirrer?
- Everyday heating and mixing — combines controlled heating up to 280°C with magnetic stirring up to 1,500 RPM.
- Accurate digital control — LED displays provide convenient set and actual value monitoring with plate accuracy of ±1°C below 100°C.
- PT1000 external sensing — supports closed-loop temperature control with accuracy up to ±0.5°C when using the external sensor.
- Chemical-resistant work surface — 5" × 5" stainless-steel plate with ceramic coating provides durability and efficient heat transfer.
- Compact laboratory footprint — 150 × 260 × 80 mm dimensions help conserve valuable bench space while maintaining practical heating and mixing performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | USA Lab H280 |
| Product Type | LED Digital Hotplate Stirrer |
| Work Plate Dimensions | 135 × 135 mm | 5" × 5" |
| Work Plate Material | Stainless steel cover with ceramic coating |
| Motor Type | Brushless DC motor |
| Power Input | 515 W |
| Heating Output | 500 W |
| Voltage | 100–120 V, 60 Hz |
| Stirring Positions | 1 |
| Maximum Stirring Quantity | 3 L H2O |
| Maximum Magnetic Bar Length | 50 mm |
| Speed Range | 200–1,500 RPM | Resolution ±1 RPM |
| Display Type | LED |
| Heating Temperature Range | Ambient–280°C | Increment 1°C |
| Control Accuracy of Work Plate | ±1°C (<100°C) | ±1% (>100°C) |
| Over-Temperature Protection | 320°C |
| External Temperature Sensor | PT1000 | Accuracy ±0.5°C |
| HOT Warning | 50°C |
| Protection Class | IP21 |
FAQ
What is the maximum temperature of the USA Lab H280 Hotplate Stirrer?The USA Lab H280 Hotplate Stirrer provides a heating temperature range from ambient temperature up to 280°C, with 1°C temperature increments.
The USA Lab H280 provides adjustable magnetic stirring from 200 to 1,500 RPM and supports stirring quantities up to 3 L of H2O.
Yes. The USA Lab H280 supports a PT1000 external temperature sensor, providing temperature feedback with accuracy up to ±0.5°C.
The USA Lab H280 includes 320°C over-temperature protection and a persistent HOT warning at 50°C. The unit is also TÜV certified to UL standards for safety and compliance.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Brand | USA Lab |
| Work Plate Dimensions | 135 x 135mm | 5" x 5" |
| Max. Stirring Volume | 3L |
| Speed Range | 200 - 1500rpm |
| Voltage | 100 - 120V 60Hz |
| Dimension [W x D x H] | 150×260×80mm | 6 x 10.2 x 3.14 " |
| Warranty Term | 1 Year |
