USA Lab Hotplate Stirrer - 10x10
Reference: USA-10-H500-PRO
Manufacturer: USA Lab
USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer – 500°C, 30L The USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer is a technically advanced laboratory heating and mixing system with independent back-lit displays for heating and stirring. PID…
In stock
Payment Providers
More info

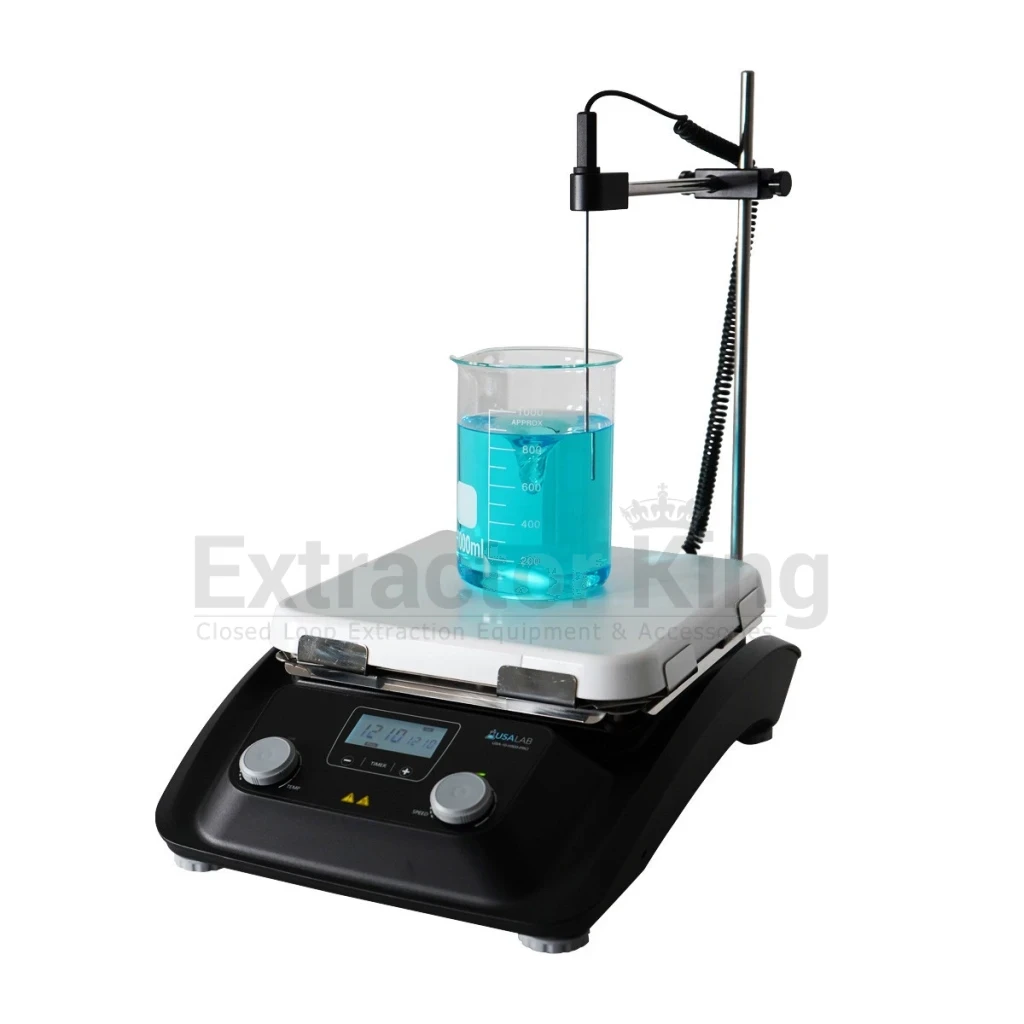

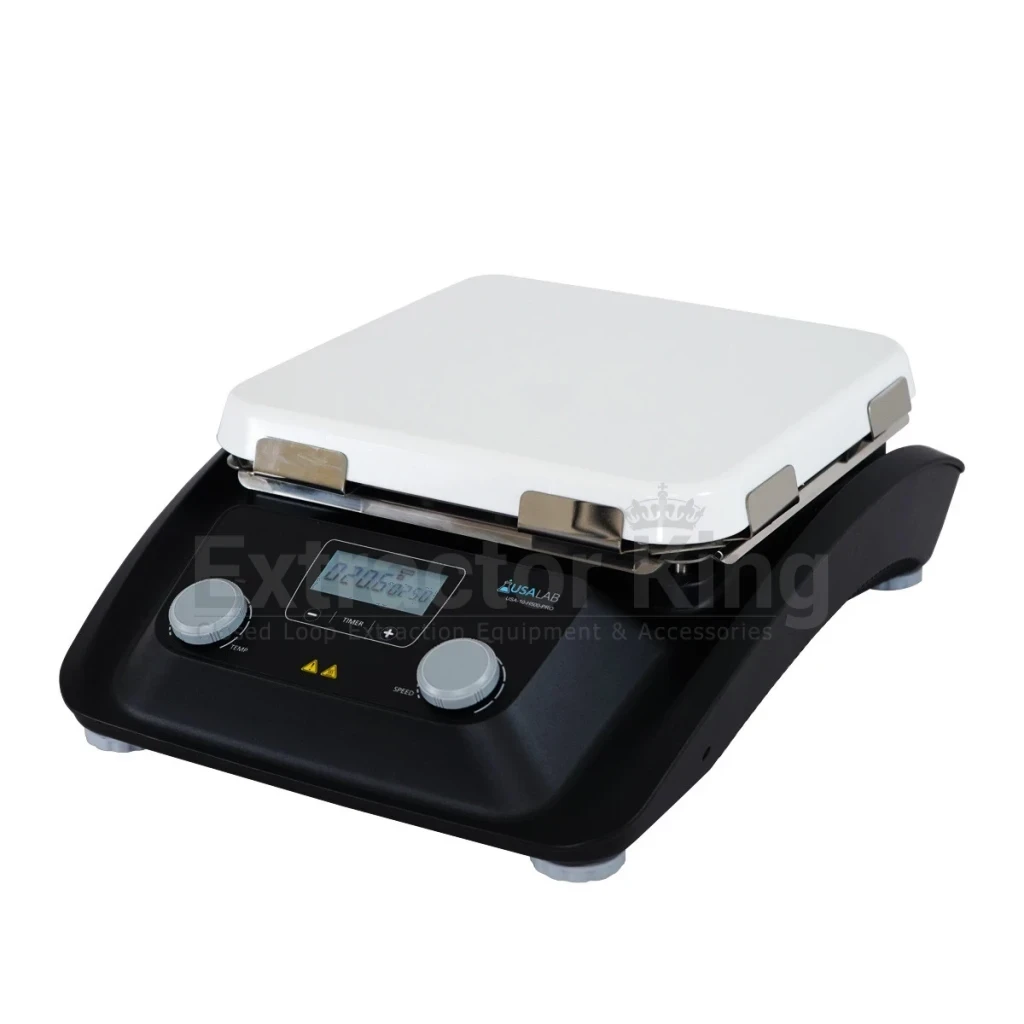

USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer – 500°C, 30L
The USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer is a technically advanced laboratory heating and mixing system with independent back-lit displays for heating and stirring. PID temperature control maintains stable setpoints to ±1 °C, while the long-life brushless DC motor provides smooth and reliable mixing.
A chemical-resistant 10" × 10" glass-ceramic work plate delivers fast, even heat transfer up to 500 °C. Digital stirring control provides speeds from 100 to 1500 rpm for mixing volumes up to 30 L of water, making the system suitable for a wide range of laboratory vessels and workflows.
The USA Lab 10x10 also supports an external PT1000 temperature sensor for up to ±0.2 °C accuracy at the sample and includes an SD card interface for runtime data recording. It is well suited for chemical synthesis, analytical workflows, biopharmaceutical laboratories, and other applications requiring precise, repeatable heating and stirring.
Why this USA Lab 10x10 Hotplate Stirrer?
- Independent LCD displays — provide clear readouts for heating temperature and stirring speed at a glance.
- Stable, repeatable heating — PID temperature control maintains setpoints to ±1 °C for consistent laboratory processes.
- High-temperature glass-ceramic plate — the 10" × 10" chemical-resistant surface provides rapid, uniform heating up to 500 °C.
- Powerful magnetic stirring — brushless DC motor operation supports mixing from 100 to 1500 rpm and volumes up to 30 L of water.
- Advanced monitoring and recording — PT1000 sensor support, programmable timer, and SD card data logging provide additional process control and traceability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer |
| Work Plate Dimensions | 254 × 254 mm (10" × 10") |
| Work Plate Material | Glass-Ceramic |
| Motor Type | Brushless DC Motor |
| Max Stirring Volume | 30 L (H2O) |
| Speed Range | 100–1500 rpm |
| Speed Resolution | ±1 rpm |
| Heating Temperature Range | Ambient–500 °C |
| Temperature Increment | 1 °C |
| Temperature Accuracy | ±1 °C (<100 °C), ±1% (>100 °C) |
| External Temperature Sensor | PT1000 |
| External Sensor Accuracy | ±0.2 °C |
| Timer Function | 1 min–99 h:59 min |
| Data Connector | SD Card, 32 GB C10 A1 U1 |
| Total Power | 1400 W |
| Heating Output | 1350 W |
| Voltage / Frequency | 100–120 V, 60 Hz |
| Dimensions (W × D × H) | 328 × 424 × 138 mm (13 × 16.7 × 5.4") |
| Weight | 7.18 kg (15.8 lb) |
FAQ
What is the temperature range of the USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer?The USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer heats from ambient temperature up to 500 °C, with 1 °C temperature increments and PID control for stable heating.
The USA Lab 10x10 supports stirring volumes up to 30 L of water and provides digital speed control from 100 to 1500 rpm with ±1 rpm resolution.
Yes. The USA Lab 10x10 LCD Digital Magnetic Hotplate Stirrer accepts an external PT1000 temperature sensor and can provide ±0.2 °C accuracy when using the external sensor.
Yes. The USA Lab 10x10 includes an SD card interface for runtime data recording and a programmable timer from 1 minute to 99 hours and 59 minutes.
All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.
Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.
Specifications
| Brand | USA Lab |
| Work Plate Dimension | 254x254mm | 10" x 10" |
| Max. Stirring Volume | 30L |
| Speed Range | 100-1500rpm |
| Voltage | 100V - 120V 60Hz |
| Dimension [W x D x H] | 328x424x138mm | 13x16.7x5.4" |
| Warranty Term | 1 Year |
