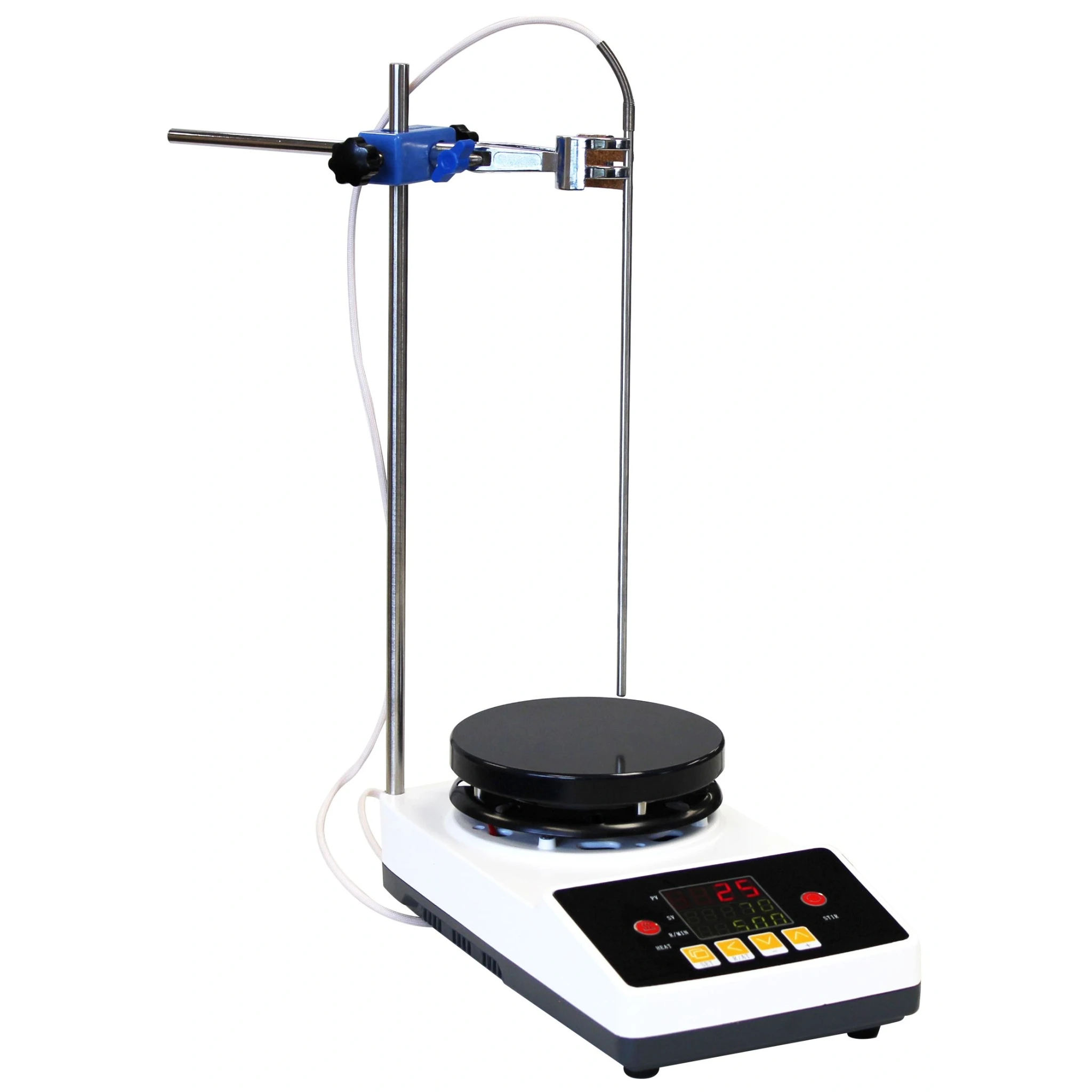

350C 2000RPM 0.8-Gallon PID Magnetic Stirrer 5.5" Heated Plate
Reference:
Manufacturer: Across International
The Ai HP5 heats to 350°C on a 5.5" ceramic-coated aluminum plate and stirs from 110 to 2000 rpm, for batches up to 0.8 gallon. PID control with digital temperature and speed displays, plus an external PT100 probe (11" stainless, 35" cable) for accurate fluid temperature. 110V, 450 W.
In stock
Customize your product
Payment Providers
The HP5 is a compact heated stirrer for small flasks and beakers, up to 0.8 gallon of liquid. In an extraction lab it is used to warm and mix solvent washes, dissolve solids and hold a sample at a steady temperature while it stirs.

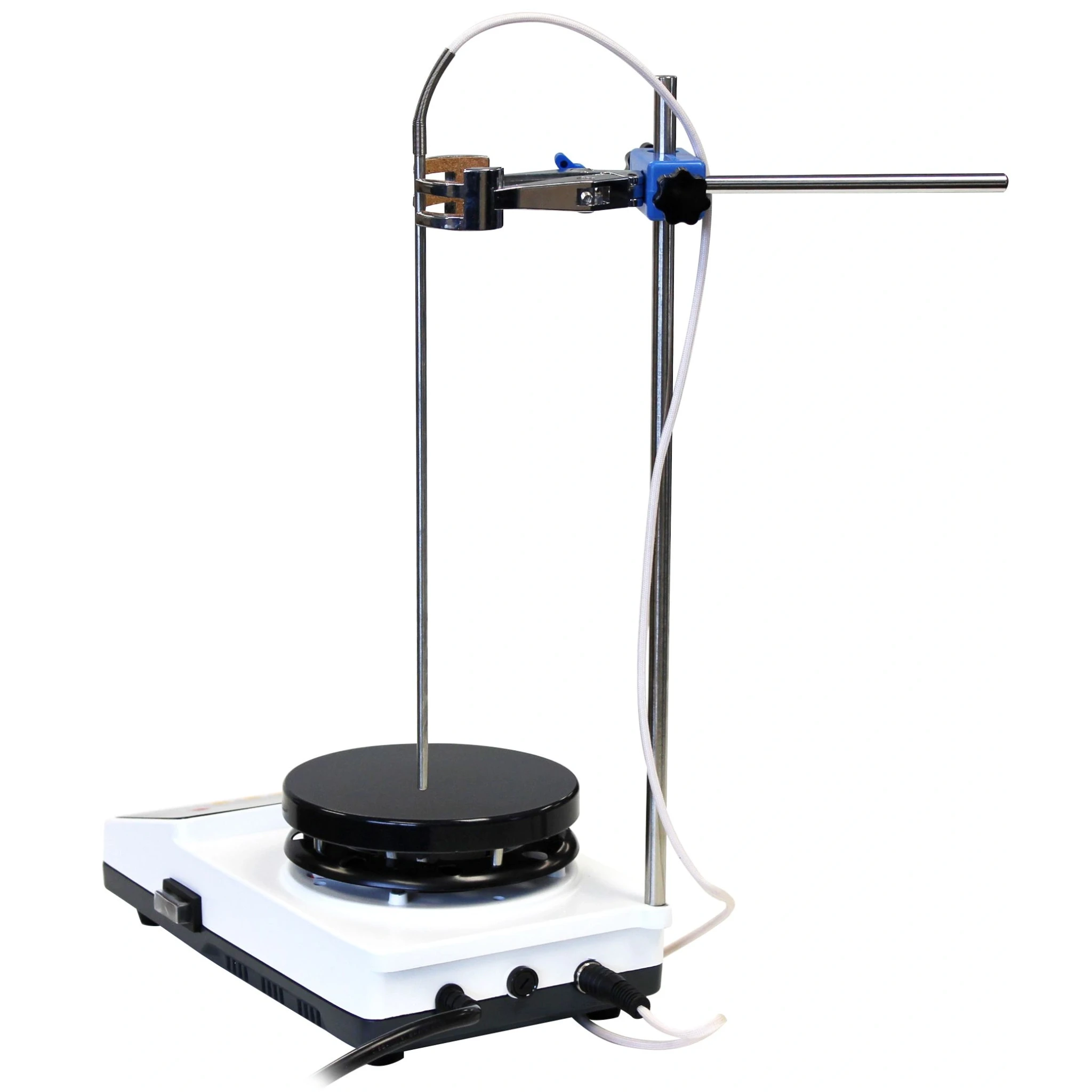

The 5.5 inch ceramic coated aluminium plate heats to 350°C under PID control, and a brushless DC motor turns from 110 to 2000 rpm with no brushes to wear out. The kit includes an external PT100 probe on a 35-inch cable with an 11-inch stainless tip, so the controller can regulate the temperature of the liquid itself rather than just the plate. A support rod, boss head and 4 prong clamp hold the probe or flask in place, and two PTFE stir bars and a bar remover are included.
Thermocouple failure protection and a built-in fuse guard against runaway heating.
| Model | HP5 |
| Electrical requirements | 110V 60Hz 1-Phase, 450 watts |
| Temperature range | Ambient to 350°C |
| Heating plate | Diameter: 5.5 inches Material: ceramic coated aluminum |
| Stirring | Min. speed: 110 rpm, max. speed: 2000 rpm Motor power: 40 watts Motor type: brush-less DC motor Max. stirring volume: 0.8 gallon (3 liters, water as media) |

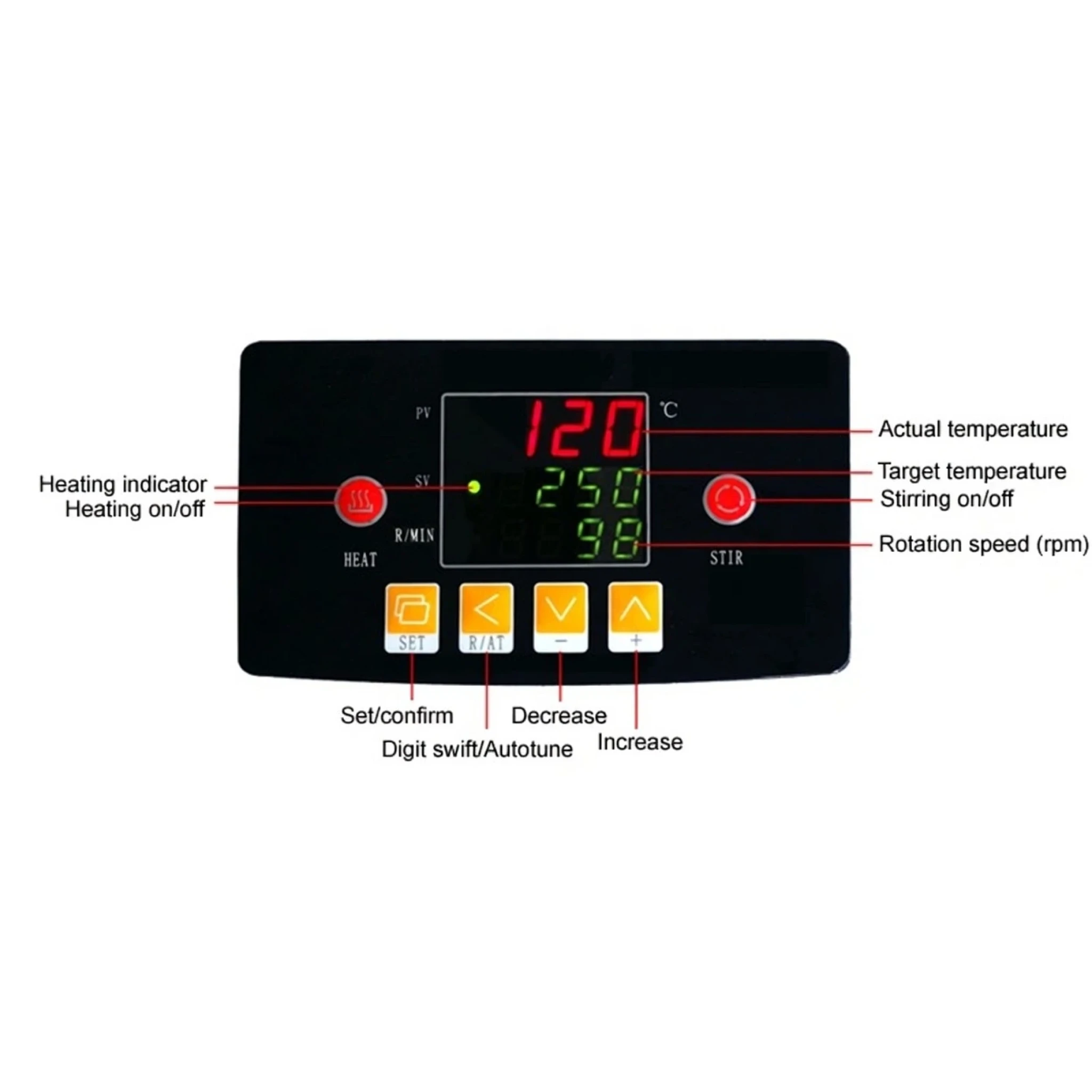

| Controller | PID control with digital temperature and rotation speed display |
| External thermocouple | Type: PT100 Cable length: 35 inches Stainless steel probe length: 11 inches Stainless steel probe diameter: 5 mm |
| Dimensions (WxDxH) | Unit: 6.5 x 12 x 4.25 inches, shipping: 16 x 9.5 x 7.5 inches |
| Weight | Unit: 9 lbs, shipping: 18 lbs |
| Safety | Thermocouple failure protection Built-in fuse protection |

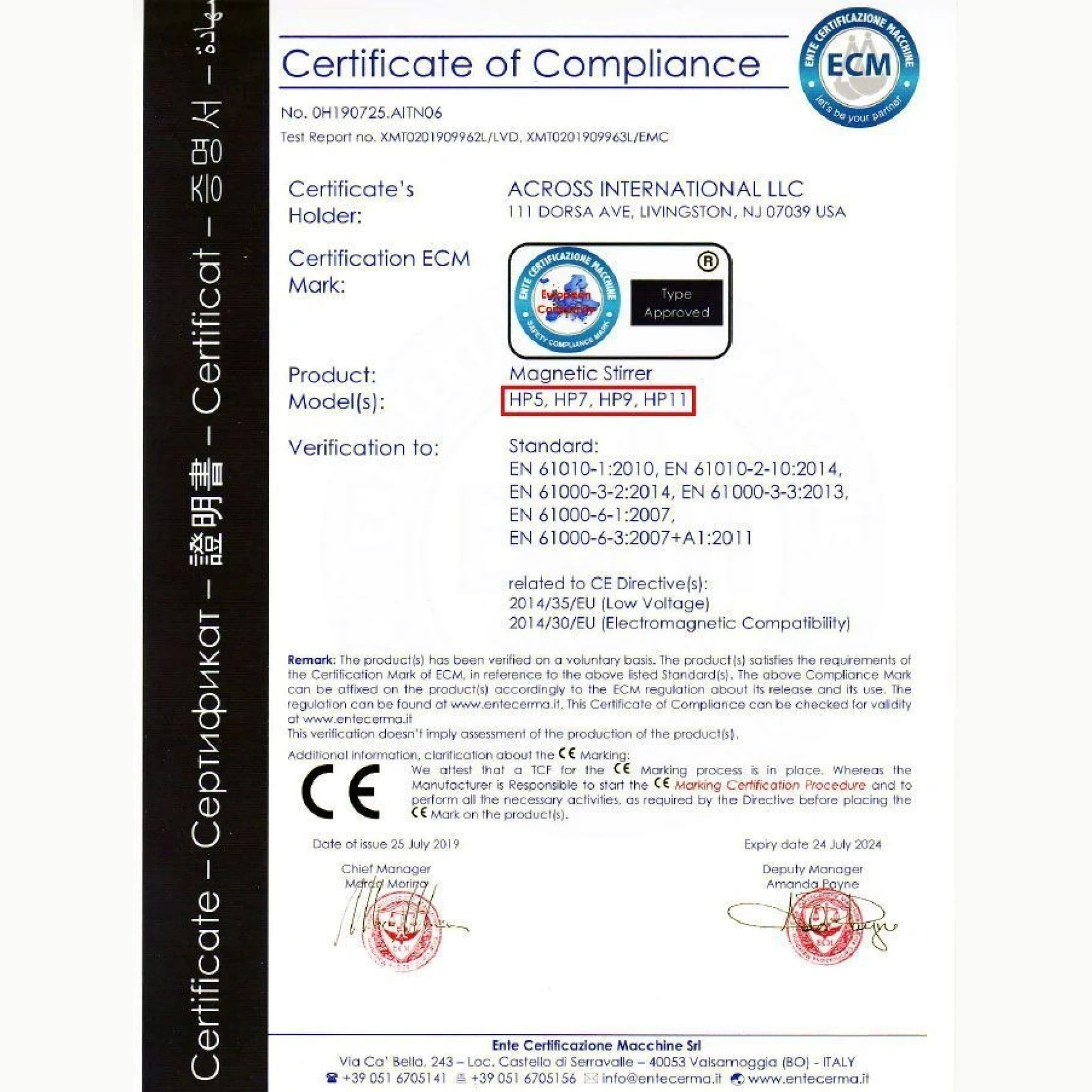

| Certification | ETL tested to UL and CSA standards (optional), CE (standard) |
| Warranty | One year |
Standard Package
| Ai HP5 digital heated magnetic stirrer | 1 set |
External temperature probe | 1 pc |
| Internal temperature plug | 1 pc |
| Boss head | 1 pc |
| Stainless steel support rod (16 inches) | 1 pc |
| PTFE coated stir bar | 2 pcs |
| PTFE coated magnetic stir bar remover | 1 pc |
| 4 prong stainless steel clamp opens to 3 1/2" | 1 pc |
| User's manual | 1 pc |
